MAN Diesel & Turbo MPC-10 1882134-4
MAN B&W
Refurbished
The MAN Diesel & Turbo MPC-10, part number 1882134-4, is a compact Multi Purpose Controller used within electronic control systems of MAN B&W electronically controlled two-stroke marine diesel engines.
MAN training documentation identifies the MPC-10 specifically as a controller used for Cylinder Control Unit (CCU) applications. The CCU performs important cylinder-related control and supervision functions within the engine control architecture.

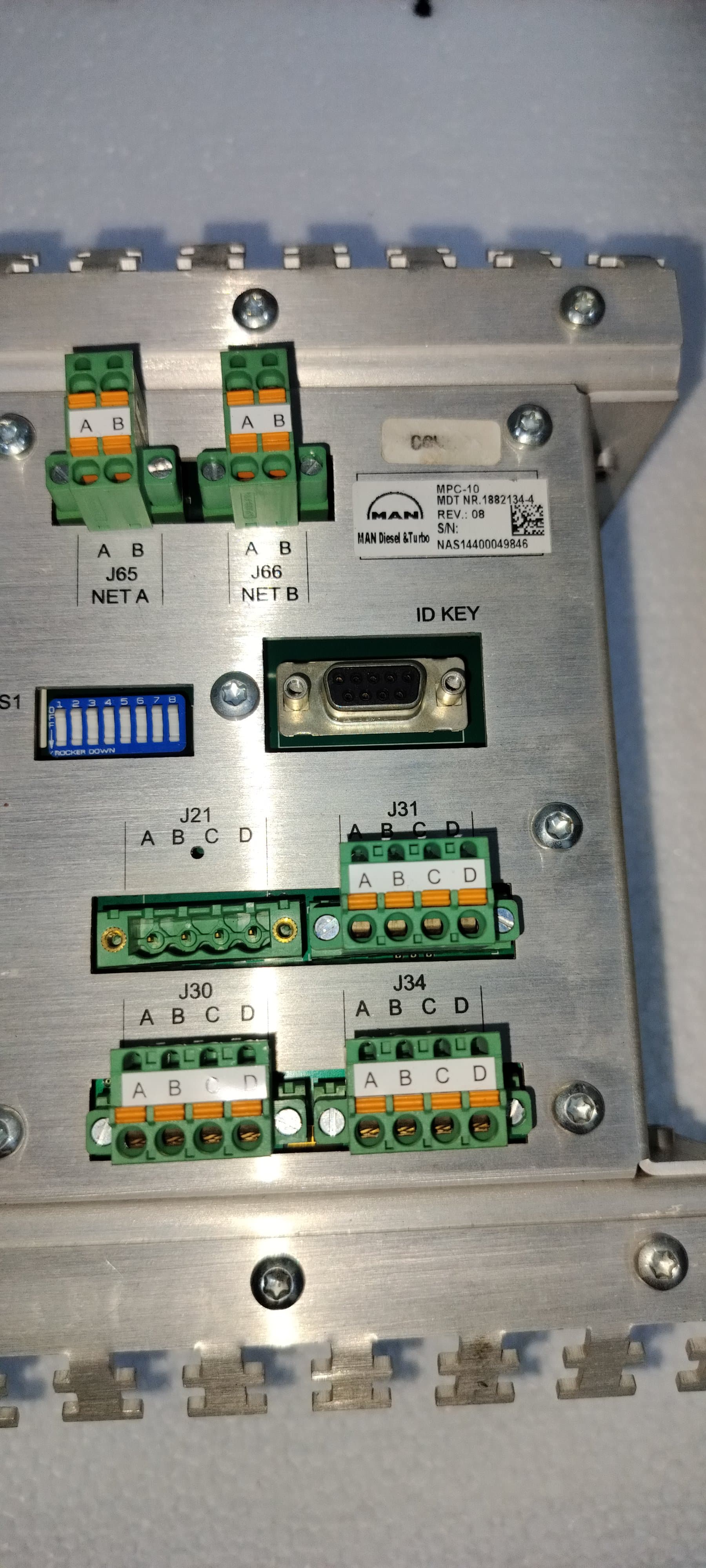

The photographed unit is clearly marked:
Manufacturer: MAN Diesel & Turbo
Model: MPC-10
MDT Part Number: 1882134-4
Revision: 08
Product Type: Multi Purpose Controller / Cylinder Control Unit Hardware
Application: MAN B&W ME / ME-B Marine Engine Control System
Country / Manufacturer Group: MAN Diesel & Turbo / MAN Energy Solutions
The MPC-10 is a more compact version of MAN's Multi Purpose Controller hardware.
MAN training material distinguishes the two controllers as follows:
MPC-10: approximately 310 × 135 × 98 mm, around 2.5 kg, compact/sheltered electronics, and intended for CCU applications.
Standard MPC: larger hardware with more external connections and used for a wider range of control-unit functions.
In MAN ME and ME-B engine-control architecture, control units can include:
EICU – Engine Interface Control Unit
ECU – Engine Control Unit
CCU – Cylinder Control Unit
ACU – Auxiliary Control Unit
SCU – Scavenging Air Control Unit
For relevant configurations, the MPC-10 is used as the CCU controller hardware.
Within the CCU application, MAN documentation describes cylinder-specific duties including supervision and control of functions associated with:
The exact software configuration depends on engine type and installation. The MPC-10 should therefore never be treated as a generic plug-and-play PLC.

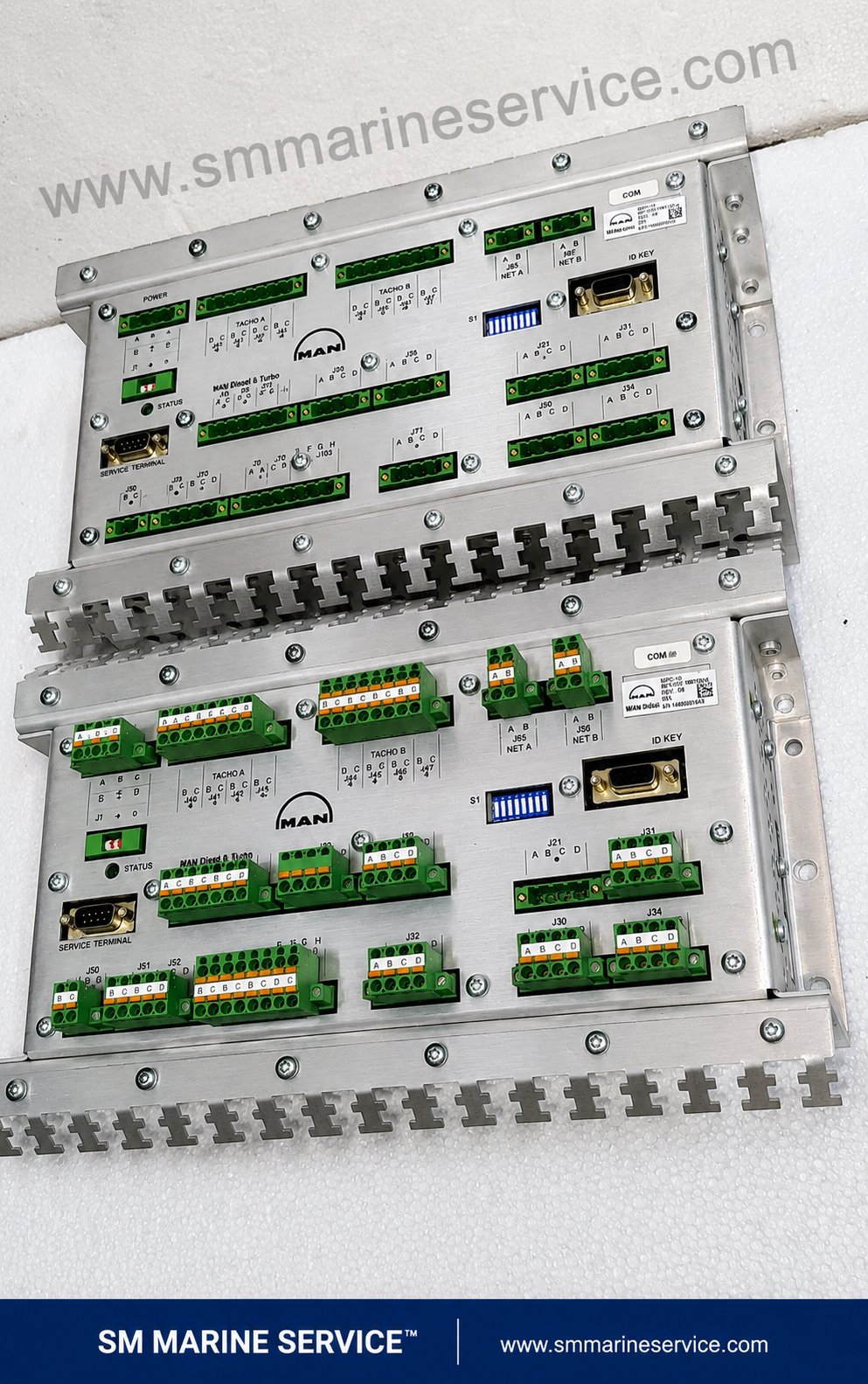

The photographs and MAN technical material show several important interfaces on the MPC-10:
POWER Input
F1 Fuse
STATUS LED
SERVICE TERMINAL
TACHO A
TACHO B
NET A
NET B
ID KEY
S1 DIP Switch Bank
Multiple J-series Input / Output Connections
The dual NET A/NET B terminals form part of the engine-control communication arrangement, while the tacho inputs provide speed/position-related signals depending on system configuration.
The Status LED is also used diagnostically. MAN training material notes that flashing LED sequences can provide coded controller information.
The exact part number is particularly important with this product.
MAN Energy Solutions service documentation explicitly lists:
1882134-4 / MPC-10
across multiple serial-numbered controllers.
An earlier MAN service letter also identified MPC-10 1882134-4 and stated that MAN had terminated its former reconditioning program for MPC and MPC-10 controllers. This makes correct sourcing of legacy and replacement units particularly important for vessels still operating these systems.
MAN MPC-10 controllers are found within electronic main-engine control installations on vessels powered by applicable MAN B&W ME-family engines.
Typical vessel categories can include:
Container Ships • Bulk Carriers • Oil Tankers • Chemical Tankers • LNG/LPG Carriers • General Cargo Ships • Car Carriers • Offshore Vessels • Large Merchant Vessels
The actual controller must always be matched to the specific engine and ECS configuration.
Check:
Do not replace the controller before verifying the external supply circuit.
A flashing status LED can indicate controller diagnostic information. MAN documentation describes coded LED sequences, so the flash pattern should be recorded before resetting or replacing the controller.
Check:
A network fault elsewhere in the ECS can sometimes appear as a controller fault.
Inspect crankshaft-position/tacho sensors, cabling, terminal connections and applicable engine-control diagnostics.
Because MPC-10 hardware may operate as the CCU, an apparent CCU fault can involve the controller itself or associated:
ELFI components • Hydraulic Cylinder Unit • Sensors • Wiring • Communication • Power Supply • External actuator circuits
Diagnosis should therefore consider the complete cylinder-control system.
A physically identical MPC-10 may still require the correct configuration, ID key and engine-specific setup.
This is extremely important: do not swap controllers only because the casing and part number appear similar without following MAN replacement procedures.
For reliable operation:
MAN's engine-control training material emphasizes that different MPC units can use common hardware while their software/configuration defines the specific control function.
SM MARINE SERVICE™ can support sourcing of:
MAN MPC-10 Complete Controller • MDT 1882134-4 • MPC-10 CCU • Multi Purpose Controller • ID Key • Controller Connectors • Terminal Blocks • Engine-Control PCB • Network Components • Tacho Interface Components • Complete Replacement Controller • Related MAN ME / ME-B Engine Automation Parts
Depending on availability:
New • Used • Tested Working • Refurbished • Reconditioned
For replacement enquiries, send:
Engine Model + MPC-10 Part Number + Revision + Serial Number + Existing ID Key Information + Alarm/Fault Details + Required Quantity
A controller should be matched by more than appearance alone.
Customers maintaining MAN engine-control systems frequently also maintain vessel-wide automation and I/O systems.
Kongsberg Norcontrol dPSC / RAI-16 / RDI-32 Marine Automation I/O Modules
This creates a useful internal connection between main-engine electronic control and ship automation I/O systems.
Main engine automation and electrical power-generation systems are both critical to ship operation.
Taiyo Electric ASC-32-424 Automatic Voltage Regulator – Marine Generator AVR
This page covers a marine generator AVR used for voltage-regulation applications.
For generator monitoring, protection and control:
DEIF Generator Protection Controller GPC / DU-2 MKIII – Marine Generator Systems
The internal link connects engine-control buyers with related generator automation and protection equipment.
For Kongsberg K-Chief / DataChief automation:
Kongsberg MCU iC600 Main Computer Unit – Marine Automation Computer
This supports internal linking across main engine control, ship automation computers and monitoring systems.
NOR Control MCU 8625 Main Computer Unit – Kongsberg Norcontrol Marine Automation Computer
Older Norcontrol equipment remains important on many vessels where complete system modernization is not economically practical.
Aalborg MISSION™ Boiler Control Panel – Aalborg Industries Marine Boiler Controller
This link expands the automation cluster into marine boiler control and machinery automation.
Consilium CS3004 Marine Fire Alarm Control Panel – Salwico CS3000 Fire Detection System
This connects the page to another important category of shipboard electronic safety and control equipment.
A main-engine controller is not simply another electronic card.
On an electronically controlled MAN B&W engine, the ECS hardware is integrated into fuel-injection, cylinder-control and engine-safety functions.
Type-approval documentation for MAN ME and ME-B systems specifically lists the MPC-10 as part of the Cylinder Control Unit architecture.
For an operating vessel, sourcing the correct MPC-10 replacement can therefore be significantly easier and less disruptive than redesigning an established main-engine control installation.
The MPC-10 is a compact MAN Multi Purpose Controller used in relevant electronic MAN B&W engine-control systems, particularly for Cylinder Control Unit applications.
The photographed units show MDT NR. 1882134-4.
CCU means Cylinder Control Unit. It performs cylinder-specific control and supervision functions within the MAN electronic engine-control system.
No. They belong to the same controller concept but differ in physical size, number of external connections and permitted applications. MAN training material states that the MPC-10 is the compact controller used specifically for CCU applications.
Replacement must be verified against the engine installation, revision, ID key and configuration requirements. Physical similarity alone is not sufficient.
They are network interfaces associated with communication within the engine-control system.
They are tachometer/speed-signal interfaces used in the control architecture.
Yes. Many operational MAN B&W electronically controlled engines still use MPC/MPC-10 architecture, and MAN service documentation continues to identify 1882134-4 MPC-10 units.
SM MARINE SERVICE™ supports sourcing of MAN marine automation equipment, tested controller modules and related engine-control spare parts for worldwide customers, subject to availability.
The MAN Diesel & Turbo MPC-10 MDT 1882134-4 is a compact Multi Purpose Controller used primarily as a Cylinder Control Unit (CCU) in applicable MAN B&W ME and ME-B electronic marine diesel engine control systems. It provides engine-control I/O, dual network communication, tacho interfaces, service access and ID-key functionality. SM MARINE SERVICE™ supports worldwide sourcing of MPC-10 controllers and related MAN marine engine automation spare parts in new, used, tested, refurbished and reconditioned condition, subject to availability.
MAN Energy Solutions service documentation contains the exact 1882134-4 / MPC-10 designation and serial-number references.
MAN Energy Solutions MPC Service Letter PDF
MAN training material describes the MPC-10 hardware, its role as a CCU controller, service terminal, network connections, ID key, tacho inputs, DIP switches and diagnostic LED operation.
