Taiyo Electric ASC-32-424 Automatic Voltage Regulator (AVR) for Marine Generator Systems

Manufacturer: Taiyo Electric Co., Ltd.
Country of Origin: Japan
Product Type: Automatic Voltage Regulator (AVR) for Marine Generator / Alternator Excitation Control
Marine Application: Generator voltage regulation, alternator excitation control, load sharing support, and stable electrical power generation on ships

---

Product Introduction

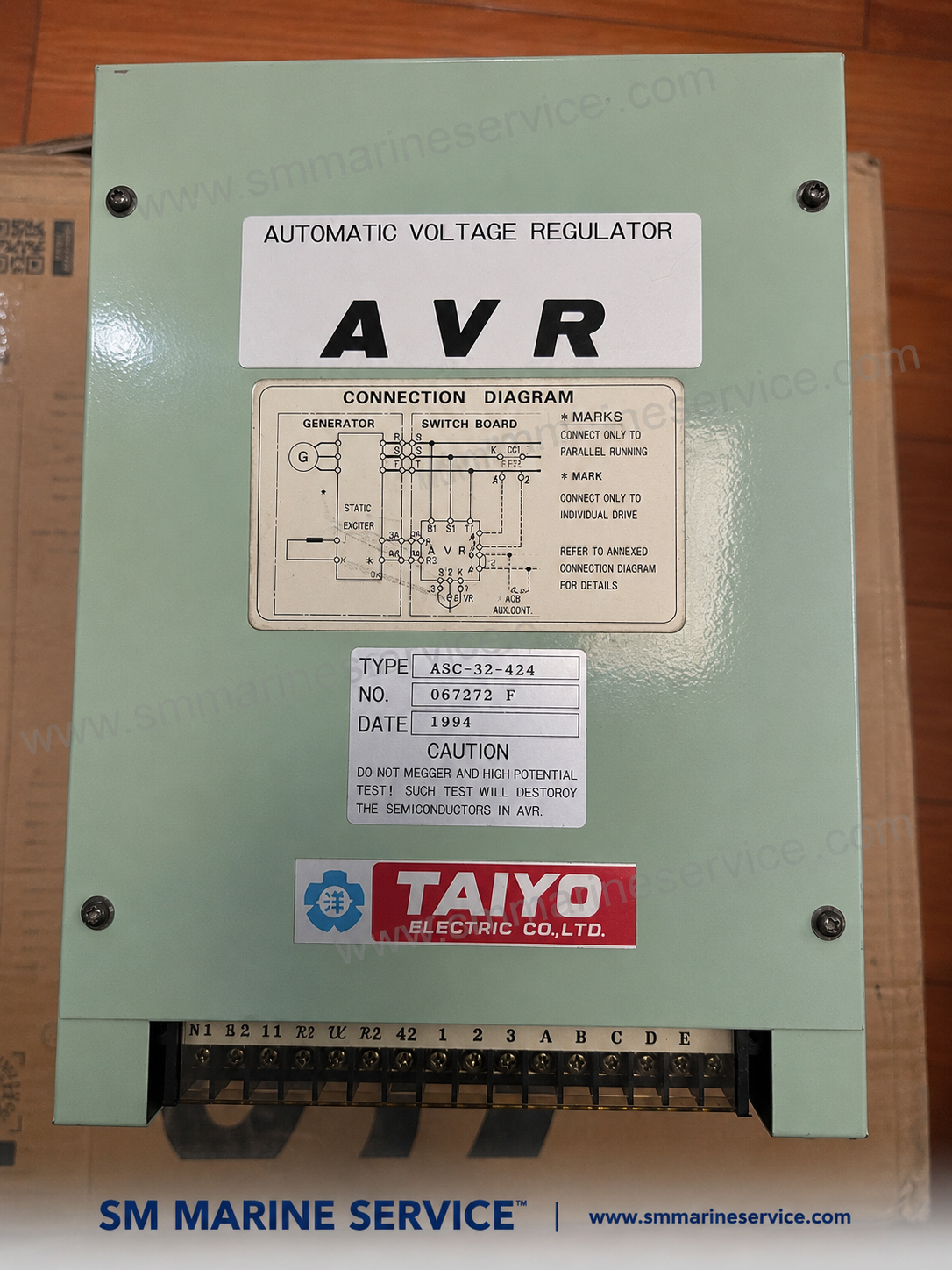

The equipment shown in your image is a Taiyo Electric Automatic Voltage Regulator (AVR), Type ASC-32-424, manufactured by Taiyo Electric Co., Ltd., Japan. This AVR is used in marine generator systems to control alternator output voltage by regulating the excitation current of the generator exciter circuit. In simple terms, it is one of the most important electrical control devices in a ship’s generator system because it helps maintain a stable generator voltage when the electrical load changes.

On ships, generators are constantly exposed to changing load conditions. Starting a motor, switching on cargo pumps, operating bow thrusters, energizing compressors, or connecting additional hotel load can all cause the generator voltage to rise or fall. Without a healthy AVR, the generator cannot maintain stable output voltage, which can result in voltage fluctuation, poor load sharing, over-excitation, under-voltage alarms, or even generator trips.

The Taiyo ASC-32 series AVRs are commonly associated with Taiyo marine alternators and generator excitation systems, and are widely seen on older Japanese-built vessels and ships equipped with Taiyo electrical machinery. The front plate on your unit clearly identifies it as an Automatic Voltage Regulator, and the connection diagram also shows its relationship with the generator, switchboard, static exciter, AVR, and auxiliary control wiring. That confirms its role as a core voltage-control component in the ship’s power generation system.

For chief engineers, ETOs, ship managers, and marine spare-parts buyers, the AVR is a very important spare because when it fails, the generator may become unstable, unable to build up voltage properly, or unsafe to run in parallel with other generators.

---

What Is This Equipment?

The Taiyo ASC-32-424 AVR is a generator automatic voltage regulator used to maintain the output voltage of a marine alternator at its set value. It does this by monitoring the generator voltage and adjusting the excitation current supplied to the exciter / field circuit.

Basic working principle

A generator AVR normally performs the following tasks:

• senses generator terminal voltage
• compares actual voltage with the set value
• increases or decreases excitation current to the exciter / rotor field
• stabilizes generator voltage during load changes
• supports proper operation during single-generator or parallel running conditions
• helps maintain reactive load balance when generators operate together

The connection diagram on the front of the unit is especially important because it shows that this AVR is designed to work with:

• generator sensing lines
• switchboard connections
• static exciter circuit
• parallel running / cross-current or droop related connections
• individual drive / auxiliary control related terminals

This means the AVR is not just a simple voltage trimmer. It is part of the complete generator excitation and load-sharing arrangement of the ship.

A replacement guide for the Taiyo ASC-32 series states that the unit is a 1:1 replacement for the original Taiyo ASC-32-4Z4 type in terms of mounting and connections, and includes installation and wiring information for the Taiyo ASC-32 family.

A technical guide for compatible Taiyo-type AVRs also explains the operating concept clearly: the regulator is used in a compound generator arrangement and its purpose is to shunt excess excitation current in order to maintain rated voltage.

---

Main Features of the Taiyo ASC-32-424 AVR

1) Automatic Generator Voltage Regulation

The AVR continuously adjusts excitation current so the alternator output voltage stays close to its set value despite changing load.

2) Suitable for Marine Generator Excitation Systems

This type of AVR is intended for shipboard generator systems, especially older Taiyo generator installations and Japanese marine electrical systems.

3) Parallel Running Support

The connection diagram printed on the front indicates that the unit has provisions related to parallel running and individual drive operation. This is important for vessels operating multiple generators on a common switchboard.

4) Static Exciter Integration

The diagram also references the static exciter, showing that the AVR is part of the excitation-control loop rather than an isolated stand-alone device.

5) Compact Enclosed Metal Cabinet Design

The AVR is housed in a robust enclosure with front-access terminals, suitable for mounting in marine electrical cabinets or generator control panels.

6) Terminal-Based Wiring for Marine Service

The bottom terminal strip allows ship electricians and service engineers to connect sensing, excitation, auxiliary, and control wiring in an organized way.

7) Proven Long-Service Marine Equipment

Your unit is dated 1994, which reflects the fact that Taiyo AVRs have been used on marine generators for many years and remain in service on older vessels.

8) Critical Role in Generator Stability

A healthy AVR helps prevent:

• unstable generator voltage
• excessive over-voltage or under-voltage
• poor reactive load sharing in parallel operation
• generator trip during sudden load changes
• damage risk to sensitive shipboard electrical equipment

---

Main Components

Although the unit in your image is a closed enclosure and the internal PCB is not visible, the front plate and known AVR architecture allow us to identify the main functional sections.

1) Voltage Sensing Circuit

The AVR receives generator voltage feedback from the alternator output / sensing lines. This sensing circuit tells the AVR whether generator voltage is too low or too high.

2) Reference and Adjustment Circuit

Inside the AVR, there is a reference section that defines the target output voltage. The AVR compares the actual sensed voltage against this target and determines how much excitation correction is required.

3) Excitation Control / Power Electronics Section

This is the core of the AVR. It controls the excitation current going to the exciter or field circuit. In practical operation, this section increases excitation when voltage drops and reduces excitation when voltage rises.

4) Stability / Compensation Circuit

Marine AVRs often include stability compensation so the generator does not oscillate or hunt when the load changes suddenly.

5) Parallel Running / Droop / Cross-Current Compensation Circuit

Because the front diagram refers to parallel running, the AVR is likely integrated with a droop or reactive load-sharing arrangement. This allows multiple generators to share reactive load more properly when connected to the same switchboard.

6) Terminal Block

The terminal strip at the bottom is used for field wiring. The markings visible on your unit include:
N1, B2, 11, R2, U, R2, 42, 1, 2, 3, A, B, C, D, E
These are important for identifying sensing, exciter, auxiliary, and control connections during troubleshooting or replacement.

7) Protection / Semiconductor Circuitry

The caution plate on the front is very important:

Do not megger and high potential test. Such test will destroy the semiconductors in AVR.

This confirms that the AVR contains semiconductor electronics that are vulnerable to improper insulation testing if not isolated correctly.

8) Enclosure and Connection Diagram Plate

The front plate provides the connection diagram, model number, serial number, and installation reference information that are essential during replacement or onboard troubleshooting.

For spare-parts supply, SM MARINE SERVICE™ strongly recommends keeping clear photos of:

• front nameplate
• terminal markings
• side / rear label if available
• generator maker and model
• alternator exciter details
• vessel switchboard drawing or AVR connection sheet

That helps ensure the correct replacement or repair solution.

---

Marine Applications

The Taiyo ASC-32-424 AVR is used in shipboard generator voltage control systems. Typical applications include:

Main Auxiliary Generator Sets

Used on diesel-generator alternators supplying the ship’s main switchboard for normal hotel load, machinery load, and general ship services.

Emergency or Harbour Generators

In some cases, similar AVR architecture may also be used on standby generator systems depending on the alternator arrangement.

Parallel Generator Operation

Where two or more generators run in parallel, the AVR helps maintain voltage and contributes to reactive load-sharing stability.

Generator Systems on Japanese-Built Vessels

Taiyo electrical equipment is commonly encountered on Japanese vessels, fishing vessels, cargo ships, tankers, and older merchant ships fitted with Japanese marine generator packages.

Marine Alternator Excitation Control Panels

The AVR may be mounted inside or near:

• generator control panel
• alternator terminal / excitation cabinet
• main switchboard auxiliary control section
• engine room electrical control cabinet

In all of these cases, the AVR is a key electrical control device rather than a passive spare part.

---

Common Problems & Troubleshooting

AVR problems often appear as “generator problems,” but the root cause can be electrical, excitation-related, wiring-related, or inside the AVR itself. Below are the most common fault patterns engineers see onboard.

1) Generator Output Voltage Too Low

Possible causes

• AVR not receiving proper sensing voltage
• failed AVR internal power / control circuit
• weak or faulty exciter field circuit
• open circuit in AVR output to exciter
• wrong terminal connection after maintenance
• faulty selector switch / external control in the AVR circuit

Checks

• verify generator residual voltage and excitation condition
• measure sensing voltage at AVR terminals
• inspect exciter field resistance and continuity
• check AVR output to the exciter according to approved wiring diagram
• inspect loose terminals and burnt wires

---

2) Generator Voltage Too High / Overvoltage

Possible causes

• AVR sensing circuit failure
• broken sensing line causing AVR to “think” voltage is low
• failed semiconductor / control stage inside AVR
• incorrect AVR setting or wrong replacement unit
• unstable external adjustment circuit

Checks

• compare actual generator terminal voltage with AVR sensing voltage
• inspect sensing fuse / wiring if fitted externally
• verify no terminal has loosened during vibration
• isolate whether the fault is continuous or only under load changes

---

3) Voltage Hunting / Unstable Voltage

Symptoms

• generator voltage rises and falls repeatedly
• lights flicker
• sensitive equipment alarms
• voltage meter unstable when load changes

Possible causes

• AVR stability circuit problem
• poor sensing connection
• intermittent exciter circuit
• worn carbon / rotating parts if related excitation equipment is fitted
• generator / exciter winding issue
• bad grounding or noise in sensing lines

Checks

• inspect AVR wiring tightness
• check generator excitation circuit condition
• confirm alternator is mechanically stable at rated speed
• inspect any external voltage adjuster or droop components
• compare behavior in no-load and loaded condition

---

4) Generator Cannot Take Parallel Load Properly

Symptoms

• reactive load sharing abnormal
• one generator carries too much kVAr
• voltage dips when synchronizing
• unstable behavior during parallel running

Possible causes

• droop / cross-current compensation wiring issue
• wrong CT / auxiliary connection in parallel-running circuit
• AVR mismatch between generators
• defective AVR compensation section
• switchboard auxiliary contact problem

Checks

• inspect parallel running / compensation wiring carefully
• compare settings with the healthy generator AVR
• confirm CT polarity and related auxiliary contacts
• verify that the AVR model is correct for the generator arrangement

---

5) No Voltage Build-Up After Generator Start

Possible causes

• loss of residual magnetism
• open exciter circuit
• AVR failure
• incorrect wiring after replacement
• blown fuse or disconnection in excitation path
• faulty static exciter component

Checks

• confirm generator speed and prime mover stability
• inspect exciter field circuit continuity
• verify AVR supply / sensing path
• compare with generator excitation schematic
• check whether flash / build-up procedure exists in the generator manual if approved by maker

---

6) AVR Burnt After Insulation Testing or Electrical Work

Possible causes

• megger / high-potential test performed without isolating AVR
• wrong testing procedure
• wiring error after overhaul
• surge or short circuit in exciter path

Important note

The warning on the front plate explicitly says do not megger or high-potential test the AVR because the semiconductors can be destroyed. This is a very common way older AVRs are accidentally damaged onboard.

---

7) Generator Voltage Good at No Load but Collapses Under Load

Possible causes

• weak excitation current
• faulty current transformer / droop related connection
• exciter saturation or winding issue
• AVR output stage unable to supply required excitation under load
• poor field connection heating up under current

Checks

• inspect exciter current under load
• compare loaded and unloaded AVR behavior
• check field circuit resistance and heating
• inspect all high-current terminals for discoloration or looseness

---

Maintenance Tips

1) Keep AVR Terminals Tight and Clean

Loose AVR terminals can cause:

• unstable sensing voltage
• intermittent excitation
• overheating
• nuisance trips during vibration

2) Never Megger the AVR Without Correct Isolation Procedure

This is one of the most important maintenance rules for this equipment. The caution label on the unit exists for a reason. Always isolate and follow the correct generator / maker testing procedure before insulation tests.

3) Inspect Generator Excitation Circuit Together with the AVR

An AVR fault is not always inside the AVR. The real problem may be:

• exciter winding damage
• field cable problem
• sensing circuit issue
• droop CT wiring problem
• auxiliary contact failure

4) Protect the AVR from Heat, Moisture, and Vibration

Although designed for marine use, ageing electronics are still vulnerable to:

• engine room heat
• moisture ingress
• cabinet condensation
• long-term vibration

5) Label Wiring Before Removal

Before disconnecting the AVR:

• photograph all terminals clearly
• mark each wire
• keep the original connection diagram with the spare
• record generator model and switchboard panel reference

6) Keep a Tested Spare if the Vessel Uses Older Taiyo Generators

For ships still operating older Taiyo generator systems, keeping a spare AVR or a repair-ready unit can significantly reduce downtime.

7) During Drydock, Inspect Voltage Regulation Performance

Check:

• no-load voltage
• loaded voltage
• parallel-running behavior
• response during motor starting
• abnormal heating or smell from the AVR cabinet

---

Why Ships Still Use This Equipment

Many vessels continue to use Taiyo ASC-series AVRs because the associated generators and alternators are still in service and remain operationally reliable. Replacing an entire generator control philosophy is expensive, while replacing or repairing an AVR is usually far more practical.

Ships still use this type of AVR because it provides:

Proven voltage control for existing generator systems

Older marine generators can continue operating reliably if the AVR remains healthy and properly matched.

Compatibility with existing switchboard and excitation arrangements

Changing to a completely different AVR may require major rewiring or redesign. Keeping the original Taiyo AVR type or a proper replacement is often the safest option.

Stable support for parallel generator operation

Where multiple generators share the ship load, the AVR remains essential for voltage control and reactive load balance.

Long service life and repairability

Many Taiyo AVRs stay in operation for decades, which is why used, refurbished, reconditioned, and replacement AVR units remain valuable spare parts in the marine market.

High demand in marine spare-parts sourcing

Even when the original maker unit is old, shipowners still search for:

• Taiyo AVR
• Taiyo ASC-32-424
• Taiyo ASC-32-4Z4
• Taiyo alternator voltage regulator
• marine generator excitation controller

That is why this type of equipment is still very relevant for technical procurement.

---

Frequently Asked Questions (FAQ)

1) What is the function of the Taiyo ASC-32-424 AVR?

It regulates generator output voltage by controlling the excitation current supplied to the generator exciter / field circuit.

2) Is this AVR used only for marine generators?

This model is primarily encountered in marine generator applications, especially on ships fitted with Taiyo generator systems and related Japanese marine electrical equipment.

3) What happens if the AVR fails?

Possible symptoms include:

• no voltage build-up
• overvoltage or undervoltage
• unstable voltage
• poor parallel load sharing
• generator trip or inability to synchronize properly

4) Can the Taiyo ASC-32-424 be repaired?

In many cases, yes. Depending on the fault, repairs may be possible for:

• semiconductor power stage
• sensing circuit damage
• burnt components
• terminal damage
• internal control board faults

5) Is ASC-32-424 the same as ASC-32-4Z4?

The Taiyo ASC-32 family appears in several closely related variants and market references, including ASC-32-4Z4 and replacement documentation for ASC-32 series units. Exact compatibility should always be confirmed by nameplate, wiring, and generator application before replacement.

6) What information should be sent before ordering a spare?

Please send:

• clear front photo of AVR
• type / serial number plate
• generator maker and model
• alternator nameplate
• fault description
• photos of terminals and wiring if possible

7) Why does the AVR warning say not to megger it?

Because the AVR contains semiconductor components that can be damaged by megger or high-potential testing if the unit is not isolated properly.

8) Can SM MARINE SERVICE™ help source this AVR?

Yes. SM MARINE SERVICE™ can support supply of new, used, refurbished, and reconditioned marine AVRs and generator control spare parts, subject to stock and technical identification.

---

Short Product Description

The Taiyo Electric ASC-32-424 Automatic Voltage Regulator (AVR) is a marine generator voltage control unit manufactured in Japan for use with shipboard alternator excitation systems. It monitors generator voltage and adjusts excitation current to maintain stable output voltage during changing electrical loads. The AVR is used in marine generator control systems for voltage regulation, parallel-running support, and reliable power generation. It remains an important spare part for vessels operating Taiyo generator equipment and older Japanese marine electrical systems.

---

SM MARINE SERVICE™

Marine Automation & Navigation Equipment Supplier

Available Condition:
• New Equipment • Used Equipment • Refurbished Equipment • Reconditioned Equipment

Stock Location:
• Bangladesh • China

Services:
• Worldwide Shipping • Technical Support • Spare Parts Supply • Marine Equipment Sourcing

Contact Information

SM MARINE SERVICE™ Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
Mobile / WhatsApp / Viber: +88 01818 929292
Email: info@smmarineservice.com
Website: www.smmarineservice.com

-

+

Buy Now
