NABTESCO (NABCO) EAR-120 Electric Governor Actuator – Marine Main Engine Speed Control, Spare Parts & Troubleshooting

Original SM MARINE SERVICE™ photograph of the EAR-120 actuator, showing the output linkage, position scale, mounting flange and electrical connector assemblies.

Product Information

Product identification: The front plate clearly reads EAR-120 ACTUATOR. Other equipment labels are present, but the exact variant suffix, motor designation and serial number should be confirmed from a sharper nameplate photograph before they are used for replacement matching.

Product Introduction

The NABTESCO EAR-120 Electric Rotary Governor Actuator is a marine engine speed-control component used in compatible electronic governor installations.

Developed by NABTESCO, a Japanese manufacturer of marine control systems, the EAR-120 converts electrical governor commands into mechanical movement to adjust the propulsion engine's fuel-control linkage.

When a ship's main engine experiences changing propeller loads due to sea conditions, maneuvering or operating demands, the electronic governor adjusts fuel delivery to maintain the requested engine speed within the system's operating limits.

The EAR-120 performs the final mechanical actuation function within this control loop.

It is particularly relevant to marine engineers maintaining established NABCO or Nabtesco MG-800 governor systems.

SM MARINE SERVICE™ supports international enquiries for complete EAR-120 actuator assemblies, compatible replacement units and related marine engine automation spare parts.

Website: www.smmarineservice.com

What Is the NABTESCO EAR-120 Governor Actuator?

The EAR-120 is an electric rotary actuator that converts a control-system command into angular output-shaft movement.

In a marine electronic governor installation, the governor controller compares the engine-speed reference with measured engine speed. It then generates the appropriate demand for the actuator drive system.

The drive electronics control the actuator motor, which moves the output shaft and connected fuel-regulating mechanism. Position feedback is used by the control system to supervise actuator movement.

The result is a closed-loop speed-control arrangement designed to respond to changing engine operating conditions.

Nabtesco's published MG-800 system documentation identifies the governor controller, actuator drive unit, pulse generator and EAR-series actuator as major elements of the overall system.



Main Features

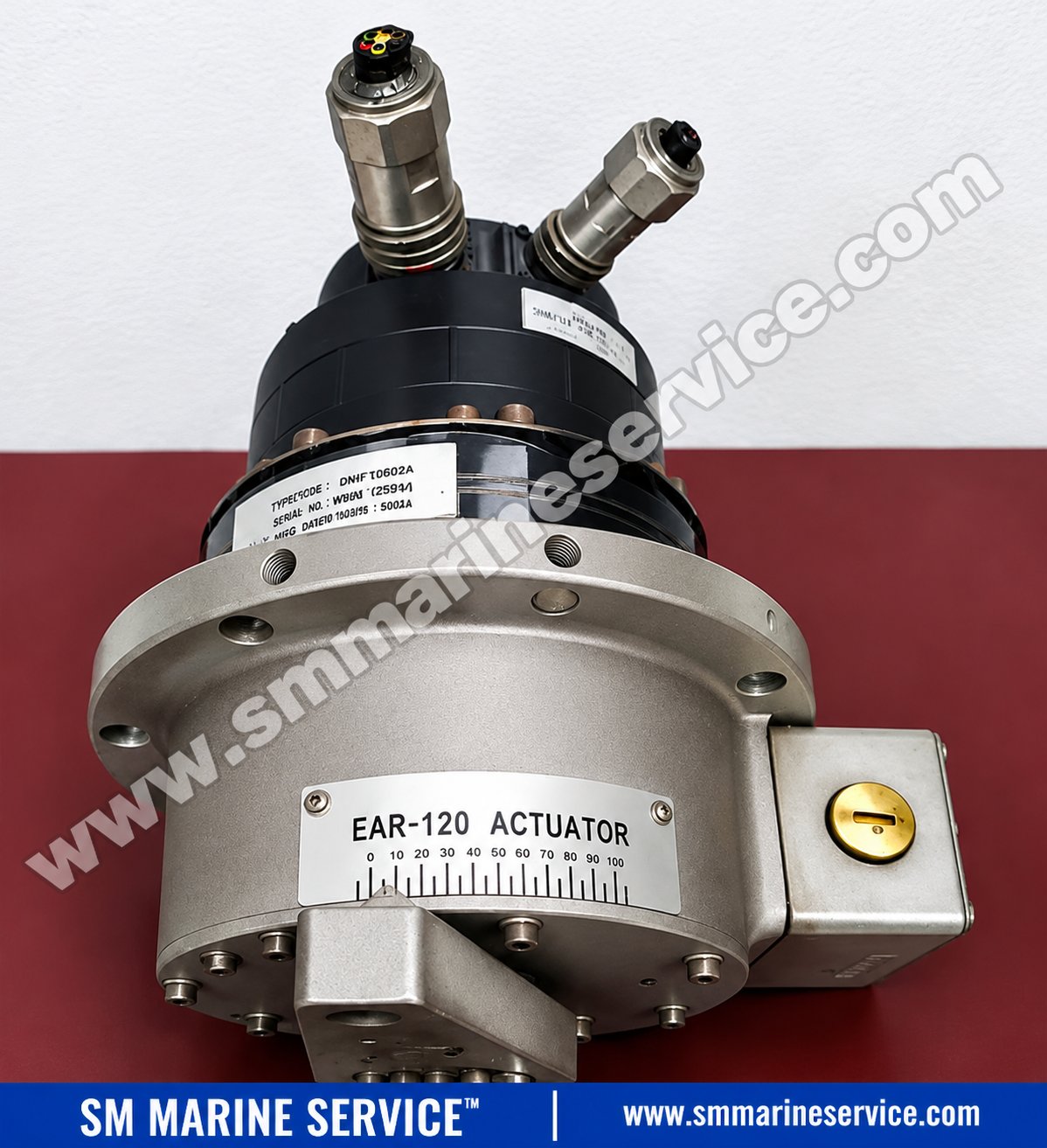

The supplied actuator photographs show several important physical features:

• Heavy-duty construction: A robust metal housing and mounting flange suitable for integration with industrial or marine machinery.

• Rotary output mechanism: Converts commanded movement into angular motion.

• Output lever: Provides mechanical connection to the engine's fuel-control linkage.

• Position indicator: A clearly graduated 0–100 scale is visible on the actuator housing.

• Electrical connector assemblies: Two prominent multi-pin connector housings are fitted.

• Motor section: An enclosed electric drive assembly forms part of the actuator.

• Side enclosure: A metal housing with a circular brass-coloured fitting is visible.

• Electrical safety warning: A caution label warns of electric-shock hazards and opening restrictions.

The photographs do not establish the exact function of every electrical pin or the side fitting. Those details require the correct actuator drawing and variant-specific documentation.

Main Technical Specifications

Technical reference: Nabtesco's MG-800 documentation specifies 330 N·m maximum output torque and a 42° maximum stroke range for the EAR-120. These are model-family specifications and do not replace the individual actuator's identification or commissioning requirements.



Main Components & Associated Part Numbers

Electric Servo Motor Assembly

The electric motor generates controlled movement through the actuator's mechanical transmission.

In the MG-800 governor arrangement, the actuator drive unit provides the required motor-control functions.

A motor-related fault may prevent the actuator from responding correctly to governor demands.

Rotary Output Shaft and Fuel Linkage

The actuator output mechanism transfers movement to the main engine's fuel-regulating linkage.

The mechanical installation must maintain the correct geometry, movement limits and connection integrity.

Position Feedback System

Position feedback provides information about the actuator's movement or output position to the governor control arrangement.

Faulty position feedback can cause an incorrect actuator response or an inability to maintain the expected control position.

Position Scale – 0–100

Close-up from the original SM MARINE SERVICE™ photograph showing the EAR-120 identification and graduated position indicator.

The visible scale provides a local mechanical position reference.

Its 0–100 graduation should not automatically be interpreted as degrees. The manufacturer's actuator stroke specification is given separately as 42° maximum range.

Electrical Connector Assemblies

Two prominent multi-pin electrical connectors are installed on the actuator assembly.

The exact power, control and feedback connections require verification from the appropriate variant-specific documentation.

Mounting Flange and Actuator Housing

The flanged construction supports mounting to the engine's actuator installation.

Replacement compatibility depends on the mounting dimensions, output-lever position, shaft geometry and electrical configuration.

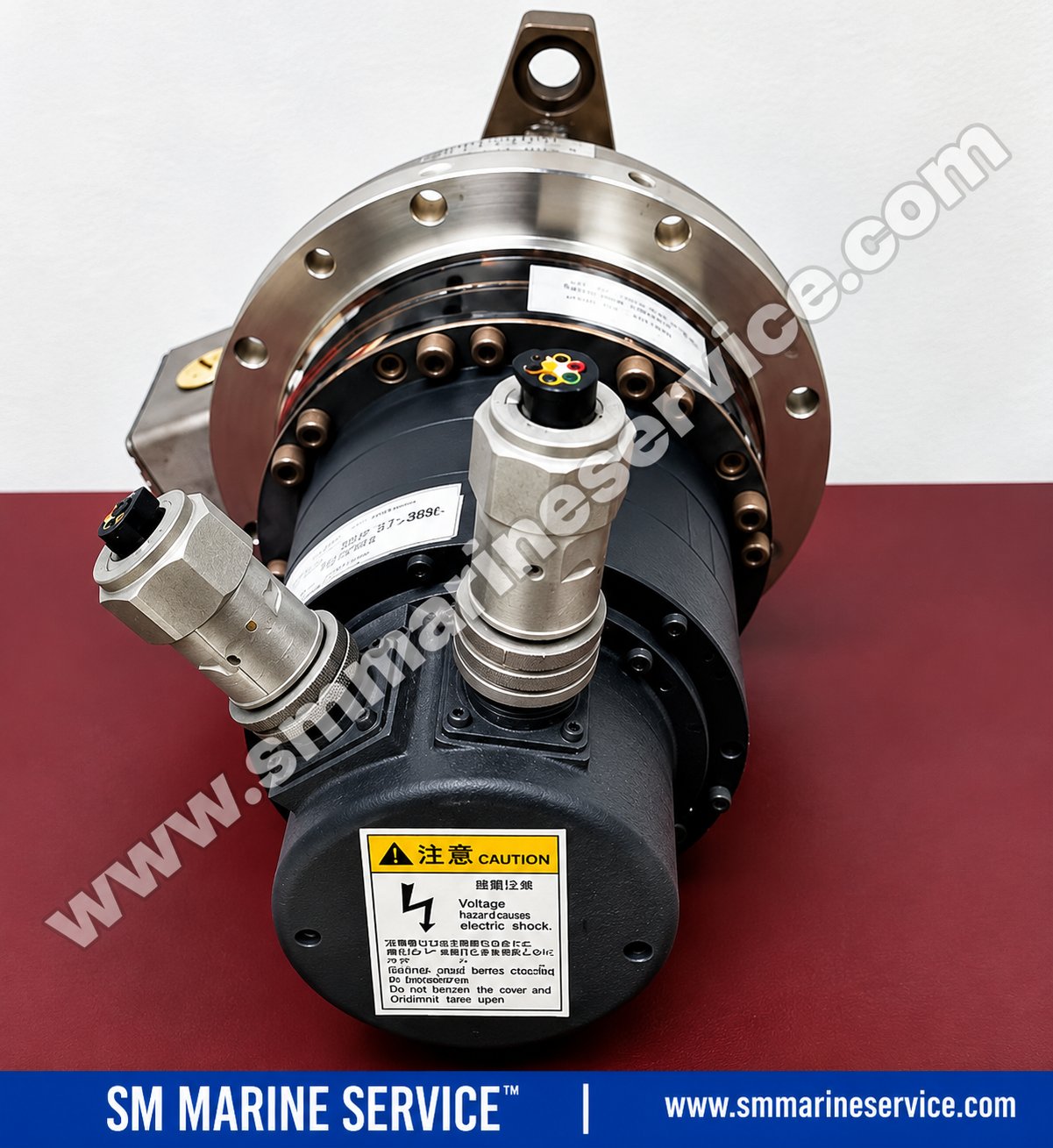

Original EAR-120 Rear Assembly and Connectors

Original SM MARINE SERVICE™ photograph showing the actuator's rear motor housing, two electrical connector assemblies, mounting flange and high-voltage warning.

Related NABTESCO Governor Systems and Actuators

The EAR-120 is associated with Nabtesco's electronic governor equipment, especially the MG-800 family.

The EAR-120-RS31 and EAR-120-RK01 identifiers appear in the marine replacement-parts market, but their detailed differences and compatibility have not been established for the photographed unit.

Similarly, EAR-120A, EAR-500A and EAR-1000A should not be considered direct substitutes without manufacturer approval.

Marine Applications

The EAR-120 is intended for compatible marine diesel propulsion-engine governor installations.

Typical application environments include bulk carriers, oil and chemical tankers, container vessels, general cargo ships and other vessels equipped with appropriate Nabtesco governor equipment.

Its main function is to position the engine's fuel-control mechanism in response to electronic governor commands.

Nabtesco's governor system is designed to maintain engine speed and optimize control under different operating conditions, including changes in load and sea conditions.



The exact engine type and model fitted with the photographed EAR-120 have not been verified.

Common Problems & Troubleshooting

A malfunctioning governor actuator may affect the main engine's ability to maintain the commanded speed.

These are general governor-actuator fault categories and do not establish that the photographed item has any of these defects.

Main Engine RPM Hunting

Engine hunting describes repeated fluctuations around the demanded engine speed.

Although actuator malfunction is one possible cause, similar symptoms may arise from incorrect governor settings, speed-sensor problems, fuel-system behaviour or mechanical linkage issues.

The full governor system should be investigated before replacing the EAR-120.

Actuator Not Responding

When an actuator does not move after a valid command, technicians should determine whether the problem originates in the governor controller, actuator drive unit, motor, feedback system or associated wiring.

Testing must follow the approved governor service procedures.

Position Feedback Fault

An incorrect or interrupted position feedback signal may prevent the governor from accurately controlling actuator movement.

The exact feedback interface and permissible adjustment method depend on the EAR-120 version and installed governor equipment.

Safety Precautions

The supplied photograph contains an electrical hazard warning.

The actuator may be connected to electrical equipment capable of producing dangerous voltages and mechanical movement.

Before maintenance, qualified personnel must follow the vessel's isolation procedures and protect the fuel-control mechanism against unintended movement.

Do not energize an unsecured actuator or open electrical housings without approved authorization and procedures.

Never bypass engine overspeed protection or governor safety functions to test an actuator.

Maintenance Tips

The following maintenance activities can support reliable operation:

• Inspect the actuator enclosure and mounting flange.

• Check the output lever and linkage for looseness, wear or obstruction.

• Examine accessible cables and connectors for corrosion or damage.

• Inspect the actuator for evidence of water ingress.

• Record position indications and reported faults.

• Check the governor's speed-feedback and actuator-feedback status.

• Verify suitable linkage movement through approved maintenance procedures.

• Preserve the governor configuration before component replacement.

• Confirm compatibility before fitting another EAR-120 variant.

• Arrange functional testing and commissioning after installation.

Correct actuator calibration and adjustment are important because improper positioning can affect fuel control and engine operation.

Spare Parts & Replacement Availability

SM MARINE SERVICE™ supports international enquiries for the NABTESCO EAR-120 Electric Rotary Governor Actuator and associated marine engine governor spare parts.

Potential sourcing requirements include:

• Complete EAR-120 actuator assembly.

• EAR-120A replacement actuator.

• EAR-120-RS31 or EAR-120-RK01 variants, subject to identification.

• Compatible motor and feedback components.

• Output lever and mechanical linkage parts.

• Electrical connectors and associated cables.

• Governor actuator drive units.

• MG-800 governor equipment.

• Compatible MCG-series control units.

• Other identified Nabtesco engine automation components.

Availability of each item must be confirmed individually.

Depending on sourcing availability, enquiries may cover new, used, refurbished, reconditioned or tested-working equipment.

The photographed actuator's actual operating condition and test status have not been independently established.

Information Required for Quotation

International buyers should provide:

• Exact actuator model and variant suffix.

• Photograph of the complete manufacturer nameplate.

• Motor type or identification, where available.

• Installed governor control-unit model.

• Actuator drive-unit model.

• Main engine manufacturer and model.

• Mounting and output-lever information.

• Quantity and destination country.

Important: Do not purchase a replacement solely because its front plate reads EAR-120. Confirm the complete variant, motor, drive unit and mechanical compatibility.

For quotations and worldwide sourcing enquiries, contact SM MARINE SERVICE™ through https://www.smmarineservice.com/.

Why Ships Still Use NABTESCO EAR-120 Governor Actuators

Ships equipped with an existing Nabtesco electronic governor may require a compatible EAR-120 actuator to maintain the original propulsion-control arrangement.

Replacing a failed actuator with a correctly matched unit can avoid unnecessary modifications to the governor controller, actuator drive and engine fuel-control linkage.

However, the replacement must meet the installed system's configuration, mechanical requirements and operational safety standards.

For vessels planning modernization, the complete governor architecture should be assessed rather than assuming that a newer actuator will fit the original installation.

Frequently Asked Questions

What is the NABTESCO EAR-120?

The EAR-120 is an electric rotary governor actuator used in compatible marine diesel engine speed-control systems.

Who manufactures the EAR-120 actuator?

The manufacturer is NABTESCO, a Japanese company formerly associated with the NABCO brand.

What is the main function of EAR-120?

It converts electronic governor commands into mechanical movement to position the engine fuel-control linkage.

What is the maximum torque of the EAR-120?

Nabtesco's published MG-800 documentation specifies a maximum output of 330 N·m.

What is the maximum stroke range?

The published EAR-120 maximum stroke range is 42°.

Is EAR-120 compatible with MG-800?

The EAR-120 is documented as an actuator in Nabtesco MG-800 governor arrangements. Exact configuration compatibility must still be verified.

What is the difference between EAR-120 and EAR-120A?

They are related actuator model designations. Detailed differences and direct interchangeability have not been verified for the photographed equipment.

What causes an EAR-120 actuator to stop responding?

Potential causes include drive-unit failure, motor problems, electrical connection faults, feedback issues or mechanical obstruction.

Can a faulty EAR-120 cause engine RPM hunting?

An actuator or feedback problem may contribute to hunting, but governor settings, speed sensors and fuel-control mechanisms must also be investigated.

Is EAR-120-RS31 interchangeable with EAR-120-RK01?

Direct interchangeability should not be assumed. Buyers must verify the model suffix, motor type, feedback, mounting and governor system.

Where can I buy NABTESCO EAR-120 spare parts?

SM MARINE SERVICE™ accepts enquiries for complete actuators and compatible marine engine governor components.

Can SM MARINE SERVICE™ supply worldwide?

Yes. The company supports international sourcing and shipping enquiries, subject to equipment availability and delivery arrangements.
