MITSUBISHI MELSEC FX2N-16MR PLC WITH FX2N-8EYR-ES, FX2N-4AD, FX2N-4DA & FX2N-8ER-ES EXPANSION MODULES

Marine Automation PLC | Industrial Control Equipment | Spare Parts | Technical Specifications | Troubleshooting | Replacement & Manuals

Product Information

Product Introduction

The Mitsubishi MELSEC FX2N-16MR Programmable Logic Controller (PLC) is part of Mitsubishi Electric's established FX2N industrial automation family. Designed for programmable machinery control and digital input/output processing, the FX2N series has been widely used in industrial control panels, process equipment and machinery automation installations.

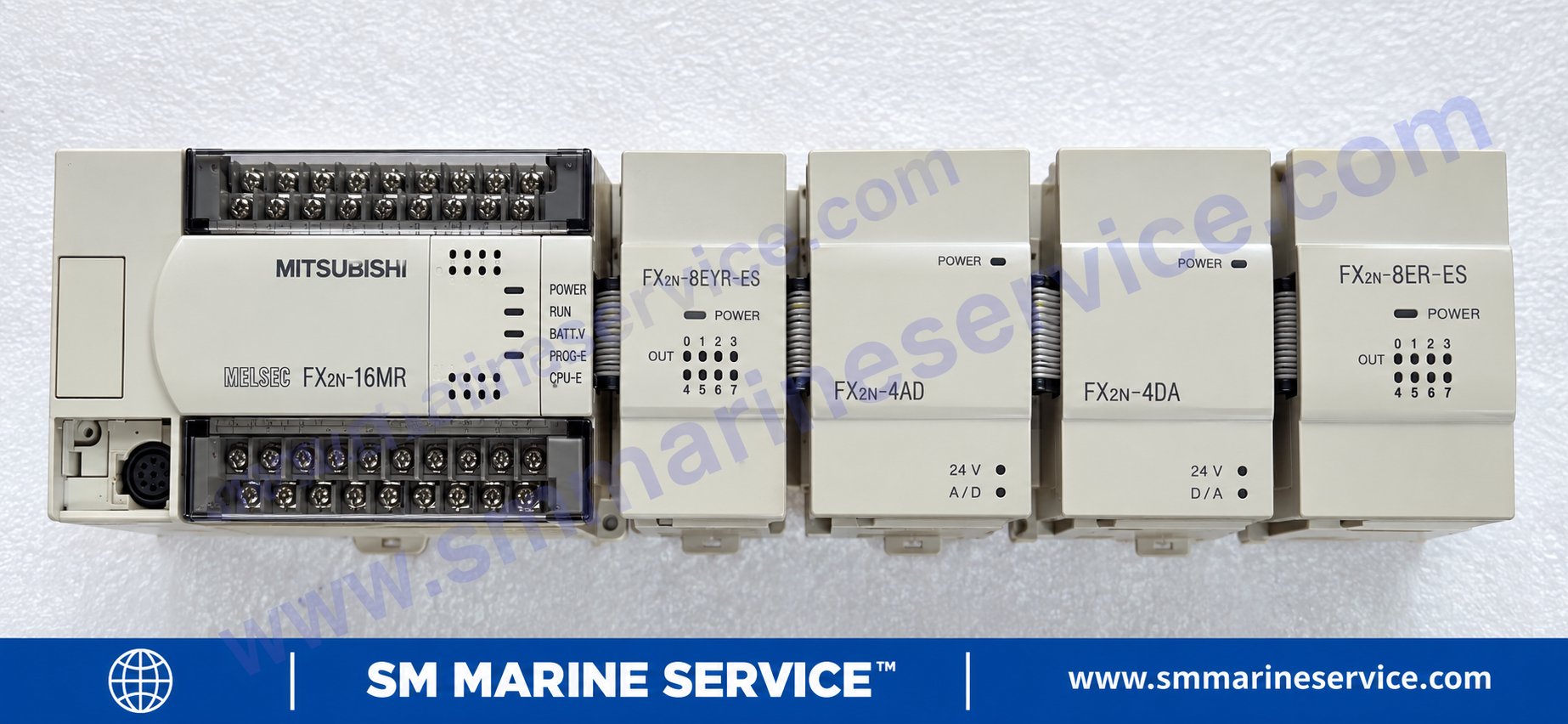

The equipment featured in this article includes the Mitsubishi FX2N-16MR main PLC, FX2N-8EYR-ES relay output extension, FX2N-4AD analog input module, FX2N-4DA analog output module and FX2N-8ER-ES digital input/output extension.

These components collectively provide programmable control capability and additional interfaces for digital signals, relay switching and analog instrumentation.

In marine engineering, automation controllers of this type may be found in compatible auxiliary machinery and shipboard control systems. Maintaining an existing PLC installation often requires an exact replacement controller, a compatible expansion module, correct wiring information and the original control program.

SM MARINE SERVICE™ supports product inquiries and sourcing requirements for Mitsubishi PLCs and marine or industrial automation equipment through its website: www.smmarineservice.com.

What Is the Mitsubishi MELSEC FX2N PLC?

The Mitsubishi FX2N is a compact programmable logic controller system that uses stored logic instructions to control machinery and automation processes.

A PLC receives electrical signals from field devices such as switches, sensors and measurement transmitters. The controller evaluates those signals according to its programmed logic and operates designated output devices.

The FX2N modular architecture allows additional input/output points and special-function capabilities to be connected to suitable main units.

For the photographed assembly, the FX2N-16MR provides the main processing function, while the four expansion modules provide additional control interfaces.

Mitsubishi's official FX2N hardware documentation describes this architecture and the applicable expansion models.

dl.mitsubishielectric.com

+1

Mitsubishi FX2N-16MR Main PLC and FX2N-8EYR-ES Relay Module

The FX2N-16MR operates as the central programmable controller in the assembly. Its front panel includes indicators labeled POWER, RUN, BATT.V, PROG-E and CPU-E, together with the PLC terminal and programming interface area.

The FX2N-8EYR-ES is an eight-point relay output extension module. It is designed to provide additional relay-controlled output points to a compatible PLC installation. Depending on electrical ratings and system design, these outputs may be used to command external control relays, motor contactors or other control circuits.

Main Features

• Compact Mitsubishi MELSEC FX2N programmable controller architecture.

• Modular design supporting compatible digital and analog expansion modules.

• FX2N-16MR main controller with relay output configuration.

• FX2N-8EYR-ES eight-point relay output expansion.

• FX2N-4AD four-channel analog input conversion.

• FX2N-4DA four-channel analog output conversion.

• FX2N-8ER-ES additional digital input/output capability.

• Front-panel operating and diagnostic indicators.

• Terminal-based electrical field connections.

• Suitable for correctly engineered replacement work in compatible legacy systems.

The actual electrical supply and complete main-controller suffix must be checked against the physical nameplate before replacement.

Main Technical Specifications

The following specifications are based on the photographed model markings and Mitsubishi Electric technical documentation. Values may vary with the exact main unit variant and configuration.

The FX2N-4AD and FX2N-4DA measurement and output capabilities are specified in Mitsubishi Electric's official user guides.

dl.mitsubishielectric.com

+2

Main Components of the Mitsubishi FX2N PLC Assembly

FX2N-16MR — Main Programmable Logic Controller

The FX2N-16MR is responsible for executing automation logic, processing supported input signals and controlling outputs according to the installed program.

For a replacement PLC, engineers should confirm the full nameplate model, memory and program requirements, existing wiring and attached extension modules.

FX2N-8EYR-ES — Relay Output Expansion Module

The FX2N-8EYR-ES provides eight additional relay outputs. These outputs are useful where the controller must switch more external control circuits than the main PLC can accommodate alone.

Relay-output faults may result from external wiring problems, overloaded circuits, damaged contacts or internal module defects.

FX2N-4AD — Four-Channel Analog Input Module

The FX2N-4AD converts analog voltage or current signals into digital values usable by the PLC program.

It can receive suitable signals from instruments including pressure transmitters, tank level transmitters, flow transmitters and other measurement devices.

Its official documentation describes input wiring, conversion modes, scaling, buffer memory and operating considerations.

dl.mitsubishielectric.com

FX2N-4DA — Four-Channel Analog Output Module

The FX2N-4DA converts PLC digital data into voltage or current outputs for connected equipment.

Typical applications include compatible actuator commands, control valve positioning signals, motor drive references and process-control interfaces.

The configured output range and device wiring must match the requirements of the receiving instrument.

dl.mitsubishielectric.com

FX2N-8ER-ES — Digital Input and Relay Output Extension

The FX2N-8ER-ES expands the controller with four digital inputs and four relay outputs.

This makes it useful for compatible installations where additional switching and feedback signals are required.

Mitsubishi FX2N Analog and Digital Expansion Modules

Marine Applications

The Mitsubishi FX2N PLC series may be relevant to a variety of existing shipboard and marine engineering installations where compatible industrial controllers are incorporated into the control system.

Engine Room Automation

PLC controllers can process input signals from auxiliary machinery and control outputs used in equipment operating sequences.

Marine Pump and Valve Control

Digital inputs and relay outputs can support pump start/stop commands, valve control circuits, position feedback and operating interlocks in correctly engineered applications.

Ballast and Bilge System Automation

Where the installed system uses an FX2N controller, digital I/O and analog instrumentation may support level monitoring, pump control and other automation functions.

Hydraulic Machinery Control

PLC systems may interface with hydraulic power units, solenoid control circuits and process instrumentation.

Marine Auxiliary Machinery

Additional potential applications include machinery operating sequences, pressure monitoring, temperature monitoring and automated control-panel functions.

For sourcing Mitsubishi PLC controllers or matching marine automation replacement modules, visit SM MARINE SERVICE™.

These applications depend on the original vessel installation. The photographed equipment is not independently verified as marine-certified or as having been installed onboard a particular ship.

Common Problems & Troubleshooting

Mitsubishi FX2N PLC Not Powering On

If the FX2N-16MR does not power up, inspect the incoming supply and verify the correct supply rating from the complete model nameplate.

Possible causes include missing supply voltage, a protective device fault, loose terminals or an internal power supply defect.

Power and terminal checks should be performed by qualified electrical personnel using appropriate isolation procedures.

FX2N PLC RUN Indicator Not Illuminated

An unlit RUN indicator may indicate that the PLC is in STOP mode or that a control or programming issue requires investigation.

Check the PLC operating mode and diagnostic information before attempting a program restart. Uncontrolled restarting can result in unexpected machinery operation.

BATT.V Indicator Warning

The BATT.V indication is associated with PLC battery-related monitoring. A warning should prompt a check of the installed battery arrangement and relevant maintenance instructions.

Before battery replacement, confirm the program-retention requirements and create a verified backup where possible.

PROG-E or CPU-E Indicator

The front panel visibly includes PROG-E and CPU-E indicators.

These relate to program and CPU diagnostic conditions. Their precise interpretation, likely causes and reset procedures should be taken from the FX2N diagnostic documentation.

Do not replace the CPU solely because an error indicator is illuminated without checking the recorded fault and related system conditions.

FX2N-4AD Incorrect Analog Input Reading

Potential causes include incorrect voltage/current terminal wiring, incompatible signal range, damaged field wiring, poor shielding or incorrect buffer-memory configuration.

Mitsubishi's FX2N-4AD documentation provides wiring diagrams and conversion-related information for diagnosis.

dl.mitsubishielectric.com

FX2N-4DA No Analog Output

A missing analog output can be associated with incorrect channel programming, external wiring errors, an unsuitable output range or a defective connected device.

Check module configuration and measure the output under controlled conditions using appropriate test equipment.

Relay Output Does Not Operate

For the FX2N-8EYR-ES and FX2N-8ER-ES, confirm that the PLC is issuing the expected output command and that field wiring, connected load and output ratings are correct.

Damaged relay contacts or internal faults may require module replacement.

Common Indicators, Alarms & Fault Messages

The photographed FX2N-16MR front panel contains these diagnostic labels:

These are genuine visible indicator labels, not invented alarm messages.

For specific fault interpretation, consult Mitsubishi Electric's hardware and programming documentation. There is no verified alarm history for the actual photographed unit.

Maintenance Tips

Proper maintenance of a Mitsubishi FX2N control installation can help reduce unwanted downtime and improve replacement readiness.

• Check supply connections, terminal security and protective devices.

• Keep the PLC enclosure and ventilation areas free from excessive dust and contamination.

• Inspect expansion connectors and wiring for damage.

• Confirm relay loads remain within the manufacturer's specifications.

• Verify analog cable shielding and grounding arrangements.

• Maintain backups of PLC programs and relevant configuration data.

• Investigate battery warnings promptly using the correct manufacturer procedure.

• Record the exact CPU suffix, individual module numbers and software settings.

• Isolate electrical power before mechanical removal or rewiring, following approved procedures.

• Test control functions under suitable commissioning and safety conditions after replacement.

Spare Parts & Replacement Availability

The Mitsubishi MELSEC FX2N platform remains relevant to the maintenance of older machinery and control panels. Sourcing the correct model can be important where an existing PLC system cannot be replaced immediately by a newer control architecture.

SM MARINE SERVICE™ supports inquiries for Mitsubishi PLC controllers and associated automation spare parts, subject to sourcing and stock confirmation.

Relevant requested items may include the complete FX2N-16MR main unit, FX2N-8EYR-ES relay output module, FX2N-4AD analog input module, FX2N-4DA analog output module, FX2N-8ER-ES extension module, compatible cables, connectors and other identified replacement components.

Customers can inquire about new, used, refurbished, reconditioned or tested working units, depending on actual availability and inspection status.

Before arranging a replacement, customers should provide the exact installed model, photographs of the identification label, voltage details, required quantity and information about the connected automation system.

Mitsubishi Electric also publishes official guidance concerning migration from FX2N/FX2NC equipment to newer FX3-series systems. Replacement by a newer PLC should not be assumed to be plug-and-play.

三菱電機 オフィシャルサイト

Why Ships Still Use Mitsubishi FX2N PLC Equipment

Many ships and industrial facilities continue to maintain automation systems around their existing installed equipment.

Where machinery remains functional, replacing an individual PLC or expansion module may be considered instead of redesigning an entire control installation.

Older systems may also depend on established wiring diagrams, approved operating logic and machinery interfaces. For such installations, identifying the correct Mitsubishi PLC spare part helps engineering teams evaluate maintenance options while minimizing unnecessary changes to the original system.

However, component age, support status, safety requirements and maintainability should all be considered before deciding whether to repair, replace or modernize a control system.

Frequently Asked Questions (FAQ)

What is the Mitsubishi FX2N-16MR PLC?

The Mitsubishi FX2N-16MR is a programmable logic controller from the MELSEC FX2N series, designed for industrial machinery control and compatible automation applications.

Who manufactures the Mitsubishi FX2N-16MR?

The FX2N-16MR is manufactured by Mitsubishi Electric, a Japanese electrical and automation technology company.

What is the Mitsubishi FX2N-8EYR-ES module?

It is an eight-point relay output extension module used to increase the number of relay switching outputs available to a compatible PLC system.

What is the difference between FX2N-4AD and FX2N-4DA?

The FX2N-4AD converts analog input signals into digital values for the PLC. The FX2N-4DA converts digital PLC values into analog output signals.

What is the FX2N-8ER-ES used for?

It is a digital I/O extension that provides four additional inputs and four relay outputs.

Is the Mitsubishi FX2N series discontinued?

Mitsubishi Electric identifies the FX2N basic-unit series as discontinued and provides documentation for existing equipment as well as replacement guidance. Availability of individual legacy modules and replacement units must be checked separately.

三菱電機 オフィシャルサイト

+1

Where can I buy a Mitsubishi FX2N-16MR PLC?

You can submit a product inquiry to SM MARINE SERVICE™ through www.smmarineservice.com. Availability, equipment condition and quotation details require confirmation.

Can I buy used or refurbished Mitsubishi FX2N PLC modules?

Used, refurbished and reconditioned PLC equipment may be obtainable through the replacement-parts market. Customers can request sourcing assistance and condition details before purchase.

What causes a Mitsubishi FX2N PLC CPU error?

Possible causes depend on the recorded error and may include programming, memory or internal hardware issues. Qualified personnel should use Mitsubishi diagnostic documentation to determine the actual cause.

Where can I download the Mitsubishi FX2N PLC hardware manual?

The official FX2N Hardware Manual is available from Mitsubishi Electric, alongside user guides for its analog expansion modules. Direct manufacturer document links are provided below.

Can SM MARINE SERVICE™ arrange international Mitsubishi PLC supply inquiries?

SM MARINE SERVICE™ accepts inquiries from international marine and industrial customers. Shipping arrangements, stock and delivery details should be confirmed for each order.

Short Product Description

The Mitsubishi MELSEC FX2N-16MR PLC with FX2N-8EYR-ES, FX2N-4AD, FX2N-4DA and FX2N-8ER-ES expansion modules is a modular industrial automation control assembly combining programmable logic control, relay outputs, analog input processing, analog output control and digital I/O expansion.

This Mitsubishi FX2N equipment can be relevant to compatible industrial machinery and marine automation systems requiring replacement PLC units or extension modules. Contact SM MARINE SERVICE™ for sourcing inquiries, product identification and quotation assistance.

Component

Description

I/O Capability
