Boiler Burner Controller
SAACKE GmbH
Refurbished
The SAACKE Integrated Management System (IMS) is a legacy burner and boiler-management control unit developed by SAACKE for monitoring and controlling combustion plants.
The original SAACKE IMS technical documentation identifies the equipment specifically as the Integrated Management System IMS and shows the same front arrangement visible on this unit: LCD display, Menu/Enter, Options and Return keys. The documented IMS platform includes interfaces for external I/O modules, PC/printer communication and burner-management functions.
For older vessels still operating original SAACKE combustion-control equipment, an exact IMS replacement or serviceable spare can be especially important because modernizing the complete boiler control system can involve extensive wiring, commissioning and safety-validation work.
Manufacturer: SAACKE
Product: Integrated Management System
Model / Designation: IMS
Product Type: Boiler / Burner Management Control Unit
Application: Marine Boiler & Burner Automation
System Category: Combustion Control / Boiler Automation
Origin: Germany
Typical Use: Auxiliary boiler, burner and combustion-system operation
The pictured front panel does not show a complete hardware article number, so exact replacement should be confirmed from the rear nameplate, internal hardware number or vessel documentation.
The IMS combines operator interaction with burner-management and control-system interfacing.
According to the historic SAACKE appliance manual, the IMS connection field includes:
The manual also documents EPROM-based electronics and dedicated interfaces for integration with the burner control system.
The IMS platform can operate with external I/O modules such as OPTOIO-16 and OPTOIO-32.
The documented OPTOIO-32 module uses a 24 VDC supply, includes signal conversion and provides marine/industrial I/O interfacing for the IMS architecture. The specific OPTOIO-32 documentation lists article number 1-8849-142947.
A simplified system arrangement can be understood as:
Burner Sensors / Switches → IMS I/O Modules → SAACKE IMS Controller → Burner / Actuator / Alarm Outputs
This allows the IMS to form part of a complete combustion-control and boiler-management installation.
The later SAACKE se@vis/HMI family provides a more graphical operator interface for boiler operation, alarm history and maintenance information.

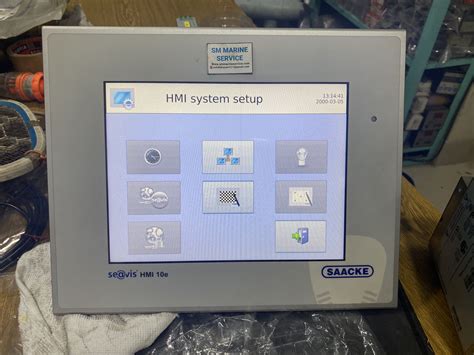

SAACKE HMI 10e se@vis Boiler Management System – SM MARINE SERVICE™
The HMI 10e is not automatically a direct plug-in replacement for IMS. System architecture, burner controller, I/O and software configuration must be verified before modernization or replacement.
A SAACKE IMS can be associated with combustion-control installations on vessels using steam for:
Fuel Heating • Cargo Heating • Tank Cleaning • Accommodation Services • Auxiliary Steam • Process Heating • Inert-Gas Related Steam Loads
SAACKE continues to provide marine boiler and combustion solutions for merchant ships, offshore vessels and tankers, including complete burner, boiler and control-system support.
Typical vessel applications include:
Oil Tankers • Chemical Tankers • LNG/LPG Carriers • Bulk Carriers • Container Ships • General Cargo Ships • Offshore Vessels • Passenger Ships
Flame detection is one of the most important safety functions in any burner-management system.
SAACKE FLUS 06 UV Flame Scanner – Marine Boiler UV Flame Detector
The FLUS 06 is used to monitor burner flame presence in compatible SAACKE combustion installations.
SAACKE FLS09 UV-05 Flame Scanner Sensor – Marine Burner Flame Monitoring
UV flame scanners provide flame-presence feedback to the burner safety/control system so fuel supply can be managed safely.
SAACKE FLS 09 UV 5 Flame Scanner – SAACKE Boiler Flame Monitoring System
Related flame-scanner searches commonly include:
FLS09 • FLS 09 • FLS09 UV5 • FLS 09 UV 5 • UV-05 • SAACKE Flame Scanner • SAACKE UV Detector
These related pages create a strong internal SEO connection between the IMS burner controller and the flame-detection equipment that supports safe combustion operation.
Check:
Do not assume the LCD itself is faulty until the supply and internal electronics have been verified.
Possible causes may include:
The boiler's entire safety chain must be inspected rather than replacing the IMS immediately.
The historical IMS hardware includes an RS232C interface for printer, PC and bus-coupling functions. Check cable pinout, connector condition, communication settings and controller condition.
Inspect the IMS parallel connection and associated OPTOIO-16 / OPTOIO-32 / EA-16 modules.
Older control units may develop problems involving:
Membrane switches • Internal PCB connections • Connector oxidation • Power supplies • EPROM/socket contacts • Aged capacitors
Diagnosis should be performed before deciding whether complete replacement is required.
SAACKE MFU Controller – SM MARINE SERVICE™
The MFU controller is another SAACKE combustion-control component and provides an important internal link for buyers looking for complete burner automation equipment rather than only the IMS display/control unit.
Accurate fuel/air positioning is essential for reliable combustion.
The servomotor is relevant to actuator and combustion-air/fuel-control applications within compatible SAACKE burner systems.
SAACKE FLUS 06 & FLS 09 UV 5 Flame Scanner Sensors
This page is useful for buyers searching several SAACKE flame-scanner models together.
SAACKE FLS09 UV5 Flame Scanner
Maintaining internal links between the IMS, flame scanners and burner controllers helps search engines understand that these pages form one SAACKE marine boiler automation equipment cluster.
Depending on version and installation, the IMS arrangement can include or connect with:
IMS Main Unit • LCD Display • Operator Keys • EPROM / Controller Electronics • Power Supply • RS232C Interface • Parallel I/O Interface • OPTOIO-16 • OPTOIO-32 • EA-16 • Burner Controller • Flame Scanner • Servomotor • Pressure Switches • Fuel/Air Actuators • Safety Interlocks
Exact component configuration varies between installations.
SAACKE RSE-P II Burner Control Unit
Another related page is:
SAACKE RSE-P II Burner Controller
The RSE-P II belongs to SAACKE burner-control equipment and should be linked with the IMS page because buyers often search complete combustion-control systems, replacement controllers and associated flame-monitoring parts together.
Many ships continue operating original boiler and burner control systems long after newer control generations become available.
Replacing only a defective:
IMS Unit • I/O Module • Burner Controller • Flame Scanner • Servomotor • Pressure Switch
may be substantially easier than converting the entire boiler-control installation.
A full modernization can involve:
New wiring • New safety logic • Burner commissioning • Actuator setup • Flame-monitoring configuration • Alarm integration • Class approval considerations
This is why legacy SAACKE IMS equipment still has commercial value for marine spare-parts buyers.
SAACKE itself continues to provide marine maintenance, spare parts, repair and retrofit services for boiler, burner and control systems.
SAACKE Feuerungsautomat F-OSA Burner Control Unit – Marine Boiler Burner Management System
This is another important burner-management controller page within the SAACKE product family.
Boiler safety depends not only on controller electronics but also on field switches and sensors.
SAACKE / SAUTER DSB146 F913 Pressure Switch – Marine Boiler & Burner Control
Pressure switches may be used for proving conditions such as air, fuel or process pressure depending on system design.
SAACKE T ID Burner Control Unit – Marine Boiler Burner Automation
This strengthens internal linking between the IMS page and other legacy SAACKE control equipment used on marine boilers.
SM MARINE SERVICE™ can support sourcing of SAACKE combustion-control equipment including:
SAACKE IMS Integrated Management System • IMS Display / Controller • OPTOIO-16 • OPTOIO-32 • IMS I/O Components • RSE-P II Controller • F-OSA Burner Controller • T ID Burner Controller • MFU Controller • HMI 10e • FLUS 06 Flame Scanner • FLS09 UV5 Flame Scanner • HD 60 D2 Servomotor • Pressure Switches • Burner Automation Electronics • Boiler Control Spare Parts
Availability may include:
New • Used • Tested Working • Refurbished • Reconditioned
For a legacy IMS replacement, send:
Front Photo + Rear Nameplate + Article Number + Internal Hardware Number + Vessel/Boiler Model + Burner Type + Fault Description + Required Quantity
The front appearance alone is not sufficient to guarantee compatibility.
For older SAACKE IMS installations:
Modern SAACKE burner controls continue to emphasize integrated safety, monitoring and precise combustion regulation, showing how important the controller and field devices are as one complete safety system.
The SAACKE IMS is the Integrated Management System, a legacy control and operator unit used with SAACKE burner/boiler automation installations. The original SAACKE manual identifies it specifically as the Integrated Management System IMS.
It performs operator-interface and system-interfacing functions within the burner-management architecture. It should therefore be described more accurately as an Integrated Management / Boiler-Burner Control Unit rather than only an HMI.
Yes. The manual documents connections for OPTOIO-16, OPTOIO-32 and EA-16 modules.
Yes. A 9-pole RS232C interface is documented for printer, PC and bus-coupling applications.
Not necessarily. The HMI 10e belongs to a later se@vis architecture. Complete compatibility and retrofit engineering must be confirmed before replacement.
Depending on the fault, display, power-supply, connector or electronic issues may sometimes be repaired. Processor/EPROM or major PCB failures can require a donor or replacement unit.
Yes. FLUS 06, FLS09 UV5 and related SAACKE flame-monitoring equipment can be sourced subject to availability.
SM MARINE SERVICE™ supports worldwide sourcing of SAACKE boiler and burner automation equipment, including legacy controllers and related spare parts, subject to stock availability.
The SAACKE Integrated Management System IMS is a legacy marine boiler and burner-management control unit used within SAACKE combustion-automation installations. The IMS provides operator control together with interfaces for I/O modules, RS232C communication and related burner-management equipment. SM MARINE SERVICE™ supports worldwide sourcing of SAACKE IMS controllers, OPTOIO modules, flame scanners, burner controllers, servomotors and related marine boiler automation spare parts in new, used, tested, refurbished and reconditioned condition, subject to availability.
Document: 1-8254-8007/02
Title: Hardware Description of the Integrated Management System IMS – Appliance Manual
Edition shown: Second Issue, October 1998
The manual covers:
Design & Function • Hardware Features • Connection Field • I/O Interface • RS232C • Power Supply • Mounting • Commissioning • Troubleshooting • Technical Data
View SAACKE IMS Technical Manual
This manual covers the IMS external I/O modules, signal interfaces, electrical connections and OPTOIO-32 technical data.
View SAACKE OPTOIO-16/32 Technical Manual
