SAACKE T ID Burner Control Unit

Marine Boiler Burner Automation and Combustion Control Component for SAACKE Burner Systems

Manufacturer

SAACKE GmbH

Country of Origin

Germany

Product Type

Marine Boiler Burner Control Unit / Burner Automation Control Module

Marine Application

Used in marine boiler burner control systems for burner sequence control, combustion monitoring, safety interlocks, flame-related burner automation logic, and overall boiler burner management support

---

Product Introduction

The SAACKE T ID Burner Control Unit is associated with marine boiler burner automation systems used on vessels equipped with SAACKE marine burners and boiler combustion arrangements. In practical marine operation, burner control units like this are important because they help manage the control sequence of the burner, support safe ignition and shutdown logic, coordinate operational signals, and maintain the overall automation chain between the boiler, burner, flame supervision, and related safety interlocks.

SAACKE is widely known in the marine sector for marine boiler systems, burner systems, gas combustion units, and associated automation technology. Their systems are used across a range of vessel types where reliable steam generation, thermal oil heating, or auxiliary boiler firing is required. The control side of these systems is just as important as the burner hardware itself because improper burner control can lead to failed ignition, unsafe firing conditions, nuisance trips, poor combustion, or even boiler shutdown.

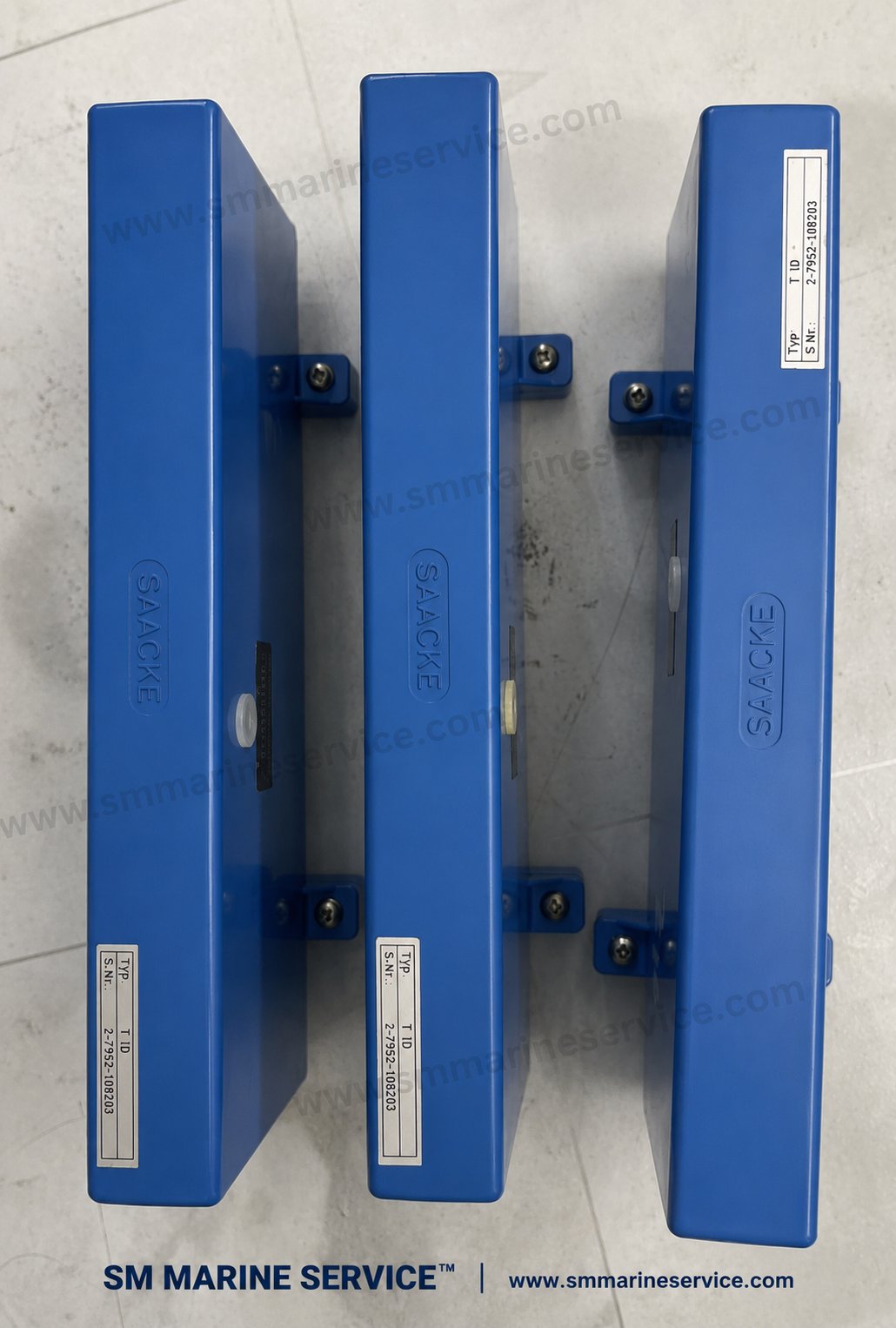

The blue modules shown in your image appear to be SAACKE T ID control units / control modules intended for installation as part of a burner control cabinet or boiler automation arrangement. Even though the external photo does not show the internal electronics, the form factor and SAACKE branding strongly suggest they belong to the control and monitoring side of a SAACKE marine burner system.



---

What Is the SAACKE T ID Burner Control Unit?

The SAACKE T ID can be understood as a burner control / burner management related module used within a SAACKE marine boiler burner control system. In a marine auxiliary boiler arrangement, the burner does not operate by simple on/off switching alone. It must follow a safe operating sequence that typically includes:

• pre-start permissive checks
• fuel and air sequence logic
• ignition timing
• flame supervision response
• shutdown and lockout response
• alarm handling
• burner status feedback to the boiler control system

A burner control unit forms part of that automation chain. It helps the boiler and burner system “decide” when it is safe to start, when to stop, how to respond to faults, and how to maintain controlled firing under different load conditions.

For marine engineers, the key point is that a unit like this is not simply an electrical accessory—it is part of the burner safety and combustion control architecture of the boiler plant.

---

Main Features of SAACKE T ID Burner Control Unit

1) Designed for Marine Burner Control Systems

The SAACKE T ID unit is intended for use within marine burner automation systems, particularly in SAACKE boiler and burner installations where reliable sequence control and safety logic are essential.

2) Supports Burner Sequence and Interlock Logic

Burner control modules typically participate in burner start/stop sequencing and safety interlock handling. This may include responses related to:

• flame status
• ignition timing
• permissive conditions
• burner lockout
• boiler control command logic
• alarm and trip signaling

3) Suitable for Marine Auxiliary Boiler Automation

Marine auxiliary boilers require dependable burner control for steam production, tank heating support, fuel heating, and general thermal service. Control modules like the SAACKE T ID help maintain this automation environment.

4) Built for Integration with SAACKE Burner Systems

Rather than being a generic universal component, this type of module is associated with the SAACKE burner ecosystem, which may include burner hardware, flame scanners, actuators, fuel control components, boiler control cabinet logic, and HMI / monitoring functions.

5) Useful for Replacement, Retrofit, and Spare Support

Older SAACKE burner systems remain in service on many ships. For that reason, spare control units, replacement modules, and reconditioned automation components are still actively searched by marine engineers and purchasing teams.

Main Components of a SAACKE Marine Burner Control Arrangement

The SAACKE T ID module is usually not a standalone working system by itself. It is part of a larger marine boiler burner control arrangement, which may include the following sections:

1) Burner Control Module / Sequence Control Unit

This is the section responsible for burner-related control logic, timing, signal processing, and interlock response.

2) Flame Monitoring / Flame Scanner Interface

Marine burner systems normally use flame scanners or flame detectors to confirm whether stable combustion is present. The burner control arrangement must react immediately if flame failure occurs.

3) Fuel Valve and Ignition Control Circuit

The burner control system coordinates ignition and fuel valve sequencing during burner startup and shutdown.

4) Boiler Control Cabinet Interface

The burner control module often communicates with the boiler control panel or burner management cabinet, receiving start commands and returning status, alarm, or trip feedback.

5) Safety Interlock Inputs

Typical interlock-related signals may include:

• fuel pressure status
• combustion air status
• flame status
• burner motor / fan status
• boiler permissive signals
• emergency shutdown input

6) Output / Alarm / Lockout Logic

If a fault occurs, the system may trigger alarm, stop the burner, or enter lockout mode until manual reset or fault correction is carried out.

---

Applications of SAACKE T ID Burner Control Unit in Marine Use

The SAACKE T ID control unit is relevant to marine boiler and burner systems installed on:

• Auxiliary boilers on merchant vessels
• Tank heating boiler systems
• Steam-generating marine boiler plants
• Thermal service boiler systems
• Boiler burner automation cabinets
• Retrofit and spare replacement projects for SAACKE marine burner installations

It may be found on vessel types such as:

• oil tankers
• bulk carriers
• container vessels
• offshore support vessels
• general cargo ships
• vessels operating SAACKE auxiliary boiler or burner systems

---

Common Problems and Troubleshooting

Like other burner automation parts, SAACKE burner control modules can suffer from faults related to age, electrical issues, control cabinet environment, or upstream burner problems. Below are some practical marine troubleshooting considerations.

1) Burner Fails to Start Despite Boiler Start Command

Possible causes

• interlock not satisfied
• control module not receiving correct input signal
• internal module fault
• wiring / terminal issue
• external burner permissive failure

Troubleshooting

• verify burner permissive signals first
• check whether the control cabinet is sending a start command to the module
• inspect wiring, terminal condition, and related relay / fuse condition
• compare with burner alarm or lockout indication from the boiler control panel

---

2) Burner Trips to Lockout During Start Sequence

Possible causes

• flame not established in time
• ignition problem
• incorrect sequence logic response
• fault in associated flame monitoring or burner control chain
• unstable fuel / air condition causing failed ignition

Troubleshooting

• check ignition performance and burner mechanical condition
• verify flame scanner / flame detector health
• inspect whether the control unit is correctly receiving flame confirmation
• review alarm history if available in the burner control cabinet

---

3) Intermittent Burner Control Fault / Unstable Operation

Possible causes

• loose terminals
• internal PCB aging
• vibration damage in control cabinet
• moisture or heat stress
• unstable power supply

Troubleshooting

• inspect module seating and terminal tightness
• check cabinet ventilation and ambient condition
• look for signs of corrosion, overheating, or moisture ingress
• verify supply voltage and control circuit stability

---

4) No Output to Burner Sequence Components

Possible causes

• failed output stage
• logic inhibition from another safety device
• blown fuse or damaged wiring
• module not enabled due to upstream alarm

Troubleshooting

• trace the control path from command input to output terminal
• verify all associated safety inputs
• inspect linked relays, contactors, and fuse protection
• compare with another healthy module if available onboard

---

5) Module Works but Boiler Burner Does Not Respond Properly

Possible causes

• fault lies in burner hardware, not the control module
• actuator / fuel valve / ignition transformer issue
• flame scanner or air pressure switch problem
• mismatch between control signal and field device response

Troubleshooting

• do not isolate the module alone as the cause
• check complete burner chain including actuator, igniter, fuel system, and flame monitoring
• verify whether the module output is actually reaching the final device

---

Maintenance Tips for SAACKE Burner Control Modules

Keep the Control Cabinet Clean and Dry

Burner control electronics should be protected from moisture, dust, oil mist, and excessive engine room heat. Control cabinet cleanliness greatly affects long-term reliability.

Check Terminal Tightness During Planned Maintenance

Loose terminals are a common cause of burner automation faults. Periodic tightening and inspection can prevent nuisance shutdowns.

Preserve Correct Wiring Identification

When replacing modules, always keep proper wire numbering and terminal identification. Incorrect reconnection can cause dangerous burner control behavior.

Monitor Related Burner Safety Devices

The burner control module depends on signals from flame scanners, pressure switches, actuators, ignition systems, and permissive contacts. Good module health alone does not guarantee correct burner operation.

Keep a Compatible Spare Where the Boiler Is Critical

For vessels relying heavily on auxiliary boiler availability, keeping a spare SAACKE control module or equivalent approved replacement can reduce downtime.

---

Why Ships Still Use SAACKE Burner Control Systems

Ships continue to use SAACKE burner control systems and associated modules because SAACKE remains a respected name in marine combustion engineering, boiler burner systems, and marine thermal plant technology. Many vessels still operate SAACKE burners that are mechanically sound, but the control side may need periodic spare replacement or refurbishment due to age and service exposure.

Marine operators and purchasing managers still search for SAACKE control units like the T ID because they need:

• spare support for existing SAACKE boiler burner systems
• replacement of faulty control modules
• retrofit support for older burner control cabinets
• reconditioned marine automation parts for burner plants
• reliable marine boiler burner control spares without replacing the full burner system

---

Frequently Asked Questions (FAQ)

1) What is the SAACKE T ID used for?

It is used as part of a marine burner control / boiler burner automation system, supporting burner sequence logic, interlocks, and safe control of burner operation.

2) Is this a complete burner management system?

The T ID unit should be considered a component or module within a larger burner control arrangement, not the entire boiler plant by itself.

3) Can a faulty burner control module cause burner lockout?

Yes. If the control module fails to process inputs correctly, loses output function, or cannot complete the burner sequence logic, it can contribute to burner trip or lockout conditions.

4) Is this used on marine auxiliary boilers?

That is the most likely application. SAACKE control modules like this are typically associated with marine auxiliary boiler burner systems and related combustion control arrangements.

5) Can SM MARINE SERVICE™ supply SAACKE burner control units and spare parts?

Yes. SM MARINE SERVICE™ can support sourcing of SAACKE burner control units, marine burner automation spare parts, boiler control modules, burner control cabinet parts, and related marine combustion equipment subject to stock and availability.

---

Short Product Description

The SAACKE T ID Burner Control Unit is a marine boiler burner automation component used within SAACKE burner control systems for sequence management, safety interlock response, and combustion-related burner control functions. It is relevant for marine auxiliary boiler automation, burner cabinet spare replacement, and maintenance of existing SAACKE burner installations on ships.

---

User Manual & Technical Resources

For this model, the exact T ID module manual is not clearly identifiable from the external image alone, so the safest technical reference is to work from the full burner / boiler control cabinet model and the vessel’s existing SAACKE documentation set. However, the following SAACKE resources are directly relevant for marine burner systems and control architecture:
