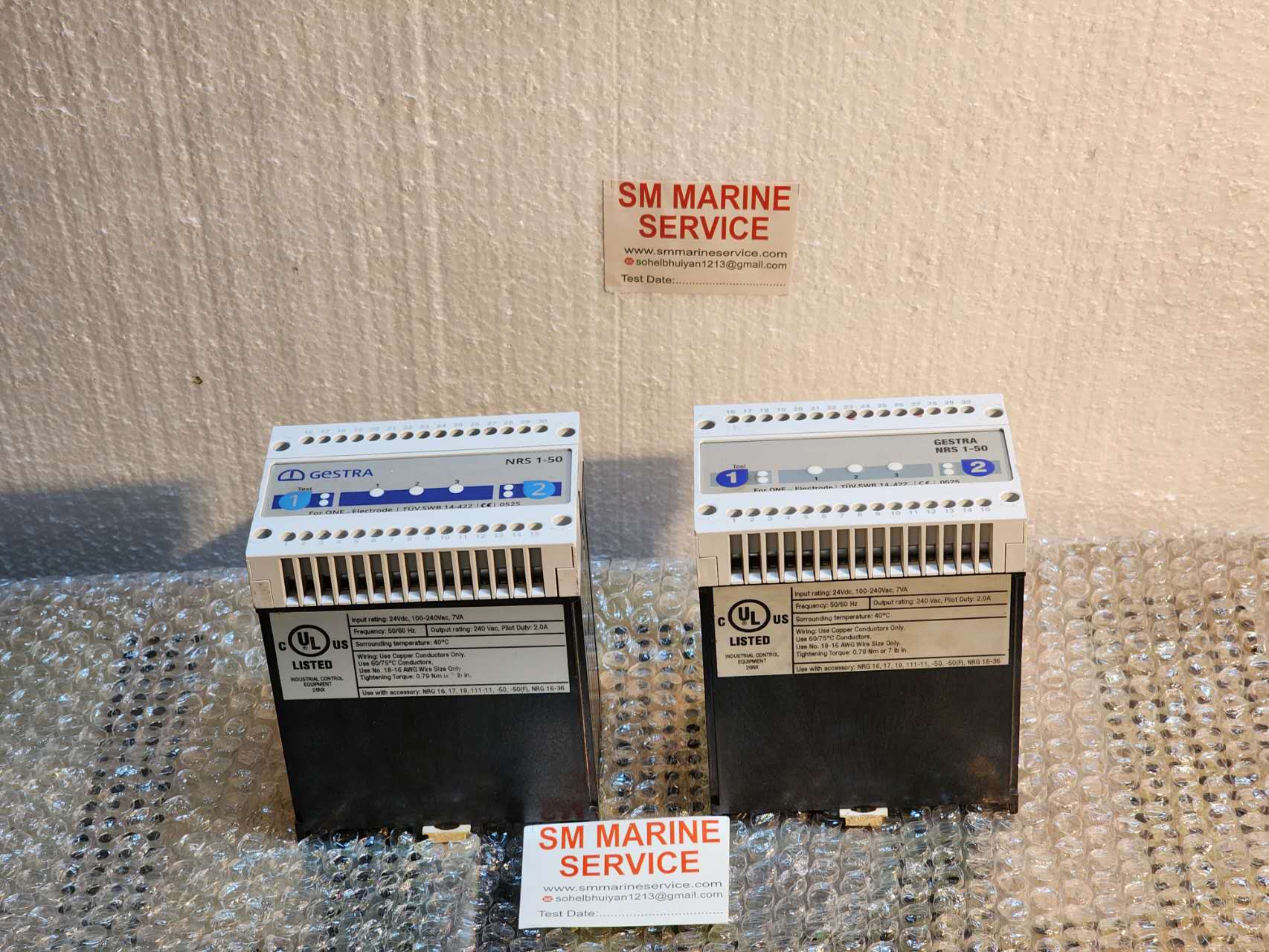

GESTRA NRS 1-50 Level Switch Controller

The GESTRA NRS 1-50 is a highly reliable electronic level switch controller designed for water level monitoring, alarm generation, and safety shutdown functions in marine and industrial boiler systems.

The unit works together with level electrodes to continuously supervise boiler water levels and ensure safe boiler operation. It is widely installed on ships, offshore platforms, steam plants, and industrial boiler applications where reliable level monitoring is essential.

The NRS 1-50 forms a critical part of the boiler protection system by preventing dangerous low-water conditions that could damage boiler tubes, reduce efficiency, or create hazardous operating situations.

---

GESTRA Boiler Level Monitoring System

---

What is GESTRA NRS 1-50?

The GESTRA NRS 1-50 is an electronic evaluation unit that receives signals from compatible GESTRA level electrodes and converts them into control, alarm, and safety outputs.

The controller continuously monitors water level conditions and activates alarms or shutdown functions whenever abnormal water levels are detected.

This ensures compliance with marine safety requirements and protects valuable boiler equipment from damage.

---

Main Functions of GESTRA NRS 1-50

Continuous Water Level Monitoring

Monitors boiler water levels in real time.

Low Water Protection

Provides critical protection against dangerous low-water conditions.

High Water Level Supervision

Detects abnormal high-water conditions.

Alarm Generation

Activates visual and audible alarms when required.

Boiler Shutdown Function

Initiates safety shutdown procedures when necessary.

Electrode Signal Processing

Works with GESTRA level electrodes for accurate measurement.

---

Importance of Boiler Water Level Monitoring

Proper boiler water level control is essential for safe operation.

If water levels become too low:

• Boiler tubes may overheat
• Steam generation efficiency decreases
• Boiler damage may occur
• Safety risks increase significantly

If water levels become too high:

• Steam quality may deteriorate
• Water carryover may occur
• Equipment performance can be affected

The GESTRA NRS 1-50 helps maintain safe operating conditions at all times.

---

Key Features

Compact DIN Rail Design

Easy installation inside control panels.

Reliable Electronic Monitoring

Provides stable and accurate operation.

Marine Approved Technology

Suitable for shipboard applications.

Fast Alarm Response

Quick reaction to abnormal level conditions.

Flexible Power Supply

Designed for industrial and marine environments.

Low Maintenance Requirements

Reliable long-term operation.

---

Typical Applications

The GESTRA NRS 1-50 is commonly used in:

Marine Auxiliary Boilers

Water level supervision and protection.

Steam Boilers

Low-water alarm systems.

Industrial Boiler Plants

Continuous level monitoring.

Thermal Fluid Systems

Safety control applications.

Offshore Installations

Boiler safety monitoring.

Power Generation Facilities

Steam system protection.

---

Working Principle

The controller operates together with level electrodes installed inside the boiler.

Step 1

Level electrodes detect water level changes.

Step 2

Signals are transmitted to the NRS 1-50 controller.

Step 3

The controller evaluates the level condition.

Step 4

Normal conditions are continuously monitored.

Step 5

If abnormal levels occur, alarms are activated.

Step 6

Safety shutdown outputs operate when required.

---

Common Alarm Conditions

Low Water Alarm

Possible Causes

• Feed water pump failure
• Water leakage
• Feed control malfunction

Recommended Action

• Check feed water system
• Verify pump operation
• Inspect boiler controls

---

High Water Alarm

Possible Causes

• Feed valve malfunction
• Control system fault
• Incorrect water level adjustment

Recommended Action

• Verify control settings
• Inspect feed valves
• Check electrode performance

---

Electrode Fault

Possible Causes

• Dirty electrode surface
• Wiring problem
• Damaged electrode

Recommended Action

• Clean electrodes
• Inspect wiring
• Replace defective components

---

Maintenance Recommendations

Monthly

• Verify alarm operation
• Inspect indicator status

Quarterly

• Test low-water protection system
• Check electrode condition

Annually

• Complete safety function test
• Inspect electrical terminals
• Verify system calibration

---

Advantages of GESTRA NRS 1-50

• Proven GESTRA reliability
• High operational safety
• Fast alarm response
• Easy installation
• Long service life
• Low maintenance cost
• Suitable for marine and industrial applications

---

Frequently Asked Questions (FAQ)

What is GESTRA NRS 1-50 used for?

It is used for boiler water level monitoring, alarm generation, and safety protection.

Does it work with level electrodes?

Yes. It is specifically designed to operate with compatible GESTRA level electrodes.

Can it stop a boiler during low-water conditions?

Yes. It can activate safety shutdown functions when integrated into the boiler protection system.

Is it suitable for ships?

Yes. The NRS 1-50 is widely used in marine boiler installations worldwide.

Can it be used in industrial boilers?

Yes. It is suitable for both marine and industrial applications.

---

Available Documentation

Typical documentation includes:

User Manual

• Installation Instructions
• Wiring Procedures
• Safety Information

Technical Manual

• Functional Description
• Electrical Connections
• Alarm Logic

Service Manual

• Troubleshooting Guide
• Maintenance Procedures
• Spare Parts Information

---

Why Choose SM MARINE SERVICE™?

SM MARINE SERVICE™ supplies tested and reconditioned marine automation equipment, boiler control systems, level monitoring devices, engine room automation systems, and marine spare parts worldwide.

We support:

• Ship Owners
• Ship Management Companies
• Marine Engineers
• Shipyards
• Offshore Operators
• Industrial Boiler Operators

Available Condition

• Used
• Reconditioned
• Refurbished
• Fully Tested Before Delivery

Services

• Worldwide Shipping
• Technical Support
• Boiler Automation Solutions
• Inspection Assistance
• Repair & Replacement Services
• Marine Spare Parts Supply

---

SM MARINE SERVICE™

C.E.O: Md. Sohel Rana Bhuiyan

Company Name: SM MARINE SERVICE™

Address: Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

WhatsApp / Viber: +88 01818 929292

Email: info@smmarineservice.com

Alternative Email: sohelbhuiyan1213@gmail.com

Website: www.smmarineservice.com

---

Stock Availability

Product: GESTRA NRS 1-50

Condition: Reconditioned / Tested

Availability: In Stock

Technical Support: Available

Worldwide Delivery: Available

Inspection Report: Available Upon Request

---

Related Products

• GESTRA Level Electrodes
• GESTRA NRG Series Electrodes
• Marine Boiler Controllers
• Boiler Water Level Monitoring Systems
• Steam Boiler Protection Equipment
• Marine Automation Systems
• Boiler Alarm Controllers
• Engine Room Monitoring Equipment

---

Contact Us for GESTRA NRS 1-50

If you are looking for GESTRA NRS 1-50 controllers, boiler level monitoring systems, marine automation spare parts, technical support, manuals, repair services, or replacement units, contact SM MARINE SERVICE™ for competitive pricing and worldwide delivery.

SM MARINE SERVICE™ specializes in marine automation systems, boiler control equipment, engine room instrumentation, navigation electronics, hydraulic systems, burner management systems, and marine spare parts for vessels operating worldwide.



-

+

Buy Now
