Danfoss MBC 5100 Pressure Switch
Danfoss A/S
New product
|
Specification |
Details |
|---|---|
|
Manufacturer |
Danfoss A/S |
|
Manufacturer Headquarters |
Nordborg, Denmark |
|
Product Name |
MBC 5100 Pressure Switch |
|
Product Series |
MBC 5000 / MBC 5100 |
|
Code Number |
061B010266 |
|
Specification Key |
1411-2DB04 |
|
Product Type |
Heavy-Duty Electromechanical Pressure Switch |
|
Regulation Range |
−0.2 to +10 bar |
|
Maximum Working Pressure |
15 bar |
|
Contact Function |
SPDT (Single Pole Double Throw) |
|
Reset Function |
Automatic |
|
Enclosure Rating |
IP65 |
|
Pressure Connection |
G 1/4, female, with flange |
|
Electrical Connection |
DIN plug |
|
Country of Manufacture |
Poland, as marked on the supplied product |
|
Product Condition |
New, in original Danfoss box, as supplied |
|
Availability |
Subject to stock confirmation |
|
Worldwide Supply |
International shipping enquiries accepted |
The equipment identification is based on the supplied product labels and official Danfoss specifications.
The exact code number 061B010266 is particularly important because different MBC 5100 versions may have different pressure ranges, connections, switching characteristics and specifications.
The Danfoss MBC 5100 Pressure Switch, Code 061B010266, is a compact, heavy-duty electromechanical pressure-control device designed for demanding industrial and marine environments.
Manufactured by Danfoss, a Denmark-based engineering company, the MBC 5100 series is designed for applications where reliable pressure monitoring and electrical switching are required.
This particular version offers an adjustable regulation range from −0.2 to 10 bar, with a maximum working pressure of 15 bar.
The switch can be integrated into suitable pressure-monitoring, alarm, interlock and control circuits.
Its robust construction, IP65 protection, automatic reset and industrial electrical contacts make it relevant to machinery installations exposed to vibration, moisture and demanding operating conditions.
SM MARINE SERVICE™ supports international enquiries for the Danfoss MBC 5100 pressure switch, replacement units and related marine instrumentation spare parts.
Website: **https://www.smmarineservice.com/**
The Danfoss MBC 5100 is an electromechanical device that changes the state of an electrical contact when the monitored pressure reaches a defined switching point.
Unlike a pressure transmitter, which continuously produces an electrical measurement signal, a pressure switch responds to an adjusted pressure threshold by opening or closing a contact.
The MBC 5100 uses a mechanical pressure-sensing element connected to an electrical switching mechanism.
For this version, Danfoss identifies a bellows-type pressure-sensing element and a single-pole double-throw (SPDT) contact arrangement.
This allows the switch to be used in control circuits designed to initiate an alarm, activate a relay, operate a pump-control function or signal an abnormal pressure condition.
The exact action depends on how the contact is wired and how the pressure set point and switching differential are adjusted.
In marine engine rooms, pressure switches form part of numerous monitoring and machinery-control arrangements.
A suitable switch may be used to detect low lubricating-oil pressure, cooling-water pressure changes or abnormal pressure in auxiliary machinery systems.
However, the correct pressure range, contact characteristics and approval requirements must be confirmed for every installation.
The MBC 5100 features a compact block-type construction designed for robust machinery installations.
Its design is intended to withstand challenging operating environments, including vibration and mechanical stress.
The 061B010266 version provides a pressure regulation range of −0.2 to +10 bar.
This allows it to be configured for various suitable pressure thresholds within the specified range.
The switch uses an automatic reset arrangement.
When pressure returns across the relevant switching threshold, the contact returns according to the switch's adjusted differential and operating characteristics.
The single-pole double-throw contact arrangement enables the switch to change between two electrical contact paths.
This can support compatible alarm and control circuits.
The IP65 enclosure rating provides protection against dust ingress and water jets when the switch and electrical connection are correctly assembled.
It does not make the device suitable for unrestricted immersion.
The switch uses a DIN-style electrical connector designed for industrial control installations.

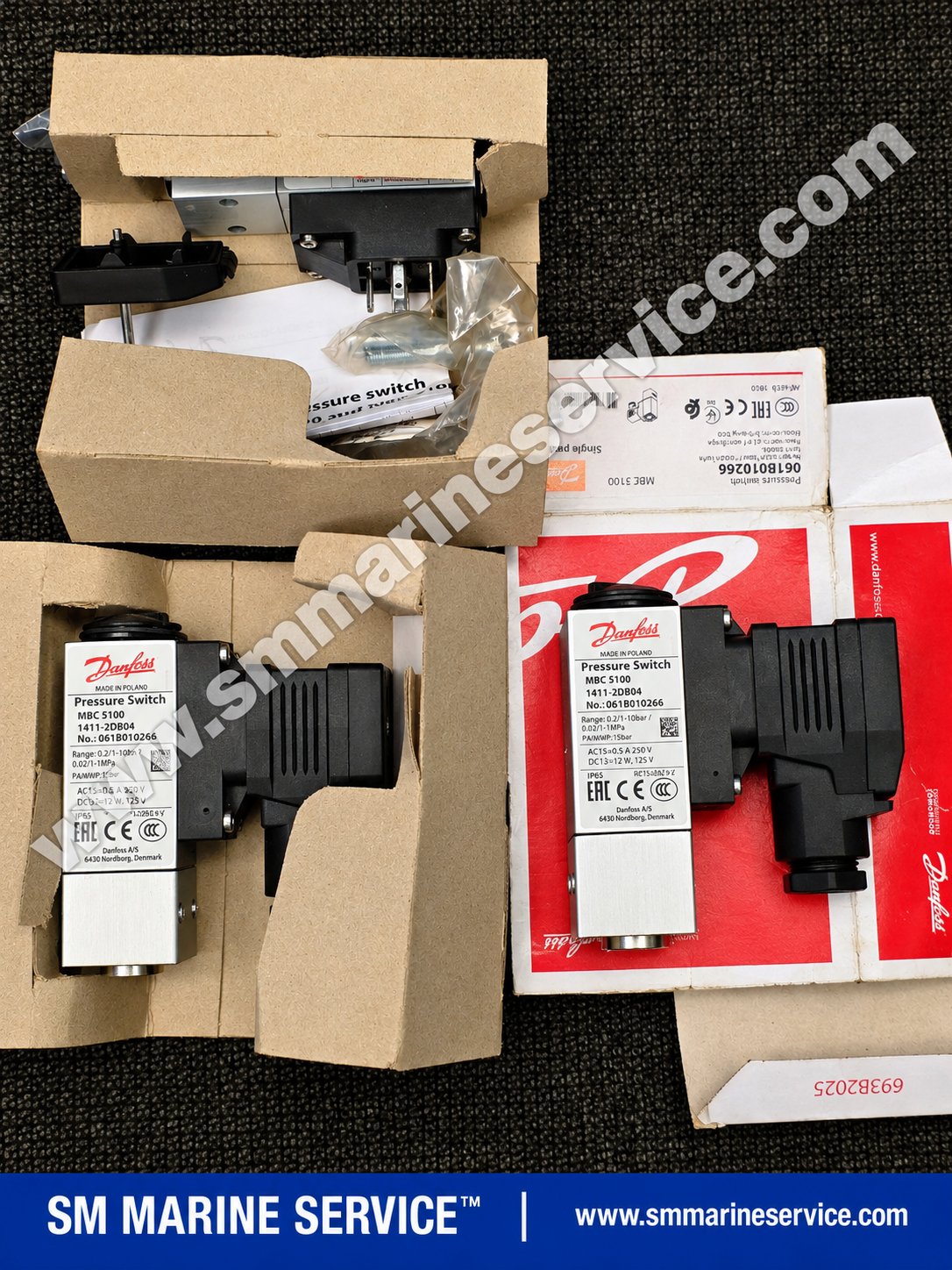

The supplied product photograph shows a compatible plug connector among the packaged components.
Danfoss specifies an ambient operating range of −40°C to +85°C for this model.
This helps make it suitable for relevant marine and industrial machinery environments.
|
Technical Parameter |
Danfoss MBC 5100 – 061B010266 |
|---|---|
|
Manufacturer |
Danfoss |
|
Model |
MBC 5100 |
|
Code Number |
061B010266 |
|
Specification Key |
1411-2DB04 |
|
Regulation Range |
−0.2 to +10 bar |
|
Regulation Range in MPa |
−0.02 to +1.0 MPa |
|
Maximum Working Pressure |
15 bar |
|
Minimum Burst Pressure |
30 bar |
|
Differential at Minimum Range Setting |
0.40 bar |
|
Differential at Maximum Range Setting |
0.60 bar |
|
Contact Function |
SPDT |
|
Reset Function |
Automatic |
|
Contact Rating AC-15 |
0.5 A at 250 V |
|
Contact Rating DC-13 |
12 W at 125 V |
|
Electrical Connection |
DIN plug |
|
Electrical Connection Standard |
EN 175301-803-A |
|
Cable Entry / Connection Size |
M20 |
|
Pressure Connection |
G 1/4 female, with flange |
|
Pressure Connection Standard |
ISO 228-1 |
|
Pressure-Sensing Element |
Bellows |
|
Protection Rating |
IP65 |
|
Ambient Temperature |
−40°C to +85°C |
|
Electrical Standard |
EN 60947-5 |
|
Net Weight |
Approximately 0.278 kg |
|
Country of Manufacture |
Poland, according to supplied unit label |
These specifications correspond to Danfoss's official product record for code 061B010266.
Important: The 30 bar burst-pressure figure is not an operating-pressure rating. The specified maximum working pressure for this product is 15 bar.
The Danfoss MBC 5100 is an integrated electromechanical switching device. Its pressure-sensing and contact mechanisms are housed within the main switch body.
The bellows responds mechanically to changes in the monitored pressure.
As the pressure increases or decreases, the mechanism causes the electrical contact to change state at its adjusted switching threshold.
The internal single-pole double-throw contact provides a switching signal to an external control or monitoring circuit.
It may be connected to an alarm relay, pump-control circuit or machinery safety system, provided the electrical installation is suitable.
The switch incorporates an adjustment mechanism used to set the desired pressure threshold within its specified operating range.
The switching differential must also be considered when selecting the required operating point.
The DIN connector provides the electrical connection between the switch and the external control system.
Correct gasket installation, cable entry sealing and connector assembly are important for maintaining the intended IP65 protection.
The MBC 5100 variant identified as 061B010266 uses a G 1/4 female pressure connection with flange.
Buyers must verify the mating pressure connection and mounting arrangement before ordering.
According to the provided product information, the boxed unit includes the pressure switch, DIN plug connector with cable gland, mounting screws and an instruction leaflet.
The exact contents of an individual package should be confirmed before shipment.
The Danfoss MBC 5100 series includes multiple versions designed for different pressure ranges and installation requirements.
|
Danfoss Code |
Model / Family |
Pressure Range |
|---|---|---|
|
061B010266 |
MBC 5100 – 1411-2DB04 |
−0.2 to 10 bar |
|
061B000066 |
MBC 5100 – 1411-1CB04 |
−0.2 to 10 bar |
|
061B000266 |
MBC 5100 – 1411-1DB04 |
−0.2 to 10 bar |
|
061B000466 |
MBC 5100 – 1211-1DB04 |
−0.2 to 4 bar |
|
061B000566 |
MBC 5100 – 1011-1DB04 |
−0.2 to 1 bar |
|
061B510266 |
MBC 5100 high-pressure version |
40 to 400 bar in the referenced Danfoss ordering data |
Danfoss also manufactures the MBC 5180 differential pressure switch and other pressure-control product families.
The related products listed above are for identification and comparison. They are not automatically interchangeable with code 061B010266.
Differences in pressure range, sensing mechanism, pressure connection and electrical characteristics must be checked before selecting a replacement.
The MBC 5100 series is designed for demanding pressure-control applications and is relevant to marine machinery installations.
Potential applications for appropriately selected pressure switches include the following.
Pressure switches are used in suitable engine monitoring circuits to indicate low lubricating-oil pressure or provide a signal to an associated alarm or protection system.
The switching set point and safety configuration must match the engine manufacturer's requirements.
A pressure switch may be used to supervise cooling-water pressure in engine cooling circuits.
This can help identify a loss of pressure associated with a pump problem, leakage or another abnormal operating condition.
Pressure switches may be used in compatible compressor-control or compressed-air monitoring circuits.
The selected switch must be suitable for the required pressure range, differential and operating environment.
An MBC 5100 can be incorporated into an appropriately designed pump-control arrangement, including pressure monitoring and relay switching.
Pressure switches may be used in compatible fuel-oil pressure-monitoring arrangements, provided material compatibility, pressure limits and safety requirements are verified.
Other relevant applications include suitable hydraulic equipment, auxiliary machinery monitoring and engine-room automation systems.
Application warning: These are possible applications of the pressure-switch product category. The 061B010266 must not be assumed suitable for every system without checking the fluid, operating pressure, set point, electrical load and approval requirements.
|
Problem |
Possible Cause |
Recommended Check |
|---|---|---|
|
Pressure alarm does not activate |
Incorrect setting, damaged contacts or circuit fault |
Verify pressure and switching response |
|
False pressure alarm |
Incorrect set point, pressure fluctuation or electrical issue |
Compare with an approved pressure gauge |
|
Switch does not reset |
Pressure has not crossed the reset threshold or mechanism fault |
Check pressure and differential |
|
Intermittent contact operation |
Loose connector, vibration or contact deterioration |
Inspect electrical connections |
|
Incorrect switching pressure |
Misadjustment or sensing-element problem |
Arrange controlled testing |
|
Water ingress |
Damaged connector gasket or incorrect assembly |
Inspect enclosure sealing |
|
Pressure leakage |
Incorrect mounting or damaged sealing arrangement |
Inspect the pressure connection |
|
Switch remains in one contact state |
Mechanical or electrical fault |
Perform qualified pressure and continuity testing |
These are general diagnostic possibilities, not confirmed faults of the supplied product.
The MBC 5100-061B010266 has automatic reset.
However, automatic reset does not mean that the switch will immediately return to its original contact state as soon as pressure begins to change.
The pressure must cross the relevant switching threshold, accounting for the switch differential.
For this specific version, Danfoss lists a differential of approximately 0.40 to 0.60 bar, depending on the range setting.
Repeated pressure alarms can originate from pressure fluctuations, incorrect adjustment, damaged wiring, switching-contact problems or actual machinery operating conditions.
The monitored pressure should be checked with a suitable reference instrument before the switch is identified as faulty.
The electrical contact must operate within its rated electrical limits.
Excessive load current or an unsuitable switching circuit can damage contacts and reduce reliable operation.
For the 061B010266, Danfoss specifies AC-15 and DC-13 contact ratings. Different electrical load categories must not be treated as interchangeable.
Before removing or testing a pressure switch, isolate the electrical circuit and safely depressurise the connected process line.
Use an appropriate calibrated pressure source and test instrument when verifying the switching point.
Never bypass an engine shutdown or alarm circuit merely to test the switch.
The switch is a sealed, non-serviceable product according to Danfoss's product record. Internal repair should not be assumed to be supported.
The Danfoss MBC 5100 is designed for robust operation, but regular external inspection is valuable.
Recommended practices include:
Inspect the switch housing for damage or corrosion.
Check the DIN connector and cable gland for secure assembly.
Verify that cable insulation and connections remain in good condition.
Look for leaks around the pressure connection.
Check the alarm or control response using approved maintenance procedures.
Record actual switching pressures during periodic testing where required.
Keep the surrounding equipment free of excessive contamination.
Confirm the model and code number before replacement.
The switch should be replaced rather than internally dismantled when the manufacturer identifies it as non-serviceable and its operation cannot be restored through permitted external checks.
SM MARINE SERVICE™ supports international enquiries for the Danfoss MBC 5100 Pressure Switch, Code 061B010266, and related marine pressure-control equipment.
The supplied stock information identifies a new, boxed Danfoss MBC 5100 pressure switch with the specification key 1411-2DB04.
Customers may enquire about:
Complete MBC 5100 pressure switch 061B010266.
Identical replacement pressure switches.
Compatible DIN plug connectors.
Mounting and connection accessories.
Alternative MBC 5100 pressure ranges.
MBC 5000 pressure-switch variants.
MBC 5180 differential pressure switches.
Other verified Danfoss marine pressure-control products.
The exact availability of additional ranges and components must be confirmed individually.
The featured product is described in the supplied inventory information as new and packaged in its original Danfoss box.
The actual current quantity, packaging condition and any testing or warranty arrangements should be confirmed when requesting a quotation.
Even where two Danfoss switches have the same pressure range, they may differ in pressure connection, electrical arrangement, contact characteristics or other technical details.
Therefore, buyers should match the complete code number and specification key.
International buyers should provide the full Danfoss code number, specification key, required quantity, pressure range, connection details and delivery destination.
For a replacement installation, include the original equipment nameplate information and machinery application.
Contact SM MARINE SERVICE™: https://www.smmarineservice.com/
The MBC 5100 series combines compact construction, industrial electrical contacts and a pressure-sensing mechanism designed for demanding installations.
For ships and industrial facilities, this type of switch provides a straightforward method of converting pressure conditions into electrical alarm or control signals.
The availability of different pressure ranges allows engineers to select a suitable variant for specific machinery requirements.
However, correct part-number selection remains essential, especially where a pressure switch forms part of an engine protection system.
It is a heavy-duty electromechanical pressure switch designed to change an electrical contact state at an adjusted pressure threshold.
It identifies the MBC 5100 version with specification key 1411-2DB04.
The regulation range is −0.2 to +10 bar.
The maximum working pressure is 15 bar.
Yes. This particular version has an automatic reset function.
It uses an SPDT electrical contact.
The product has an IP65 rating when correctly installed and assembled.
The 061B010266 has a G 1/4 female pressure connection with flange.
It may be suitable for an appropriately designed system, depending on the required set point, fluid compatibility, approval and engine specifications.
Possible causes include pressure remaining within the switching differential, incorrect adjustment or a mechanical/contact fault.
Contact SM MARINE SERVICE™ for product availability, price and worldwide shipping information.
The company accepts sourcing enquiries for other Danfoss MBC 5100 versions, subject to availability and technical identification.
The Danfoss MBC 5100 Pressure Switch, Code 061B010266, Specification Key 1411-2DB04, is a heavy-duty electromechanical pressure switch suitable for appropriately designed marine and industrial pressure-monitoring applications. It offers an adjustable pressure range of −0.2 to 10 bar, 15 bar maximum working pressure, automatic reset, SPDT contacts, a G 1/4 female connection with flange and IP65 enclosure protection. The supplied product is described as new in its original Danfoss packaging. SM MARINE SERVICE™ supports international enquiries for this exact pressure switch, related Danfoss components and marine instrumentation spare parts. Buyers should verify the complete model code and technical compatibility before ordering.
Marine Automation & Navigation Equipment Supplier
Available Equipment Conditions:
New Equipment • Used Equipment • Refurbished Equipment • Reconditioned Equipment
Specific product condition and availability are subject to confirmation.
Stock Locations:
Bangladesh • China
Services:
Worldwide Shipping • Technical Support • Spare Parts Supply • Marine Equipment Sourcing
Contact Information
SM MARINE SERVICE™
Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
Mobile / WhatsApp / Viber: +88 01818 929292
Email: info@smmarineservice.com
Website: www.smmarineservice.com
For quotations regarding Danfoss MBC 5100 pressure switch 061B010266, compatible pressure-monitoring components or other marine and industrial equipment, contact SM MARINE SERVICE™ with the required part number, quantity and shipping destination.
0
BDT 0
BDT 0
BDT 0
BDT 0
Marine Equipment Supplier
