FURUNO DS-60 DS-600 Doppler Sonar Display Unit – Specifications, Troubleshooting, Spare Parts and Replacement



The FURUNO DS-600 Display Unit is part of the FURUNO DS-60 three-axis Doppler sonar system, designed to provide real-time vessel speed and motion information for safer berthing, docking and close-quarters manoeuvring. It is relevant to marine navigation teams, ship operators, technical superintendents and purchasing departments seeking a replacement display or spare parts for an existing DS-60 installation.



SM MARINE SERVICE™ supports marine equipment sourcing for international customers seeking FURUNO navigation equipment, tested used units and replacement components, subject to availability and compatibility verification.



Product Information



- Manufacturer: FURUNO Electric Co., Ltd.

- Country of origin: Japan (manufacturer's country; the manufacturing origin of this individual unit should be confirmed from its rating label)

- System model: FURUNO DS-60

- Display model: DS-600

- Product type: Marine Doppler sonar display unit / speed-log display

- Main application: Vessel speed measurement, ship-motion monitoring, berthing and docking

- Visible program number: 6652002-02.12

- Visible serial number: -4451, as displayed on the self-test screen

- Self-test information: ROM OK / RAM OK

- Visible marking: Wheelmark-style symbol with 0560 / 2018; the certification details of this individual unit should be verified from its original label and documentation.



Product Introduction



The FURUNO DS-60 is a marine three-axis Doppler sonar system intended to supply accurate vessel-motion information for demanding manoeuvres. Its measurements help bridge personnel understand movement along the ship's fore-and-aft axis and across the port-and-starboard axis.



The DS-600 is the display unit within that system. It presents operational information in graphical and alphanumeric formats through an 8.4-inch colour LCD. Its practical value is particularly evident during low-speed manoeuvring, when small changes in vessel movement can have significant consequences near a berth, quay, terminal or another vessel.



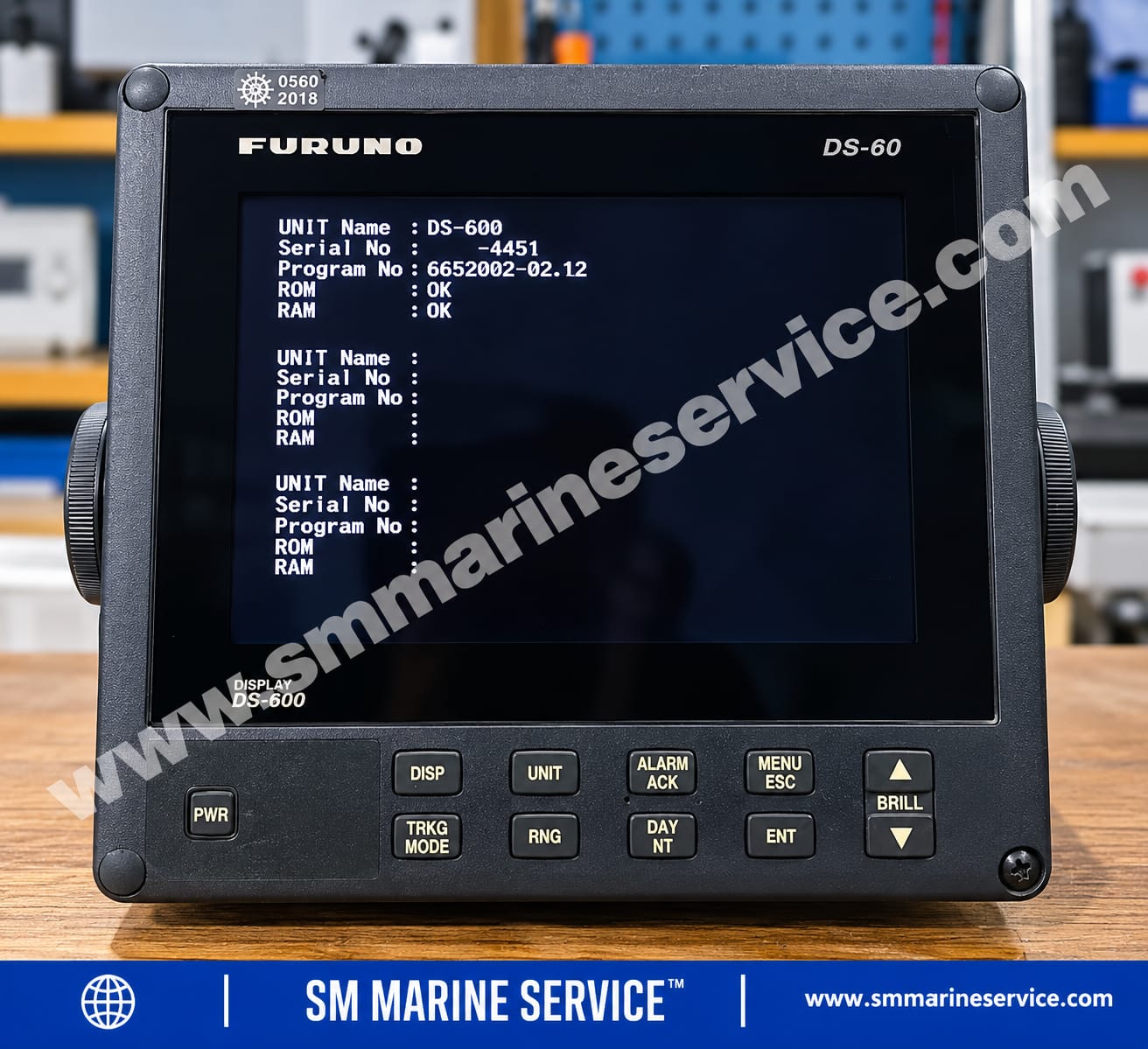

The supplied photograph shows a FURUNO DS-600 displaying a diagnostic or self-test screen. The reported ROM OK and RAM OK indications are positive observations from that screen, but they do not independently prove that the entire display, communication interfaces, transceiver and underwater transducer are fully operational.



Suggested Image 1: Insert the supplied SM MARINE SERVICE™ photograph of the FURUNO DS-600 display unit here. Use descriptive alternative text: “FURUNO DS-60 DS-600 Doppler sonar display unit with diagnostic screen.”



What Is the FURUNO DS-600 Display Unit?



The DS-600 is a dedicated display for the DS-60 Doppler sonar system, rather than a standalone speed sensor. The complete system uses underwater acoustic measurements to determine vessel speed and motion.



Depending on the configured operating mode, the DS-60 can provide speed over ground (SOG), speed through water (STW), fore-and-aft speed, transverse speed, current information and distance-run data. These measurements help bridge teams assess the vessel's movement during harbour approaches and berthing operations.



The display also provides controls for selecting display modes, acknowledging alarms, changing range, adjusting day/night presentation and controlling screen brilliance.



Main Features



- 8.4-inch colour LCD: Presents navigation and berthing information in readable graphical and numerical formats.

- Three-beam Doppler sonar: Uses three-beam transmission to reduce the influence of vessel pitch and roll on measurements.

- Fore-and-aft speed measurement: Supports monitoring of longitudinal vessel movement.

- Port-and-starboard speed measurement: Helps personnel assess sideways movement during docking.

- Ground and water tracking: Provides speed information relative to the seabed or surrounding water, subject to operating conditions.

- Current information: The system can display calculated current speed and direction when the required measurement conditions are satisfied.

- Multiple display modes: Supports navigation, berthing and three-axis speed presentations.

- Alarm acknowledgement: Includes a dedicated ALARM ACK key.

- Adjustable brilliance: Allows display brightness adjustment, with an external dimmer available for applicable configurations.

- Bridge integration: Provides interfaces for navigation data and speed outputs, according to the system configuration.



Suggested Image 2: Add an official FURUNO DS-60 system illustration or a properly licensed photograph showing the display alongside its transceiver and transducer. Avoid using an unrelated speed-log model.



Main Technical Specifications



The following values are published for the DS-60 system. Individual configurations and revisions should be checked against the applicable FURUNO manual.



Parameter| Published specification

System type| Three-axis Doppler sonar

Transmit frequency| 320 kHz

Number of beams| 3

Fore-and-aft speed range| -10.00 to +40.00 kn

Port-and-starboard speed range| -9.99 to +9.99 kn

Ground-tracking depth| Approximately 1–200 m below the hull

Water-tracking layer| Approximately 0.5–25 m below the hull, subject to operating conditions

Ground-tracking accuracy| Generally ±1% or ±0.1 kn, whichever is greater; low-speed performance has separate limits

Water-tracking accuracy| Generally ±1% or ±0.1 kn, whichever is greater

Total distance run| 0–999,999.99 NM

Current display range| 0.00–9.99 kn and 360°

Display size| 8.4-inch colour LCD

Display resolution| 640 × 480 pixels (VGA)

Display brilliance| 0.2–500 cd/m²

Approximate backlight life| 30,000 hours under the stated test conditions

Main display temperature range| -25°C to +55°C

Front-panel protection| IP56



Technical note: Published system specifications should not be treated as proof that every parameter is available in every installation or operating condition. Accuracy depends on the selected tracking mode, vessel speed, transducer installation and environmental conditions.



Main Components of the FURUNO DS-60 System



A DS-60 installation consists of interconnected components. Confirm the installed configuration before ordering replacement parts.



- DS-600 Display Unit: Presents the speed, motion and navigation information to the operator.

- DS-610 Distribution Box: Provides distribution and interface functions within the system.

- DS-620 Transceiver Unit: Forms part of the sonar transmission and reception equipment.

- DS-630 / DS-631 Transducer: Underwater sensing component; variants differ in configuration and cable or connector arrangements.

- DS-660 Transducer Tank: Associated with the transducer installation arrangement.

- DS-640 Junction Box: Used in applicable system configurations.

- Remote display options: RD-20 and RD-50 are associated remote-display options; confirm system compatibility and required interfaces before procurement.

- Cables, connectors and mounting accessories: Must match the installed equipment revision and shipboard arrangement.



Suggested Image 3: Insert an official DS-60 system configuration diagram or a manufacturer-approved transducer and transceiver illustration here.



Marine Applications



The FURUNO DS-60 Doppler sonar system is intended for merchant marine and workboat applications requiring reliable vessel-motion information.



Typical applications include:



- Container ships during port approach and berth alignment.

- Oil tankers and very large crude carriers during low-speed manoeuvres.

- Bulk carriers approaching terminals and loading facilities.

- Other merchant vessels requiring accurate fore-and-aft and transverse speed indications.

- Bridge installations where speed information supports berthing and docking decisions.



The system's published IMO compliance is particularly relevant to vessels of 50,000 GT and greater. Actual carriage requirements depend on the applicable regulations and vessel circumstances.



Common Problems and Troubleshooting



The following are practical diagnostic starting points, not a claim that every condition is a documented DS-60 fault code. Always consult the correct operator or service manual before performing repairs.



1. Display does not power on



- Check the vessel's supply and the circuit protection associated with the equipment.

- Inspect accessible connectors and cables for looseness, corrosion or physical damage.

- Check the display's power connection and approved supply arrangements.

- Refer internal power-supply or circuit-board work to qualified service personnel.



2. Display is blank or difficult to read



- Confirm that the unit is powered and that the display brilliance setting is appropriate.

- Check for visible LCD damage, abnormal backlighting or signs of moisture ingress.

- If the controls respond but the screen remains unreadable, arrange inspection of the display panel and internal electronics.



3. Communication or system data is missing



- Check the relevant inter-unit cables and connectors.

- Confirm that the associated DS-610 distribution box and DS-620 transceiver are powered and configured correctly.

- Check the applicable navigation-data interfaces and wiring against the installation documentation.

- Do not replace the display until the source of the missing data has been isolated.



4. Speed readings appear incorrect or unstable



- Confirm whether the display is showing ground tracking or water tracking.

- Check the vessel's operating conditions and the selected display mode.

- Have the transducer installation, cable integrity and system configuration examined.

- Compare readings with other suitable navigation data, while accounting for differences between speed over ground and speed through water.



5. ROM OK and RAM OK appear, but the system does not operate normally



The photograph shows both memory checks reporting OK. This is useful diagnostic evidence, but it does not confirm all hardware, software, interfaces or external components are functioning correctly. Record the complete screen information and check the relevant manual before carrying out further tests.



6. Alarm indication or intermittent operation



- Record the exact alarm wording and operating conditions.

- Inspect accessible connectors, cable routes and equipment ventilation.

- Check for moisture, corrosion, vibration damage or unstable supply conditions.

- Use the documented diagnostic procedures to distinguish a display problem from a transceiver, transducer or interface problem.



Important: Do not assume a particular alarm code, calibration procedure or PCB fault without the appropriate manual and supporting test results. Do not open or repair powered marine electronics unless qualified to do so.



Common Alarms and Fault Messages



The supplied photograph shows the diagnostic results ROM OK and RAM OK. It does not show a specific active alarm code.



The DS-60 documentation describes alarm-output functions associated with conditions including power failure, system failure, echo failure and speed-limit conditions. The exact presentation and response should be confirmed in the applicable operator manual.



For service enquiries, record the displayed message exactly, along with the program number, equipment model and symptoms. This information helps identify the correct troubleshooting procedure and replacement components.



Maintenance Tips



1. Keep the display front and control keys clean using manufacturer-approved methods.

2. Inspect accessible cables, connectors and mounting hardware during scheduled maintenance.

3. Check for corrosion, water ingress, loose connections and signs of overheating.

4. Keep a record of program numbers, equipment labels and any recurring alarm indications.

5. Verify displayed readings and system operation according to the vessel's planned maintenance procedures.

6. Use qualified service personnel for internal electronics, transducer and installation checks.

7. Before replacing a component, verify its part number, hardware revision and compatibility with the installed system.



Spare Parts & Replacement Availability



SM MARINE SERVICE™ can assist with sourcing the FURUNO DS-60 DS-600 display unit and related marine navigation spare parts, subject to stock and supplier availability.



Potential sourcing requirements include:



- Complete DS-600 display unit.

- LCD panel and front-panel assembly.

- Display PCB or internal electronic assemblies.

- DS-610 distribution box.

- DS-620 transceiver unit.

- Compatible DS-630 / DS-631 transducer.

- DS-660 transducer tank.

- Applicable DS-640 junction box.

- Compatible remote displays, cables, connectors and mounting accessories.



Availability and compatibility must be confirmed before purchase. A part appearing in the same DS-60 system family does not automatically mean it is interchangeable with every revision.



Depending on availability, enquiries may be considered for new, used, refurbished, reconditioned or tested working equipment. The condition of any offered unit should be confirmed individually; the self-test screen in the supplied photograph is not a substitute for a full operational test.



For a quotation, provide the equipment name, model, program number, serial number, photographs of the rear rating label and connectors, required quantity, destination and requested condition.



Why Ships Continue to Use Doppler Sonar Speed Information



Accurate vessel-motion information is valuable when a ship approaches a berth, moves alongside a terminal or manoeuvres in confined waters. Longitudinal speed alone does not fully describe a vessel's movement: sideways motion can also affect clearance, tug requirements and berthing decisions.



A three-axis Doppler sonar system provides bridge personnel with additional motion information to support situational awareness. Maintaining the installed system, verifying sensor performance and sourcing compatible replacement parts can help vessel operators manage equipment reliability and avoid unnecessary replacement of an entire installation.



Frequently Asked Questions



What is the FURUNO DS-600?



The DS-600 is a display unit used with the FURUNO DS-60 three-axis Doppler sonar system. It presents vessel-speed, motion and related navigation information.



Who manufactures the FURUNO DS-60?



The manufacturer is FURUNO Electric Co., Ltd., a Japanese marine electronics manufacturer.



Is the DS-600 the complete Doppler sonar system?



No. The DS-600 is the display. The complete DS-60 installation also uses associated equipment such as the distribution box, transceiver, transducer and related installation components.



Is the FURUNO DS-600 still available?



FURUNO publishes DS-60 product and support information. Availability of a new replacement or a particular older hardware revision must be confirmed with the manufacturer or an authorised supplier.



Where can I buy a FURUNO DS-600 display unit?



Contact SM MARINE SERVICE™ to enquire about sourcing a DS-600 display, replacement equipment and related marine navigation spare parts. Current stock and delivery options must be confirmed.



Are used or refurbished DS-600 units available?



Used, refurbished, reconditioned or tested working units may be sourced depending on availability. Request confirmation of the exact model, condition, included accessories and test status before ordering.



What are common DS-600 problems?



Potential symptoms include no power, a blank display, unreadable LCD output, missing system data, unstable speed readings and alarm indications. These symptoms require diagnosis; they do not automatically mean the display itself is defective.



What does ROM OK / RAM OK mean on the photographed unit?



It indicates that the displayed memory checks passed at the time of the test. It does not establish that every display function or the complete sonar system is operational.



What is the replacement for the DS-600?



A suitable replacement depends on the equipment revision, interfaces, mounting arrangement and system configuration. Confirm the complete model and part numbers with FURUNO documentation before substituting another display.



Where can I obtain the DS-60 manual?



FURUNO provides DS-60 documentation through its official product and support pages. Use the documentation applicable to the installed revision.



Can SM MARINE SERVICE™ supply FURUNO spare parts worldwide?



SM MARINE SERVICE™ supports worldwide marine equipment sourcing and shipping enquiries. Availability, condition, compatibility, delivery time and shipping arrangements are confirmed individually.



Short Product Description



FURUNO DS-600 Display Unit for DS-60 Doppler Sonar



The FURUNO DS-600 is an 8.4-inch colour LCD display unit for the FURUNO DS-60 three-axis Doppler sonar system. Designed for marine navigation, berthing and docking applications, it presents vessel-speed and motion information to support bridge operations. SM MARINE SERVICE™ welcomes enquiries for DS-600 replacement displays, compatible system components and marine navigation spare parts, subject to availability and technical compatibility verification.



User Manual & Technical Resources



Use official FURUNO documentation to confirm specifications, installation requirements, operating procedures and troubleshooting instructions.



Product page and documentation directory



FURUNO DS-60 Doppler Sonar – official product page:

https://www.furuno.com/en/products/speedlog/ds-60/index.html



Operator's manual and operator's guide



The official product page includes the DS-60 documentation section. Select the relevant English operator's manual or guide for the installed equipment.



Official brochure / technical specifications



FURUNO DS-60 brochure (PDF):

https://www.furuno.com/files/Brochure/161/upload/DS-60_E.pdf



Service and maintenance documentation



Consult FURUNO or an appropriately qualified service provider for the correct service documentation and revision-specific procedures. Do not rely on an unverified manual for internal repairs or replacement-board selection.



---
