Foxboro FCP280 DCS Controller and FBM I/O Modules – Spare Parts and Replacement Supply



Product Information



- Manufacturer / Brand: Foxboro, part of Schneider Electric

- Product family: Foxboro Evo DCS / I/A Series automation hardware

- Main controller: FCP280 Field Control Processor

- Controller part number supplied: RH924YA

- Analog input module: FBM201d, P0922YK

- Discrete output module: FBM242, P0916TA

- Discrete input module: FBM207b, P0914WH

- Associated hardware: Baseplates, mounting structures and termination assemblies

- Country of origin: Not confirmed for the individual units shown

- Application: Distributed process control, data acquisition and industrial automation

- Price: On request

- Supply: Subject to stock and configuration confirmation



Product Introduction



SM MARINE SERVICE™ presents this Foxboro distributed control system (DCS) assembly featuring FCP280 Field Control Processors and Foxboro Fieldbus Modules (FBMs). The supplied photograph visibly identifies FCP280, FBM201d, FBM242 and FBM207b hardware.



Foxboro automation equipment is used in process control installations where controllers and field I/O modules work together to monitor instruments, acquire process signals, execute control strategies and communicate operating information to supervisory systems.



For marine buyers, the equipment may be relevant to vessel automation, offshore installations and industrial process systems associated with marine operations. However, the exact vessel, machinery and original installation for this pictured rack have not been confirmed.



What Is the Foxboro FCP280?



The FCP280 is a field control processor designed for the Foxboro DCS platform. According to Schneider Electric's product documentation, it performs regulatory, logic, timing and sequential control, as well as data acquisition and alarm detection and notification.



The controller communicates with supported Fieldbus Modules and connects to the control network through appropriate baseplate network adapters. Depending on the configuration, the network connection can use fiber-optic or copper Ethernet.



FCP280 installations can use a fault-tolerant processor pair to improve control-system availability. Redundancy must be verified from the actual installed configuration; the presence of several processors in a photograph does not establish that they form a correctly configured redundant pair.



Understanding the FBM I/O Modules



Fieldbus Modules connect compatible field instruments and electrical signals to the DCS controller. The module type determines which signals can be acquired or controlled.



FBM201d – Analog Input Module



The supplied product information identifies FBM201d, part number P0922YK, as an eight-channel analog input module for 0–20 mA signals with channel isolation.



Analog input modules can be used to acquire supported process measurements from transmitters and instrumentation. The exact wiring, input range and signal conditioning must be checked against the module specification and installed configuration.



FBM242 – Discrete Output Module



The supplied information identifies FBM242, part number P0916TA, as a 16-channel discrete output module with channel isolation and an external-source switching arrangement.



Discrete output modules provide control signals to compatible field devices. Before connecting an output, confirm the load requirements, switching arrangement, external supply and approved wiring diagram.



FBM207b – Discrete Input Module



The supplied information identifies FBM207b, part number P0914WH, as a 16-channel isolated discrete input module for supported contact or voltage signals.



Discrete inputs allow a control system to monitor compatible field states, such as contact conditions and equipment status. Confirm the precise input characteristics and circuit requirements from the manufacturer's documentation.



Main Features



- Foxboro FCP280 field control processor hardware.

- Compatibility with supported Foxboro DCS Fieldbus Modules.

- Regulatory, logic, timing and sequential control functions.

- Data acquisition and alarm-handling capabilities.

- Supported fault-tolerant controller configurations.

- Fiber-optic or copper Ethernet control-network connectivity, depending on the installed adapters.

- Multiple I/O module types for analog and discrete signals.

- Baseplates and termination hardware for the applicable system configuration.



Actual capabilities depend on hardware revision, software version, baseplate type and the installed system design.



Main Technical Specifications



| Parameter | Specification / identification |

|---|---|

| Controller | FCP280 |

| Controller part number | RH924YA, as supplied |

| Processor architecture | ARM System-on-Chip |

| Memory | 128 MB SDRAM and 128 MB flash, according to product documentation |

| Error protection | ECC memory support |

| Control network | 100 Mbps Ethernet through supported adapters |

| Fieldbus protocol | HDLC |

| 200 Series fieldbus rate | 2 Mbps |

| Software requirement | Foxboro Control Core Services v9.0 or later, per the cited FCP280 specification |

| Analog input module | FBM201d – P0922YK |

| Discrete output module | FBM242 – P0916TA |

| Discrete input module | FBM207b – P0914WH |

| Rack/baseplate part number | Confirm from the installed hardware |

| Individual unit condition | Requires inspection and confirmation |



The controller's supported I/O capacity depends on fieldbus configuration, module series and system sizing. Consult the applicable product specification before designing an expansion or replacement.



Major Rack Components

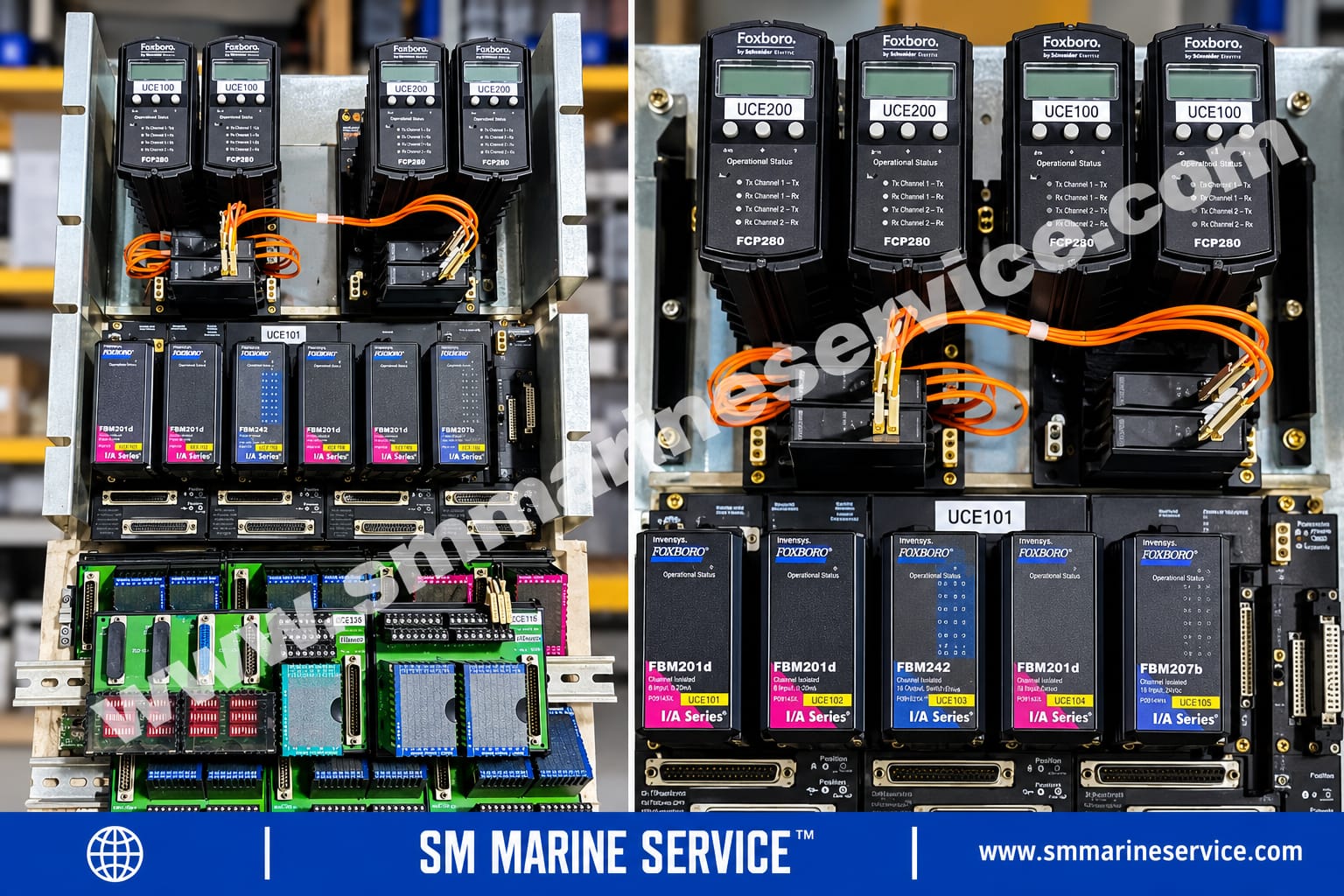

The pictured assembly includes or identifies the following hardware categories:



- FCP280 field control processor modules.

- FBM201d analog input modules.

- FBM242 discrete output module.

- FBM207b discrete input module.

- Baseplates and mounting structures.

- Termination assemblies and electrical connectors.

- Network and fieldbus connections.



The exact quantity, configuration and completeness of each component should be checked against the physical inventory before purchase.



Marine and Industrial Applications



Depending on the original system design, Foxboro DCS hardware may be relevant to:



- Offshore oil and gas process installations.

- Industrial control systems supporting marine facilities.

- Vessel or offshore process automation, where the equipment is specified for the application.

- Utility and power-generation process control.

- Chemical and petrochemical installations.

- Monitoring and control of compatible field instrumentation.



This is a description of potential applications, not confirmation that the pictured rack is approved for a particular vessel or safety-critical marine function. Verify the installation requirements and applicable environmental approvals.



Common Problems and Troubleshooting



The following are general DCS diagnostic checks, not confirmed fault reports for the pictured rack.



1. FCP280 communication failure



Check controller status indications, supported network adapters, Ethernet or fiber-optic connections and control-network configuration. Review the system diagnostics and approved troubleshooting procedure.



2. Controller does not start normally



Check the installed power supply, baseplate connections, module seating and diagnostic indicators. Follow the manufacturer's procedure before removing or replacing a processor.



3. Analog input values are incorrect



Check field transmitter output, loop wiring, polarity, configured signal range, grounding and the correct input-channel assignment. Verify that the installed FBM matches the system configuration.



4. Discrete input status is incorrect



Inspect field contacts, signal voltage, wiring continuity, terminal connections and channel configuration. Compare the observed signal with the control-system indication.



5. Discrete output does not operate the field device



Check output-channel status, the external supply where applicable, wiring, load requirements and the downstream device. Isolate the circuit before physical inspection.



6. Intermittent I/O or network operation



Inspect connectors, termination assemblies, cable condition, grounding and relevant power supplies. Review controller and system event records for diagnostic information.



Do not hot-swap or remove modules unless the specific hardware, installation and approved maintenance procedure permit it. Never bypass control-system interlocks or safety functions as a troubleshooting shortcut.



Common Alarms and Fault Messages



No specific active alarms or fault codes have been verified for the rack shown. FCP280 diagnostic indications and DCS event messages should be interpreted using the correct software revision, controller documentation and system configuration.



Maintenance Tips



- Record each module's full model and part number.

- Inspect baseplates, connectors and termination assemblies for damage.

- Keep the enclosure clean and within the manufacturer's environmental limits.

- Check the condition of network and fieldbus cables.

- Verify that replacement modules match the approved hardware and software configuration.

- Maintain backups of the control database and configuration using approved procedures.

- Follow the vessel or facility's isolation, change-control and commissioning requirements.

- Document replacement history and post-maintenance test results.



Spare Parts & Replacement Availability



SM MARINE SERVICE™ can assist with sourcing Foxboro DCS controllers and I/O modules, subject to availability.



Requested components include:



- FCP280 Field Control Processor – RH924YA.

- FBM201d analog input module – P0922YK.

- FBM242 discrete output module – P0916TA.

- FBM207b discrete input module – P0914WH.

- Compatible baseplates, termination assemblies and associated hardware, where available.



New, used, refurbished, reconditioned and tested-working equipment may be sourced depending on availability. The condition and testing status of each item must be confirmed individually.



For a quotation, provide the exact part number, hardware revision, quantity, photographs of the identification label and the original system details. A substitute should not be selected on model-family similarity alone.



Why Correct DCS Hardware Identification Matters



A distributed control system relies on compatible controllers, I/O modules, fieldbus connections, configuration files and application software. An incorrect module or unsupported hardware revision can prevent correct operation or cause an extended commissioning process.



Before ordering, confirm the FCP280 part number, FBM model, I/O function, baseplate arrangement, software compatibility and the existing system configuration. For redundant installations, verify the complete intended pair and network architecture.



Frequently Asked Questions



-What is the Foxboro FCP280?



It is a field control processor used in the Foxboro DCS to execute process-control strategies, acquire data and handle alarms.



- Which modules are shown in the product photograph?



The labels identify FCP280 controllers, FBM201d, FBM242 and FBM207b I/O modules, along with associated mounting and termination hardware.



- What is the FCP280 part number?



The supplied product information gives RH924YA. Confirm the full identification label on the individual controller before ordering.



What is the FBM201d part number?



The supplied information identifies P0922YK. Verify the installed module label and revision.



 What are the FBM242 and FBM207b part numbers?



The supplied information lists P0916TA for FBM242 and P0914WH for FBM207b.



 Can these modules be used in marine automation?



They may be relevant to marine or offshore automation installations where the Foxboro DCS hardware is specified and approved. Confirm the original application and installation requirements.



Are replacement Foxboro FCP280 and FBM modules available?



SM MARINE SERVICE™ can check sourcing options for the listed part numbers. Current stock, condition, revision and price require confirmation.



 Can I purchase used or refurbished modules?



Used, refurbished or reconditioned units may be sourced depending on availability. Ask for the exact condition, inspection details and any available test documentation.



Where can I obtain the FCP280 manual?



The manufacturer's FCP280 product specification and user guide are the appropriate starting points. Select documentation that matches the installed hardware and software revision.



 Can SM MARINE SERVICE™ arrange worldwide shipping?



Worldwide shipping can be arranged subject to stock confirmation, destination and shipping requirements.



Short Product Description



Foxboro FCP280 DCS controller and FBM I/O module assembly featuring FBM201d (P0922YK), FBM242 (P0916TA) and FBM207b (P0914WH). Suitable for sourcing inquiries involving compatible process-control and automation hardware. Contact SM MARINE SERVICE™ for part-number verification, availability, condition details and worldwide shipping.



 User Manual & Technical Resources



For technical verification, request the relevant Foxboro documentation for:



- FCP280 Field Control Processor product specification.

- FCP280 User Guide and configuration requirements.

- FBM201d module specification.

- FBM242 module specification.

- FBM207b module specification.

- Applicable baseplate, termination assembly and installation documentation.



Use official Schneider Electric / Foxboro documentation matching the exact module revision and system software. No unverified external manual or download link is included in this website blog.



SM MARINE SERVICE™

Marine Automation & Navigation Equipment Supplier



Available Condition:

• New Equipment • Used Equipment • Refurbished Equipment • Reconditioned Equipment



Stock Location:

• Bangladesh • China



Services:

• Worldwide Shipping • Technical Support • Spare Parts Supply • Marine Equipment Sourcing



Contact Information

SM MARINE SERVICE™ Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh

Mobile / WhatsApp / Viber: +88 01818 929292

Email: info@smmarineservice.com

Website: www.smmarineservice.com

-

+

Buy Now
