MaK 9.01.7-91.21.00-17 PCB Control Card
Mak
New product
External search reference only. This image is not confirmed to match the exact board supplied by the customer. Use your own SM MARINE SERVICE™ photograph as the main product image.
The supplied photograph shows a populated green PCB assembly with an ELBA-labeled DC-DC converter, integrated circuits, relays and a red terminal strip.
Online parts listings associate the number 9.01.7-91.21.00-17 with a MaK PCB/control-panel circuit board. Other listings in the same series describe related cards as motor-control plug-in cards. These commercial listings support the part-number search direction, but they do not establish that the photographed assembly is the exact -17 variant.
Identification status: The suggested part number is a research lead, not a confirmed reading from the uploaded image. No official manufacturer document confirming the exact photographed assembly has been located in this research.
|
Field |
Identification |
|---|---|
|
Product name |
Printed Circuit Board (PCB) / electronic control card |
|
Manufacturer / equipment brand |
MaK association suggested by the supplied product information; not confirmed from the board photograph |
|
PCB part number |
|
|
Product category |
Marine engine and automation electronics |
|
Board type |
PCB/control-panel circuit board, based on commercial listings |
|
Associated component |
ELBA-labeled DC-DC converter |
|
Other visible components |
Integrated circuits, relays, resistors, capacitors and terminal connections |
|
HDK.A.Witte association |
Unverified for this exact assembly |
|
Hardware revision |
Not clearly visible in the supplied image |
|
Serial number |
Not clearly visible in the supplied image |
|
Country of origin |
Not verified |
|
Exact engine model / system family |
Not verified |
|
Operating voltage of complete PCB |
Not verified |
|
Condition |
Must be assessed from the physical unit and functional testing |
The number 9.01.7-91.21.00-17 appears in online commercial listings for a MaK PCB/control-panel circuit board. A separate listing identifies the -11 variant as a motor-control plug-in card; that description must not automatically be applied to the -17 variant.
The MaK 9.01.7-91.21.00-17 PCB is a part-number candidate for a marine electronic control board associated with MaK equipment. Commercial spare-parts listings identify this reference as a PCB or circuit-control-panel component. However, the precise function of the photographed board, its equipment compatibility and its technical specifications require confirmation before a replacement is selected.

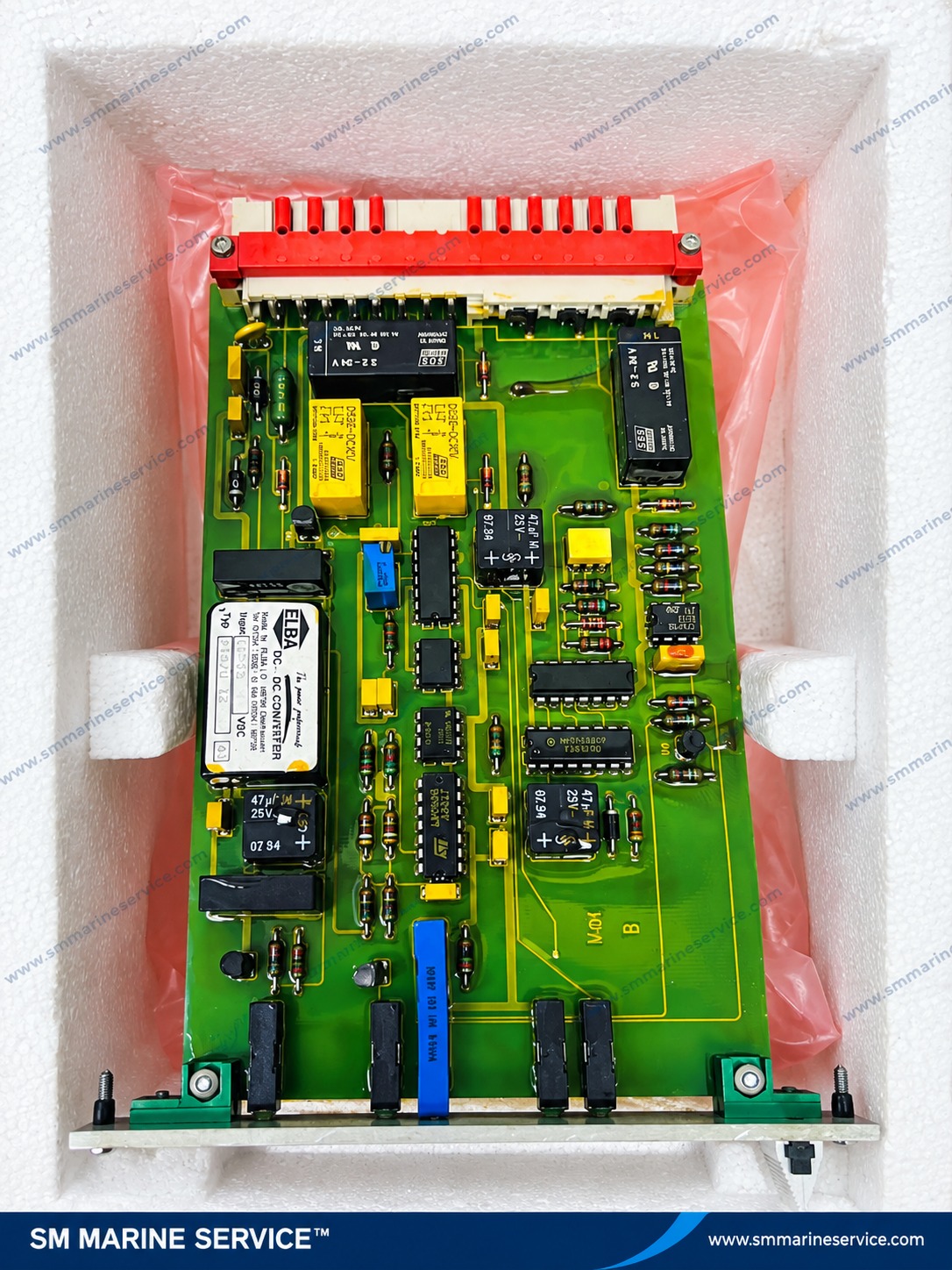

The supplied photograph shows a densely populated printed circuit board installed in a mounting frame. Its visible components include integrated circuits, electromechanical relays, resistors, capacitors, connectors and an ELBA-labeled DC-DC converter. These are common elements of electronic control assemblies, but their presence alone does not establish the board's specific control logic or intended engine function.
In marine machinery, electronic control cards can form part of systems responsible for signal processing, electrical switching, interlocking, monitoring or control. The exact duties of this particular board must be established from its original part identification, circuit documentation and the equipment in which it operates.
For marine engineers, electrical officers, technical superintendents and purchasing teams, correct identification is essential when sourcing replacement PCB assemblies. A similar-looking board or a related part number may have different circuitry, revisions or operating characteristics.
SM MARINE SERVICE™ can assist with identification and sourcing inquiries for the suspected MaK PCB reference. Buyers should provide the complete part number, photographs of the original board and its labels, and the parent equipment details to support a compatibility assessment.
Illustrative external reference. Exact identity and compatibility with the supplied PCB are not confirmed.
|
Identifier |
Status |
|---|---|
|
|
Candidate part number supplied for research; associated with MaK PCB listings online |
|
|
Alternative compact formatting used in a commercial listing title |
|
ELBA DC-DC Converter |
Component label visible in the photograph |
|
HDK.A.Witte |
Suggested association; not verified for this exact assembly |
|
PCB revision / serial code |
Not clearly readable in the supplied photograph |
A commercial listing specifically uses the title “Mak 9.01.7-91.21.00-17 PCB Circuit Control Panel” and includes the compact number 9017-912100-17. Another supplier catalog contains several neighboring MaK board references, demonstrating why the final digits should be checked carefully.
Customers often search for a replacement using only the number printed on an electronic card. For that reason, the full part number should be included in the product page title, identification table, image ALT text and relevant body copy only after the number is confirmed against the actual unit.
Important: Do not label the photographed PCB as 9.01.7-91.21.00-17 solely because the candidate number is associated with a similar commercial listing. Verify the board marking or compare the original unit with an authoritative parts reference first.
The following features are visible in the photograph or describe the assembly at a general component level. They are not a substitute for a verified manufacturer datasheet.
Populated electronic printed circuit board.
Multiple integrated circuits for electronic processing or control functions.
Electromechanical relays for circuit switching.
ELBA-labeled DC-DC converter module.
Passive electronic components, including resistors and capacitors.
Terminal and plug connections for electrical integration.
Mounting frame and multi-pin terminal arrangement.
Potential use as a marine machinery electronic spare, subject to confirmed identification.
The specific control function, supported input/output signals, communication interfaces and engine-system compatibility remain unverified.
If the part number and MaK association are confirmed, the PCB may be relevant to maintenance and spare-parts sourcing for compatible MaK marine machinery.
Potential application categories for an electronic control card of this general type include:
Marine engine electrical and electronic control assemblies.
Engine-room automation and control panels.
Machinery monitoring or switching circuits.
Relay-based control and interlocking circuits.
Electronic control-panel maintenance and replacement.
These are general application categories, not confirmed functions of the photographed board. There is insufficient evidence to state that this specific PCB controls engine starting, a particular interlock, fuel injection, speed regulation or any named engine model.
Before ordering, verify the original board number, equipment model, circuit position and applicable documentation.
|
Specification |
Available information |
|---|---|
|
Part-number candidate |
|
|
Product type |
PCB / control-panel circuit board, based on commercial listings |
|
Equipment association |
MaK, as suggested by the candidate part number and commercial listings |
|
Power-conversion component |
ELBA-labeled DC-DC converter visible in the photograph |
|
PCB supply voltage |
Not verified |
|
Converter input voltage |
Not verified from the photograph |
|
Converter output voltage |
Not verified from the photograph |
|
Relay coil voltage |
Not verified for all relays |
|
Digital / analogue I/O |
Not verified |
|
Communication protocol |
Not verified |
|
Dimensions |
Not measured |
|
Mounting configuration |
Board installed in a frame with terminal connections |
|
Hardware revision |
Not verified |
|
Engine model compatibility |
Not verified |
|
Country of manufacture |
Not verified |
No reliable manufacturer datasheet or official manual confirming the full technical specifications of the exact photographed assembly was identified in the research performed for this article.
A DC-DC converter's presence does not establish the supply requirements of the complete PCB. Likewise, the voltage printed on an individual relay or capacitor cannot be used to infer the board's overall operating voltage.
Marine replacement work should use the original equipment documentation, confirmed part number and appropriate electrical checks. Do not apply power to an unidentified board based on visual similarity alone.
Illustrative component reference only; not a verified technical drawing of this MaK assembly.
The visible module is labeled ELBA DC-DC CONVERTER. DC-DC converters generally convert one DC voltage level to another. The input range, output voltage, isolation characteristics and ratings of this particular module must be confirmed from its complete label or documentation.
The board contains multiple integrated circuits. Their exact part numbers and individual functions are not sufficiently readable in the supplied photograph.
Several relays are visible. Relays typically switch electrical circuits in response to a control signal. Their exact duties in this assembly are unknown.
The board contains numerous passive components used in electronic circuits. Their precise circuit roles cannot be established from the photograph alone.
The assembly includes terminal connections along the lower edge and green screw-terminal blocks near the top. Their pin assignments and wiring arrangements must be obtained from the correct circuit diagram.
The following is a general inspection guide for an unidentified electronic control PCB. These are possible symptoms of electronic assemblies, not documented faults specific to MaK 9.01.7-91.21.00-17.
|
Reported symptom |
Initial checks |
|---|---|
|
Board does not operate |
Verify the correct supply source, protective devices and external wiring using approved procedures. |
|
Intermittent operation |
Inspect connectors, terminals and accessible solder joints for looseness or visible deterioration. |
|
Relay does not switch |
Confirm the required control signal and relay specifications before testing. |
|
Unexpected output |
Check the approved circuit diagram, input signals and connected equipment. |
|
Power-converter concern |
Verify the converter's complete identification and specified input/output ratings before testing. |
|
Visible corrosion or overheating |
Document the condition and have the board assessed by a qualified electronics technician. |
|
Connector or terminal damage |
Confirm pin assignments and replacement connector compatibility. |
|
Suspected PCB failure |
Compare symptoms with the system's fault records and test the board using the appropriate service procedure. |
Identify the complete board part number and parent equipment.
Obtain the correct wiring diagram and service instructions.
Follow the vessel's isolation, lockout and electrical-safety procedures.
Inspect connectors, components and the board for visible damage.
Perform electrical measurements only within the approved procedure and by qualified personnel.
Record any replaced components, test results and board revisions.
Verify operation using the approved equipment-specific test procedure.
Do not bypass engine protections or safety interlocks to test an unidentified control card. No model-specific alarm codes, error messages or confirmed failure patterns are available for this assembly.
Keep a record of the board number, revision, serial markings and the machinery in which it is installed.
Photograph all connectors and wiring before approved disconnection.
Inspect for corrosion, contamination, loose terminals and signs of overheating.
Use appropriate electrostatic-discharge precautions when handling electronic assemblies.
Do not clean the PCB with unapproved solvents or methods.
Avoid unnecessary component replacement without diagnosis.
Store spare boards in suitable protective packaging.
Verify the replacement's part number and revision before installation.
Conduct post-repair checks in accordance with the applicable service manual.
The maintenance interval and any manufacturer-specific procedures must come from the documentation for the confirmed equipment.
SM MARINE SERVICE™ supports inquiries for marine electronic control cards and machinery spare parts, including identification and sourcing of the suspected MaK PCB reference.
Depending on availability and successful identification, inquiries may cover:
Complete PCB or control-card assembly.
Replacement electronic modules.
DC-DC converter modules.
Relays and compatible electronic components.
Connectors and terminal components.
Used, refurbished or reconditioned boards.
New or tested-working replacement equipment.
Availability and condition must be confirmed for each inquiry. No stock, test status, warranty or immediate delivery is confirmed for this particular part by this article.
When requesting a quotation, provide:
Part number: 9.01.7-91.21.00-17 (verify against the physical board).
Clear photographs of both sides of the PCB.
All manufacturer labels and revision markings.
Main engine or parent equipment model.
Quantity required and preferred condition.
Required delivery destination.
A matching part number is an important starting point, but electrical compatibility and equipment configuration should also be confirmed before ordering.
Marine electronic control assemblies can be critical to machinery operation. Selecting a replacement solely by appearance may lead to incompatible electrical connections, different circuit functions or an unsuitable hardware revision.
For ship managers, chief engineers, electrical officers and purchasing departments, reliable identification helps reduce ordering errors and supports maintenance planning.
When sourcing the suspected MaK PCB, verify the part number against the original equipment records. If the board is marked HDK.A.Witte, record the complete marking, including any revision, date code and serial number. These details may help distinguish related assemblies.
SM MARINE SERVICE™ can assist customers with product identification, quotation requests and sourcing inquiries for marine automation electronics, subject to confirmation of the required part.
It is a candidate part reference associated with MaK PCB or circuit-control-panel listings. The exact function of the board in the supplied photograph has not been confirmed.
Commercial listings associate the reference with MaK equipment. The original board manufacturer and any HDK.A.Witte manufacturing relationship require confirmation from the physical identification label or authoritative documentation.
Availability varies by supplier and condition. Contact SM MARINE SERVICE™ with the exact part number to enquire about sourcing options. No current stock is confirmed here.
You can submit an inquiry through SM MARINE SERVICE™. Include the board photographs, part number and parent equipment details so the requested component can be checked.
Potential options include complete replacement boards and identifiable electronic components. The availability of each part depends on the exact assembly and sourcing results.
Used, refurbished and reconditioned options may be considered where available. Confirm the specific unit's condition, test status, compatibility and warranty terms before purchasing.
No verified model-specific failure list is available for the photographed board. General electronic-board concerns can include power-supply problems, damaged components, connector faults, relay malfunction and corrosion. These possibilities require proper diagnosis rather than assumptions.
The complete PCB's operating voltage has not been verified. The visible ELBA DC-DC converter label does not provide sufficient confirmed information to establish the board's supply requirements.
No verified official manual specifically matching the photographed assembly and candidate part number has been identified in this research. Request the relevant wiring diagram or service documentation using the confirmed board number and parent equipment model.
No. Compatibility with a particular engine or control system has not been established. Confirm the full part number, revision and equipment configuration before replacement.
SM MARINE SERVICE™ accepts marine spare-parts inquiries. Shipping arrangements, destination coverage, stock and delivery timing must be confirmed for the individual order.
