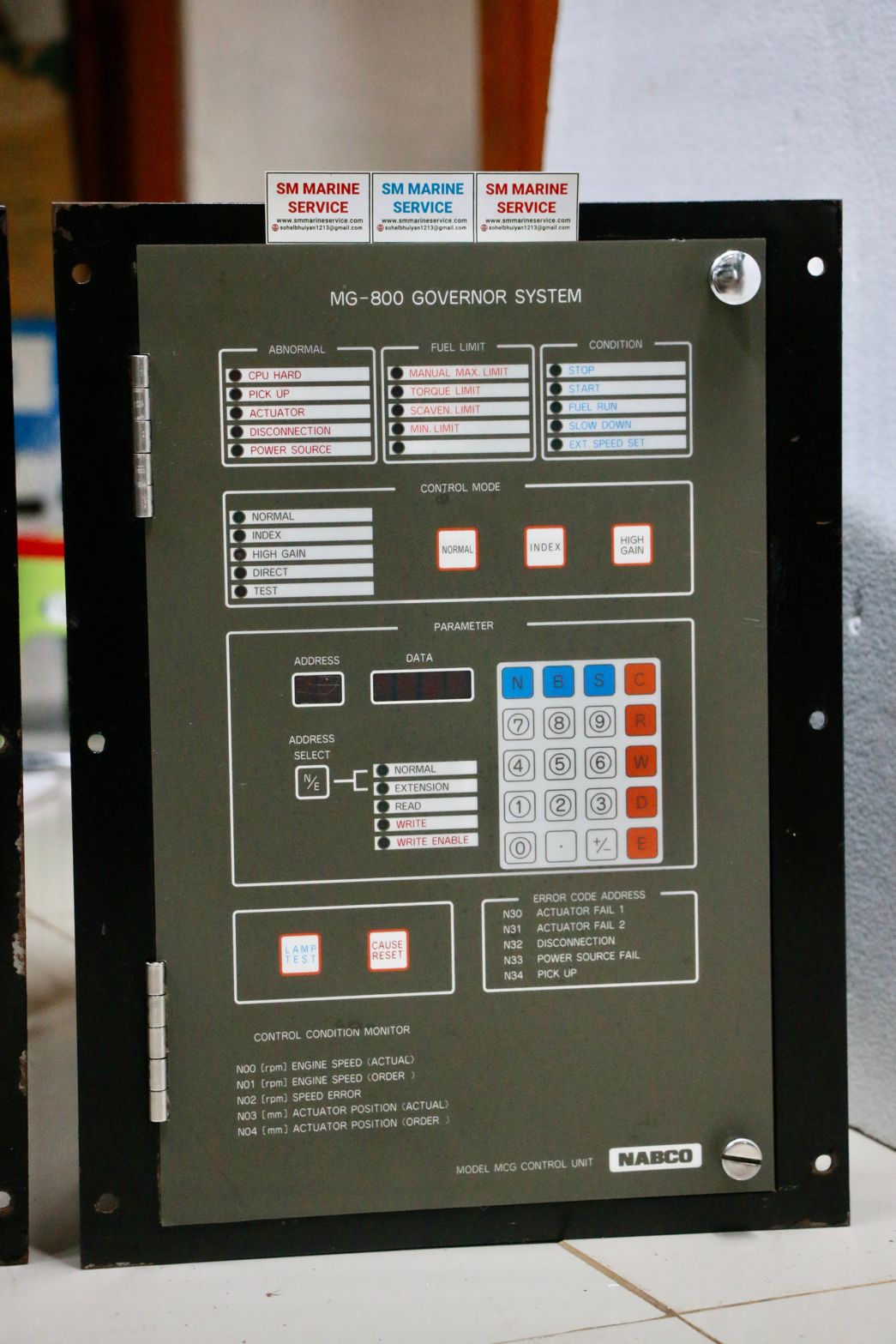

NABCO MG-800 Governor System
Manufacturer Information
Manufacturer: NABCO (Nippon Air Brake Co., Ltd.)
Country of Origin: Japan
Equipment Type: Marine Electronic Governor System
Application: Main Engine Speed Control, Auxiliary Engine Speed Regulation, Fuel Management & Engine Protection
Product Introduction
The NABCO MG-800 Governor System is a highly reliable marine electronic governor control unit designed to regulate diesel engine speed with exceptional accuracy and stability. The system continuously monitors engine RPM, actuator position, load conditions, and fuel delivery parameters to maintain optimum engine performance under varying operating conditions.
Widely installed onboard merchant vessels, offshore vessels, tankers, bulk carriers, container ships, and power generation systems, the MG-800 Governor provides precise engine speed control while protecting critical machinery from overspeed, actuator failures, and power supply abnormalities.
What Is the NABCO MG-800 Governor System?
The MG-800 is an advanced electronic governor control platform that regulates engine speed by controlling fuel rack movement through an actuator system.
Unlike traditional mechanical governors, the MG-800 utilizes electronic feedback signals from engine speed sensors and actuator position sensors to provide highly accurate engine speed regulation.
The system continuously processes:
- Actual Engine Speed
- Commanded Engine Speed
- Fuel Rack Position
- Actuator Feedback
- Engine Load Conditions
- Torque Limitation Parameters
- Safety Shutdown Signals
This ensures stable engine operation under all marine operating conditions.
Main Features
Precise RPM Regulation
Maintains engine speed within specified operating limits even during sudden load fluctuations.
Electronic Fuel Control
Provides accurate fuel delivery management for improved efficiency.
Multiple Protection Functions
Protects engines against:
- Overspeed Conditions
- Actuator Failure
- Sensor Failure
- Power Supply Failure
- Signal Loss
- Communication Errors
Diagnostic Monitoring
Built-in diagnostics simplify troubleshooting and maintenance.
Adjustable Control Modes
The MG-800 supports:
- Normal Mode
- Index Mode
- High Gain Mode
- Direct Mode
- Test Mode
Parameter Programming
Engineers can adjust:
- Speed Settings
- Fuel Limits
- Torque Limits
- Scavenge Limits
- Minimum Speed Settings
- Actuator Parameters
Main Components
1. MG-800 Control Unit
The main governor processing unit responsible for speed regulation calculations.
2. Speed Pickup Sensor
Measures actual engine RPM and sends feedback to the governor.
3. Governor Actuator
Controls fuel rack position according to governor commands.
4. Power Supply Module
Provides stable power for governor operation.
5. Alarm Monitoring Circuit
Detects abnormal operating conditions and generates alarms.
6. Parameter Programming Interface
Allows engineers to modify system settings and perform diagnostics.
Applications
The NABCO MG-800 Governor System is commonly installed on:
- Main Propulsion Engines
- Auxiliary Diesel Generators
- Emergency Generators
- Offshore Power Units
- Marine Power Plants
- Cargo Ships
- Bulk Carriers
- Tankers
- Container Vessels
- Offshore Support Vessels
The system plays a vital role in maintaining propulsion reliability and power generation stability.
Common Problems & Troubleshooting
Actuator Fail Alarm
Possible Causes:
- Faulty Actuator
- Wiring Failure
- Feedback Signal Loss
Solution:
- Check actuator connections
- Verify feedback signals
- Inspect actuator operation
Pickup Sensor Alarm
Possible Causes:
- Sensor Failure
- Damaged Wiring
- Excessive Sensor Gap
Solution:
- Inspect sensor mounting
- Verify sensor gap
- Test pickup output signal
Power Source Failure
Possible Causes:
- Power Supply Defect
- Voltage Fluctuation
- Fuse Failure
Solution:
- Measure supply voltage
- Check fuses
- Inspect power modules
Engine Speed Instability
Possible Causes:
- Incorrect Governor Tuning
- Actuator Response Delay
- Mechanical Fuel Rack Problems
Solution:
- Recalibrate governor parameters
- Inspect actuator linkage
- Verify speed feedback signals
Disconnection Alarm
Possible Causes:
- Broken Communication Circuit
- Loose Connections
- Control Signal Failure
Solution:
- Verify wiring integrity
- Check terminal connections
- Inspect interface modules
Maintenance Tips
To maximize reliability, marine engineers should regularly inspect:
- Speed Pickup Sensors
- Actuator Linkages
- Governor Wiring
- Terminal Connections
- Power Supply Voltage
- Alarm Logs
- Fuel Control Linkages
- Governor Calibration Settings
Routine inspections significantly reduce unexpected engine shutdowns and improve operational safety.
Why Ships Still Use NABCO Governor Systems
Despite the availability of newer automation platforms, many vessels continue operating with NABCO governor systems because of their:
- Proven Reliability
- Long Service Life
- Accurate Speed Regulation
- Simple Maintenance Requirements
- Robust Industrial Design
- Excellent Compatibility with Marine Diesel Engines
- Availability of Spare Parts and Technical Support
Many vessels have successfully operated NABCO governor systems for decades with proper maintenance and calibration.
Frequently Asked Questions (FAQ)
What does the MG-800 Governor System do?
The system automatically regulates diesel engine speed and fuel delivery to maintain stable engine operation.
Can the MG-800 be used on auxiliary generators?
Yes. The system is commonly used on both propulsion engines and auxiliary generator engines.
Does the governor provide alarm monitoring?
Yes. The system continuously monitors multiple engine parameters and generates alarms for abnormal conditions.
What causes Actuator Fail alarms?
Actuator faults, wiring issues, feedback signal loss, or mechanical linkage problems are common causes.
Do you supply refurbished MG-800 systems?
Yes. SM MARINE SERVICE™ supplies used, refurbished, and reconditioned NABCO governor systems depending on stock availability.
Short Product Description
The NABCO MG-800 Governor System is an advanced marine electronic governor designed for accurate engine speed regulation, fuel control, actuator management, and engine protection. Widely used onboard commercial vessels and marine power generation systems, the MG-800 ensures reliable engine performance, improved fuel efficiency, and enhanced operational safety.
