GESTRA NRS 1-50 Level Switch Controller – Complete Technical Guide for Marine Boiler Water Level Monitoring

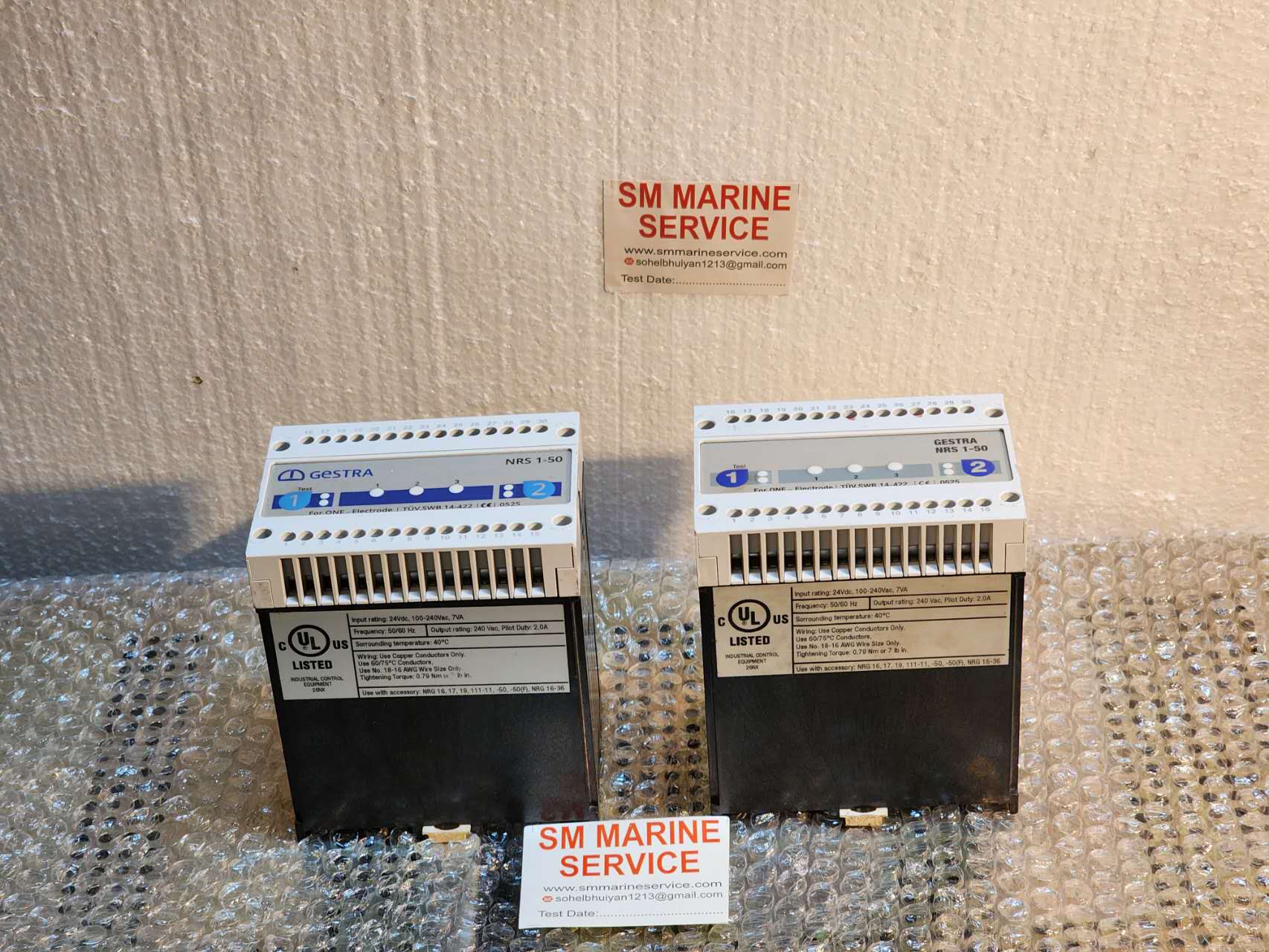

GESTRA NRS 1-50 Level Switch Controller
The GESTRA NRS 1-50 is a highly reliable electronic level switch controller designed for water level monitoring, alarm generation, and safety shutdown functions in marine and industrial boiler systems.
The unit works together with level electrodes to continuously supervise boiler water levels and ensure safe boiler operation. It is widely installed on ships, offshore platforms, steam plants, and industrial boiler applications where reliable level monitoring is essential.
The NRS 1-50 forms a critical part of the boiler protection system by preventing dangerous low-water conditions that could damage boiler tubes, reduce efficiency, or create hazardous operating situations.
GESTRA Boiler Level Monitoring System
What is GESTRA NRS 1-50?
The GESTRA NRS 1-50 is an electronic evaluation unit that receives signals from compatible GESTRA level electrodes and converts them into control, alarm, and safety outputs.
The controller continuously monitors water level conditions and activates alarms or shutdown functions whenever abnormal water levels are detected.
This ensures compliance with marine safety requirements and protects valuable boiler equipment from damage.
Main Functions of GESTRA NRS 1-50
Continuous Water Level Monitoring
Monitors boiler water levels in real time.
Low Water Protection
Provides critical protection against dangerous low-water conditions.
High Water Level Supervision
Detects abnormal high-water conditions.
Alarm Generation
Activates visual and audible alarms when required.
Boiler Shutdown Function
Initiates safety shutdown procedures when necessary.
Electrode Signal Processing
Works with GESTRA level electrodes for accurate measurement.
Importance of Boiler Water Level Monitoring
Proper boiler water level control is essential for safe operation.
If water levels become too low:
- Boiler tubes may overheat
- Steam generation efficiency decreases
- Boiler damage may occur
- Safety risks increase significantly
If water levels become too high:
- Steam quality may deteriorate
- Water carryover may occur
- Equipment performance can be affected
The GESTRA NRS 1-50 helps maintain safe operating conditions at all times.
Key Features
Compact DIN Rail Design
Easy installation inside control panels.
Reliable Electronic Monitoring
Provides stable and accurate operation.
Marine Approved Technology
Suitable for shipboard applications.
Fast Alarm Response
Quick reaction to abnormal level conditions.
Flexible Power Supply
Designed for industrial and marine environments.
Low Maintenance Requirements
Reliable long-term operation.
Typical Applications
The GESTRA NRS 1-50 is commonly used in:
Marine Auxiliary Boilers
Water level supervision and protection.
Steam Boilers
Low-water alarm systems.
Industrial Boiler Plants
Continuous level monitoring.
Thermal Fluid Systems
Safety control applications.
Offshore Installations
Boiler safety monitoring.
Power Generation Facilities
Steam system protection.
Working Principle
The controller operates together with level electrodes installed inside the boiler.
Step 1
Level electrodes detect water level changes.
Step 2
Signals are transmitted to the NRS 1-50 controller.
Step 3
The controller evaluates the level condition.
Step 4
Normal conditions are continuously monitored.
Step 5
If abnormal levels occur, alarms are activated.
Step 6
Safety shutdown outputs operate when required.
Common Alarm Conditions
Low Water Alarm
Possible Causes
- Feed water pump failure
- Water leakage
- Feed control malfunction
Recommended Action
- Check feed water system
- Verify pump operation
- Inspect boiler controls
High Water Alarm
Possible Causes
- Feed valve malfunction
- Control system fault
- Incorrect water level adjustment
Recommended Action
- Verify control settings
- Inspect feed valves
- Check electrode performance
Electrode Fault
Possible Causes
- Dirty electrode surface
- Wiring problem
- Damaged electrode
Recommended Action
- Clean electrodes
- Inspect wiring
- Replace defective components
Maintenance Recommendations
Monthly
- Verify alarm operation
- Inspect indicator status
Quarterly
- Test low-water protection system
- Check electrode condition
Annually
- Complete safety function test
- Inspect electrical terminals
- Verify system calibration
Advantages of GESTRA NRS 1-50
- Proven GESTRA reliability
- High operational safety
- Fast alarm response
- Easy installation
- Long service life
- Low maintenance cost
- Suitable for marine and industrial applications
Frequently Asked Questions (FAQ)
What is GESTRA NRS 1-50 used for?
It is used for boiler water level monitoring, alarm generation, and safety protection.
Does it work with level electrodes?
Yes. It is specifically designed to operate with compatible GESTRA level electrodes.
Can it stop a boiler during low-water conditions?
Yes. It can activate safety shutdown functions when integrated into the boiler protection system.
Is it suitable for ships?
Yes. The NRS 1-50 is widely used in marine boiler installations worldwide.
Can it be used in industrial boilers?
Yes. It is suitable for both marine and industrial applications.
Available Documentation
Typical documentation includes:
User Manual
- Installation Instructions
- Wiring Procedures
- Safety Information
Technical Manual
- Functional Description
- Electrical Connections
- Alarm Logic
Service Manual
- Troubleshooting Guide
- Maintenance Procedures
- Spare Parts Information
Why Choose SM MARINE SERVICE™?
SM MARINE SERVICE™ supplies tested and reconditioned marine automation equipment, boiler control systems, level monitoring devices, engine room automation systems, and marine spare parts worldwide.
We support:
- Ship Owners
- Ship Management Companies
- Marine Engineers
- Shipyards
- Offshore Operators
- Industrial Boiler Operators
Available Condition
- Used
- Reconditioned
- Refurbished
- Fully Tested Before Delivery
Services
- Worldwide Shipping
- Technical Support
- Boiler Automation Solutions
- Inspection Assistance
- Repair & Replacement Services
- Marine Spare Parts Supply
