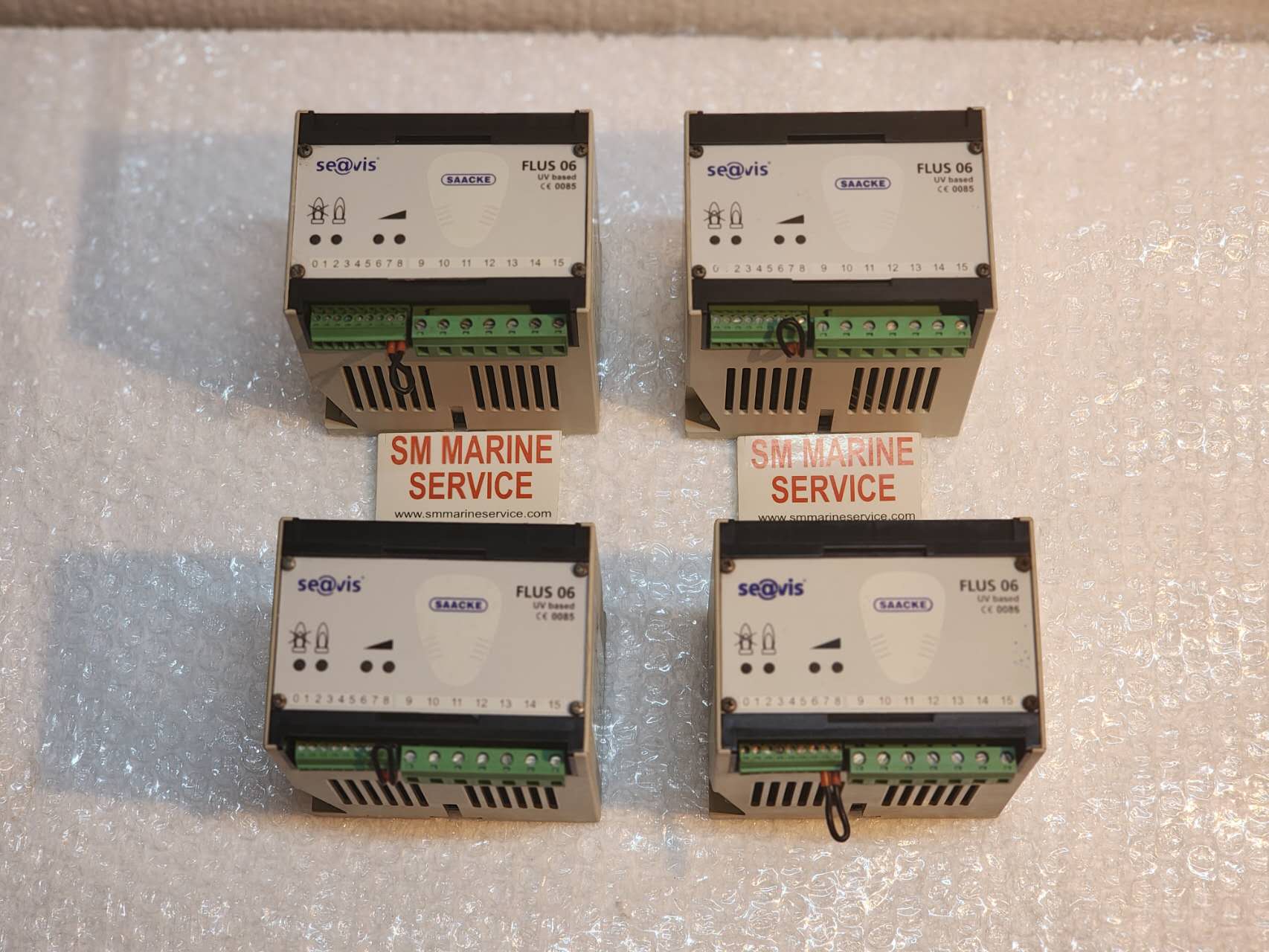

SAACKE FLUS 06 UV Flame Scanner

Reliable flame monitoring is one of the most important safety functions in marine and industrial boiler systems. The SAACKE FLUS 06 UV Flame Scanner is a specialized ultraviolet (UV) flame detection device designed to continuously monitor burner flame conditions and ensure safe boiler operation.

The FLUS 06 UV scanner is widely used in SAACKE burner management systems installed onboard tankers, container vessels, bulk carriers, LNG carriers, offshore platforms, and industrial boiler plants.

Its primary role is to verify flame presence during burner operation and immediately initiate safety actions if flame failure occurs.

---

SAACKE Flame Monitoring Technology

---

What is SAACKE FLUS 06 UV?

The SAACKE FLUS 06 UV is a UV-based flame monitoring device that detects ultraviolet radiation generated by combustion flames.

The scanner continuously supervises burner operation and communicates with the burner management system (BMS) to confirm stable combustion conditions.

If the flame disappears or becomes unstable, the unit immediately sends a signal to initiate burner shutdown and alarm functions, preventing dangerous fuel accumulation inside the furnace.

---

Main Functions of SAACKE FLUS 06 UV

Continuous Flame Monitoring

Provides real-time supervision of burner flame conditions.

Flame Failure Detection

Instantly detects flame loss.

Burner Safety Protection

Prevents unsafe fuel injection during combustion failure.

UV Flame Recognition

Uses ultraviolet technology for reliable flame sensing.

Boiler Protection

Protects marine boilers from combustion-related hazards.

Integration with Burner Management Systems

Works directly with SAACKE burner control equipment.

---

Why Flame Monitoring Is Important

Boiler burners operate under high-temperature and high-pressure conditions.

Without reliable flame detection, the following risks may occur:

• Furnace explosions
• Fuel accumulation
• Boiler shutdown
• Combustion instability
• Increased maintenance costs
• Serious safety hazards

The FLUS 06 UV scanner helps eliminate these risks by ensuring safe burner operation at all times.

---

Marine Boiler Burner Management Systems

---

Key Features of SAACKE FLUS 06 UV

UV-Based Detection Technology

Highly reliable flame detection using ultraviolet radiation.

Fast Response Time

Detects flame loss within milliseconds.

Compact Design

Suitable for marine boiler installations.

High Operational Reliability

Designed for continuous industrial and marine service.

Enhanced Safety

Improves burner and boiler protection.

Easy Integration

Compatible with SAACKE combustion control systems.

Low Maintenance

Requires minimal routine maintenance.

---

Working Principle

The FLUS 06 UV scanner operates using ultraviolet flame detection technology.

Step 1

The scanner is positioned to view the burner flame.

Step 2

The combustion flame emits ultraviolet radiation.

Step 3

The UV sensor detects flame intensity.

Step 4

The signal is processed by the scanner electronics.

Step 5

The burner management system receives confirmation of flame presence.

Step 6

If flame loss occurs, alarms and shutdown sequences are activated automatically.

---

Typical Applications

The SAACKE FLUS 06 UV scanner is commonly installed in:

Marine Auxiliary Boilers

Flame supervision and safety monitoring.

Composite Boilers

Combustion verification.

Thermal Oil Boilers

Burner flame monitoring.

Cargo Heating Boilers

Safe burner operation.

Offshore Boiler Systems

Continuous flame detection.

Industrial Steam Boilers

Combustion safety management.

---

Common Alarm Conditions

Flame Failure Alarm

Possible Causes

• Burner ignition failure
• Fuel supply interruption
• Faulty ignition system

Recommended Action

• Inspect burner operation
• Verify fuel supply
• Check ignition components

---

UV Sensor Contamination

Possible Causes

• Dirty scanner window
• Soot accumulation

Recommended Action

• Clean viewing glass
• Inspect burner combustion quality

---

Scanner Communication Fault

Possible Causes

• Wiring issues
• Control system fault

Recommended Action

• Verify electrical connections
• Inspect burner management system

---

Maintenance Recommendations

Weekly

• Verify burner flame monitoring status
• Check alarm indicators

Monthly

• Inspect scanner alignment
• Test flame failure functions

Quarterly

• Clean optical surfaces
• Verify sensor performance

Annually

• Complete burner safety testing
• Verify system calibration
• Inspect electrical connections

---

Advantages of SAACKE FLUS 06 UV

Compared with conventional flame supervision systems:

• Faster flame detection
• Improved burner safety
• Reliable UV sensing technology
• Reduced operational risk
• Enhanced boiler protection
• Proven marine performance
• Long operational lifespan

---

Frequently Asked Questions (FAQ)

What is SAACKE FLUS 06 UV used for?

It is used for monitoring burner flames in marine and industrial boiler systems.

What type of flame detection does it use?

The unit uses ultraviolet (UV) flame sensing technology.

Can it stop the burner automatically?

Yes. When connected to the burner management system, it can initiate burner shutdown during flame failure.

Is it suitable for marine boilers?

Yes. It is widely installed in marine boiler combustion systems.

Can it work with SAACKE burner systems?

Yes. It is specifically designed for integration with SAACKE burner management systems.

---

Available Documentation

Typical documentation includes:

User Manual

• Installation Procedures
• Operation Instructions
• Safety Information

Technical Manual

• Wiring Diagrams
• Functional Description
• Troubleshooting Procedures

Service Documentation

• Maintenance Guidelines
• Spare Parts Information
• Testing Procedures

---
