NABCO MG-800 Governor System Actuator Drive Unit (ADU-120-R) – Complete Marine Technical Guide
NABCO MG-800 Governor System
The NABCO MG-800 Governor System is an advanced marine engine speed control and automation system designed to maintain stable engine operation under varying load conditions. The system utilizes an Actuator Drive Unit (ADU-120-R) to regulate fuel control mechanisms and ensure precise engine speed management.
Widely used in commercial ships, offshore vessels, generators, and auxiliary engine applications, the MG-800 Governor System provides reliable performance, accurate speed control, and enhanced engine safety.
Original Product

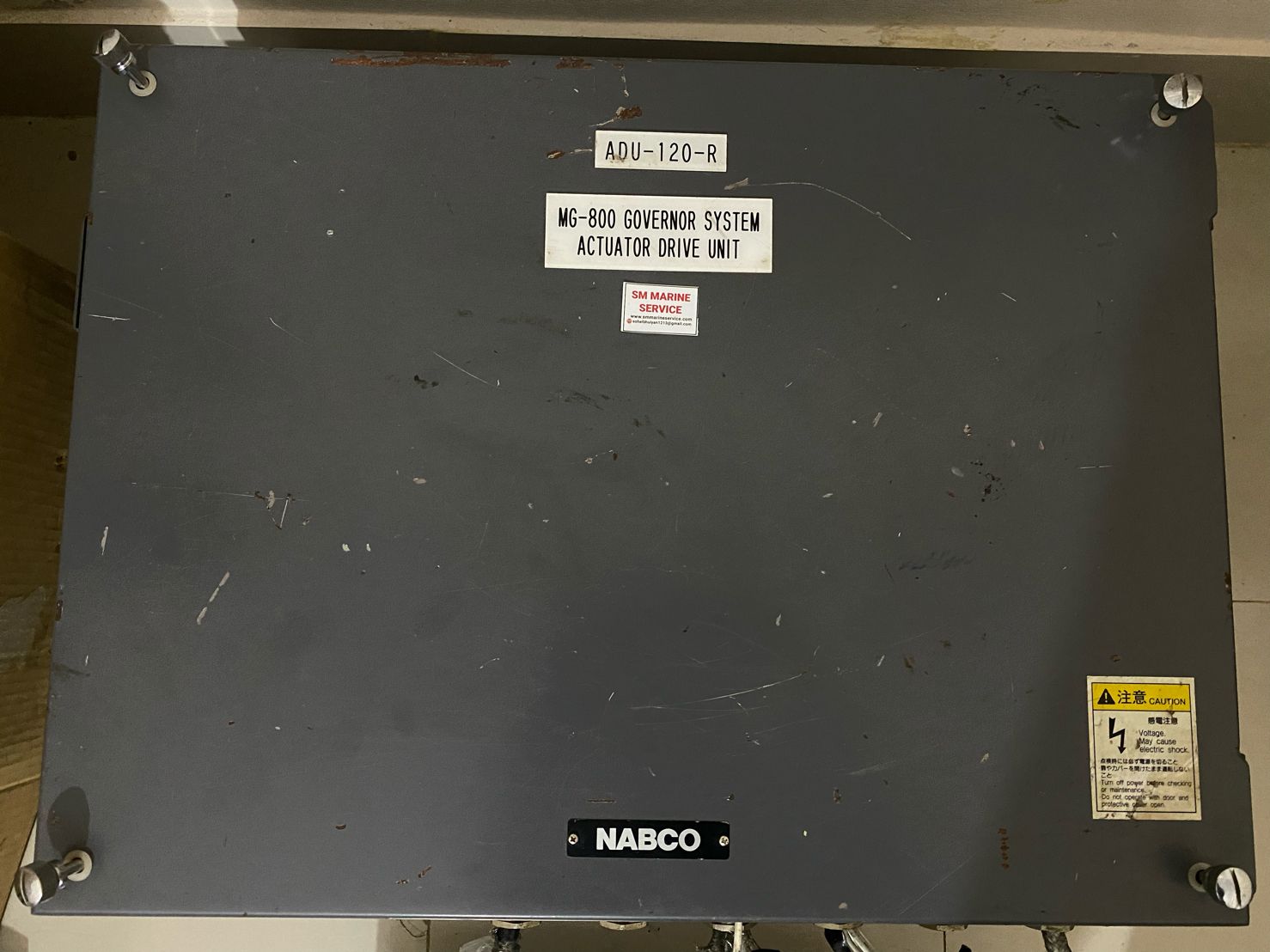

The image above shows an actual NABCO MG-800 Governor System Actuator Drive Unit (ADU-120-R) available through SM MARINE SERVICE™.
What Is the NABCO MG-800 Governor System?
A governor system automatically controls engine speed by adjusting fuel delivery according to load demand.
The MG-800 system continuously monitors engine speed and instantly corrects any deviation from the preset value.
Main Functions
- Engine speed regulation
- Fuel control management
- Load sharing
- Overspeed protection
- Stable generator frequency control
- Marine propulsion control
- Engine automation integration
Governor System Applications
The NABCO MG-800 system is commonly installed on:
Main Propulsion Engines
Provides stable RPM control during navigation.
Auxiliary Diesel Generators
Maintains constant frequency output.
Emergency Generators
Ensures automatic speed correction under emergency conditions.
Offshore Equipment
Used for reliable engine performance in offshore environments.
Power Generation Systems
Maintains generator stability during load fluctuations.
Typical Marine Governor Installation
Working Principle
The MG-800 Governor System operates through a closed-loop control process.
Operating Sequence
- Engine speed sensor measures RPM.
- Governor controller compares actual RPM with preset RPM.
- Speed error is calculated.
- ADU-120-R actuator receives correction signals.
- Fuel rack or throttle position is adjusted.
- Engine speed returns to target value.
- Continuous monitoring maintains stability.
This process occurs continuously during engine operation.
Major Components
1. Governor Controller
The central processing unit of the governor system.
Functions
- RPM monitoring
- Speed calculation
- Load response control
- Alarm management
2. ADU-120-R Actuator Drive Unit
The unit shown in the supplied image.
Functions
- Actuator control
- Fuel rack movement
- Speed correction commands
- Engine response regulation
3. Speed Sensor
Measures engine rotational speed.
Functions
- RPM feedback
- Frequency monitoring
- Speed signal generation
4. Actuator Assembly
Converts electronic signals into mechanical movement.
Functions
- Fuel control
- Throttle positioning
- Engine load response
5. Power Supply Section
Provides stable operating voltage.
Functions
- Governor operation
- Signal processing
- Actuator control power
Key Features
Precise Speed Regulation
Maintains engine RPM under changing loads.
Fast Dynamic Response
Quickly compensates for load variations.
Electronic Fuel Control
Provides accurate fuel management.
Stable Generator Frequency
Supports electrical power quality.
Reliable Marine Design
Suitable for harsh shipboard environments.
Easy Maintenance
Modular design simplifies servicing.
Long Service Life
Designed for continuous marine operation.
Governor System Images
Advantages of the MG-800 Governor System
Improved Fuel Efficiency
Optimized fuel delivery reduces consumption.
Better Engine Protection
Prevents dangerous speed variations.
Reduced Mechanical Stress
Smooth engine operation extends equipment life.
Enhanced Automation
Supports modern marine automation systems.
Increased Reliability
Stable performance under varying conditions.
Common Alarms and Faults
Overspeed Alarm
Possible Causes
- Governor failure
- Actuator malfunction
- Sensor error
Corrective Action
- Verify sensor operation
- Inspect actuator response
- Check governor settings
Speed Hunting
Possible Causes
- Incorrect governor tuning
- Faulty feedback signals
- Actuator instability
Corrective Action
- Adjust governor parameters
- Inspect wiring
- Verify sensor signals
No Speed Control
Possible Causes
- Power supply fault
- Actuator failure
- Controller malfunction
Corrective Action
- Check power input
- Verify actuator movement
- Inspect control circuitry
Slow Response
Possible Causes
- Actuator wear
- Mechanical linkage issues
- Calibration drift
Corrective Action
- Inspect actuator
- Lubricate linkage
- Recalibrate governor
Maintenance Procedures
Daily Inspection
- Check alarm status
- Verify normal operation
- Monitor engine RPM
Weekly Inspection
- Inspect electrical connections
- Verify actuator movement
- Check governor response
Monthly Maintenance
- Clean cabinet interior
- Tighten terminals
- Verify speed accuracy
Annual Maintenance
- Full calibration
- Functional testing
- Sensor verification
- Actuator inspection
Maintenance & Governor Components
Technical Benefits for Marine Operators
The NABCO MG-800 Governor System offers:
- Stable engine speed
- Improved generator performance
- Better fuel economy
- Reduced maintenance costs
- Enhanced vessel reliability
- Improved automation integration
These benefits make it a preferred solution for marine engine control applications.
Frequently Asked Questions (FAQ)
What does the MG-800 Governor System do?
It automatically controls engine speed by adjusting fuel delivery according to engine load.
What is the ADU-120-R?
It is the Actuator Drive Unit responsible for controlling the governor actuator.
Can the system be used on generators?
Yes. It is commonly used on auxiliary and emergency generators.
Does the system require calibration?
Yes. Periodic calibration is recommended for optimum performance.
Can the ADU-120-R be repaired?
Yes. Most actuator drive units can be repaired, tested, and reconditioned by qualified marine automation technicians.
Assembly Details
A complete NABCO MG-800 Governor System generally includes:
1. Governor Controller Unit
- Speed regulation electronics
- Control processor
2. ADU-120-R Actuator Drive Unit
- Actuator control module
- Drive circuitry
3. Speed Pickup Sensor
- RPM measurement device
4. Actuator Assembly
- Fuel rack control mechanism
5. Power Supply Section
- Voltage regulation components
6. Terminal Connection Block
- Signal wiring connections
7. Alarm Output Module
- Overspeed alarm
- System fault alarm
8. Mounting Hardware
- Cabinet fixing accessories
User Manuals & Technical Documentation
PDF Resources
- NABCO MG-800 Governor System User Manual
- ADU-120-R Actuator Drive Unit Manual
- MG-800 Installation Manual
- Governor Calibration Guide
- Maintenance Manual
- Troubleshooting Manual
- Spare Parts Catalog
- Service Documentation
