BRANNSTROM CLEANTRACK 1000B Oil Discharge Monitoring and Control System (ODME)
Manufacturer
BRANNSTROM Sweden AB
Country of Origin
Sweden
Product Type
Oil Discharge Monitoring Equipment (ODME)
Marine Application
Oil Tankers, Crude Oil Tankers, Product Tankers, Chemical Tankers, and vessels requiring MARPOL Annex I compliance.
The BRANNSTROM CLEANTRACK 1000B is a fourth-generation Oil Discharge Monitoring Equipment (ODME) designed to monitor, record, and control the discharge of oily ballast and slop water from oil tankers. The system ensures compliance with international environmental regulations while providing reliable monitoring and automatic discharge control functions. It is approved according to IMO Resolution MEPC.108(49) as amended by MEPC.240(65).
Product Introduction
Oil pollution prevention remains one of the most critical environmental responsibilities onboard tankers. International regulations require ships to continuously monitor and control oily water discharges to prevent marine pollution.
The CLEANTRACK 1000B ODME system provides automatic monitoring of oil concentration, discharge rate, ship speed, position, and total oil discharged. The system records operational data and automatically stops overboard discharge whenever legal limits are exceeded.
Product Image
What Is This Equipment?
The CLEANTRACK 1000B is an Oil Discharge Monitoring and Control System (ODME) installed on oil tankers to ensure compliance with MARPOL Annex I regulations.
The system continuously measures:
- Oil concentration in discharge water
- Ship speed
- Vessel position (GPS)
- Flow rate
- Total quantity discharged
- Instantaneous oil discharge rate
If discharge limits exceed regulatory requirements, the system automatically activates protective actions including overboard valve closure and alarm generation.
Suggested Additional Images
Main Features
The BRANNSTROM CLEANTRACK 1000B offers several advanced features:
IMO & MARPOL Approved
- MEPC.108(49) compliant
- MEPC.240(65) compliant
- Biofuel blend approved
Smart Measuring Cell
- Detachable measuring cell
- Easy calibration verification
- Reduced maintenance downtime
Automatic Discharge Control
- Continuous monitoring
- Automatic valve control
- Automatic shutdown protection
Data Logging
- USB data export capability
- Historical record storage
- Inspection-ready reports
Compact Design
- Suitable for hazardous cargo areas
- Reduced cabling requirements
- Easy retrofit installation
Flexible Power Supply
- 115/230 VAC single phase
- 380/440 VAC three phase options
Additional Images
Main Components
The CLEANTRACK 1000B system generally consists of:
1. Computer Unit
Located in the Cargo Control Room (CCR).
Functions:
- Operator interface
- Alarm handling
- Data storage
- System configuration
2. Converting Unit
Acts as the main processing and interface module.
Functions:
- Signal conversion
- Sensor communication
- Safety barriers
3. Measuring Cell (Analyzing Unit)
The heart of the system.
Functions:
- Oil concentration measurement
- Optical analysis
- Water quality assessment
The measurement principle is based on transmitted and scattered light at multiple angles, enabling accurate oil content determination while compensating for non-oil contaminants.
4. Sample Pump
Continuously draws representative samples from the discharge line.
5. Flow Meter
Measures discharge flow rate.
6. GPS Interface
Provides vessel position information.
7. Speed Log Interface
Calculates oil discharge rate per nautical mile.
8. Overboard Valve Control
Automatically controls discharge permissions.

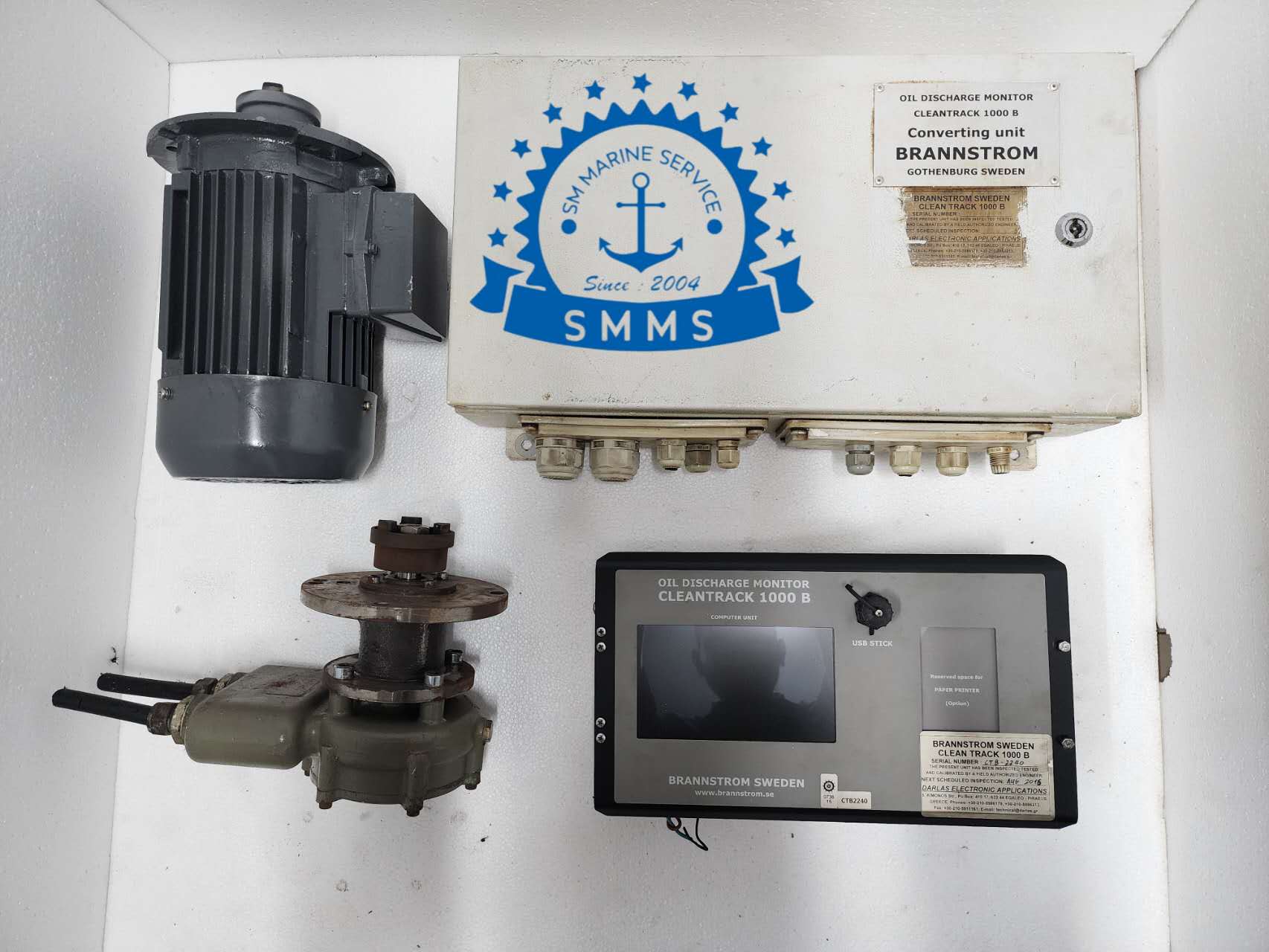

Component Images
Marine Applications
The CLEANTRACK 1000B is widely used onboard:
- Crude Oil Tankers
- Product Tankers
- Chemical Tankers
- Shuttle Tankers
- FPSO Installations
- Offshore Oil Facilities
It plays a critical role during:
- Ballast water discharge
- Slop tank discharge
- Tank washing operations
- Cargo tank cleaning
- Environmental compliance inspections
Common Problems & Troubleshooting
High Oil Concentration Alarm
Possible Causes
- Excessive oil in ballast water
- Dirty measuring cell
- Calibration drift
Corrective Actions
- Inspect ballast source
- Clean measuring cell
- Perform zero calibration
Sample Pump Failure
Possible Causes
- Motor overload
- Air supply failure
- Blocked suction line
Corrective Actions
- Check motor current
- Verify air pressure
- Clean inlet filter
GPS Communication Alarm
Possible Causes
- GPS receiver fault
- NMEA signal interruption
Corrective Actions
- Check wiring
- Verify NMEA output
Flow Meter Alarm
Possible Causes
- Sensor malfunction
- Low flow conditions
Corrective Actions
- Inspect flow transmitter
- Verify discharge line flow
Measuring Cell Alarm
Possible Causes
- Optical contamination
- Water ingress
- Sensor malfunction
Corrective Actions
- Clean measuring cell
- Check seals
- Verify optical sensor status
Typical Alarms Found in CLEANTRACK 1000B
Common alarms include:
- High Oil Concentration
- Discharge Rate Limit Exceeded
- Total Oil Limit Exceeded
- GPS Timeout
- Speed Log Failure
- Flow Meter Error
- Sample Pump Overcurrent
- Sample Pump Temperature Alarm
- Water in Measuring Cell
- Printer Error
- Communication Failure
- Overboard Valve Alarm
Maintenance Tips
To maintain reliable ODME operation:
Daily Checks
- Inspect alarms
- Verify sample flow
- Check display readings
Weekly Checks
- Clean inlet filters
- Inspect tubing
- Verify pump operation
Monthly Checks
- Test alarm functions
- Verify GPS data
- Check discharge records
Six-Month Maintenance
- Tighten electrical connections
- Inspect cables
- Check pump condition
- Verify calibration accuracy
Annual Maintenance
- Full calibration verification
- Replace worn seals
- Service sample pump
- Update software if applicable
Why Ships Still Use This Equipment
The CLEANTRACK 1000B remains popular because:
- Proven tanker industry reliability
- IMO-certified performance
- Accurate optical measurement technology
- Easy maintenance
- Modular construction
- Global service support
- Regulatory compliance assurance
- Long service life
Many operators continue using CLEANTRACK systems because they have demonstrated excellent reliability during PSC inspections, vetting inspections, and classification surveys.
Frequently Asked Questions (FAQ)
What does ODME stand for?
Oil Discharge Monitoring Equipment.
Is CLEANTRACK 1000B MARPOL compliant?
Yes. It complies with IMO Resolution MEPC.108(49) and MEPC.240(65).
Can the system stop discharge automatically?
Yes. The system automatically controls discharge and can close the overboard valve when limits are exceeded.
Does the system store historical records?
Yes. Operational records can be stored and exported through USB.
Can the measuring cell be replaced onboard?
Yes. The detachable measuring cell is designed for easy replacement and calibration verification.
What ships normally use this equipment?
Primarily crude oil tankers and product tankers.
Short Product Description
BRANNSTROM CLEANTRACK 1000B is a high-performance Oil Discharge Monitoring Equipment (ODME) designed for oil tankers to ensure MARPOL compliance. The system continuously measures oil concentration, discharge rate, vessel speed, and position while automatically controlling overboard discharge operations. Its detachable measuring cell, advanced optical sensing technology, and comprehensive data logging capabilities make it one of the most reliable ODME solutions in the marine industry.
