JRC JLN-550 Doppler Sonar

Complete Marine Technical Guide for Precision Maneuvering and Berthing Operations

Product Identification

The JRC JLN-550 Doppler Sonar is a specialized marine maneuvering support system designed to assist ship masters and pilots during docking, undocking, and low-speed maneuvering operations. By utilizing advanced Doppler sonar technology, the system provides precise measurements of vessel movement in longitudinal and transverse directions, significantly improving berthing safety.

---

Product Introduction

Modern commercial vessels often operate in congested ports where accurate vessel movement information is critical.

The JRC JLN-550 Doppler Sonar provides real-time data regarding:

• Fore and Aft Movement
• Port and Starboard Movement
• Bow Sideways Speed
• Stern Sideways Speed
• Distance Travelled
• Berthing Speed

The system is widely installed aboard:

• Oil Tankers
• LNG Carriers
• LPG Carriers
• Container Ships
• Bulk Carriers
• Passenger Ships
• Cruise Vessels
• Offshore Support Vessels

Its primary purpose is to provide highly accurate maneuvering information when approaching berths, terminals, jetties, and offshore installations.

---

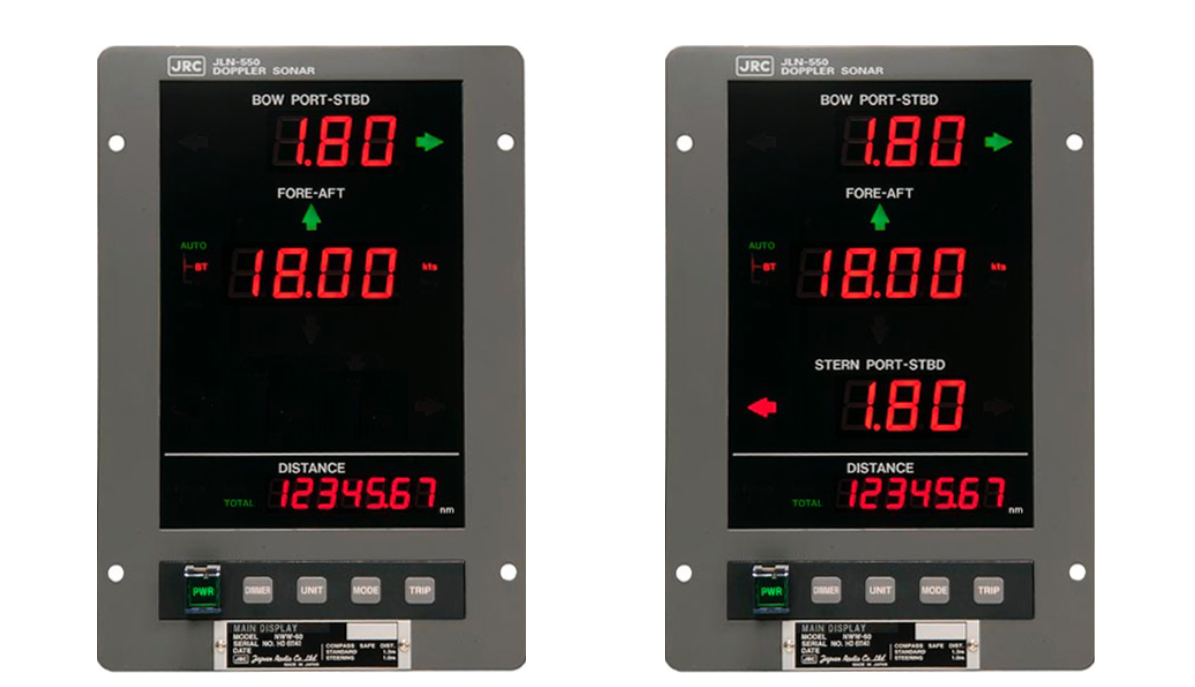

Main Product Image

The display unit continuously presents vessel movement vectors, allowing bridge personnel to monitor ship motion with exceptional accuracy during critical operations.

---

What Is a Doppler Sonar?

A Doppler Sonar uses ultrasonic signals transmitted through the ship's hull.

When the ultrasonic signals reflect from the seabed or suspended particles in the water, the system measures the frequency shift (Doppler Effect).

Using this information, the JLN-550 calculates:

Longitudinal Motion

• Ahead Movement
• Astern Movement

Transverse Motion

• Port Side Movement
• Starboard Side Movement

Bow Motion

Displays lateral movement at the bow.

Stern Motion

Displays lateral movement at the stern.

This information is particularly valuable during berthing operations where movement of only a few centimeters per second can determine operational safety.

---

Doppler Sonar Operating Principle

---

Main Features

Real-Time Berthing Assistance

Provides precise vessel movement information during docking operations.

Bow & Stern Monitoring

Displays independent lateral movement at both bow and stern sections.

Fore & Aft Speed Measurement

Measures vessel movement in the longitudinal direction.

Port & Starboard Movement Detection

Displays transverse vessel motion.

High Accuracy Low-Speed Detection

Optimized for low-speed maneuvering environments.

Large Digital Displays

Provides clear visibility for bridge personnel.

Distance Calculation

Tracks cumulative distance travelled.

Self-Diagnostic Functions

Monitors system health continuously.

Integrated Navigation Interfaces

Supports communication with:

• ECDIS
• Integrated Bridge Systems
• VDR
• Navigation Monitoring Systems

---

Display Panel Overview

---

Main Components

1. Main Display Unit

Installed on the bridge.

Functions

• Motion Display
• Alarm Display
• System Configuration
• Distance Monitoring

---

2. Sonar Processor Unit

Processes sonar signals and calculates vessel movement.

Functions

• Doppler Signal Processing
• Speed Calculations
• Alarm Generation

---

3. Hull-Mounted Sonar Transducers

Installed below the waterline.

Functions

• Ultrasonic Transmission
• Signal Reception
• Motion Measurement

---

4. Interface Module

Provides integration with shipboard navigation systems.

Supports

• ECDIS
• VDR
• Bridge Alarm Systems
• Navigation Data Networks

---

5. Power Supply Unit

Ensures stable operation of the complete system.

---

System Components

---

Marine Applications

The JLN-550 is commonly used for:

Docking Operations

Assists pilots and masters during vessel berthing.

Undocking Operations

Monitors safe departure from terminals and piers.

LNG Terminal Operations

Provides precise movement information during loading and unloading.

Tanker Mooring

Supports safe approach to oil terminals.

Offshore Installations

Assists vessel maneuvering near offshore structures.

Dynamic Positioning Support

Provides additional vessel motion information.

Restricted Water Navigation

Improves safety in narrow channels and confined waters.

---

Common Problems & Troubleshooting

1. No Movement Display

Possible Causes

• Transducer failure
• Processor fault
• Power supply interruption

Corrective Actions

• Check power supply
• Verify transducer connections
• Inspect processor status

---

2. Unstable Speed Indications

Possible Causes

• Air bubbles beneath hull
• Excessive turbulence
• Fouled transducers

Solution

• Inspect transducer area
• Clean transducers
• Verify vessel operating conditions

---

3. Incorrect Bow/Stern Motion Data

Causes

• Sensor calibration issue
• Signal interference
• Processor configuration error

Solution

• Verify calibration settings
• Check processor diagnostics
• Inspect sonar channels

---

4. Distance Counter Not Updating

Causes

• Software issue
• Processor malfunction

Solution

• Restart system
• Verify system diagnostics

---

5. Communication Failure

Symptoms

• No data on ECDIS
• Missing VDR records

Solution

• Verify communication interfaces
• Check NMEA output settings
• Inspect wiring

---

Maintenance Tips

Proper maintenance is critical for reliable berthing performance.

Daily Checks

• Verify display operation
• Review alarm status
• Confirm motion indication accuracy

Weekly Checks

• Inspect communication interfaces
• Verify processor diagnostics

Monthly Checks

• Verify calibration values
• Test navigation interfaces
• Review event logs

Dry Dock Maintenance

During dry docking:

• Clean sonar transducers
• Inspect transducer housing
• Check cable condition
• Verify mounting integrity

Annual Maintenance

Recommended:

• Functional testing
• Calibration verification
• Interface testing
• Sonar performance assessment

---

Why Ships Still Use Doppler Sonar Systems

Even with modern GPS and positioning systems, Doppler Sonar remains indispensable because:

Accurate Low-Speed Measurement

GPS often lacks the precision required for docking operations.

Bow & Stern Motion Monitoring

Provides vessel movement information unavailable from conventional speed logs.

Enhanced Berthing Safety

Reduces docking risks and potential damage.

Pilot Assistance

Provides critical information during maneuvering.

Terminal Safety Requirements

Many terminals prefer vessels equipped with berthing aid systems.

Reduced Human Error

Provides objective vessel motion measurements.

---

Frequently Asked Questions (FAQ)

What is the primary purpose of the JLN-550?

To provide accurate vessel movement information during docking and maneuvering operations.

Does it measure vessel speed?

Yes. It measures both longitudinal and transverse vessel movement.

Can it monitor bow and stern movement separately?

Yes. One of its major advantages is independent bow and stern motion monitoring.

Is it useful during open-sea navigation?

The system is primarily optimized for low-speed maneuvering and berthing operations.

Does it integrate with ECDIS?

Yes. The JLN-550 can provide motion data to integrated bridge systems and ECDIS platforms.

---

Short Product Description

The JRC JLN-550 Doppler Sonar is an advanced marine berthing aid system designed to provide highly accurate vessel movement information during docking and maneuvering operations. Featuring bow and stern motion monitoring, fore-aft speed measurement, transverse movement detection, and integrated navigation interfaces, the JLN-550 is a trusted solution for improving safety and precision in port operations.
