Sperry Marine Magnetic Compass

Complete Marine Technical Guide for Reliable Directional Navigation

Product Identification

The Sperry Marine Magnetic Compass is one of the most essential and reliable navigation instruments installed aboard ships. Unlike electronic navigation systems, a magnetic compass operates without electrical power, making it a critical backup heading reference for safe vessel navigation.

Even in today's era of ECDIS, GPS, and Gyro Compass technology, international maritime regulations continue to require a magnetic compass onboard as an independent heading source.

---

Product Introduction

For centuries, mariners have relied on magnetic compasses to determine vessel direction. Modern Sperry Marine Magnetic Compasses combine traditional navigation principles with advanced marine engineering to provide highly accurate heading information under demanding sea conditions.

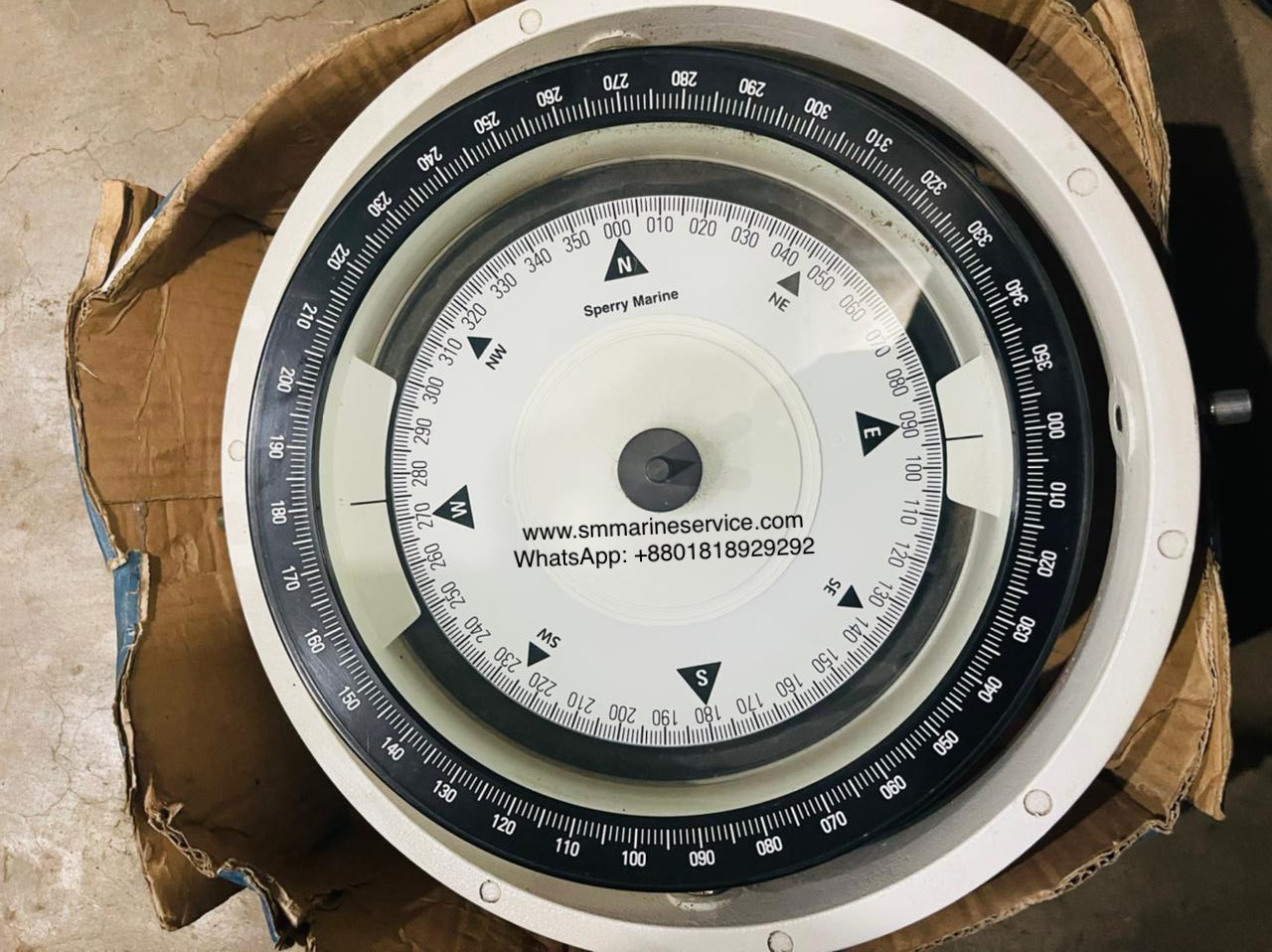

The compass shown in the image is a professional marine magnetic compass featuring:

• 360° Compass Card
• Cardinal Direction Markings
• Marine Shock-Resistant Construction
• High-Visibility Heading Scale
• Marine Navigation Accuracy
• Long Service Life

These compasses are commonly installed aboard:

• Container Ships
• Oil Tankers
• Chemical Tankers
• Bulk Carriers
• Passenger Ships
• Offshore Support Vessels
• Naval Vessels
• Fishing Vessels

---

Main Product Image

The Sperry Marine Magnetic Compass provides a dependable heading reference even during complete electrical or electronic system failures.

---

What Is a Marine Magnetic Compass?

A marine magnetic compass is a navigation instrument that aligns itself with the Earth's magnetic field.

The compass card rotates freely and points toward magnetic north, allowing navigators to determine vessel heading.

Unlike a gyro compass:

For this reason, magnetic compasses remain mandatory backup navigation equipment on commercial vessels.

---

Typical Compass Installation

---

Main Features

Independent Operation

Requires no electrical power source.

Reliable Backup Navigation

Provides heading information during gyro or power failures.

High Visibility Compass Card

Large heading scale for easy reading.

Marine-Grade Construction

Designed to withstand harsh maritime environments.

Long Operational Life

Minimal moving parts ensure exceptional durability.

Shock and Vibration Resistance

Suitable for operation in rough sea conditions.

IMO and SOLAS Compliance

Accepted as a mandatory navigation instrument aboard commercial vessels.

Low Maintenance Requirements

Simple construction reduces servicing needs.

---

Compass Card & Heading Scale

---

Main Components

1. Compass Bowl

Contains the compass card assembly and damping fluid.

Function

• Protects internal components
• Provides stable compass operation

---

2. Compass Card

Rotating directional card marked from 000° to 360°.

Function

• Displays vessel heading
• Indicates magnetic direction

---

3. Magnetic Element System

Permanent magnets attached to the compass card.

Function

• Aligns with Earth's magnetic field

---

4. Lubber Line

Fixed reference mark.

Function

• Indicates actual vessel heading

---

5. Damping Fluid

Special liquid inside the compass bowl.

Function

• Reduces oscillation
• Improves reading stability

---

6. Protective Housing

Marine-grade enclosure.

Function

• Environmental protection
• Mechanical protection

---

Internal Compass Structure

---

Marine Applications

The Sperry Marine Magnetic Compass is used for:

Primary Heading Reference

On smaller vessels and fishing boats.

Emergency Navigation

When gyro systems fail.

Compass Error Checking

Comparison against gyro compass readings.

Coastal Navigation

Routine navigation operations.

Harbor Navigation

Heading reference during maneuvering.

Regulatory Compliance

Required by international maritime regulations.

Training and Education

Used in navigation training programs.

---

Common Problems & Troubleshooting

1. Air Bubble Inside Compass Bowl

Symptoms

• Visible air pocket
• Unstable card movement

Causes

• Fluid leakage
• Temperature variation

Solution

• Refill approved compass fluid
• Inspect seals

---

2. Excessive Compass Deviation

Symptoms

• Incorrect heading indication

Causes

• Nearby magnetic interference
• Structural modifications

Solution

• Conduct compass adjustment
• Remove magnetic sources

---

3. Compass Card Sticking

Symptoms

• Slow movement
• Incorrect alignment

Causes

• Mechanical damage
• Contamination

Solution

• Inspect internal mechanism
• Service or replace damaged parts

---

4. Fluid Leakage

Symptoms

• Reduced damping
• Visible fluid loss

Causes

• Seal deterioration
• Mechanical damage

Solution

• Replace seals
• Refill approved compass liquid

---

5. Poor Night Visibility

Symptoms

• Difficult heading reading

Causes

• Illumination failure

Solution

• Inspect compass lighting system
• Replace defective bulbs or LEDs

---

Maintenance Tips

Proper maintenance ensures long-term accuracy.

Daily Checks

• Verify heading indication
• Inspect for visible damage
• Check illumination

Weekly Checks

• Examine housing condition
• Inspect mounting hardware

Monthly Checks

• Check for air bubbles
• Verify fluid condition
• Inspect deviation records

Annual Maintenance

• Compass adjustment
• Deviation card update
• Illumination system inspection
• Mechanical condition assessment

Dry Dock Inspection

During dry dock periods:

• Verify mounting integrity
• Check magnetic interference sources
• Perform complete compass calibration

---

Why Ships Still Use Magnetic Compasses

Despite advanced navigation technology, magnetic compasses remain indispensable because:

No Electrical Power Required

Functions during total blackout conditions.

Reliable Emergency Navigation

Independent backup heading source.

SOLAS Requirement

Mandatory equipment on commercial vessels.

Simple Design

Extremely reliable and durable.

Easy Operation

Requires minimal operator training.

Long Service Life

Many units remain operational for decades.

---

Frequently Asked Questions (FAQ)

Why is a magnetic compass still required on ships?

International maritime regulations require an independent backup heading instrument that operates without electrical power.

Does a magnetic compass show true north?

No. It indicates magnetic north. Corrections must be applied for variation and deviation.

What causes compass deviation?

Magnetic fields generated by ship structures, electrical equipment, and cargo.

How often should compass adjustment be performed?

Typically after major vessel modifications, dry docking, or when excessive deviation is observed.

Can a magnetic compass replace a gyro compass?

For emergency navigation, yes. However, gyro compasses provide true heading and are preferred for modern navigation systems.

---

Short Product Description

The Sperry Marine Magnetic Compass is a professional marine navigation instrument designed to provide reliable magnetic heading information independent of electrical power sources. Widely used as a primary or backup navigation aid, it remains an essential component of safe ship operation and SOLAS-compliant navigation systems worldwide.
