JRC JFE-680 Echo Sounder – Complete Technical Guide, Features, Applications, Maintenance & Troubleshooting
JRC JFE-680 Echo Sounder – Complete Marine Technical Guide
Product Identification
Manufacturer: Japan Radio Co., Ltd. (JRC)
Country of Origin: Japan
Product Type: Marine Echo Sounder
Model: JFE-680
Marine Application: Under Keel Clearance Monitoring, Water Depth Measurement, Navigation Safety, Harbor Approach, Coastal Navigation
Product Introduction
The JRC JFE-680 Echo Sounder is a high-performance marine depth sounding system designed to provide accurate real-time depth information beneath a vessel's keel. It is widely installed on commercial ships, tankers, bulk carriers, container vessels, offshore support vessels, and passenger ships.
The JFE-680 uses ultrasonic acoustic signals transmitted through the vessel's transducer to measure the distance between the ship and the seabed. Accurate depth information is critical for safe navigation, especially when operating in shallow waters, ports, channels, rivers, and restricted waterways.

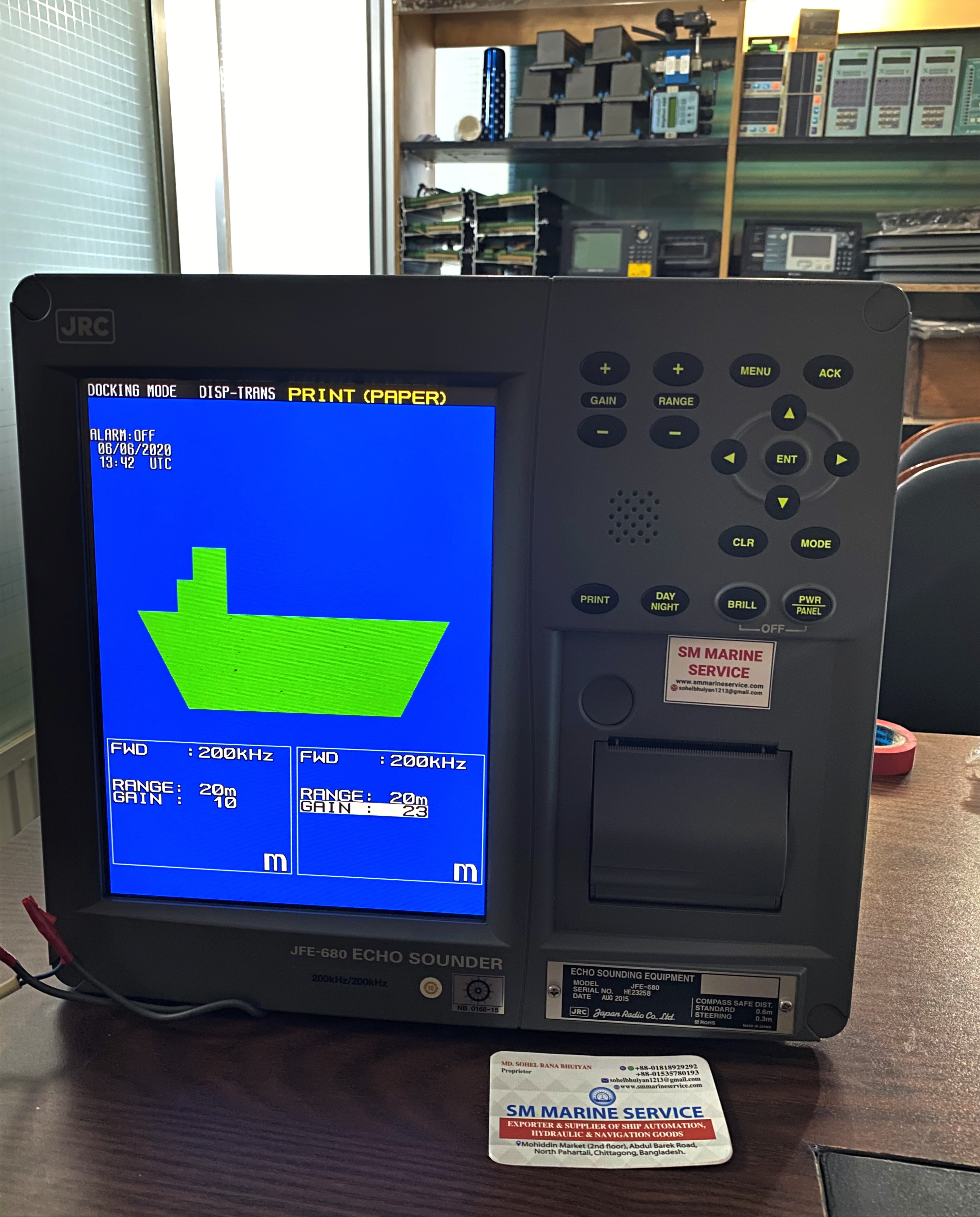

JRC JFE-680 Echo Sounder
What Is the JRC JFE-680 Echo Sounder?
The JFE-680 is a navigation instrument that continuously measures and displays water depth beneath a vessel.
The system operates by:
- Transmitting ultrasonic pulses toward the seabed.
- Receiving reflected echoes.
- Calculating travel time.
- Converting the information into depth readings.
This information helps bridge officers and navigators maintain safe under-keel clearance during voyage operations.
Typical Shipboard Installation
Main Features
Dual Frequency Operation
The JFE-680 supports:
- 200 kHz operation
- Dual-frequency depth sounding capabilities
This allows improved depth measurement performance under varying seabed conditions.
High Accuracy Depth Measurement
Provides reliable real-time depth information.
Integrated Thermal Printer
The built-in printer enables hard-copy depth records for navigation documentation and operational review.
Large Color Display
Easy interpretation of bottom tracking information.
Digital Depth Indication
Displays precise depth values in real time.
Bottom Profile Display
Allows operators to observe seabed contours.
Adjustable Gain Control
Optimizes performance under different water conditions.
Day/Night Display Mode
Supports bridge operation during all navigation conditions.
Display & Operating Functions
Main Components
A complete JFE-680 system typically consists of:
Display Unit
Main operator interface located on the bridge.
Transceiver Unit
Processes transmitted and received acoustic signals.
Transducer Assembly
Installed below the vessel hull.
Power Supply Module
Provides system operating voltage.
Recording Printer
Produces depth records.
Alarm System
Warns operators when preset depth limits are reached.
How the Echo Sounder Works
The JFE-680 uses the principle of sonar:
Step 1
The transducer emits an ultrasonic pulse.
Step 2
The sound wave travels through water.
Step 3
The wave reflects from the seabed.
Step 4
The reflected signal returns to the transducer.
Step 5
The system calculates depth using sound travel time.
This process occurs continuously during vessel operation.
Marine Applications
The JFE-680 is commonly used on:
Oil Tankers
Monitoring under-keel clearance during port operations.
Bulk Carriers
Safe navigation in restricted waterways.
Container Ships
Continuous depth monitoring.
Offshore Vessels
Support for offshore navigation.
Passenger Vessels
Enhanced navigation safety.
Coastal Vessels
Shallow water navigation.
Dredgers
Monitoring seabed depth changes.
Common Problems & Troubleshooting
No Depth Indication
Possible Causes
- Transducer failure
- Cable damage
- Power supply issue
Solution
- Verify transducer operation
- Inspect cabling
- Check power inputs
Unstable Depth Reading
Possible Causes
- Air bubbles beneath hull
- Electrical interference
- Poor transducer condition
Solution
- Inspect transducer installation
- Verify grounding
- Check signal quality
Printer Not Working
Possible Causes
- Paper exhausted
- Print head issue
- Power interruption
Solution
- Replace paper roll
- Inspect printer mechanism
- Verify power supply
False Bottom Detection
Possible Causes
- Heavy sediment
- Fish schools
- Acoustic interference
Solution
- Adjust gain settings
- Verify operating frequency
Weak Echo Signal
Possible Causes
- Fouled transducer
- Damaged transducer face
Solution
- Clean transducer
- Inspect sensor condition
Maintenance Tips
Daily
- Verify depth readings.
- Check alarm functions.
Weekly
- Inspect display condition.
- Confirm printer operation.
Monthly
- Review recorded depth logs.
- Check cabling and connectors.
Dry Dock Inspection
- Inspect transducer face.
- Remove marine growth.
- Verify sensor mounting condition.
Annual Maintenance
- Functional performance testing.
- Calibration verification.
- Alarm testing.
Why Ships Still Use Echo Sounders
Even with modern ECDIS and GPS navigation systems, echo sounders remain essential because:
- GPS cannot measure actual water depth.
- Echo sounders provide real-time under-keel clearance.
- They improve navigation safety.
- Required on many SOLAS-class vessels.
- Assist during harbor approaches and pilotage operations.
The JFE-680 remains a trusted depth measurement solution throughout the global shipping industry.
Frequently Asked Questions (FAQ)
What is the JRC JFE-680 used for?
It is used to measure water depth beneath a vessel.
Does it record depth history?
Yes. The integrated printer can generate depth records.
What frequency does it use?
The system supports marine echo sounding frequencies including 200 kHz operation.
Is it suitable for deep-water operation?
Yes. The system is designed for commercial vessel applications.
Why is an echo sounder important?
It helps prevent grounding and ensures safe navigation in shallow waters.
Short Product Description
The JRC JFE-680 Echo Sounder is a professional marine depth measurement system designed for accurate real-time monitoring of water depth beneath vessels. Featuring digital depth indication, bottom profile display, alarm functions, and integrated recording capabilities, the JFE-680 remains a reliable navigation aid for commercial shipping fleets worldwide.
