Rutter VDR-100G3 Voyage Data Recorder (VDR) – Complete Technical Guide, Features, Applications, Maintenance & Troubleshooting
Rutter VDR-100G3 Voyage Data Recorder (VDR) – Complete Marine Technical Guide
Product Identification
Manufacturer: Rutter Technologies Inc.
Country of Origin: Canada
Product Type: Voyage Data Recorder (VDR)
Model: VDR-100G3
Marine Application: Ship Navigation Data Recording, Accident Investigation, Performance Analysis, Safety Monitoring, Regulatory Compliance
Product Introduction
The Rutter VDR-100G3 Voyage Data Recorder is a marine safety-critical recording system designed to continuously capture operational data from a vessel's navigation, communication, alarm, and control systems.
Often referred to as the "Black Box of a Ship," the VDR records crucial information before, during, and after marine incidents. The recorded data can later be used for accident investigations, performance analysis, crew training, and compliance with international maritime regulations.
The Rutter VDR-100G3 is designed to comply with IMO and SOLAS requirements for commercial vessels and provides reliable long-term recording of bridge and vessel operational data.
Main Product Overview
What Is the Rutter VDR-100G3?
The Rutter VDR-100G3 continuously records information from multiple onboard systems, including:
- Radar
- ECDIS
- AIS
- GPS
- Gyro Compass
- Speed Log
- Bridge Audio
- VHF Communications
- Engine Data
- Alarm Systems
- Navigation Sensors
In the event of a marine accident, grounding, collision, fire, or equipment failure, investigators can retrieve recorded information from the VDR to reconstruct vessel operations.
Typical System Architecture
Major Data Sources
- Radar Systems
- ECDIS Workstations
- AIS Transponders
- GPS Receivers
- Gyro Compass Systems
- Speed Logs
- VHF Radios
- Bridge Microphones
- Alarm Monitoring Systems
Recorded Data
- Vessel Position
- Heading
- Speed
- Course
- Audio Communications
- Radar Images
- Navigation Alarms
- Engine Status

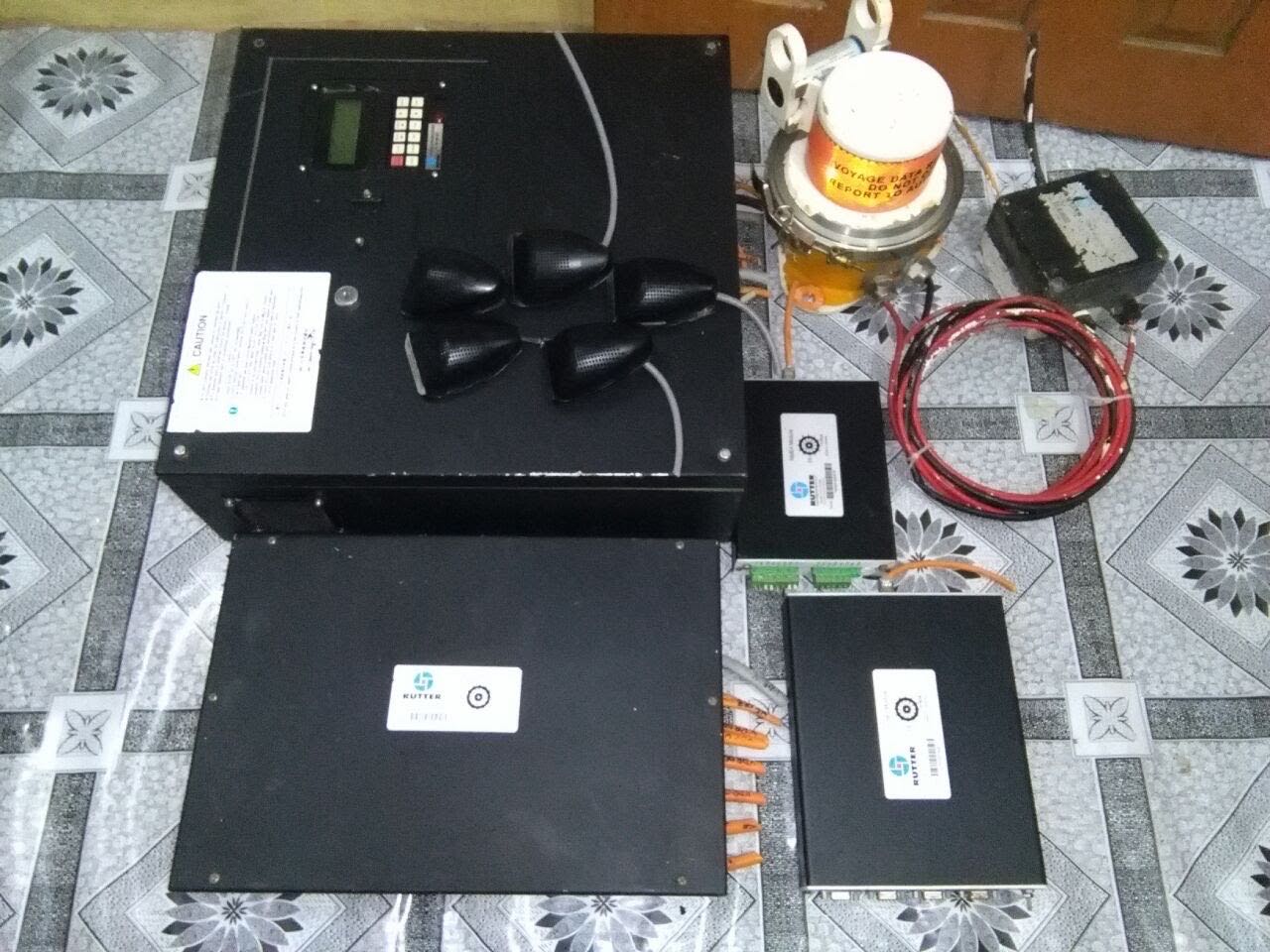

Typical VDR Components
Main Features
Continuous Data Recording
Records navigation and operational data 24 hours a day.
Bridge Audio Recording
Captures communications and ambient bridge sounds.
Radar Image Recording
Stores radar screen information for investigation purposes.
Float-Free Protective Capsule
Preserves critical voyage information even after severe incidents.
IMO Compliance
Designed to meet international maritime regulations.
Integrated Sensor Recording
Receives information from numerous onboard systems simultaneously.
Automatic Data Protection
Secures recorded data against accidental loss.
Incident Reconstruction Support
Provides valuable information during casualty investigations.
Main Components
The Rutter VDR-100G3 typically consists of the following components:
Main Recording Unit (MRU)
Central processing and storage unit.
Data Acquisition Unit (DAU)
Collects information from connected ship systems.
Protective Capsule
Crash-protected storage device.
Float-Free Capsule
Emergency recovery module.
Bridge Audio System
Microphones and communication interfaces.
Power Supply Unit
Provides backup and emergency operation.
Interface Modules
Connect external navigation equipment.
VDR System Components
Applications
The Rutter VDR-100G3 is widely used on:
Cargo Vessels
Monitoring navigation and operational performance.
Oil Tankers
Recording navigation and cargo-related events.
LNG/LPG Carriers
Supporting safety investigations and compliance.
Container Ships
Continuous voyage data monitoring.
Offshore Support Vessels
Recording dynamic positioning and operational data.
Passenger Ships
Safety compliance and incident investigation.
Research Vessels
Operational data recording and analysis.
Common Problems & Troubleshooting
Data Recording Failure
Possible Causes
- Storage device fault
- Software malfunction
- Power supply interruption
Solution
- Check storage status
- Verify system diagnostics
- Inspect power supply
Audio Recording Failure
Possible Causes
- Microphone failure
- Audio interface fault
Solution
- Test bridge microphones
- Inspect audio wiring
Communication Alarm
Possible Causes
- Sensor communication loss
- Network interruption
Solution
- Verify interface connections
- Check network modules
Capsule Communication Failure
Possible Causes
- Damaged cabling
- Capsule fault
Solution
- Inspect communication links
- Verify capsule integrity
Power Supply Alarm
Possible Causes
- UPS failure
- Battery degradation
Solution
- Test backup battery
- Verify charger operation
Maintenance Tips
Daily
- Verify system operational status.
- Check alarm indicators.
Weekly
- Review diagnostic logs.
- Verify recording functions.
Monthly
- Inspect interface connections.
- Confirm sensor communication.
Quarterly
- Test bridge microphones.
- Verify capsule communication.
Annually
- Complete VDR performance test.
- Inspect backup batteries.
- Conduct manufacturer-recommended servicing.
Why Ships Still Use Voyage Data Recorders
Voyage Data Recorders remain mandatory and essential because they:
- Improve marine safety.
- Support accident investigations.
- Help identify operational errors.
- Assist regulatory authorities.
- Improve crew training.
- Protect ship owners during claims and disputes.
Without VDR data, understanding the causes of marine accidents becomes significantly more difficult.
Frequently Asked Questions (FAQ)
What is a Voyage Data Recorder?
A Voyage Data Recorder is the marine equivalent of an aircraft black box, recording critical ship operational data.
What does the Rutter VDR-100G3 record?
It records navigation data, radar information, bridge audio, alarms, communications, vessel position, speed, and heading.
Is VDR mandatory?
Yes. Many SOLAS-class vessels are required to carry approved VDR systems.
How long is data retained?
Depending on configuration, the system continuously stores voyage information and preserves critical incident data.
Can recorded data be downloaded?
Yes. Authorized personnel can retrieve and analyze stored voyage data.
Short Product Description
The Rutter VDR-100G3 Voyage Data Recorder is an advanced marine data recording system designed to capture navigation, communication, alarm, and operational information from commercial vessels. Built to comply with IMO and SOLAS requirements, it provides critical data for safety monitoring, accident investigation, and vessel performance analysis.
