JRC JAX-9B Weather Facsimile Receiver – Complete Technical Guide, Features, Applications, Troubleshooting & Maintenance
JRC JAX-9B Weather Facsimile Receiver
Professional Marine Weather Information Reception System
Manufacturer
JRC (Japan Radio Co., Ltd.)
Country of Origin
Japan
Equipment Type
Weather Facsimile Receiver (Weather Fax Receiver)
Application
Marine Weather Information Reception, Meteorological Forecast Charts, Storm Warning Charts, Oceanographic Data Reception
Product Overview
The JRC JAX-9B Weather Facsimile Receiver is a dedicated marine weather communication system designed to automatically receive and print meteorological charts transmitted by weather stations around the world.
For decades, weather facsimile systems have been an important tool aboard merchant vessels, providing navigators with detailed weather forecasts, pressure charts, cyclone warnings, sea-state information, and route planning support.
The JAX-9B remains a trusted solution on many commercial vessels due to its reliability, simple operation, and accurate weather chart reception capabilities.

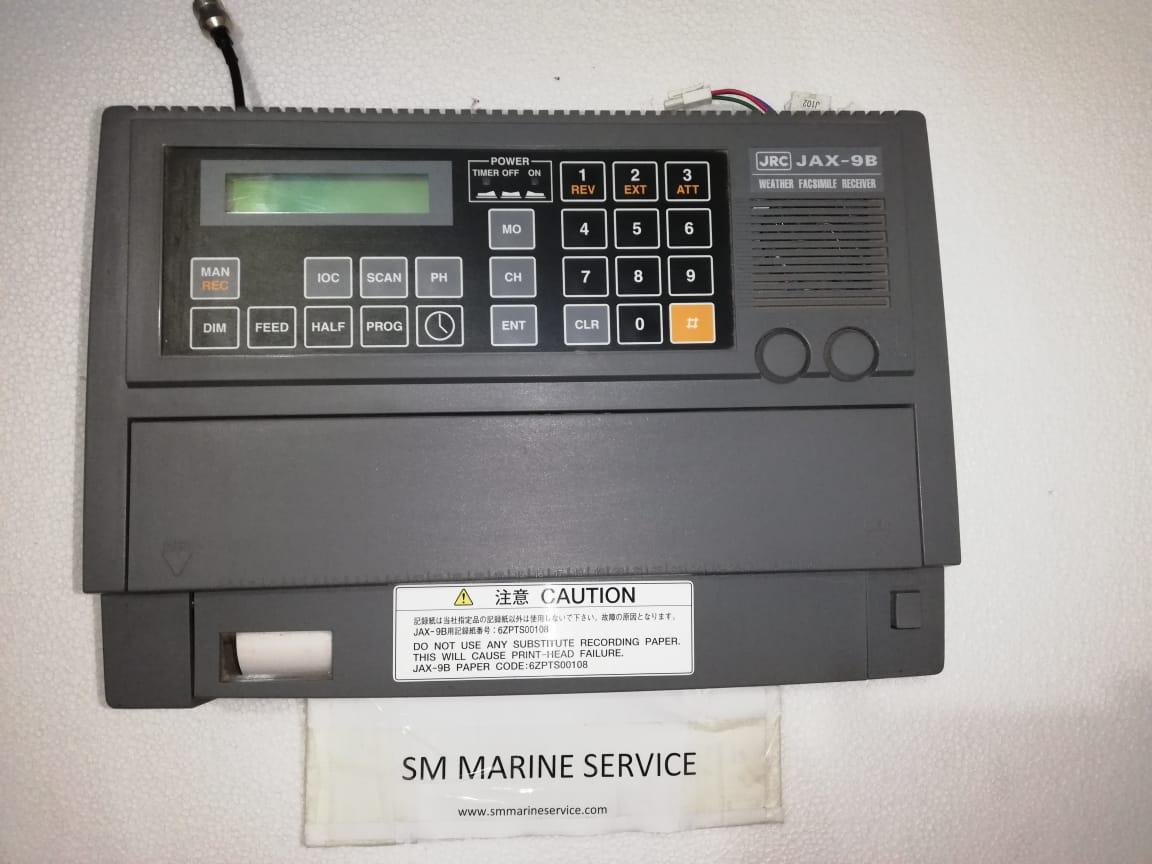

JRC JAX-9B Weather Facsimile Receiver
Original Equipment Available from SM MARINE SERVICE™
What Is a Weather Facsimile Receiver?
A Weather Facsimile Receiver (Weather Fax) is a marine communication device that receives weather charts transmitted by meteorological stations through radio frequencies.
These charts include:
- Surface Pressure Analysis
- Weather Forecast Maps
- Tropical Cyclone Warnings
- Typhoon Tracking Charts
- Wind Forecast Charts
- Wave Height Forecasts
- Sea Surface Analysis
- Ocean Current Information
Before satellite internet became widespread, Weather Fax systems were one of the most important weather information sources for vessels at sea.
Even today, many operators continue using weather fax systems as a reliable backup weather information source.
Main Functions of the JAX-9B
Automatic Weather Chart Reception
The system automatically receives weather facsimile broadcasts according to programmed schedules.
High-Quality Chart Printing
Provides clear printed weather charts for bridge navigation planning.
Multi-Frequency Monitoring
Supports reception from various meteorological broadcasting stations.
Scheduled Recording
Allows automatic reception at predetermined times.
Manual Reception Mode
Operators can manually select frequencies and receive weather charts when needed.
Continuous Monitoring
Monitors weather transmissions for updated forecasts.
Typical Weather Charts Received
Surface Pressure Charts
Show high-pressure and low-pressure systems.
Wind Forecast Charts
Provide expected wind direction and speed.
Storm Warning Charts
Display developing tropical storms and cyclones.
Ocean Wave Forecasts
Predict wave heights and sea conditions.
Weather Routing Information
Supports safer and more efficient voyage planning.
Typical Marine Applications
Commercial Cargo Vessels
Used for voyage planning and weather monitoring.
Tankers
Provides storm avoidance information.
Bulk Carriers
Supports route optimization and safety.
Offshore Vessels
Helps monitor rapidly changing weather conditions.
Fishing Fleets
Provides weather forecasts for operational planning.
Passenger Vessels
Supports safe navigation and passenger safety.
Weather Communication Equipment
Advantages of Weather Facsimile Systems
Independent Weather Source
Does not depend on satellite internet.
Reliable Offshore Reception
Useful during long ocean passages.
Global Weather Information
Receives charts from multiple international stations.
Backup Navigation Tool
Provides redundancy for weather planning.
Low Operating Cost
Receives broadcasts without subscription fees.
How the JAX-9B Works
The system receives radio weather broadcasts transmitted by meteorological agencies worldwide.
The process includes:
- Receiving radio weather signals.
- Decoding weather fax transmissions.
- Printing meteorological charts.
- Displaying operational information.
- Storing reception schedules.
Bridge officers then analyze these charts to support voyage planning and safety decisions.
Common Problems & Troubleshooting
No Weather Chart Reception
Possible Causes:
- Incorrect Frequency
- Weak Signal
- Antenna Problems
Solutions:
- Verify Frequency Settings
- Check Antenna Connections
- Confirm Broadcast Schedule
Poor Print Quality
Possible Causes:
- Dirty Print Head
- Low-Quality Recording Paper
- Printer Component Wear
Solutions:
- Clean Print Head
- Replace Paper
- Inspect Printer Assembly
Weak Reception
Possible Causes:
- Damaged Antenna
- Signal Interference
- Loose Cabling
Solutions:
- Inspect Antenna System
- Check Cable Integrity
- Reduce Electrical Interference
Automatic Recording Failure
Possible Causes:
- Schedule Error
- Internal Clock Issue
- Configuration Fault
Solutions:
- Reprogram Reception Schedule
- Verify Clock Settings
- Perform System Reset
Maintenance Procedures
Weekly
- Check Reception Quality
- Verify Printer Operation
Monthly
- Inspect Antenna Connections
- Test Recording Function
Quarterly
- Clean Internal Components
- Verify Frequency Calibration
Annually
- Full Functional Inspection
- Printer Maintenance
- Electrical Testing
Proper maintenance significantly extends equipment service life.
Why Weather Fax Remains Important
Despite modern satellite communications, weather facsimile systems remain valuable because they:
- Operate independently from internet services
- Provide reliable weather backup
- Deliver official meteorological information
- Support long-range ocean navigation
- Improve voyage safety
Many vessels continue maintaining weather fax equipment as part of their navigation and communication redundancy strategy.
Frequently Asked Questions (FAQ)
What is the JRC JAX-9B?
The JAX-9B is a marine weather facsimile receiver used to receive and print meteorological weather charts.
What information can it receive?
- Weather forecasts
- Storm warnings
- Wind charts
- Pressure charts
- Ocean forecasts
Does it require internet?
No. It receives weather broadcasts through radio frequencies.
Is it still used today?
Yes. Many vessels continue using Weather Fax systems as a backup weather information source.
Can it automatically record charts?
Yes. The JAX-9B supports scheduled automatic reception and recording.
Short Product Description
The JRC JAX-9B Weather Facsimile Receiver is a professional marine weather information system designed to receive and print meteorological charts, storm warnings, weather forecasts, and navigational weather information. Widely used aboard commercial vessels, it provides reliable weather intelligence for safer voyage planning and operational decision-making.
SM MARINE SERVICE™
Marine Automation, Navigation & Communication Equipment Supplier
Available Condition
✔ New Equipment
✔ Used Equipment
✔ Refurbished Equipment
✔ Reconditioned Equipment
Services
- Worldwide Shipping
- Marine Equipment Supply
- Technical Support
- Spare Parts Supply
- Equipment Sourcing
Contact Information
SM MARINE SERVICE™
Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
???? WhatsApp / Viber: +88 01818 929292
???? Email: info@smmarineservice.com
???? Website: www.smmarineservice.com
"Your Trusted Partner for Marine Automation, Navigation & Communication Equipment."
User Manual & Technical Documentation
Product Manual
Download PDF Click Here
