Raytheon Anschütz Standard 22 Gyro Compass – Complete Technical Guide, Features, Maintenance & Troubleshooting
Raytheon Anschütz Standard 22 Gyro Compass
Complete Technical Overview, Working Principle, Features, Maintenance & Troubleshooting Guide
Manufacturer
Raytheon Anschütz GmbH
Country of Origin
Germany
Product Type
Marine Gyro Compass System
Marine Application
Ship Heading Reference, Autopilot Integration, Radar Stabilization, ECDIS Input, AIS Heading Data, Navigation Control
Product Introduction
The Raytheon Anschütz Standard 22 (STD 22) Gyro Compass is one of the world's most trusted marine heading reference systems. Designed for continuous operation in demanding maritime environments, the STD 22 provides highly accurate true heading information to critical navigation systems onboard ships.
Unlike magnetic compasses, gyro compasses determine True North rather than Magnetic North, making them indispensable for modern navigation.
The Standard 22 has been installed on thousands of vessels worldwide, including:
- Container Ships
- Oil Tankers
- LNG Carriers
- Bulk Carriers
- Offshore Support Vessels
- Passenger Ships
- Naval Vessels

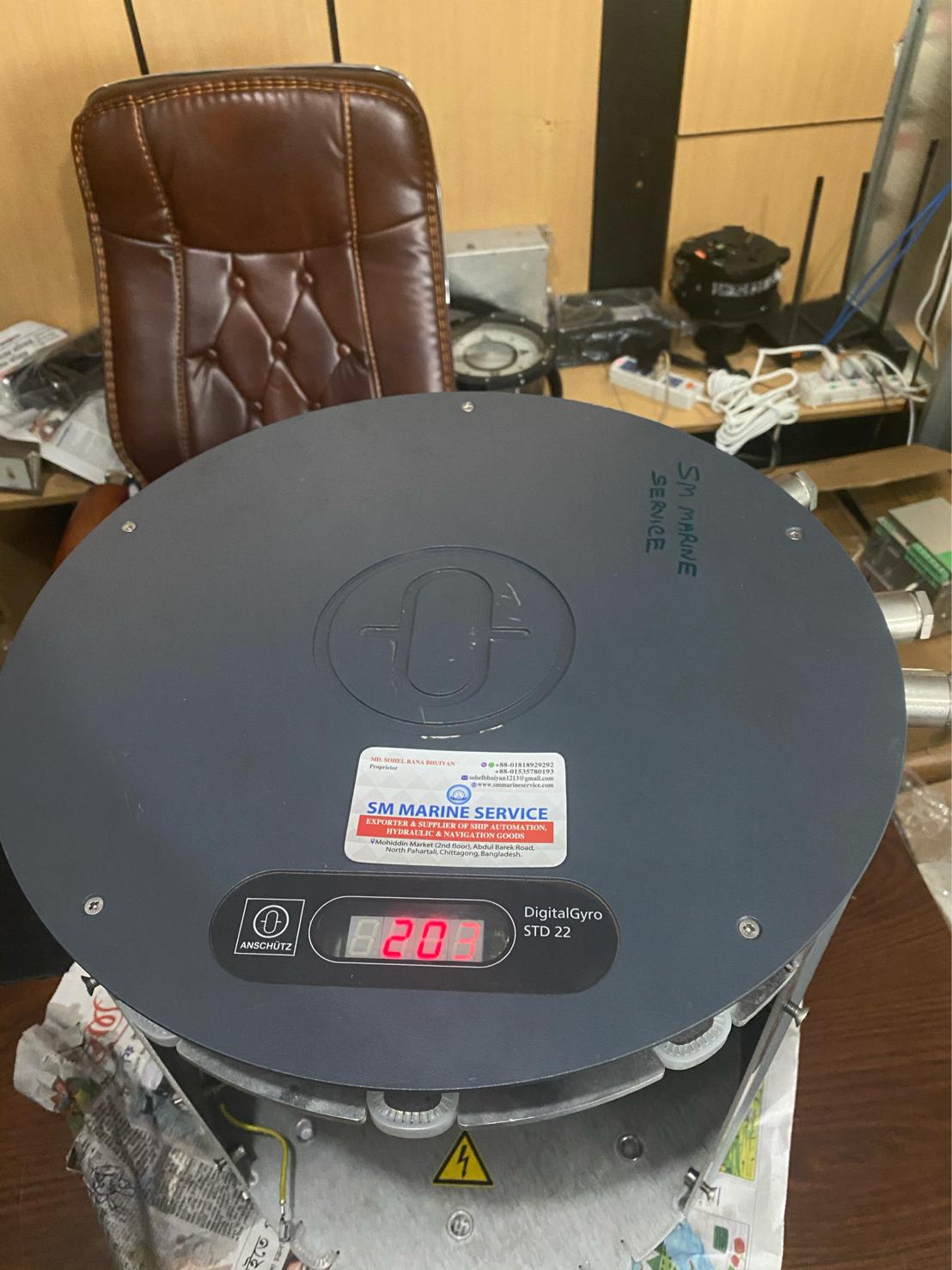

Main Gyro Compass Unit
(Use Your Original Product Image Here)
The image above shows the Raytheon Anschütz DigitalGyro STD 22 master compass unit available through SM MARINE SERVICE™.
What Is a Gyro Compass?
A gyro compass is a navigation instrument that uses the principles of gyroscopic motion and the Earth's rotation to find and maintain True North.
Unlike a magnetic compass, a gyro compass:
- Is not affected by magnetic interference
- Provides true heading information
- Offers higher accuracy
- Supports modern navigation systems
- Integrates with bridge equipment
Today, gyro compasses are considered essential navigation equipment on commercial vessels.
Raytheon Anschütz Standard 22 System
Working Principle of the Standard 22
The STD 22 operates using:
Gyroscopic Stability
A rapidly spinning gyroscope maintains directional stability.
Earth's Rotation Detection
The system senses the Earth's rotational movement and aligns itself with True North.
Electronic Heading Processing
Internal processors continuously calculate heading corrections and maintain accuracy.
Continuous Heading Distribution
The heading data is distributed to:
- Radar
- ECDIS
- AIS
- Autopilot
- Voyage Data Recorder (VDR)
- Bridge Repeaters
Internal Gyro Components
Main Features
True North Reference
Provides accurate true heading independent of magnetic influence.
High Accuracy
Offers excellent heading stability even during long voyages.
Digital Heading Output
Supports multiple navigation equipment interfaces.
Automatic Error Compensation
Continuously compensates for:
- Vessel Motion
- Latitude Changes
- Speed Changes
- Course Alterations
Autopilot Compatibility
Provides heading reference for automatic steering systems.
Radar Stabilization
Improves radar performance and target tracking.
ECDIS Integration
Supports accurate chart orientation and route monitoring.
Long Service Life
Known worldwide for reliability and durability.
Main Components
A complete Standard 22 system generally includes:
Master Gyro Compass
The main heading sensor.
Control Unit
Monitors system operation and alarm conditions.
Gyro Repeaters
Installed throughout the vessel for heading display.
Distribution Unit
Transmits heading signals to bridge systems.
Power Supply Unit
Provides stabilized operating power.
Interface Modules
Connects to navigation and automation equipment.
Typical Shipboard Installation
Marine Applications
The Standard 22 is used for:
Primary Heading Reference
Provides true heading to the vessel's bridge systems.
Radar Systems
Supplies heading information for radar stabilization.
ECDIS Navigation
Supports accurate electronic chart navigation.
AIS Systems
Provides heading data to AIS transponders.
Autopilot Systems
Maintains automatic steering accuracy.
VDR Integration
Records heading information for voyage recording.
Dynamic Positioning Systems
Supports offshore vessel positioning operations.
Common Problems & Troubleshooting
Gyro Fails to Settle
Possible Causes:
- Power Supply Failure
- Internal Gyro Fault
- Startup Sequence Error
Solution:
- Verify Power Supply
- Check Alarm Logs
- Inspect Internal Components
Heading Error
Possible Causes:
- Latitude Setting Error
- Speed Input Failure
- Sensor Malfunction
Solution:
- Verify Navigation Inputs
- Check Speed Log Interface
- Confirm Calibration
Repeater Not Working
Possible Causes:
- Signal Transmission Failure
- Damaged Cabling
- Repeater Fault
Solution:
- Inspect Wiring
- Verify Distribution Unit
- Test Repeater Input Signal
Excessive Drift
Possible Causes:
- Gyro Aging
- Internal Mechanical Wear
- Improper Adjustment
Solution:
- Perform Maintenance Inspection
- Verify Calibration Parameters
Alarm Activation
Possible Causes:
- Power Supply Issue
- Sensor Error
- Interface Failure
Solution:
- Review Alarm Codes
- Inspect Connected Equipment
Maintenance Tips
Routine maintenance should include:
- Verify Heading Accuracy
- Inspect Electrical Connections
- Check Cooling Ventilation
- Test Repeater Units
- Inspect Interface Outputs
- Verify Power Supply Stability
- Review Alarm History
- Clean Control Panels
- Confirm Autopilot Integration
- Conduct Annual Performance Testing
Preventive maintenance significantly improves system reliability and service life.
Gyro Compass Repeaters & Navigation Integration
Why Ships Still Use Gyro Compasses
Although GPS provides accurate position information, ships still require gyro compasses because:
- GPS Does Not Provide Continuous True Heading
- Radar Requires Stable Heading Input
- Autopilots Need Accurate Heading Reference
- ECDIS Relies on Heading Data
- AIS Transmits Vessel Heading
- Collision Avoidance Depends on Accurate Navigation Data
For these reasons, gyro compasses remain essential equipment on modern vessels.
Frequently Asked Questions (FAQ)
What is the Raytheon Anschütz Standard 22?
The Standard 22 is a marine gyro compass used to provide true heading information for ship navigation systems.
What is the difference between a gyro compass and a magnetic compass?
A gyro compass points to True North, while a magnetic compass points to Magnetic North.
Can the STD 22 interface with ECDIS?
Yes. The system is widely integrated with ECDIS installations.
Does it work with autopilot systems?
Yes. The STD 22 is commonly used as the primary heading source for autopilot systems.
Why is gyro heading important?
Accurate heading improves navigation safety, radar performance, and steering control.
Short Product Description
The Raytheon Anschütz Standard 22 Gyro Compass is a professional marine heading reference system designed to provide highly accurate true heading information for radar, ECDIS, AIS, autopilot, and other bridge navigation equipment. It is widely recognized for reliability, precision, and long-term operational stability.
SM MARINE SERVICE™
Marine Automation & Navigation Equipment Supplier
Available Condition:
• New Equipment
• Used Equipment
• Refurbished Equipment
• Reconditioned Equipment
Stock Location:
• Bangladesh
• China
Services:
• Worldwide Shipping
• Technical Support
• Spare Parts Supply
• Marine Equipment Sourcing
Contact Information
SM MARINE SERVICE™
Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
Mobile / WhatsApp / Viber: +88 01818 929292
Email: info@smmarineservice.com
Website: www.smmarineservice.com
User Manual & Technical Resources
Product Manual
Download PDF Click Here
