HIGHLANDE VDR HLD-S2 Voyage Data Recorder
Complete Technical Overview, Features, Components, Troubleshooting & Maintenance Guide
Manufacturer
HIGHLANDE Marine Electronics
Country of Origin
China
Product Type
Voyage Data Recorder (VDR)
Marine Application
Voyage Data Recording, Accident Investigation, Navigation Safety Monitoring, Regulatory Compliance, Operational Analysis
Product Introduction
The HIGHLANDE VDR HLD-S2 Voyage Data Recorder is a professional marine recording system designed to collect and preserve critical voyage information from a vessel's navigation, communication, and monitoring systems.
A Voyage Data Recorder (VDR) serves as the maritime equivalent of an aircraft black box. It continuously records operational data and allows investigators, ship managers, and authorities to analyze vessel operations in the event of an accident, grounding, collision, or operational incident.
The HLD-S2 system is suitable for installation onboard:
- Cargo Ships
- Bulk Carriers
- Container Ships
- Oil Tankers
- Chemical Tankers
- Offshore Support Vessels
- Passenger Vessels
- Government & Naval Ships
HIGHLANDE VDR HLD-S2 Main System
What Is a Voyage Data Recorder (VDR)?
A Voyage Data Recorder continuously collects information from various shipboard systems and stores the data securely.
The HLD-S2 typically records:
- GPS Position
- Vessel Heading
- Radar Information
- ECDIS Data
- AIS Information
- Speed Log Data
- Echo Sounder Data
- VHF Communications
- Bridge Audio
- Engine Data
- Navigation Alarms
- Rudder Commands
This information becomes invaluable during accident investigations and helps ship operators improve safety and performance.
Actual HIGHLANDE VDR HLD-S2 Equipment
(Use your original product image here in WordPress)

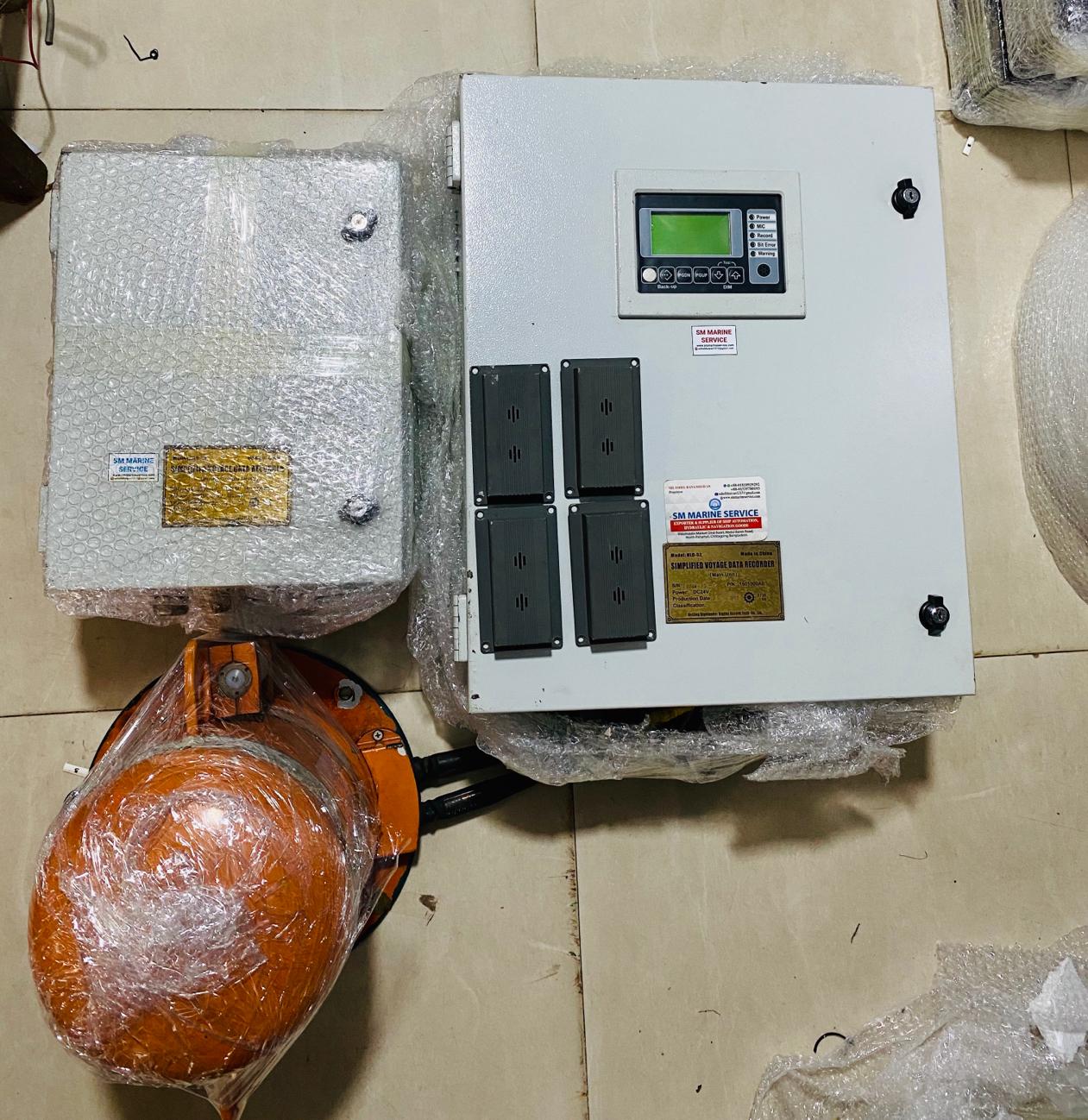

HIGHLANDE VDR HLD-S2 Main Recording Cabinet, Float-Free Capsule and Data Recording Equipment
Main Features
The HIGHLANDE HLD-S2 offers a wide range of functions required by modern vessels.
Continuous Data Recording
Records voyage information 24 hours a day.
IMO Compliance
Designed to support international maritime safety requirements.
Multi-System Integration
Interfaces with:
- Radar
- ECDIS
- AIS
- GPS
- Gyro Compass
- Speed Log
- Echo Sounder
- Engine Monitoring Systems
- VHF Communication Systems
Float-Free Capsule
Protects critical voyage information during marine casualties.
Bridge Audio Recording
Captures bridge communications and environmental sounds.
Long-Term Data Storage
Maintains historical voyage information for investigation and review.
HIGHLANDE VDR System Components
Main Components
The HIGHLANDE HLD-S2 system generally consists of:
1. Recording Control Unit (RCU)
The central processor responsible for collecting and managing all incoming data.
2. Float-Free Capsule
Stores critical voyage information and is designed to survive marine accidents.
3. Bridge Audio Microphones
Installed at strategic locations on the bridge.
4. Interface Modules
Receive information from navigation and communication systems.
5. Power Supply Unit
Provides uninterrupted power to the VDR system.
6. Backup Storage System
Preserves data during power interruptions or emergency situations.
Typical HIGHLANDE VDR Installation
Marine Applications
The HLD-S2 Voyage Data Recorder is commonly installed onboard:
- Container Ships
- Bulk Carriers
- Oil Tankers
- LNG Carriers
- LPG Carriers
- Chemical Tankers
- Offshore Support Vessels
- Passenger Ships
- Research Vessels
- Naval Vessels
Common Problems & Troubleshooting
Recording Failure Alarm
Possible Causes
- Storage Device Failure
- Processor Fault
- Recording Software Error
Solution
- Verify Recording Status
- Check Internal Storage
- Restart Recording System
Communication Failure Alarm
Possible Causes
- NMEA Communication Error
- Sensor Interface Failure
- Network Connection Problem
Solution
- Verify Communication Links
- Inspect Interface Modules
- Check Connected Equipment
Audio Recording Failure
Possible Causes
- Defective Microphone
- Audio Interface Fault
Solution
- Test Audio Inputs
- Verify Recording Channels
Capsule Communication Error
Possible Causes
- Damaged Cable
- Capsule Interface Failure
Solution
- Check Capsule Wiring
- Verify Communication Status
Power Supply Alarm
Possible Causes
- Main Power Failure
- UPS Fault
- Battery Deterioration
Solution
- Verify Input Voltage
- Test Backup Batteries
- Inspect Power Supply Module
Maintenance Tips
To maintain reliable operation, marine engineers should regularly inspect:
- Float-Free Capsule Condition
- Recording Status
- Alarm History
- Power Supply Health
- Backup Batteries
- Communication Interfaces
- Bridge Microphones
- Data Storage Devices
- Sensor Inputs
- NMEA Communication Ports
Preventive maintenance significantly improves system reliability and compliance.
HIGHLANDE VDR Safety & Data Protection
Why Ships Still Use Voyage Data Recorders
Modern commercial vessels depend on VDR systems because they provide:
- Accident Investigation Support
- Navigation Event Reconstruction
- Fleet Safety Monitoring
- Regulatory Compliance
- Insurance Documentation
- Crew Performance Analysis
- Operational Improvement
- Risk Reduction
Without a properly functioning VDR system, critical voyage information may be permanently lost following a serious incident.
Frequently Asked Questions (FAQ)
What is a Voyage Data Recorder?
A VDR is a marine recording system that continuously stores navigation, communication, and operational data onboard ships.
Is a VDR mandatory?
Yes. Many SOLAS-class vessels are required to carry approved VDR or S-VDR systems.
What does a VDR record?
GPS, AIS, Radar, ECDIS, Gyro Compass, Audio Communications, Alarms, and operational information.
What happens if a vessel sinks?
The float-free capsule is designed to separate automatically and preserve recorded data.
Can VDR data be downloaded?
Yes. Authorized personnel can retrieve and analyze recorded information.
Short Product Description
The HIGHLANDE VDR HLD-S2 Voyage Data Recorder is a professional marine black-box recording system designed to collect, preserve, and protect critical navigational and operational information onboard commercial vessels. The system supports accident investigation, regulatory compliance, fleet safety management, and operational analysis.
