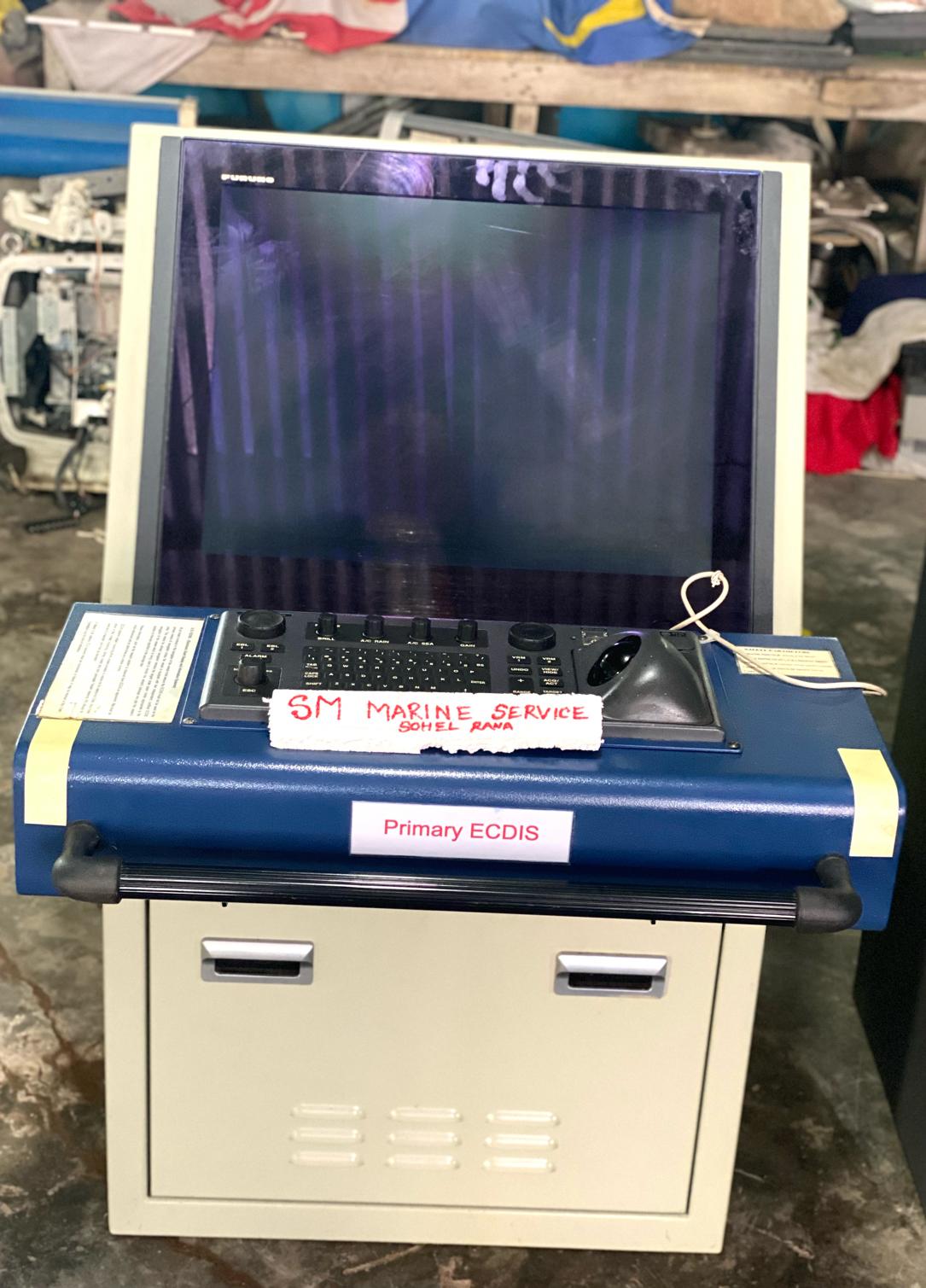

FURUNO FMD-3300 ECDIS
Manufacturer Information
Manufacturer: Furuno Electric Co., Ltd.
Country of Origin: Japan
Equipment Type: Electronic Chart Display and Information System (ECDIS)
Application: Marine Navigation, Route Planning & Voyage Monitoring
Product Introduction
The FURUNO FMD-3300 ECDIS is a professional Electronic Chart Display and Information System designed to improve navigational safety and operational efficiency onboard commercial vessels.
The system enables navigators to display official Electronic Navigational Charts (ENC), plan voyages, monitor routes, display radar overlays, and integrate critical navigation data from onboard sensors.
The FMD-3300 is widely installed onboard:
- Cargo Ships
- Container Vessels
- Bulk Carriers
- Oil Tankers
- Chemical Tankers
- LNG / LPG Carriers
- Offshore Support Vessels
- Passenger Ships
As a fully integrated navigation workstation, the FMD-3300 helps bridge officers maintain complete situational awareness during all phases of navigation.
What Is FURUNO FMD-3300?
The FMD-3300 is an advanced ECDIS platform that replaces traditional paper charts with electronic navigation charts and real-time navigation data.
The system provides:
- Electronic Chart Display
- Voyage Route Planning
- Route Monitoring
- Radar Overlay
- AIS Target Display
- Safety Contour Monitoring
- Navigation Alarms
- Position Tracking
- ENC Chart Management
By integrating multiple navigation sources into a single display, the system improves navigation safety and bridge efficiency.
Main Features
Electronic Navigational Charts (ENC)
Displays official electronic charts for modern maritime navigation.
Radar Overlay Function
Allows radar targets and chart information to be displayed together for improved situational awareness.
AIS Integration
Displays nearby vessel information directly on navigation charts.
Route Planning & Monitoring
Supports voyage creation, route verification, and route monitoring.
Advanced Safety Functions
Provides navigation alarms for:
- Safety Contours
- Cross Track Error
- Shallow Water
- Route Deviations
Multi-Sensor Integration
Interfaces with:
- GPS
- Gyro Compass
- AIS
- Radar
- Speed Log
- Echo Sounder
- VDR
Main Components
1. Display Monitor
Large high-resolution display used for chart visualization and navigation monitoring.
2. ECDIS Processing Unit
Processes chart information, route data, and navigation inputs.
3. Control Keyboard & Trackball
Allows route planning, chart control, and system operation.
4. ENC Chart Database
Stores official chart information and navigation updates.
5. Communication Interfaces
Provides integration with navigation equipment and sensors.
Applications
The FMD-3300 is used for:
- Ocean Navigation
- Coastal Navigation
- Harbor Entry & Departure
- Traffic Separation Schemes
- Route Monitoring
- Voyage Planning
- Collision Avoidance Support
- Bridge Resource Management
The system is especially valuable for vessels operating internationally under modern navigation regulations.
Importance of ECDIS Onboard Ships
Modern vessels rely heavily on ECDIS systems for safe navigation.
Without a properly functioning ECDIS:
- Route Monitoring Becomes More Difficult
- Chart Management Is Less Efficient
- Situational Awareness Is Reduced
- Navigation Risk Increases
- Regulatory Compliance May Be Affected
The FMD-3300 helps bridge officers make informed navigation decisions and improve operational safety.
Common Problems & Troubleshooting
ENC Chart Not Loading
Possible Causes:
- Expired Chart License
- Corrupted Chart Data
- Installation Error
Solution:
- Verify Chart License
- Reload Chart Data
- Check Database Integrity
No GPS Position
Possible Causes:
- GPS Communication Failure
- Antenna Problem
- Interface Configuration Error
Solution:
- Verify GPS Operation
- Check Communication Settings
- Inspect Data Connections
AIS Targets Missing
Possible Causes:
- AIS Interface Failure
- Communication Error
- Incorrect Configuration
Solution:
- Verify AIS Operation
- Check Interface Ports
- Confirm Data Output Settings
Radar Overlay Failure
Possible Causes:
- Gyro Compass Error
- Radar Interface Problem
- Position Synchronization Issue
Solution:
- Verify Gyro Heading Input
- Check Radar Communication
- Inspect Overlay Configuration
Slow System Performance
Possible Causes:
- Large Chart Database
- Software Issues
- Hardware Resource Limitation
Solution:
- Update Software
- Verify Storage Capacity
- Restart System
Maintenance Tips
Marine engineers should regularly inspect:
- ENC License Status
- Chart Updates
- GPS Communication
- AIS Integration
- Radar Overlay Function
- Alarm History
- Data Backup Procedures
- Display Performance
Proper maintenance improves:
- Navigation Safety
- Operational Reliability
- Chart Accuracy
- System Lifespan
Why Ships Still Use FURUNO ECDIS Systems
Many vessel operators continue using FURUNO ECDIS systems because of:
- Reliable Navigation Performance
- Excellent User Interface
- Global Service Network
- Advanced Integration Capability
- Long-Term Software Support
- Proven Marine Industry Reputation
FURUNO remains one of the world's leading marine navigation technology manufacturers.
Frequently Asked Questions (FAQ)
What is the purpose of the FMD-3300?
The FMD-3300 provides electronic chart display, voyage planning, route monitoring, and navigation safety functions.
Can the FMD-3300 integrate with Radar?
Yes. The system supports radar overlay functionality.
Does the FMD-3300 support AIS?
Yes. AIS targets can be displayed directly on navigation charts.
Is the FMD-3300 suitable for commercial vessels?
Yes. It is widely used onboard commercial ships worldwide.
Do you supply refurbished units?
Yes. SM MARINE SERVICE™ can supply New, Used, Refurbished, and Reconditioned units depending on stock availability.
Short Product Description
The FURUNO FMD-3300 ECDIS is a professional Electronic Chart Display and Information System designed for commercial vessels. It provides route planning, route monitoring, radar integration, AIS display, ENC chart management, and advanced navigation safety functions.
