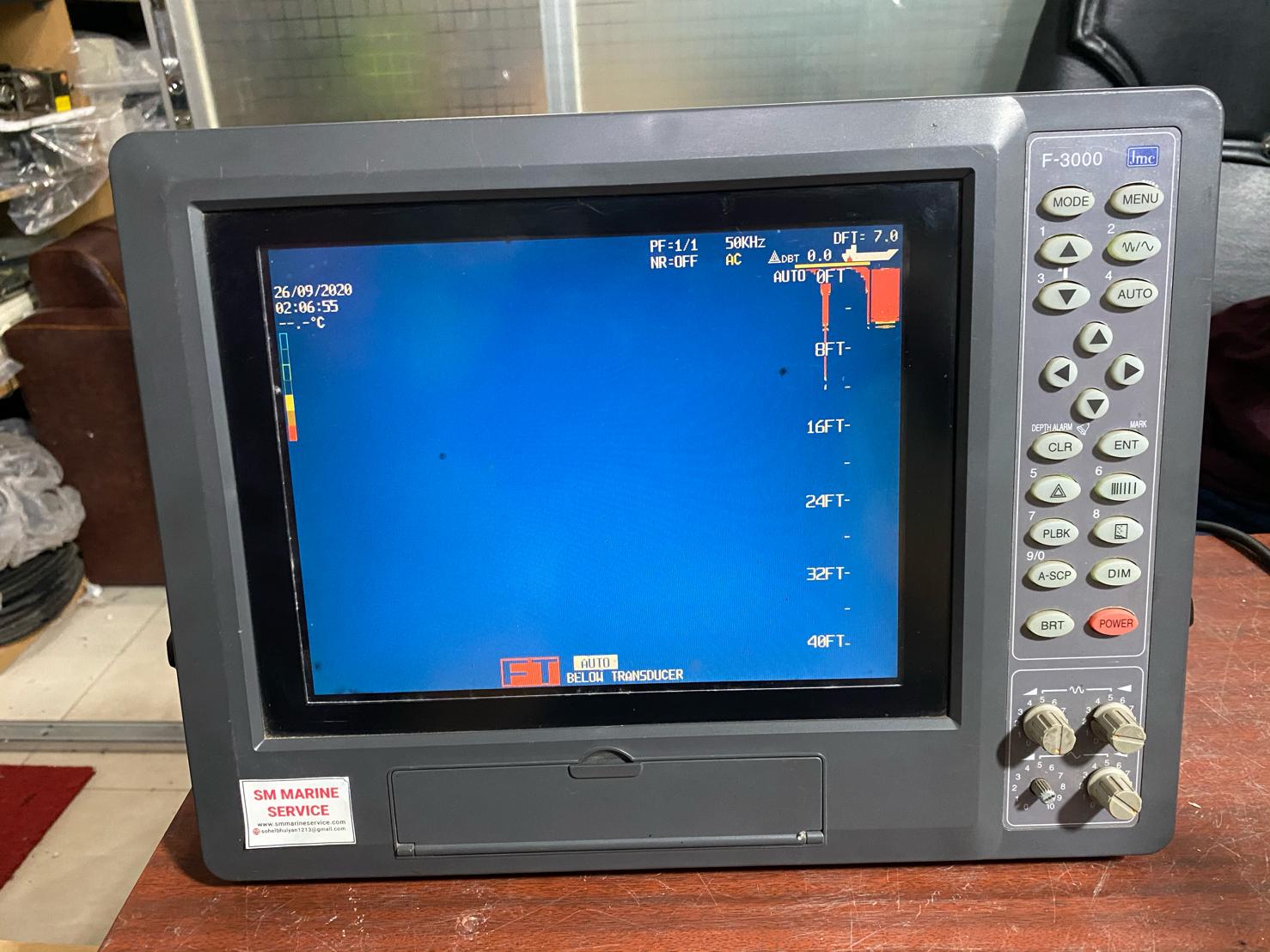

JMC F-3000 ECHO SOUNDER
Manufacturer Information
Manufacturer: JMC (Japan Marine Communication Equipment Manufacturer)
Country of Origin: Japan
Equipment Type: Marine Echo Sounder
Application: Water Depth Measurement & Navigation Safety
Product Introduction
The JMC F-3000 Echo Sounder is a professional marine depth sounding system designed to provide accurate and continuous depth information beneath a vessel. It is an essential navigation instrument used onboard commercial ships, offshore vessels, fishing vessels, and passenger ships.
The system continuously transmits ultrasonic signals toward the seabed and calculates water depth based on the returning echo signal. This information helps bridge officers avoid grounding incidents and maintain safe under-keel clearance during navigation.
The JMC F-3000 is commonly installed onboard:
- Cargo Ships
- Bulk Carriers
- Oil Tankers
- Chemical Tankers
- Offshore Support Vessels
- Passenger Vessels
- Fishing Vessels
- Coastal Ships
What Is JMC F-3000 Echo Sounder?
The JMC F-3000 is a marine navigation instrument used to measure water depth beneath a vessel in real time.
The system provides:
- Real-Time Depth Measurement
- Seabed Tracking
- Under-Keel Clearance Monitoring
- Shallow Water Alarm Functions
- Navigation Safety Support
- Continuous Depth Display
The echo sounder works by sending ultrasonic pulses from a transducer mounted beneath the vessel. The reflected signal is received and processed to calculate the distance to the seabed.
This information is critical during:
- Harbor Entry
- Coastal Navigation
- River Navigation
- Shallow Water Operations
- Offshore Operations
Main Features
Accurate Depth Measurement
Provides continuous and highly accurate water depth information.
High Visibility Display
Large display screen enables clear monitoring under bridge operating conditions.
Automatic Depth Tracking
Automatically follows seabed contours and changing depth conditions.
Shallow Water Alarm
Warns navigators when depth falls below preset safety limits.
Reliable Marine Construction
Designed for long-term operation in harsh marine environments.
Continuous Operation
Provides uninterrupted depth information throughout vessel operations.
Main Components
1. Display Unit
Provides depth information, alarm indications, and operational controls.
2. Processor Unit
Processes echo signals and calculates depth values.
3. Transducer
Transmits ultrasonic pulses and receives reflected echoes from the seabed.
4. Alarm System
Provides audible and visual warnings during shallow water conditions.
5. Power Supply Unit
Ensures stable operation of the entire system.
Applications
The JMC F-3000 Echo Sounder is used for:
- Harbor Navigation
- Coastal Navigation
- River Navigation
- Offshore Operations
- Under-Keel Clearance Monitoring
- Shallow Water Navigation
- Port Approach Operations
The system helps navigators maintain vessel safety and avoid grounding incidents.
Importance of Echo Sounders Onboard Ships
Echo sounders play a critical role in modern marine navigation.
Without accurate depth information:
- Grounding Risks Increase
- Under-Keel Clearance Cannot Be Confirmed
- Harbor Operations Become More Dangerous
- Navigation Safety Is Reduced
The JMC F-3000 provides continuous depth information required for safe vessel operation.
Common Problems & Troubleshooting
No Depth Reading
Possible Causes:
- Transducer Failure
- Power Supply Problem
- Damaged Signal Cable
- Processor Unit Fault
Solution:
- Inspect Transducer
- Verify Power Supply
- Check Signal Connections
- Test Processor Functions
Incorrect Depth Display
Possible Causes:
- Calibration Error
- Signal Interference
- Transducer Fouling
Solution:
- Verify System Settings
- Clean Transducer Surface
- Check Signal Quality
Weak Echo Signal
Possible Causes:
- Damaged Transducer
- Air Bubbles Under Hull
- Severe Sea Conditions
Solution:
- Inspect Transducer
- Verify Installation Condition
- Check Hull Area
Alarm Failure
Possible Causes:
- Alarm Disabled
- Alarm Circuit Fault
- Internal Component Failure
Solution:
- Verify Alarm Settings
- Test Alarm Circuit
- Inspect Control Board
Maintenance Tips
Marine engineers should regularly inspect:
- Transducer Condition
- Power Supply Voltage
- Alarm Functions
- Cable Connections
- Display Quality
- Signal Performance
- System Calibration
Proper maintenance improves:
- Depth Measurement Accuracy
- Equipment Lifespan
- Navigation Safety
- Operational Reliability
Why Ships Still Use JMC Echo Sounders
The JMC F-3000 remains a trusted marine depth sounding system because of:
- Reliable Operation
- Accurate Depth Measurement
- Easy Maintenance
- Strong Marine Durability
- Long Service Life
- Proven Performance
Many vessel operators continue using JMC echo sounders due to their dependable operation and navigation safety benefits.
Frequently Asked Questions (FAQ)
What is the purpose of the JMC F-3000?
The JMC F-3000 measures water depth beneath a vessel and helps prevent grounding incidents.
Does the system provide real-time depth information?
Yes. The system continuously updates water depth information during operation.
Is the F-3000 suitable for commercial vessels?
Yes. It is widely used onboard commercial ships and offshore vessels.
Does the system include alarm functions?
Yes. The F-3000 supports shallow water alarms and warning functions.
Do you supply refurbished units?
Yes. SM MARINE SERVICE™ can supply New, Used, Refurbished, and Reconditioned units depending on stock availability.
Short Product Description
The JMC F-3000 Echo Sounder is a professional marine depth sounding system designed to provide accurate water depth information for commercial vessels. It supports safe navigation through real-time seabed tracking, depth monitoring, and shallow water alarm functions.
