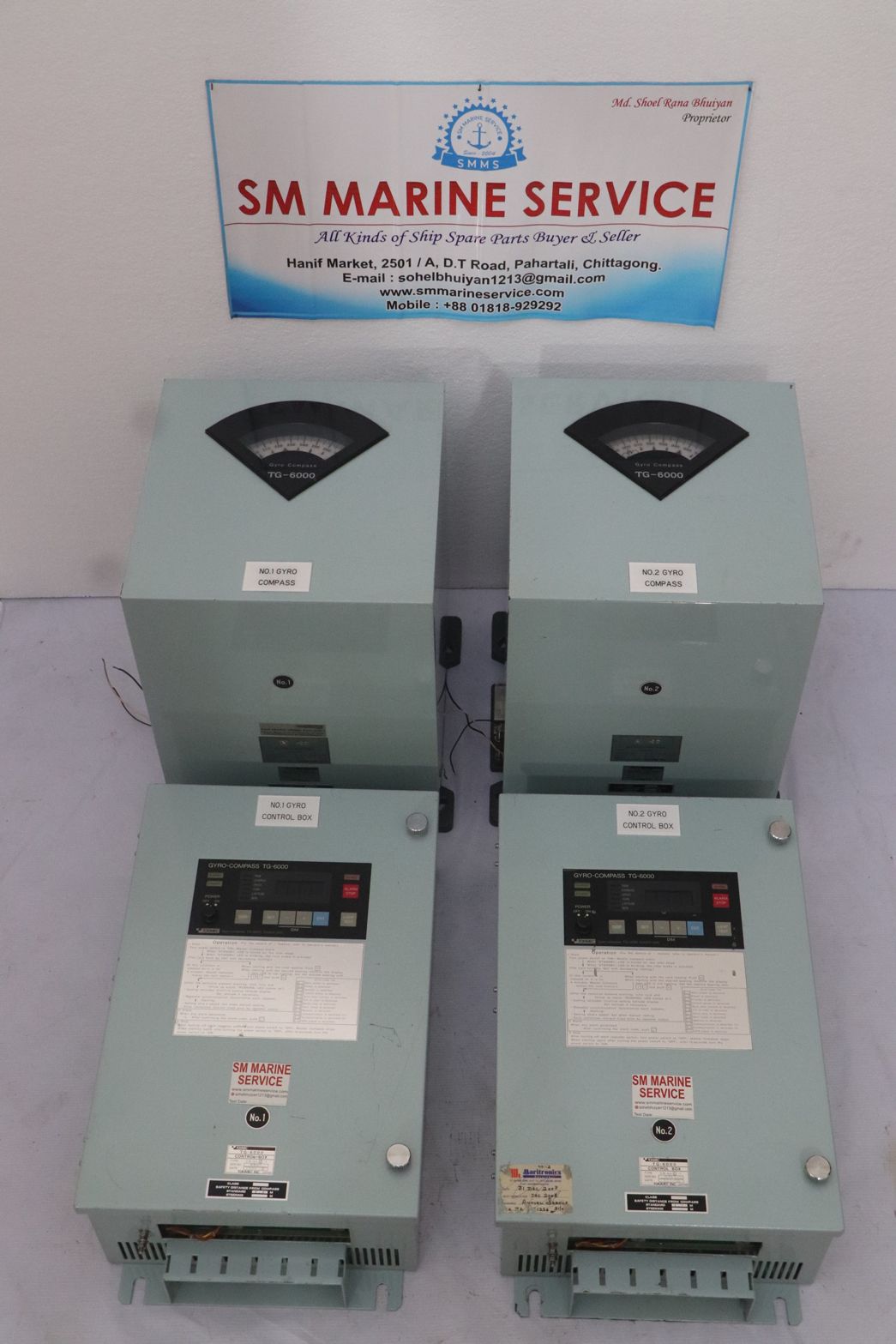

TOKIMEC TG-6000 GYROCOMPASS
TOKIMEC TG-6000 GYROCOMPASS
The TOKIMEC TG-6000 Gyrocompass is a professional marine navigation system manufactured in Japan. It provides highly accurate True North heading information for commercial vessels operating worldwide.
The TG-6000 is widely used onboard cargo ships, tankers, offshore vessels, passenger vessels, and naval ships.
What Is TOKIMEC TG-6000?
The TG-6000 is a marine gyrocompass system designed to provide:
- True Heading Information
- Radar Heading Reference
- ECDIS Heading Data
- Autopilot Input
- AIS Heading Signal
- VDR Heading Recording
Unlike magnetic compasses, the TG-6000 continuously seeks True North and provides stable heading information under all operating conditions.
Main Features
- High Accuracy Heading Information
- Automatic True North Reference
- Radar Integration
- ECDIS Compatibility
- Autopilot Support
- AIS Heading Output
- Long Service Life
- Marine-Grade Reliability
The TG-6000 is designed for continuous operation onboard commercial vessels and provides reliable navigation information even during heavy sea conditions.
Main Components
- Master Compass Unit
- Control Unit
- Gyro Assembly
- Repeater Compass
- Interface Modules
The gyro assembly is the heart of the system and is responsible for maintaining directional stability and generating accurate heading information.
Applications
The TOKIMEC TG-6000 is commonly installed onboard:
- Cargo Ships
- Bulk Carriers
- Oil Tankers
- Chemical Tankers
- Offshore Support Vessels
- Passenger Ships
- Naval Vessels
Common Problems & Troubleshooting
Gyro Fail Alarm
Possible Causes:
- Internal Gyro Fault
- Power Instability
- Sensor Failure
No Heading Output
Possible Causes:
- Interface Board Failure
- Communication Error
- Output Configuration Problem
Heading Fluctuation
Possible Causes:
- Vessel Vibration
- Gyro Instability
- Calibration Error
Repeater Compass Failure
Possible Causes:
- Signal Cable Damage
- Repeater Fault
- Power Supply Issue
Maintenance Tips
Marine engineers should regularly inspect:
- Power Supply Voltage
- Alarm History
- Heading Stability
- Gyro Assembly Condition
- Cable Connections
- Repeater Synchronization
Proper maintenance improves navigation safety and increases equipment lifespan.
