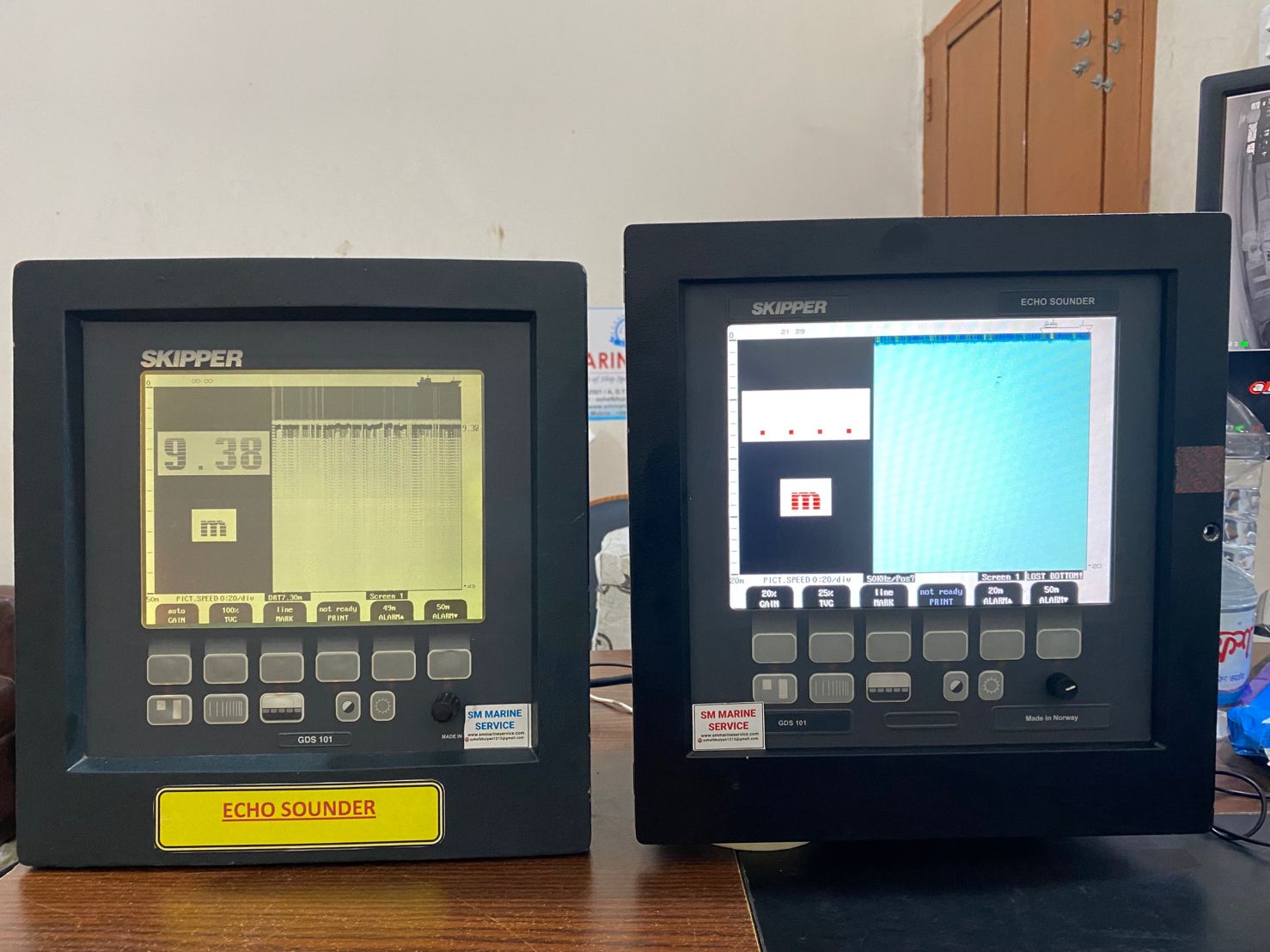

SKIPPER GDS-101 Echo Sounder
SKIPPER GDS-101 Echo Sounder
Professional Marine Echo Sounder for Accurate Depth Monitoring
The SKIPPER GDS-101 Echo Sounder is a professional marine depth sounding system designed for commercial vessels and offshore operations. This reliable echo sounder continuously measures water depth beneath the ship to improve navigation safety and grounding prevention.
SKIPPER marine equipment is well known in the shipping industry for:
- Accurate depth measurement
- Stable marine performance
- Easy operation
- Long-term reliability
The GDS-101 is widely used onboard:
- Cargo Ships
- Tankers
- Offshore Vessels
- Passenger Ships
- Fishing Vessels
- Coastal Ships
Main Features
- Accurate real-time depth measurement
- Clear digital and graphical display
- Shallow water alarm system
- Stable operation in harsh marine conditions
- Reliable seabed tracking
- Easy bridge monitoring
Applications
The SKIPPER GDS-101 helps navigators:
- Avoid grounding
- Monitor under-keel clearance
- Navigate shallow waters safely
- Operate safely in ports and channels
It is especially useful during:
- Coastal navigation
- Harbor approach
- River operation
- Restricted water navigation
Main Components
The system generally includes:
- Display Unit
- Processor Unit
- Transducer
- Alarm System
- Power Supply Module
The transducer sends ultrasonic sound pulses toward the seabed and calculates depth from the returning echo signal.
Common Problems & Troubleshooting
No Depth Reading
Possible causes:
- Transducer fault
- Cable damage
- Power supply problem
Incorrect Depth Display
Possible causes:
- Dirty transducer
- Incorrect draft setting
- Signal interference
Weak Echo Signal
Possible causes:
- Sensor fouling
- Rough sea condition
- Damaged transducer
Alarm Failure
Possible causes:
- Alarm setting disabled
- Internal buzzer problem
- Control board issue
Why Ships Still Use SKIPPER Echo Sounders
Marine companies continue using SKIPPER systems because of:
- Reliable operation
- Accurate seabed tracking
- Easy maintenance
- Strong marine durability
- Worldwide spare parts availability
