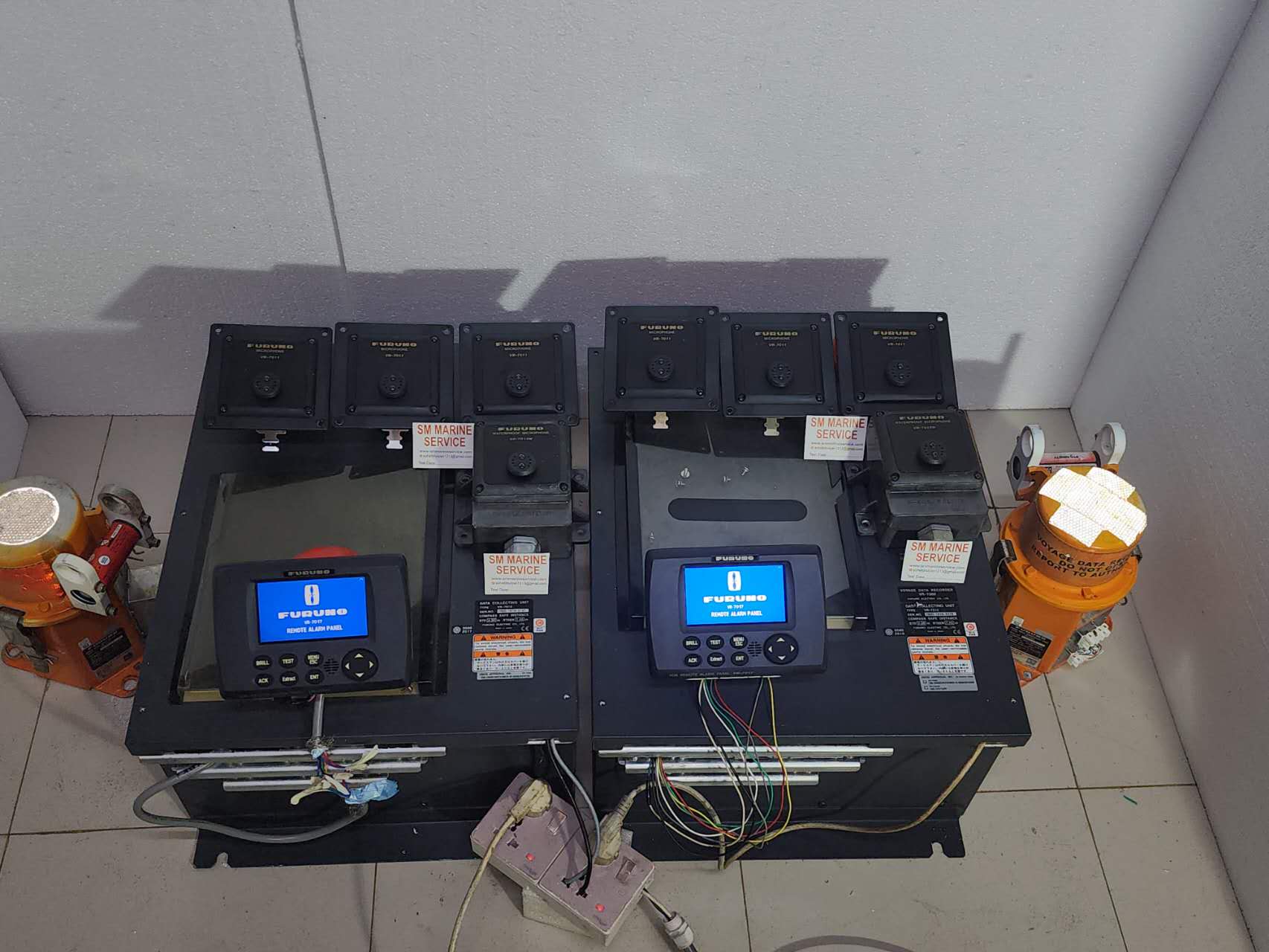

FURUNO VDR VR-7000
FURUNO VDR VR-7000
Complete Technical Overview, Features, Troubleshooting & User Manual Information
The FURUNO VR-7000 Voyage Data Recorder (VDR) is one of the most trusted marine “Black Box” systems used onboard commercial vessels worldwide. Designed to comply with IMO SOLAS regulations, this professional marine recording system continuously captures critical navigation and operational data from the ship.
The FURUNO VR-7000 is widely installed on:
- Cargo Ships
- Tankers
- Container Vessels
- Offshore Ships
- Passenger Vessels
- Bulk Carriers
This article explains:
- What the FURUNO VR-7000 is
- Main system components
- Key features
- Common alarms & troubleshooting
- Marine applications
- Maintenance tips
- Free user manual resources
- SEO keywords for marine engineers
What Is FURUNO VR-7000?
The FURUNO VR-7000 is a marine Voyage Data Recorder system designed to continuously record important ship operational information.
The system stores:
- Radar Images
- GPS Position
- AIS Data
- Gyro Heading
- Bridge Audio
- VHF Communication
- Engine Alarms
- Echo Sounder Information
- Navigation Sensor Data
In the event of:
- Collision
- Grounding
- Fire
- Accident Investigation
Authorities can retrieve recorded data from the protective capsule.
This is why VDR systems are commonly called:
“Marine Black Box”
The VR-7000 complies with IMO performance standards for voyage data recording onboard ships.
Main Components of FURUNO VR-7000
The system generally consists of several important modules.
1. Data Acquisition Unit (DAU)
This unit collects data from:
- GPS
- AIS
- Radar
- Gyro
- Engine alarms
- Navigation sensors
2. Remote Alarm Panel (RAP)
The display panel shown in your image is the Remote Alarm Panel.
Functions include:
- Alarm indication
- System monitoring
- Fault acknowledgment
- Recording status display
3. Protective Capsule Unit
This is the crash-protected recording capsule.
It is designed to survive:
- Fire
- Flooding
- High impact
- Deep sea pressure
4. Bridge Audio Unit
Used to record:
- Bridge conversation
- VHF communication
- Alarm sounds
Key Features of FURUNO VR-7000
Continuous Voyage Recording
The VR-7000 continuously stores navigation and operational information during the voyage.
Radar Image Recording
The system records radar screen images for accident analysis and investigation.
Bridge Audio Recording
Bridge conversations and radio communications are continuously recorded.
IMO SOLAS Compliance
The VR-7000 is approved according to international marine safety regulations.
Multiple Sensor Integration
Supports connection with:
- GPS
- AIS
- Radar
- Echo Sounder
- Gyrocompass
- ECDIS
- Engine Monitoring Systems
Long-Term Reliability
FURUNO marine equipment is well known for:
- Stable operation
- Strong marine durability
- Reliable data recording
- Easy maintenance
Common Problems & Troubleshooting
Marine engineers frequently face several common VDR issues onboard.
1. Capsule Communication Failure
Possible Causes:
- Damaged cable
- Connector corrosion
- Water ingress
Solution:
- Inspect capsule cable
- Check communication port
- Replace damaged connector
2. Recording Failure
Possible Causes:
- HDD/SSD failure
- DAU communication problem
- Software error
Solution:
- Check recording status
- Restart system
- Replace storage device
3. Audio Recording Missing
Possible Causes:
- Microphone failure
- Loose cable
- Audio interface problem
Solution:
- Inspect microphone wiring
- Test audio channel
- Check interface module
4. Radar Data Missing
Possible Causes:
- Video converter fault
- Radar interface issue
- Wrong signal configuration
Solution:
- Verify radar input
- Inspect video cable
- Check interface settings
5. Backup Battery Alarm
Possible Causes:
- Weak battery
- Charging failure
- Aging UPS module
Solution:
- Replace battery
- Verify charging voltage
- Inspect power supply
Importance of VDR Onboard Ships
The Voyage Data Recorder is one of the most important safety systems onboard because it helps:
- Accident investigation
- Safety analysis
- Navigation monitoring
- Operational review
- Legal investigation
- Insurance verification
Without a functioning VDR system, vessels may face:
- PSC detention
- Class deficiency
- SOLAS non-compliance
Annual Performance Test (APT)
All VDR systems require annual inspection and certification.
APT generally includes:
- Recording verification
- Audio test
- Radar image check
- Sensor input verification
- Capsule communication test
- Backup power inspection
Maintenance Tips
Marine engineers should regularly check:
- Backup battery condition
- Alarm history
- Audio recording quality
- Capsule communication
- Radar recording
- GPS/AIS input status
- DAU communication
Proper maintenance improves:
- Safety
- Reliability
- Equipment lifespan
