Flame Detector Relay
VOLCANO Co., Ltd.
New product
Title
VOLCANO RDV-1005-100 Flame Detector Relay | Marine Flame Detector Relay | Burner Flame Relay | SM MARINE SERVICE™
The VOLCANO RDV-1005-100 Flame Detector Relay is a specialized flame supervision relay manufactured by VOLCANO Co., Ltd., Japan for marine boiler and burner management systems.
Its primary function is to continuously monitor burner flame conditions and immediately generate an output signal when flame loss occurs. This rapid response protects marine boilers against unsafe fuel injection, combustion failure, furnace damage, and possible explosion hazards.

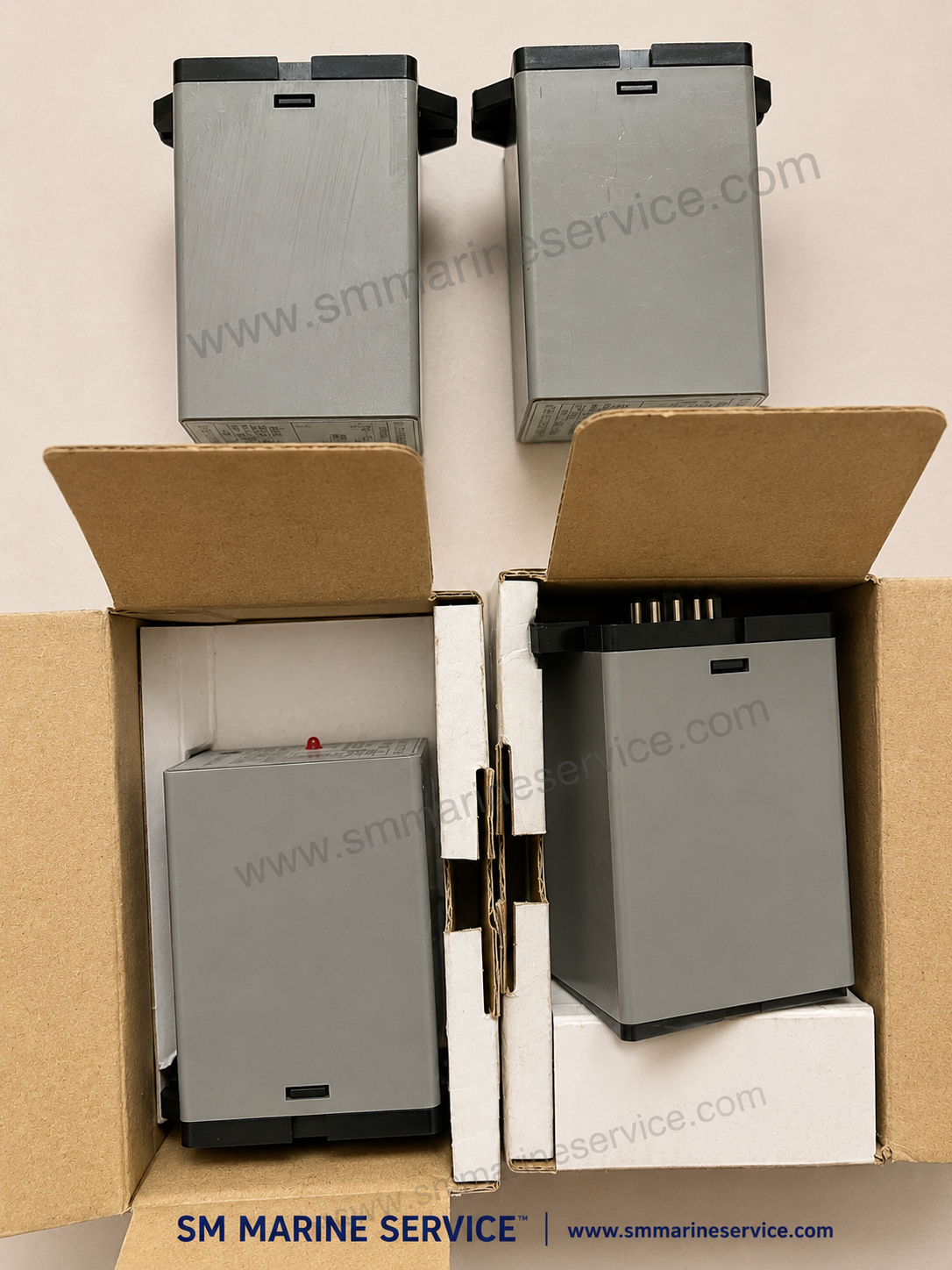

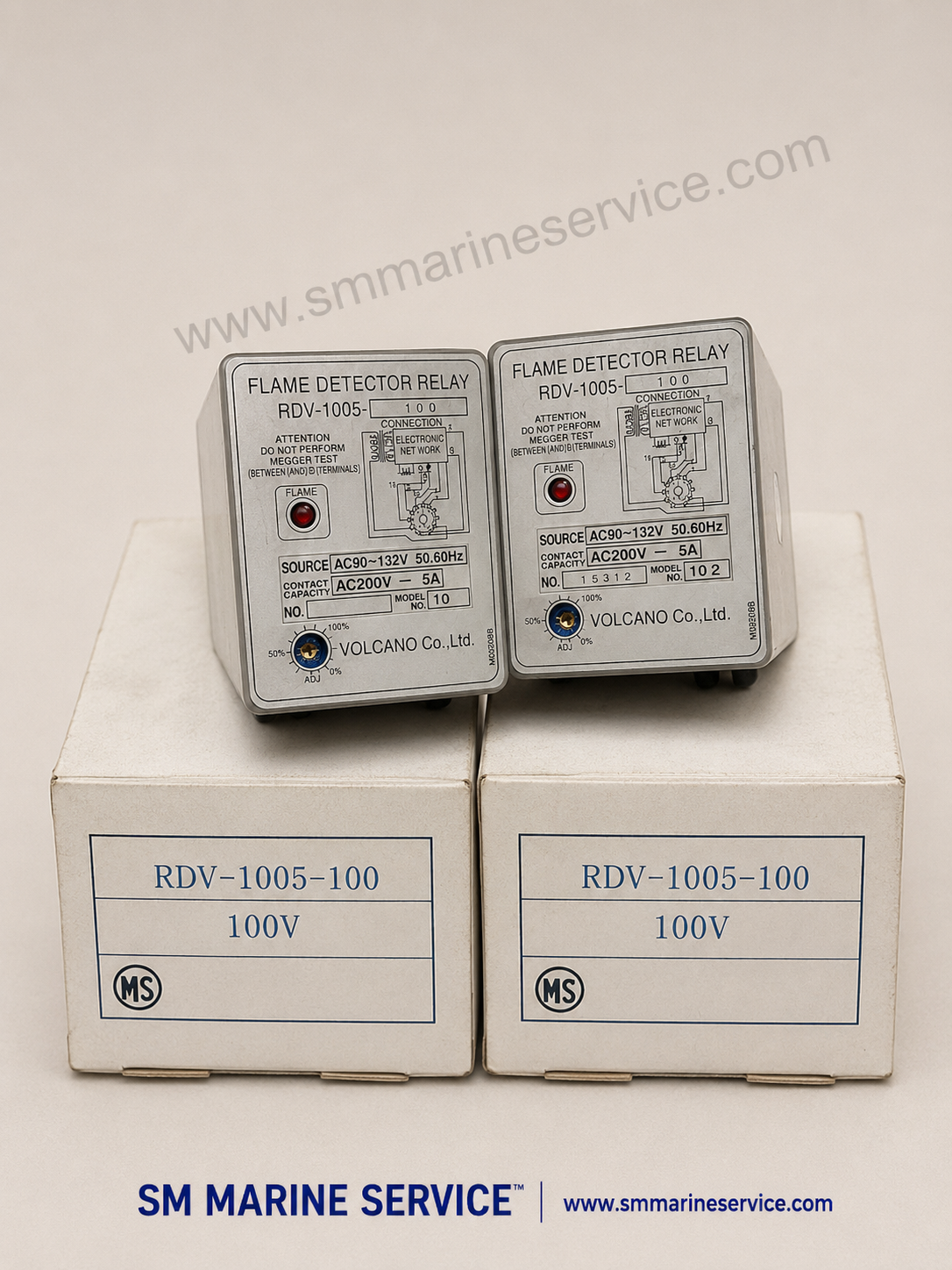

The photographs clearly identify:
Marine engineers trust VOLCANO flame relays because they offer stable flame monitoring, fast response time, and reliable long-term operation in harsh engine room environments.
Throughout our marine automation projects, SM MARINE SERVICE™ supplies genuine and professionally tested VOLCANO burner control equipment, helping ship owners maintain safe and reliable boiler operation worldwide.
Manufacturer: VOLCANO Co., Ltd.
Country of Origin: Japan
Model: RDV-1005-100
Equipment Type: Flame Detector Relay
Power Supply: AC90–132V, 50/60Hz
Relay Output Capacity: AC200V, 5A
Marine Application: Boiler Burner Flame Supervision System
The RDV-1005-100 is an intelligent flame monitoring relay used within marine burner management systems.
It receives the flame signal from the flame detector (scanner) and continuously determines whether proper combustion is present.
If the flame disappears during burner operation, the relay immediately activates the safety sequence by shutting down fuel supply and generating an alarm to prevent unsafe combustion conditions.
This makes it one of the most important safety devices inside marine boiler automation systems.
SM MARINE SERVICE™ regularly supplies this relay for ship repairs, burner overhauls, automation upgrades, and emergency spare-part requirements worldwide.
Marine engineers often search using various names, including:
These keyword variations improve global search visibility and help engineers find SM MARINE SERVICE™ when searching for replacement relays, repair services, spare parts, or technical support.
For VOLCANO RDV-1005-100 Flame Detector Relays, burner automation equipment, flame supervision modules, spare parts, repair services, and worldwide supply:
Website: https://www.smmarineservice.com
WhatsApp: +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
The VOLCANO RDV-1005-100 Flame Detector Relay is designed with high-reliability electronic components for continuous flame supervision in marine boiler burner systems. Its major components include:
These components continuously analyze the flame signal received from the flame detector and provide a reliable burner safety output.
The VOLCANO RDV-1005-100 Flame Detector Relay is widely installed in marine combustion systems, including:
Typical vessel applications include:
The relay continuously supervises flame stability and immediately initiates burner shutdown if flame failure is detected.
SM MARINE SERVICE™ supplies genuine and professionally tested VOLCANO burner control equipment to marine customers worldwide.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Flame LED does not illuminate | No flame signal | Check flame detector, wiring, and burner ignition |
| Burner trips immediately | Flame not detected | Inspect flame scanner alignment and combustion condition |
| False flame indication | Electrical interference or sensor contamination | Clean detector and inspect signal wiring |
| Relay output inactive | Internal relay fault | Test relay contacts and replace if necessary |
| Intermittent burner shutdown | Loose wiring or unstable flame | Inspect terminals, detector mounting, and burner condition |
| No power | AC supply failure | Verify AC90–132V power source and fuse |
| Weak flame signal | Dirty flame detector lens | Clean the optical sensor and verify burner adjustment |
| Continuous alarm | Electronic circuit fault | Perform diagnostics and replace the relay if required |
Most burner shutdown problems originate from dirty flame scanners, poor combustion, or damaged wiring rather than the relay itself.
For maximum operational reliability:
Routine preventive maintenance significantly improves burner safety and reduces unexpected shutdowns.
The VOLCANO RDV-1005-100 continues to be widely used because it provides dependable flame supervision with fast response and proven long-term reliability.
Major advantages include:
Rather than replacing an entire burner management system, many operators extend equipment life by replacing individual relays, making the RDV-1005-100 a cost-effective maintenance solution.
SM MARINE SERVICE™ supports ship owners and marine engineers by supplying tested replacement relays, repair services, spare parts, and worldwide technical assistance.
It is an electronic Flame Detector Relay used to supervise burner flames in marine boiler combustion systems.
The relay operates on AC90–132V, 50/60Hz.
The output contact is rated at AC200V, 5A, suitable for burner control circuits.
Yes. Depending on the fault, electronic repair or relay replacement may be possible after proper inspection and testing.
Yes. We supply new, reconditioned, and fully tested VOLCANO RDV-1005-100 Flame Detector Relays, replacement units, repair services, spare parts, and worldwide shipping.
SM MARINE SERVICE™ can assist in supplying:
The VOLCANO RDV-1005-100 Flame Detector Relay is a Japanese-built flame supervision module designed for marine boiler burner management systems. It continuously monitors burner flame conditions, provides rapid flame failure detection, and safely shuts down fuel supply during abnormal combustion, ensuring safe and reliable boiler operation onboard.
For installation, wiring diagrams, sensitivity adjustment, burner commissioning, maintenance procedures, troubleshooting, and calibration, engineers should consult the official VOLCANO RDV-1005-100 Flame Detector Relay Manual, the boiler manufacturer's burner manual, and the vessel's Burner Management System (BMS) documentation.
We Supply:
Bangladesh Office
Samir Market, DT Road, Beside CDA Market, Pahartali, Chattogram, Bangladesh
China Warehouse & Support Center
Shanghai, China
https://www.smmarineservice.com
Email: info@smmarineservice.com
WhatsApp: +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
SM MARINE SERVICE™ specializes in supplying VOLCANO RDV-1005-100 Flame Detector Relays, marine burner management systems, flame scanners, ignition control modules, boiler automation equipment, combustion safety components, spare parts, repair services, calibration support, retrofit solutions, and worldwide technical services for ship owners, ship management companies, shipyards, offshore operators, and marine engineers worldwide.
