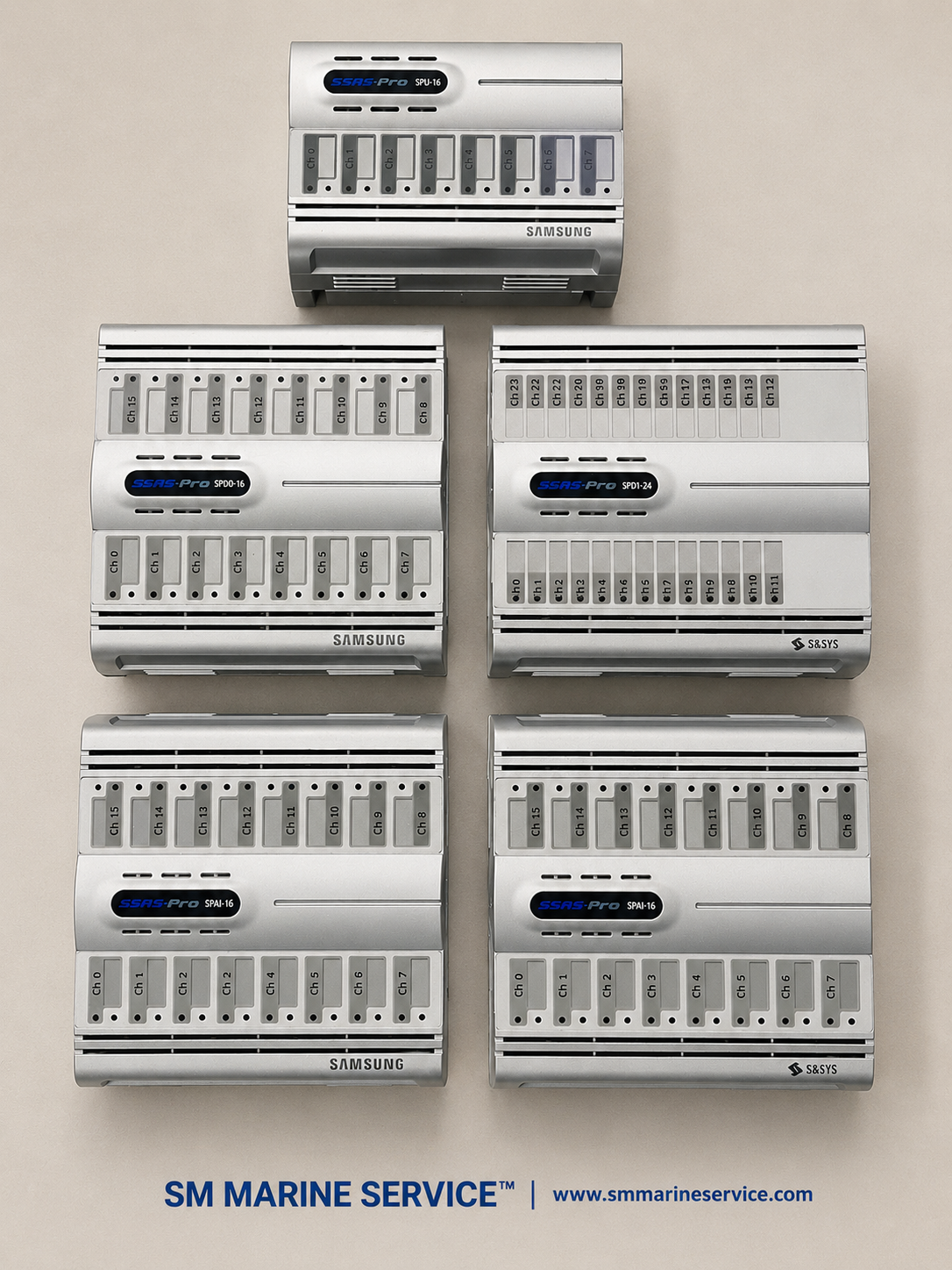

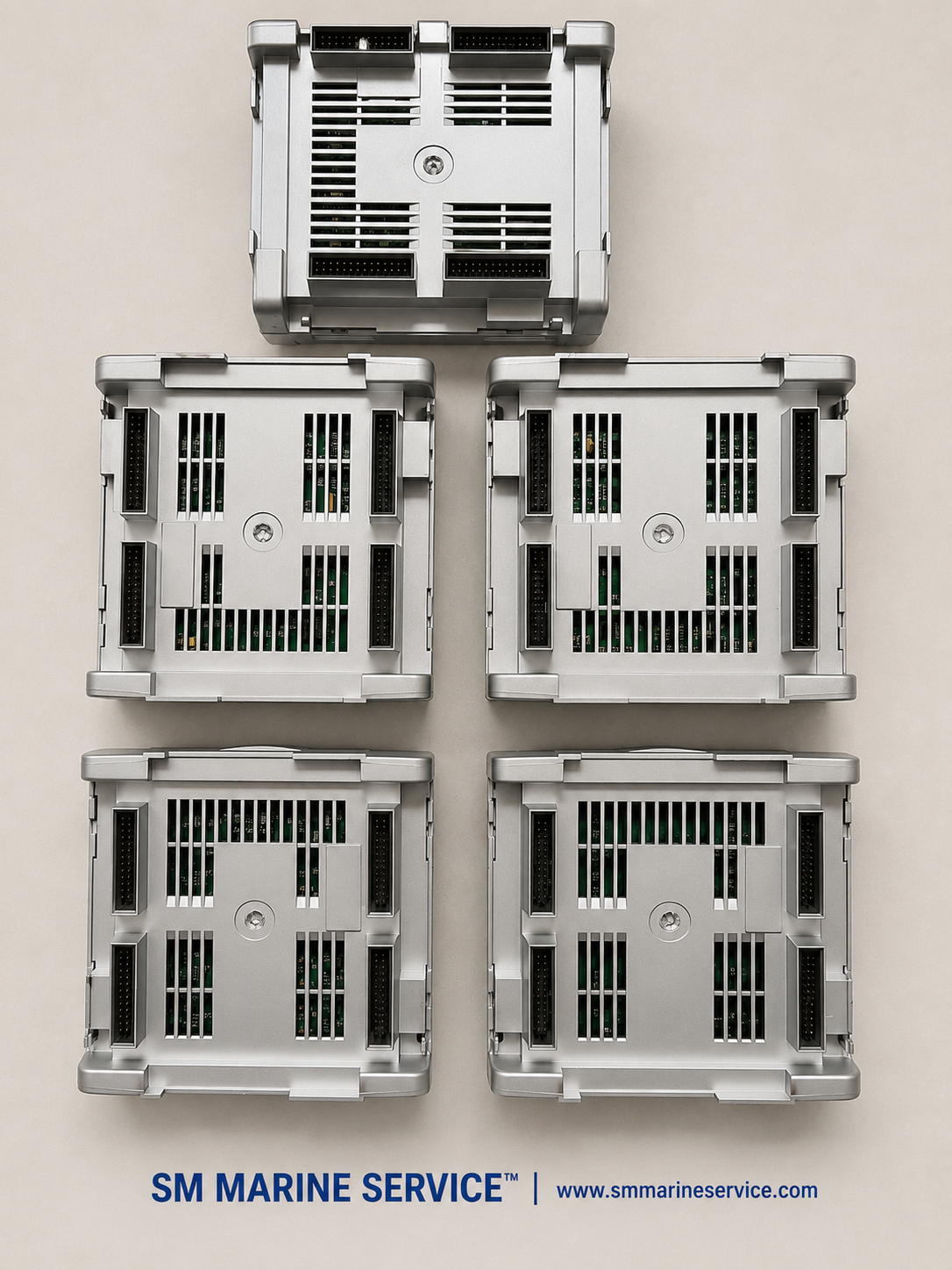

Main Components
The Samsung SSAS-Pro Remote I/O System consists of several intelligent modules that work together to perform machinery monitoring, signal processing, and equipment control within a marine Integrated Automation System (IAS).
Typical modules include:
- SPU-16 – CPU / Processing Unit
- SPDI-24 – Digital Input Module
- SPDO-16 – Digital Output Module
- SPAI-16 – Analog Input Module
- Communication Interface Module
- Power Distribution Module
- Backplane / Base Unit
- Communication Bus Connectors
- Field Terminal Connectors
- Status LED Indicators
- Internal Processor & Memory
- Protection & Isolation Circuits
Each module performs a dedicated task while communicating continuously with the central automation network.
Marine Applications
The Samsung SSAS-Pro platform is installed on many commercial vessels and offshore facilities, including:
- Container Ships
- Bulk Carriers
- Crude Oil Tankers
- Chemical Tankers
- LNG & LPG Carriers
- Offshore Support Vessels
- FPSO Units
- Drill Ships
- Passenger Ships
- Naval Vessels
Typical onboard applications include:
- Main Engine Automation
- Generator Control Systems
- Engine Room Monitoring
- Machinery Alarm Monitoring System (AMS)
- Pump Control Systems
- Fuel Oil Transfer Systems
- Ballast Water Systems
- Boiler & Burner Automation
- Air Compressor Control
- Cargo Pump Monitoring
- Bilge & Ballast Control
- Tank Level Monitoring
- Auxiliary Machinery Control
The modular design makes the SSAS-Pro platform suitable for both new installations and long-term maintenance of existing automation systems.
Common Problems & Troubleshooting
| Problem |
Possible Cause |
Recommended Solution |
| CPU Module Not Starting |
Power supply failure |
Check 24VDC input, fuse, and power module |
| Digital Inputs Not Responding |
Field wiring fault |
Inspect sensors, terminals, and input channels |
| Digital Outputs Not Operating |
Output relay or transistor failure |
Test output module and connected equipment |
| Analog Signal Error |
Sensor or analog module fault |
Verify transmitter calibration and input wiring |
| Communication Failure |
Network cable or communication board problem |
Check communication bus and connectors |
| LED Alarm ON |
Module diagnostic fault |
Read diagnostic status and replace faulty module if necessary |
| PLC Offline |
CPU or network communication failure |
Restart system and inspect communication interface |
Proper diagnostics before module replacement can significantly reduce maintenance costs and system downtime.
Maintenance Tips
To ensure reliable operation of the Samsung SSAS-Pro system:
- Inspect all terminal connections regularly.
- Verify stable 24VDC power supply.
- Keep modules free from dust and moisture.
- Monitor LED status indicators during routine inspections.
- Tighten communication connectors periodically.
- Replace damaged field connectors immediately.
- Check analog signal calibration during scheduled maintenance.
- Maintain proper cabinet ventilation to prevent overheating.
- Keep spare CPU and I/O modules available for critical vessels.
Routine preventive maintenance extends equipment life and improves automation reliability.
Why Ships Still Use Samsung SSAS-Pro
Many vessels continue operating with the Samsung SSAS-Pro automation platform because of its modular architecture, dependable performance, and ease of maintenance.
Key advantages include:
- Reliable PLC-based control
- Easy module replacement
- Stable long-term operation
- High-speed signal processing
- Flexible I/O expansion
- Proven marine automation performance
- Reduced maintenance costs
- Excellent compatibility with existing vessel automation systems
Instead of replacing an entire automation system, ship owners often replace only the affected I/O module, making maintenance faster and more economical.
At SM MARINE SERVICE™, we help customers extend the service life of their automation systems by supplying tested replacement modules, repair services, and technical support.
Frequently Asked Questions (FAQ)
What is Samsung SSAS-Pro?
Samsung SSAS-Pro is a modular PLC-based automation platform used for monitoring and controlling machinery on ships and industrial facilities.
What is the function of the SPU-16?
The SPU-16 acts as the processing unit, managing communication and coordinating the operation of connected I/O modules.
What is the SPDI-24 used for?
The SPDI-24 receives digital input signals from field devices such as switches, limit switches, pressure alarms, and other sensors.
What is the SPDO-16 used for?
The SPDO-16 controls digital output devices including relays, solenoid valves, contactors, motors, alarms, and indicator lamps.
What is the SPAI-16 module?
The SPAI-16 processes analog input signals from transmitters measuring pressure, temperature, level, flow, and other process variables.
Does SM MARINE SERVICE™ supply Samsung SSAS-Pro modules?
Yes. We supply new, reconditioned, and fully tested Samsung SSAS-Pro modules, spare parts, repair services, calibration, and worldwide technical support.
Spare Parts Available
SM MARINE SERVICE™ can assist in sourcing or supplying:
- SPU-16 CPU Module
- SPDI-24 Digital Input Module
- SPDO-16 Digital Output Module
- SPAI-16 Analog Input Module
- Communication Module
- Power Supply Module
- CPU Board
- Main PCB
- Communication Board
- Terminal Connectors
- Backplane Assembly
- Complete Remote I/O Rack
- Replacement Connectors & Accessories
Short Product Description
The Samsung SSAS-Pro Remote I/O System is a professional modular PLC automation platform designed for marine and industrial applications. With dedicated CPU, digital input, digital output, and analog input modules, the system provides reliable machinery monitoring, process control, alarm handling, and communication for modern ship automation systems.
User Manual & Technical Resources
For installation, configuration, communication parameters, wiring diagrams, PLC programming, diagnostics, maintenance procedures, and firmware information, engineers should consult the official Samsung SSAS-Pro Technical Manual, vessel automation documentation, and equipment-specific service manuals.
