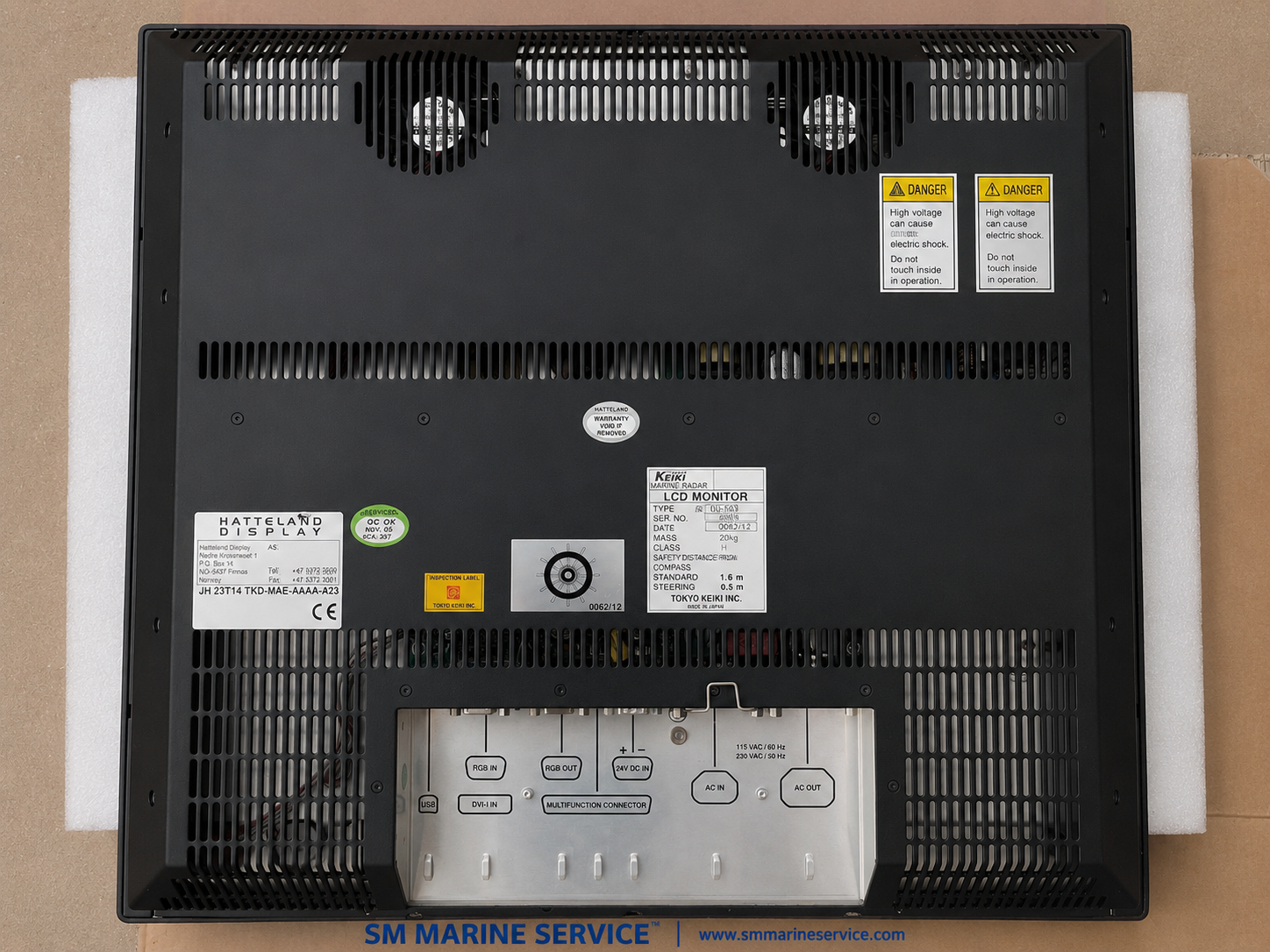

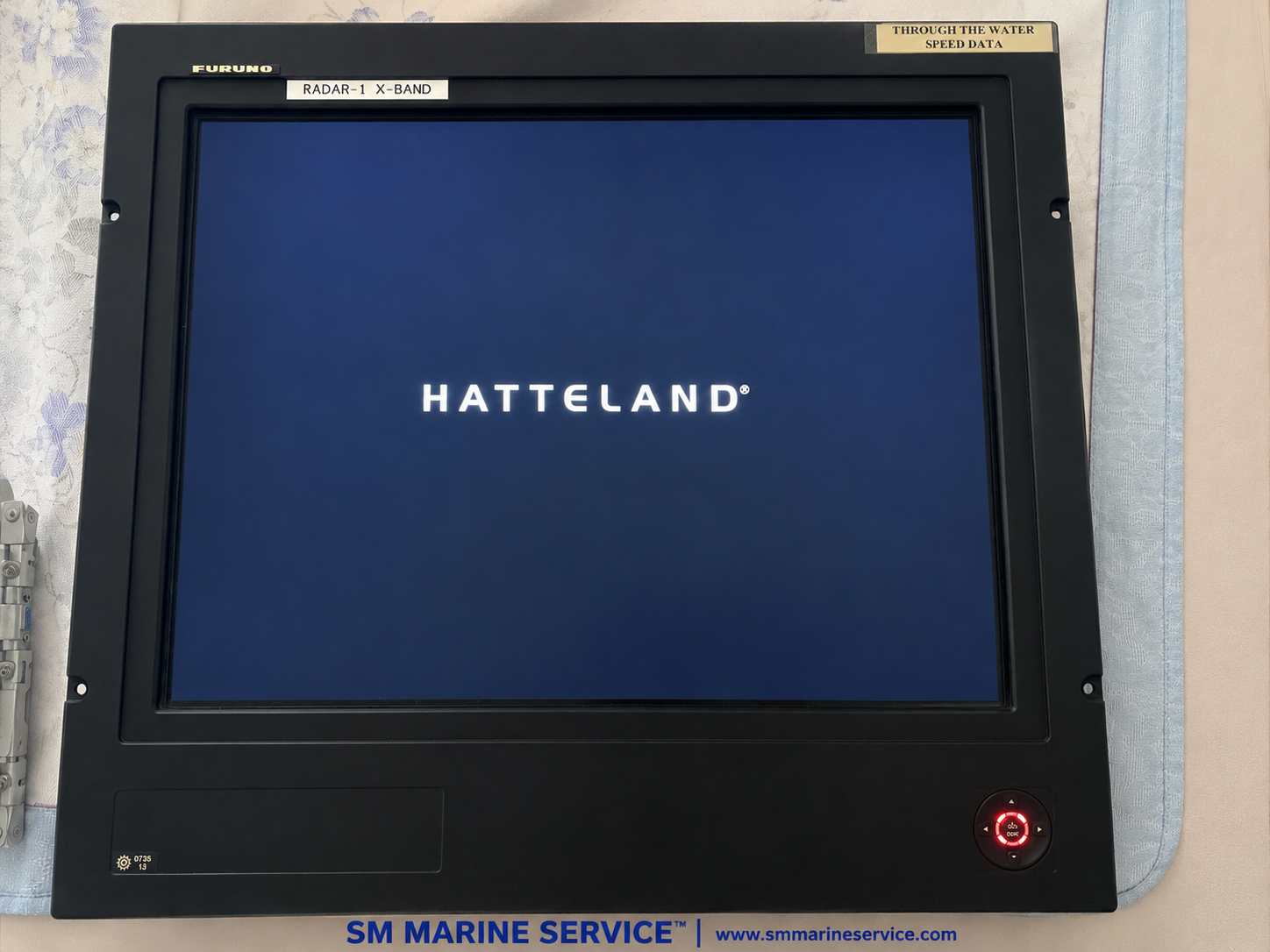

Hatteland JH 23T14 TKD-MAE-AAAA-423 23.1" Marine TFT Display | Marine Radar LCD Monitor | Tokyo Keiki Radar Display | SM MARINE SERVICE™
The Hatteland JH 23T14 TKD-MAE-AAAA-423 is a rugged 23.1-inch Marine TFT LCD Display manufactured by Hatteland Display, Norway, one of the world's leading suppliers of marine-certified display solutions.
This industrial-grade monitor is widely installed as the primary display for Tokyo Keiki Marine Radar, ECDIS, Integrated Bridge Systems (IBS), Conning Systems, and other mission-critical marine navigation equipment. Built to withstand harsh shipboard environments, it offers excellent image quality, high reliability, and long service life.
Designed specifically for commercial vessels, offshore platforms, naval ships, and passenger vessels, the Hatteland display provides clear radar images, electronic chart data, alarm indications, and navigation information even during continuous 24/7 operation.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned Hatteland Marine Displays, LCD panels, power supplies, inverter boards, display controllers, spare parts, repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | Hatteland Display AS |
| Country of Origin | Norway |
| Model | JH 23T14 TKD-MAE-AAAA-423 |
| Display Size | 23.1 Inch TFT LCD |
| Product Type | Marine TFT Display |
| Marine Application | Radar, ECDIS, IBS & Navigation Systems |
The Hatteland JH23T14 Marine Display is a marine-certified industrial monitor that serves as the visual interface for navigation and automation systems installed on ships.
Unlike standard commercial monitors, marine displays are engineered to operate continuously under vibration, humidity, salt-laden air, and fluctuating power conditions. They deliver high brightness, wide viewing angles, and dependable performance required for safe navigation.
This display is commonly integrated with:
The Hatteland JH 23T14 TKD-MAE-AAAA-423 offers several advanced features that make it ideal for demanding marine applications:
The Hatteland JH 23T14 TKD-MAE-AAAA-423 Marine TFT Display is built using industrial-grade electronic modules designed for reliable operation in demanding marine environments. Each component contributes to stable image quality, continuous operation, and long service life.
The TFT LCD panel is the primary display component that presents radar images, ECDIS charts, navigation data, alarms, and system information.
Main functions:
The LED backlight provides uniform illumination across the display.
Its advantages include:
The display controller processes incoming video signals and converts them into high-quality images.
Functions include:
The internal power supply converts AC or 24V DC shipboard power into stable voltages required by the display electronics.
Features include:
The monitor supports multiple marine video interfaces depending on configuration.
Typical interfaces include:
Integrated cooling fans maintain safe operating temperatures during continuous use.
Benefits include:
The operator can easily control monitor functions using the front keypad.
Available functions include:
Specifications may vary slightly depending on hardware revision.
| Specification | Details |
|---|---|
| Manufacturer | Hatteland Display AS |
| Country | Norway |
| Model | JH 23T14 TKD-MAE-AAAA-423 |
| Display Size | 23.1 Inch |
| Display Technology | TFT LCD |
| Power Input | 115VAC / 230VAC / 24VDC |
| Frequency | 50/60 Hz |
| Power Consumption | Approx. 125 W |
| Marine Application | Radar, ECDIS, IBS, Navigation Systems |
| Installation | Flush Mount Marine Bridge Console |
The Hatteland Marine TFT Display is widely used onboard:
Typical systems include:
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| No display | Power supply failure | Check AC/DC input and PSU |
| Black screen | Backlight failure | Inspect LED backlight and inverter |
| No video signal | Loose cable or interface issue | Verify DVI/RGB connectors |
| Flickering display | Display controller fault | Inspect controller PCB |
| Low brightness | Aging backlight | Replace LED backlight module |
| Random shutdown | Overheating | Clean cooling fans and air vents |
| Distorted image | Signal processing issue | Test display controller board |
| Power indicator OFF | Internal PSU fault | Check fuse and power module |
Professional diagnosis using marine electronic test equipment is recommended for board-level repairs.
Routine maintenance helps maximize display performance and lifespan.
Hatteland displays remain a preferred choice across the maritime industry because they offer:
Their proven reliability makes them a trusted solution for navigation-critical applications.
It is a professional marine TFT display used for radar, ECDIS, integrated bridge systems, conning systems, and navigation workstations.
This display is commonly integrated with:
Yes. Many faults involving LCD panels, power supplies, display controller boards, LED backlights, cooling fans, and interface boards can be repaired by experienced marine electronics engineers.
Frequently supplied spare parts include:
Yes. We supply new, used, and professionally reconditioned Hatteland Marine TFT Displays, replacement spare parts, PCB repair services, display refurbishment, and worldwide technical support.
The Hatteland JH 23T14 TKD-MAE-AAAA-423 is a 23.1-inch marine-certified TFT LCD display engineered for professional bridge applications. Designed for continuous operation with radar, ECDIS, and integrated bridge systems, it delivers outstanding image quality, dependable performance, and rugged durability in harsh marine environments.
For installation, wiring, configuration, troubleshooting, maintenance, and repair procedures, always consult the official Hatteland Display Installation Manual, User Manual, Service Manual, Technical Datasheet, and Spare Parts Catalogue corresponding to the exact display model and hardware revision.
The Hatteland JH 23T14 TKD-MAE-AAAA-423 Marine TFT Display is a premium bridge display solution trusted by shipowners and marine engineers worldwide. Its industrial-grade construction, excellent visual performance, and compatibility with major radar and navigation systems make it an essential component of modern ship bridge operations.
Whether you require a complete display unit, LCD panel replacement, power supply repair, controller board, or professional refurbishment, SM MARINE SERVICE™ provides comprehensive marine electronics solutions with worldwide sourcing, repair, testing, and technical support.
