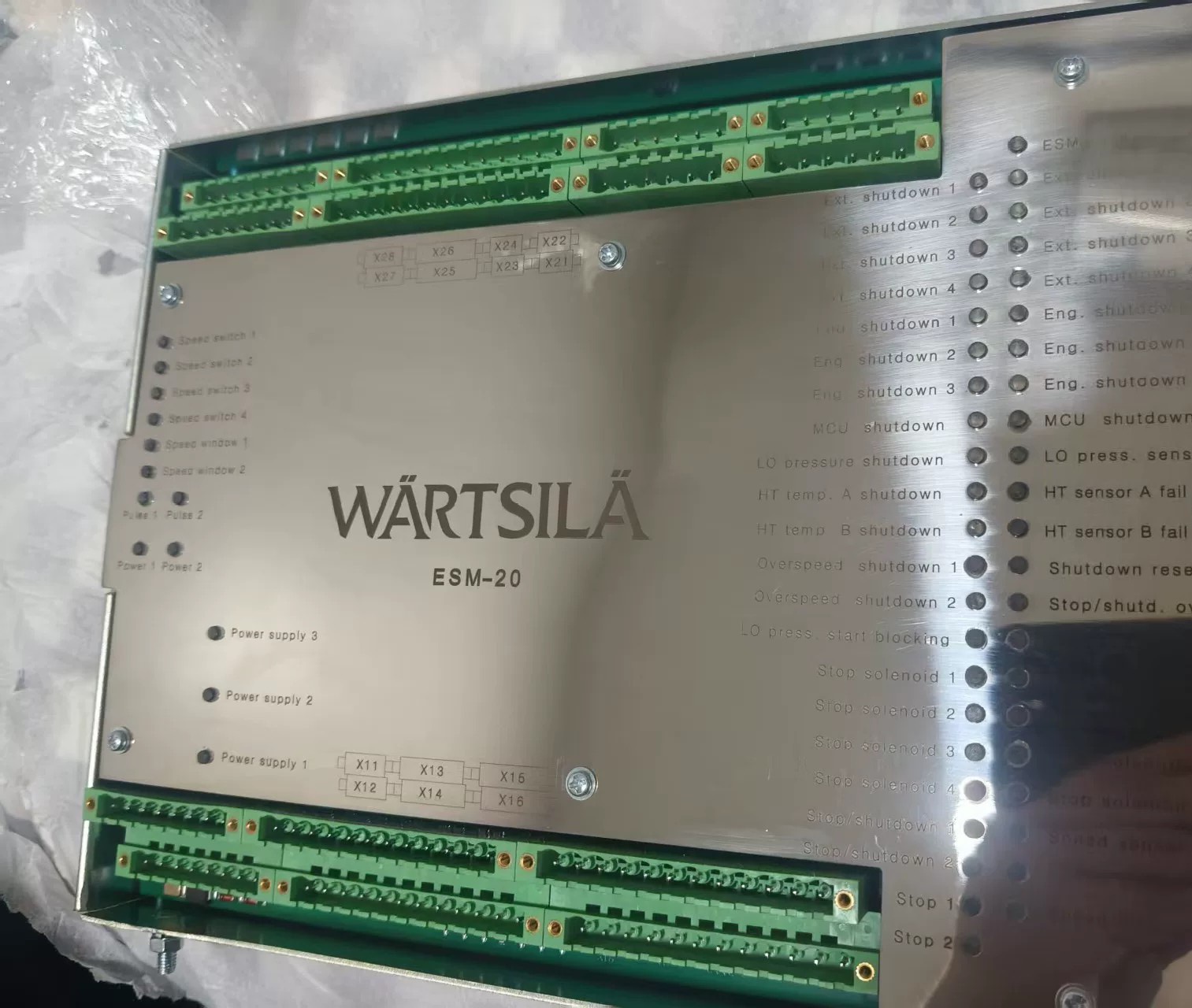

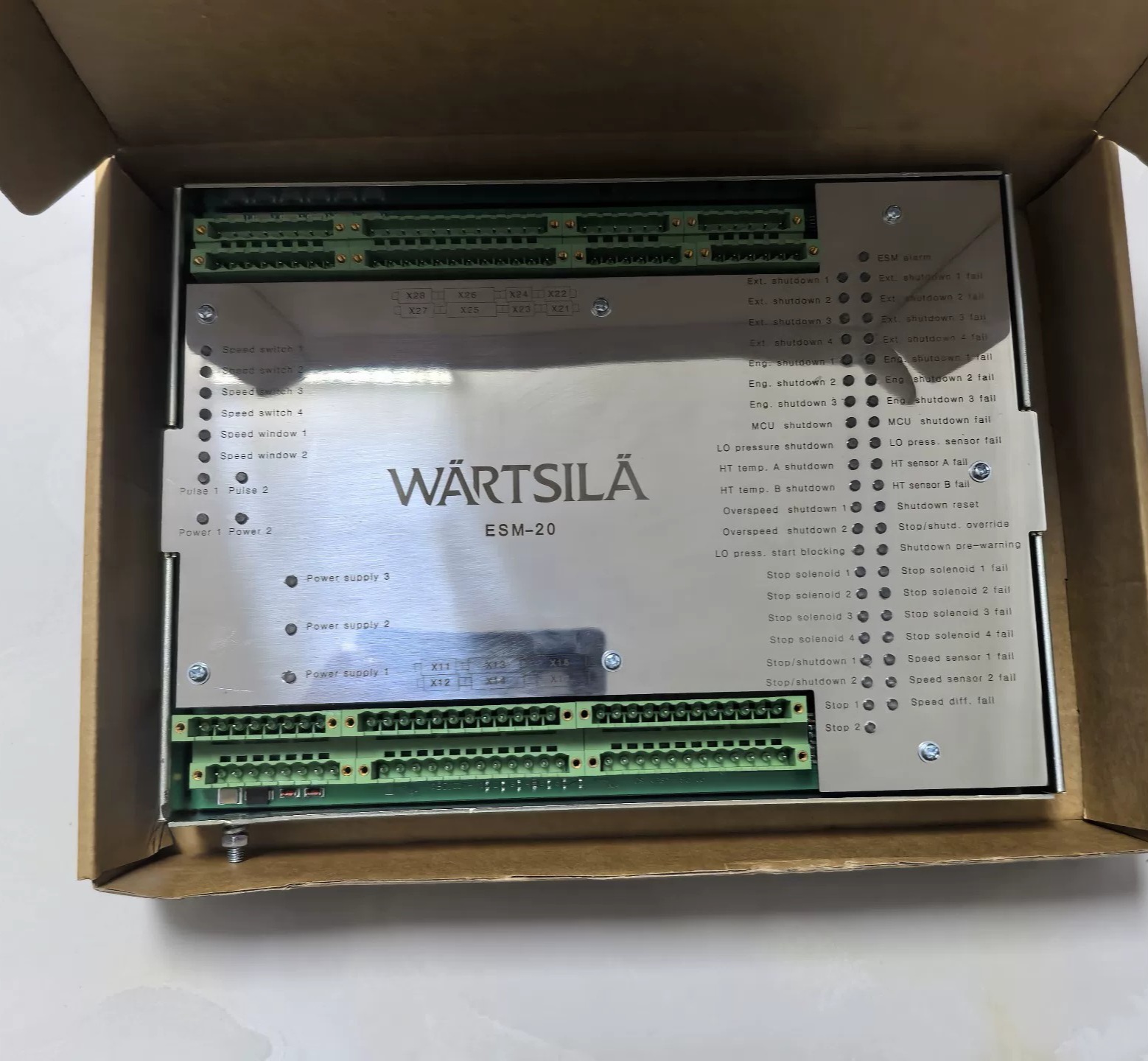

WÄRTSILÄ ESM-20 Marine Engine Safety Module (ESM) – Advanced Engine Protection & Shutdown System

 Title

WÄRTSILÄ ESM-20 Marine Engine Safety Module | Engine Shutdown Controller | ESM-20 Protection System | SM MARINE SERVICE™

Description

Manufacturer

Wärtsilä Corporation

Country of Origin

Finland

Product Type

Marine Engine Safety Module (Engine Protection & Shutdown Controller)

Marine Application

Main Engine Safety System, Auxiliary Engine Protection, Generator Engine Shutdown Control, Marine Automation & Engine Monitoring Systems.

---

Main Components of the WÄRTSILÄ ESM-20

The WÄRTSILÄ ESM-20 (Engine Safety Module) is an advanced electronic protection unit that continuously monitors critical engine operating parameters. When unsafe conditions are detected, the module activates alarms, initiates protective actions, or performs an automatic engine shutdown to prevent catastrophic damage.

The primary components include:

• Engine Safety Module (ESM-20 Main Unit)
• Central Processor (CPU)
• Digital Input Circuits
• Digital Output Circuits
• Shutdown Logic Processor
• Speed Monitoring Circuits
• Overspeed Protection Module
• Lubricating Oil Pressure Monitoring
• High Temperature Monitoring
• Cooling Water Monitoring
• Sensor Interface Circuit
• Engine Shutdown Relay Outputs
• External Shutdown Inputs
• Alarm Output Relays
• LED Status Indicators
• Terminal Connection Blocks
• 24 VDC Power Supply Inputs
• Internal Diagnostic Circuit
• Communication Interface (depending on engine configuration)

The modular design allows reliable operation in demanding marine engine room environments while simplifying troubleshooting and maintenance.

---

Typical Technical Specifications

---

Working Principle

The ESM-20 continuously receives input signals from critical engine sensors and protection devices.

Its operating sequence is:

1. Sensors continuously monitor engine operating conditions.
2. The ESM-20 analyzes all incoming signals in real time.
3. If any monitored value exceeds the configured safety limits, the module activates the appropriate warning alarm.
4. Under severe fault conditions, the ESM-20 energizes the engine shutdown outputs.
5. Shutdown signals stop the engine safely, minimizing the risk of mechanical failure.
6. LED indicators immediately identify the active alarm or shutdown condition, helping engineers locate the fault quickly.
7. After the fault has been corrected, the system can be reset and returned to normal operation.

This fast-response protection significantly reduces the risk of engine damage caused by low oil pressure, overheating, overspeed, or sensor failures.

---

Applications

The WÄRTSILÄ ESM-20 is commonly installed on:

• Wärtsilä Main Engines
• Wärtsilä Auxiliary Engines
• Marine Diesel Generator Sets
• Cargo Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG & LPG Carriers
• Offshore Supply Vessels
• Tug Boats
• Passenger Ships
• Cruise Ships
• Naval Vessels
• Power Generation Modules

It protects engine systems by monitoring:

• Lubricating Oil Pressure
• High Temperature
• Overspeed
• Engine Shutdown Inputs
• External Emergency Shutdown Signals
• Speed Sensors
• Power Supply Status
• Pulse Signals
• Sensor Integrity
• Engine Stop Solenoids

---

Common Problems & Troubleshooting

Power Supply Failure

• Check 24 VDC input.
• Inspect terminal connections.
• Verify power supply stability.

Overspeed Shutdown

• Test speed sensors.
• Check pulse signal wiring.
• Inspect overspeed calibration.

Low Oil Pressure Alarm

• Verify oil pressure sensor.
• Inspect lubrication system.
• Check wiring continuity.

High Temperature Shutdown

• Inspect coolant temperature sensors.
• Check cooling water circulation.
• Verify thermostat operation.

Sensor Failure

• Measure sensor outputs.
• Inspect connectors for corrosion.
• Replace faulty sensors if required.

Shutdown Output Failure

• Test relay outputs.
• Inspect stop solenoid wiring.
• Verify output voltage.

LED Status Fault

• Check internal electronics.
• Inspect CPU operation.
• Confirm proper module power supply.

---

Preventive Maintenance

To ensure long-term reliability:

• Inspect all terminal connections.
• Tighten loose wiring.
• Clean dust and moisture from the enclosure.
• Test shutdown functions periodically.
• Verify alarm outputs.
• Calibrate connected sensors.
• Inspect speed pickups.
• Check relay operation.
• Verify power supply voltage.
• Perform full functional testing during engine maintenance schedules.

Regular preventive maintenance helps prevent unexpected engine shutdowns and ensures compliance with marine safety standards.

---

Why Ships Continue Using the WÄRTSILÄ ESM-20

Marine operators continue to rely on the WÄRTSILÄ ESM-20 because of its:

• Proven engine protection performance
• High reliability
• Fast shutdown response
• Rugged industrial construction
• Easy diagnostics through LED indicators
• Long operational service life
• Compatibility with Wärtsilä engine automation systems
• Availability of spare parts and repair services

Even after years of service, properly maintained ESM-20 units continue protecting engines on vessels operating worldwide.

---

Frequently Asked Questions (FAQ)

What is the WÄRTSILÄ ESM-20?

It is an electronic Engine Safety Module that monitors critical engine conditions and initiates alarms or shutdowns when unsafe operating conditions are detected.

Which engine parameters does it monitor?

Typical parameters include lubricating oil pressure, coolant temperature, overspeed, speed sensor status, shutdown inputs, stop solenoids, and other engine protection signals.

Can the ESM-20 be repaired?

Yes. Many faults involving power circuits, input/output channels, communication circuits, and internal electronics can be repaired and functionally tested by experienced marine automation specialists.

Are spare units still available?

Yes. SM MARINE SERVICE™ supplies new, used, and professionally reconditioned WÄRTSILÄ ESM-20 modules, spare parts, and technical support.

Is this module suitable for engine retrofits?

Depending on the engine control architecture and vessel requirements, the ESM-20 may be integrated into retrofit projects after engineering evaluation.

---

Short Product Description

The WÄRTSILÄ ESM-20 Engine Safety Module is a highly reliable marine engine protection controller designed to monitor essential engine operating parameters and automatically initiate alarms or shutdowns under unsafe conditions. Widely used on Wärtsilä propulsion and auxiliary engines, it provides dependable protection against overspeed, overheating, lubrication failures, and other critical engine faults, helping ensure safe and uninterrupted vessel operation.

---

User Manual & Technical Resources

Recommended technical documentation includes:

• WÄRTSILÄ ESM-20 Operation Manual
• WÄRTSILÄ ESM-20 Installation Manual
• Engine Safety System Wiring Diagram
• ESM-20 Service Manual
• Engine Shutdown Logic Manual
• Wärtsilä Engine Automation Documentation
• Spare Parts Catalogue
• Commissioning Guide
• Marine Engine Protection Manual
• Class Society Maintenance Procedures

---

Why Choose SM MARINE SERVICE™

SM MARINE SERVICE™ supplies New, Used, and Professionally Reconditioned WÄRTSILÄ ESM-20 Engine Safety Modules and related marine engine automation spare parts.

Our services include:

• Worldwide Supply
• Engine Safety Modules
• Engine Automation Spare Parts
• Shutdown Controllers
• CPU Boards
• Relay Modules
• Sensor Interface Boards
• PCB Repair
• Functional Testing
• Technical Support
• Worldwide Export & Fast Shipping
