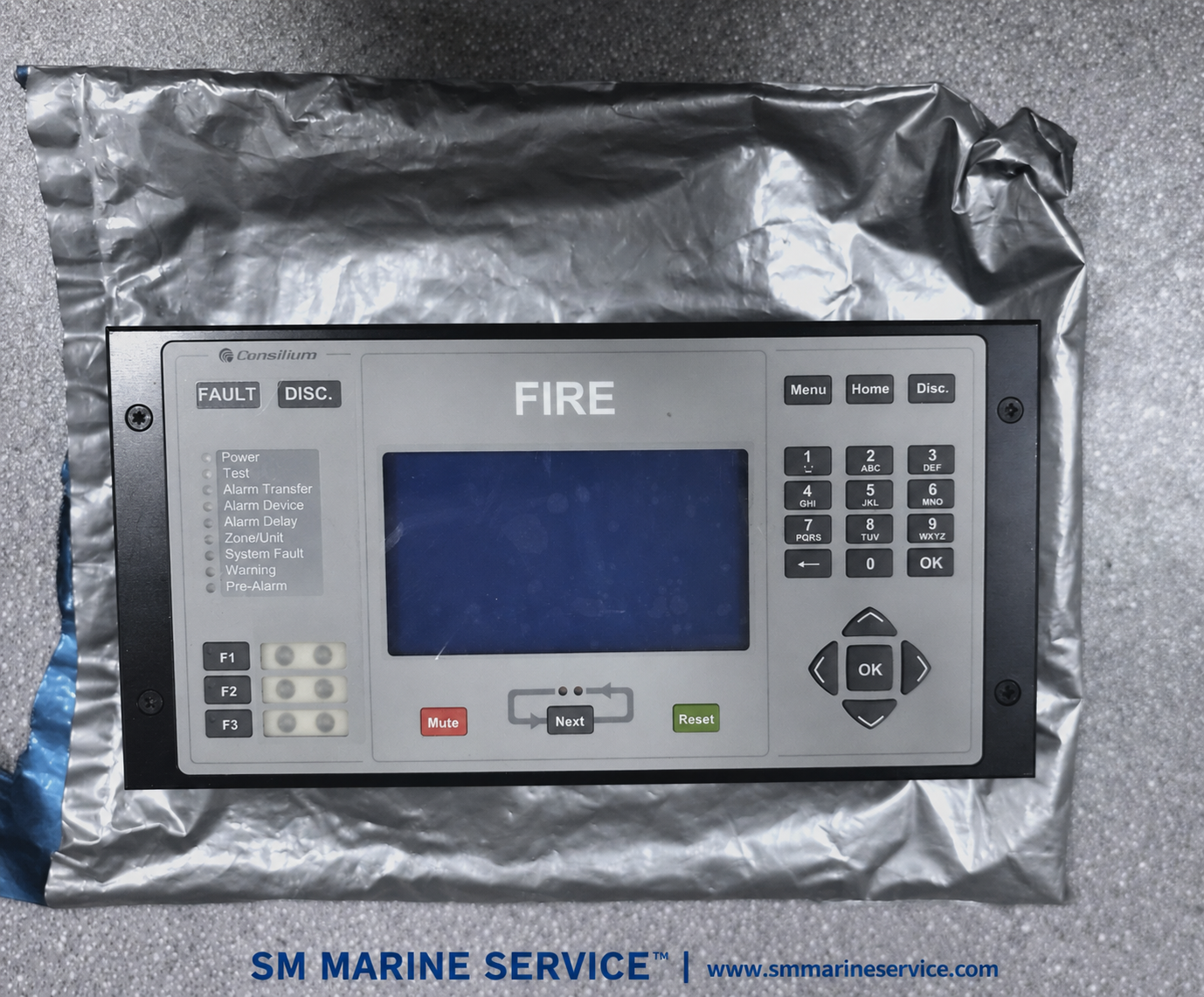

Consilium Salwico MX4000 Fire Alarm Control Panel

Intelligent Addressable Marine Fire Detection & Alarm System

The Consilium Salwico MX4000 Fire Alarm Control Panel is one of the most advanced addressable marine fire detection systems used onboard commercial vessels, offshore platforms, and passenger ships. Designed and manufactured by Consilium Marine & Safety AB (Sweden), the MX4000 provides continuous monitoring of fire detectors, manual call points, alarm devices, and interface modules throughout the vessel.

The system is fully compliant with SOLAS and IMO fire safety regulations, providing fast and reliable fire detection while minimizing false alarms through intelligent addressable technology.

Its modular architecture allows easy expansion for small cargo vessels as well as large cruise ships, making the MX4000 one of the industry's preferred marine fire alarm systems.

SM MARINE SERVICE™ supplies new, used, and professionally reconditioned Consilium Salwico MX4000 Control Panels, display units, CPU boards, loop cards, power supplies, communication modules, spare parts, repair services, and worldwide technical support.

---

Manufacturer Information

---

What Is the Consilium Salwico MX4000?

The Salwico MX4000 is the central controller of a ship's fire detection system. It continuously supervises all connected fire detectors, heat detectors, smoke detectors, manual call points, alarm sounders, interface modules, and output relays.

When smoke or excessive heat is detected, the panel immediately identifies the exact detector address and displays the alarm location on the screen. The system activates visual and audible alarms while transmitting fire signals to integrated systems such as:

• General Alarm System
• Engine Shutdown System
• Fire Dampers
• Ventilation Shutdown
• Water Mist System
• CO₂ Fire Extinguishing System
• Ship Monitoring System (AMS)
• Bridge Alarm System

Its intelligent addressable technology allows faster fault diagnosis, easier maintenance, and improved safety compared to conventional fire alarm systems.

---

Main Features

The Consilium Salwico MX4000 offers numerous advanced features, including:

• Intelligent addressable fire detection
• High-resolution graphical display
• Multi-language operator interface
• Event history and alarm logging
• Detector auto-addressing
• Modular expansion capability
• Network communication between panels
• Integrated fault diagnostics
• Multiple fire detection loops
• Redundant communication architecture
• Password-protected programming
• Remote monitoring capability
• Easy detector isolation and testing
• Low maintenance requirements
• Long operational service life

Main Components of the Consilium Salwico MX4000

The Consilium Salwico MX4000 Fire Alarm Control Panel is built with modular hardware, allowing engineers to expand and maintain the system efficiently. Its major components include:

• Fire Alarm Control Panel (FACP)
• LCD Display & Operator Interface (HMI)
• Main CPU Board
• Addressable Loop Controller Cards
• Communication Interface Module
• Network Communication Board
• Alarm Relay Module
• Power Supply Unit (PSU)
• Battery Charger Module
• System Power Distribution Board
• Detector Loop Terminals
• Zone Interface Modules
• Sounder Control Module
• Input / Output Expansion Modules
• Fault Monitoring Circuit
• Internal Event Memory
• RS-232 / RS-485 Communication Ports
• Ethernet Interface (depending on configuration)
• Backup Battery System

These modules work together to provide continuous fire monitoring, fault supervision, and emergency alarm management throughout the vessel.

---

Typical Technical Specifications

---

Working Principle

The Salwico MX4000 continuously communicates with every connected detector and field device.

Its operating sequence is:

1. Smoke, heat, or flame detectors continuously monitor protected areas.
2. Detector information is transmitted to the MX4000 control panel.
3. The CPU analyzes incoming signals using intelligent addressable technology.
4. When a fire condition is confirmed, the exact detector address and location are displayed.
5. Visual and audible alarms are activated.
6. Alarm signals can automatically operate:
   • Fire Doors
   • Fire Dampers
   • Ventilation Shutdown
   • General Alarm
   • Water Mist System
   • CO₂ Fire Extinguishing System
   • Ship Automation System
7. All events are stored in the internal event history for future analysis.

This intelligent architecture enables faster response while significantly reducing false alarms.

---

Marine Applications

The Consilium Salwico MX4000 is widely installed on:

• Container Ships
• Oil Tankers
• Chemical Tankers
• LPG Carriers
• LNG Carriers
• Bulk Carriers
• Passenger Ships
• Cruise Ships
• Offshore Platforms
• FPSO Units
• Research Vessels
• Naval Ships
• Ro-Ro Vessels

It protects:

• Engine Rooms
• Cargo Holds
• Accommodation Areas
• Control Rooms
• Pump Rooms
• Electrical Rooms
• Bridge
• Galley
• Machinery Spaces
• Escape Routes

---

Common Problems & Troubleshooting

Fire Loop Fault

• Damaged detector
• Open loop cable
• Short circuit
• Loose terminal connection

Communication Failure

• Network card fault
• Communication cable damage
• Incorrect addressing

Power Failure

• AC supply interruption
• Power Supply Unit failure
• Battery charger fault

Detector Not Responding

• Contaminated detector
• Address configuration error
• Detector hardware failure

False Fire Alarm

• Dirty smoke detector
• Moisture ingress
• Electrical interference
• Detector aging

LCD Display Problem

• Display PCB fault
• Ribbon cable failure
• CPU communication error

---

Preventive Maintenance

For maximum reliability:

• Test detectors according to maintenance schedules.
• Clean smoke detectors periodically.
• Verify battery voltage.
• Inspect loop resistance.
• Test alarm outputs.
• Check communication modules.
• Update system configuration after modifications.
• Verify event log operation.
• Test emergency interfaces.
• Perform complete functional testing during annual inspections.

Routine maintenance ensures long-term reliability and compliance with classification society requirements.

---

Why Ships Continue Using the Salwico MX4000

Marine operators continue choosing the MX4000 because of its:

• Proven reliability
• Intelligent addressable technology
• Fast fault diagnosis
• Modular architecture
• Easy system expansion
• Worldwide technical support
• Excellent spare parts availability
• Long operational life
• Compliance with international marine safety standards

Even after many years of service, properly maintained MX4000 systems continue operating reliably on vessels worldwide.

---

Frequently Asked Questions (FAQ)

Is the Salwico MX4000 an addressable fire alarm system?

Yes. Every detector has its own address, allowing the exact alarm location to be identified.

Can the MX4000 control fire suppression systems?

Yes. It can interface with CO₂ systems, water mist systems, fire dampers, ventilation shutdown, and general alarm systems.

Does the panel store alarm history?

Yes. The system records alarms, faults, warnings, and operational events in its event memory.

Are spare parts still available?

Yes. SM MARINE SERVICE™ supplies display modules, CPU boards, loop cards, power supplies, communication boards, relay modules, HMI panels, and other genuine or reconditioned spare parts.

Can the MX4000 be repaired?

Yes. Most electronic modules, display units, CPU boards, communication cards, and power supply units can be professionally repaired and tested.

---

Short Product Description

The Consilium Salwico MX4000 Fire Alarm Control Panel is an intelligent addressable marine fire detection system designed to provide fast, accurate, and reliable fire protection onboard ships and offshore installations. Its modular design, advanced diagnostics, and seamless integration with other ship safety systems make it one of the industry's leading marine fire alarm solutions.

---

User Manual & Technical Resources

Recommended technical documentation includes:

• Consilium Salwico MX4000 Operation Manual
• Installation Manual
• Service Manual
• Commissioning Guide
• Programming Manual
• Wiring Diagram
• Spare Parts Catalogue
• Detector Compatibility Guide
• SOLAS Fire Detection Requirements
• IMO Fire Safety Code Documentation

---
