FURUNO 2827 / 2837 Marine Radar Master Board PCB | Radar CPU Board | Main Processor PCB, Spare Parts, Repair & Worldwide Supply | SM MARINE SERVICE™
The FURUNO 2827 / 2837 Marine Radar Master Board PCB is the primary processing board installed inside selected FURUNO marine radar display units. It serves as the electronic "brain" of the radar system, managing radar signal processing, display generation, target tracking, navigation data integration, communication interfaces, and system diagnostics.
Modern FURUNO radar systems process thousands of radar echoes every second. The Master Board performs high-speed digital calculations, allowing navigators to receive clear radar images, identify surrounding targets, and safely navigate under all weather conditions.

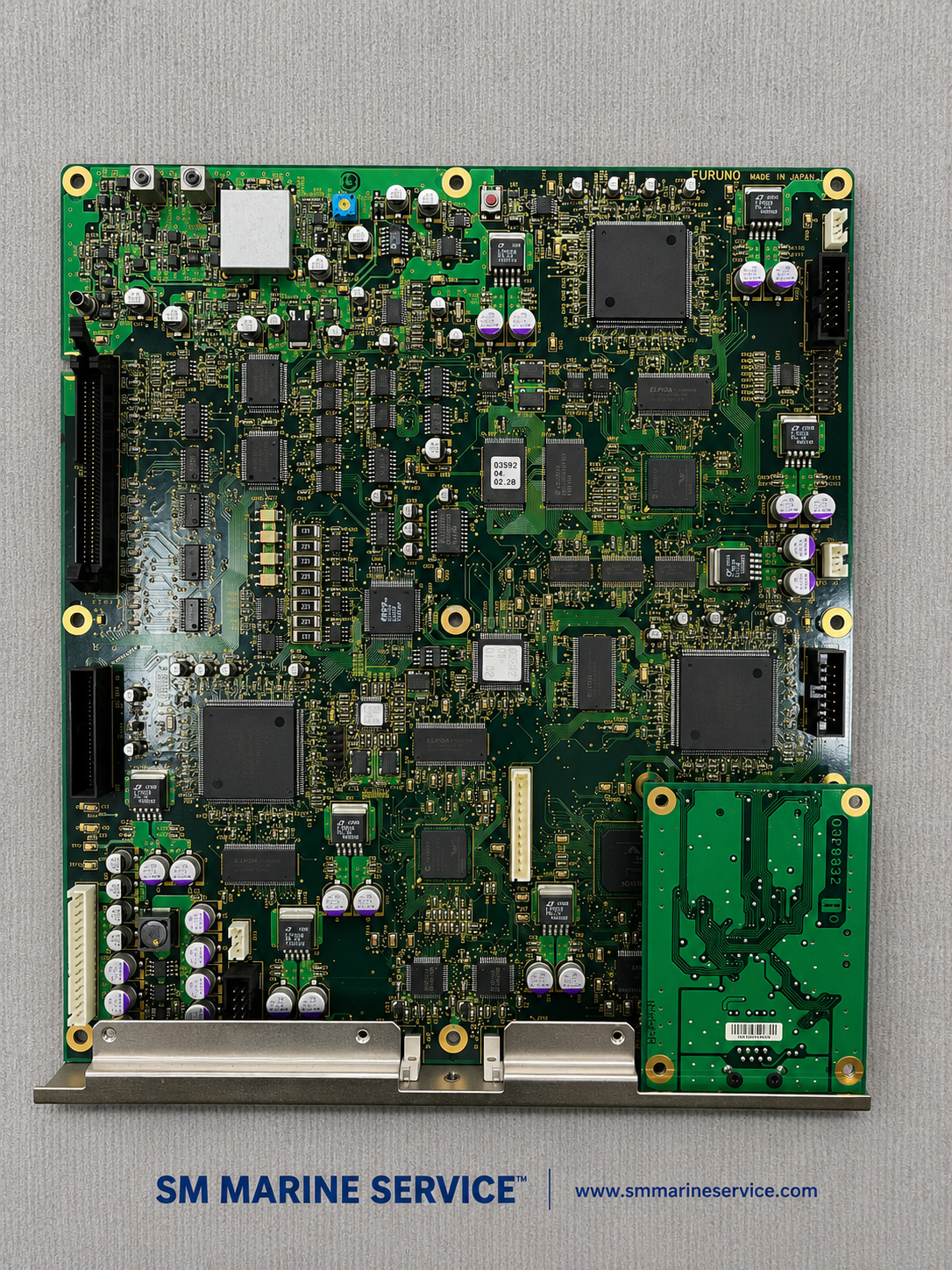

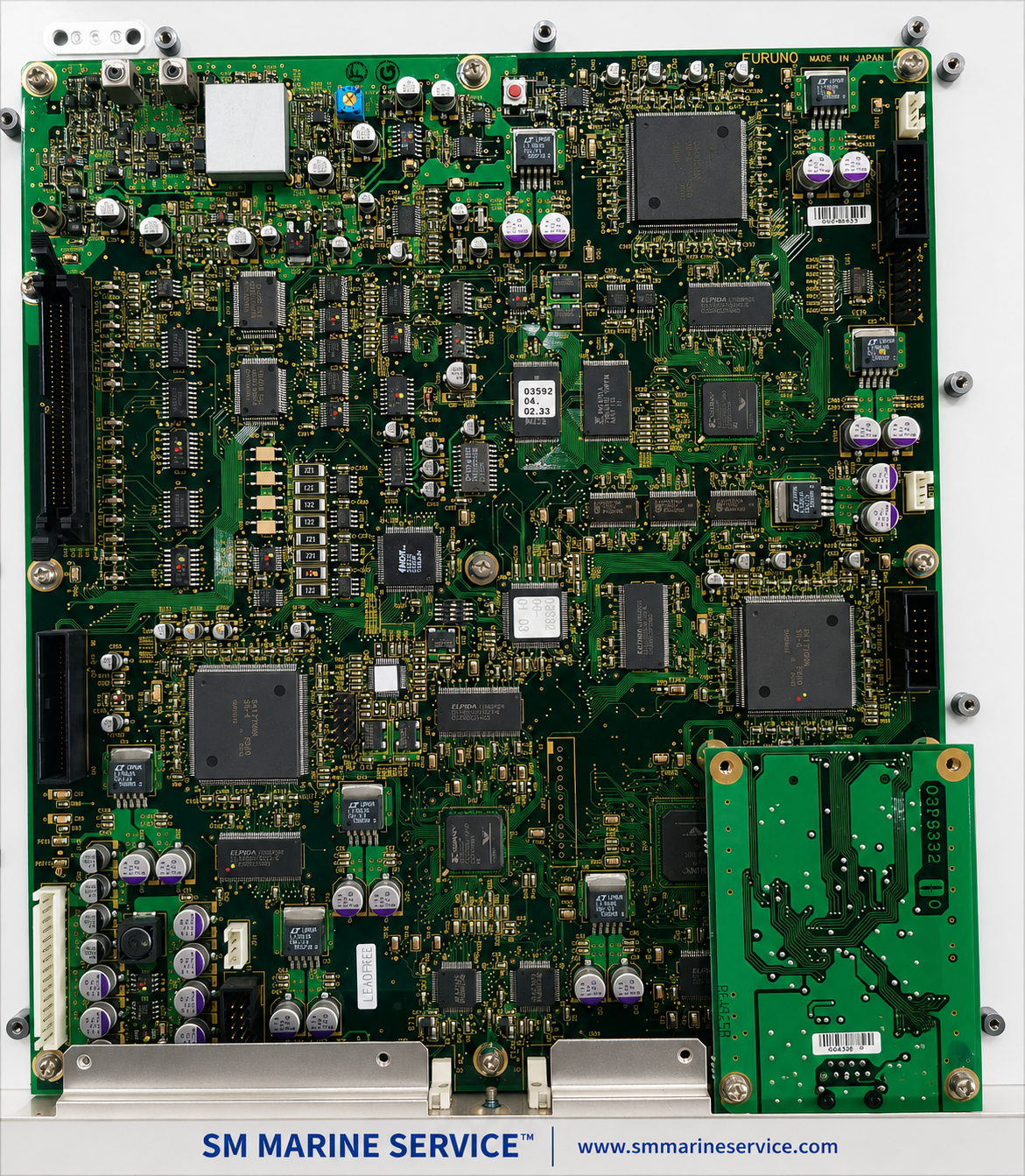

The PCB shown above contains powerful embedded processors, high-speed memory devices, video controllers, communication interfaces, voltage regulation circuits, and firmware storage components. Together, these modules ensure reliable radar performance on commercial and offshore vessels.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned FURUNO 2827 / 2837 Marine Radar Master Board PCBs, including processor boards, CPU modules, interface boards, replacement electronic components, PCB repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | Furuno Electric Co., Ltd. |
| Country of Origin | Japan |
| Product | Marine Radar Master Board PCB |
| Compatible Models | FURUNO 2827 / 2837 Marine Radar (configuration dependent) |
| Product Type | Radar Processor / CPU Board |
| Primary Function | Radar Signal Processing & System Control |
| Installation | Radar Display Processor Unit |
The Master Board PCB is the central controller of the marine radar display unit. Every major radar function depends on this board, from processing radar echo signals to generating the radar display and communicating with other bridge equipment.
Unlike interface boards that perform individual tasks, the Master Board integrates multiple processing functions into one platform, ensuring smooth operation of the entire radar system.
It communicates with:
The FURUNO 2827 / 2837 Master Board PCB performs all major computational tasks required for radar operation.
Its working process includes:
This high-speed processing enables accurate target detection, collision avoidance, and safe navigation in both coastal and ocean-going operations.
The FURUNO 2827 / 2837 Marine Radar Master Board PCB integrates advanced embedded processors, memory devices, communication controllers, and radar signal processing circuits into a single high-performance electronic assembly. It is responsible for virtually every major function of the radar display unit.
The embedded CPU is the central controller of the radar system.
Its primary functions include:
The DSP section performs high-speed processing of radar echo signals.
Functions include:
Multiple high-speed memory ICs are installed on the board for:
The memory architecture enables fast processing and smooth radar performance.
The video controller converts processed radar data into high-resolution radar images displayed on the monitor.
It controls:
The Master Board exchanges navigation data with other bridge systems.
Supported interfaces typically include:
The board contains multiple connectors supporting communication with:
Dedicated power regulation circuitry supplies stable operating voltages for:
Proper voltage regulation is essential for reliable radar operation.
The onboard backup battery preserves:
during temporary power interruptions.
Note: Specifications may vary depending on hardware revision and radar software version.
| Specification | Details |
|---|---|
| Manufacturer | Furuno Electric Co., Ltd. |
| Compatible Models | FURUNO 2827 / 2837 Marine Radar |
| Product Type | Radar Master Board PCB |
| Function | Main Radar Processor Board |
| Processor | Embedded High-Speed CPU |
| Memory | SDRAM & Flash Memory |
| Communication | Ethernet, Serial, Internal Radar Bus |
| Navigation Interfaces | AIS, GPS, Gyro, Speed Log |
| Installation | Radar Display Unit |
| Marine Application | Navigation Radar System |
The FURUNO 2827 / 2837 Master Board PCB is used in professional marine radar systems installed on a wide range of commercial and offshore vessels.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Radar does not start | Power regulation fault | Check input power, fuse, and voltage regulators |
| Blank display | Video controller failure | Inspect video processing circuit and display connection |
| No communication with scanner | Interface controller fault | Check scanner cable and communication ports |
| Radar freezes during operation | Firmware corruption or memory failure | Reload firmware and test Flash/SDRAM |
| Navigation overlay missing | GPS or Gyro communication error | Verify NMEA/Ethernet interface connections |
| Ethernet communication failure | LAN interface IC fault | Inspect Ethernet controller and connector |
| Random reboot | Power instability or capacitor ageing | Test power supply section and replace faulty capacitors |
| Lost system settings | Backup battery exhausted | Replace RTC battery and reload configuration |
For reliable repairs, PCB-level diagnostics using oscilloscopes, logic analyzers, firmware tools, and component testing equipment are recommended.
Routine preventive maintenance helps maximize board reliability.
The Master Board PCB is the most critical electronic assembly inside the radar display unit because it controls nearly every system function.
Its responsibilities include:
Without a functioning Master Board, the radar system cannot perform its navigation and collision-avoidance functions.
It is the central processing board that controls radar signal processing, display generation, communication with navigation equipment, and execution of the radar operating software.
This Master Board is commonly associated with FURUNO 2827 and FURUNO 2837 Marine Radar systems, depending on hardware revision and software configuration.
Frequently requested spare parts include:
Yes. Many faults involving processors, power circuits, communication interfaces, damaged connectors, memory devices, capacitors, and PCB-level electronic components can often be repaired by experienced marine electronics specialists.
Yes. We supply new, used, and professionally reconditioned FURUNO 2827 / 2837 Master Board PCBs, replacement electronic modules, PCB repair services, and worldwide technical sourcing support.
The FURUNO 2827 / 2837 Marine Radar Master Board PCB is the primary processor board responsible for radar signal processing, navigation data integration, communication management, and radar display generation. Built with high-performance embedded processors and industrial-grade electronic components, it delivers dependable performance for commercial marine radar systems operating worldwide.
For installation, firmware updates, diagnostics, PCB replacement, troubleshooting, and preventive maintenance, always refer to the official FURUNO 2827 / 2837 Operator's Manual, Installation Manual, Service Manual, Maintenance Manual, Circuit Diagram, and Parts Catalogue applicable to the installed radar system and board revision.
The FURUNO 2827 / 2837 Marine Radar Master Board PCB is the heart of the radar display system, providing the processing power required for accurate target detection, navigation data integration, and dependable radar operation. Its advanced embedded architecture and robust Japanese engineering make it a trusted solution for merchant ships, offshore vessels, and government fleets.
Whether you require a complete Master Board PCB, CPU module, memory board, communication interface, PCB repair, firmware support, or replacement spare parts, SM MARINE SERVICE™ offers professional marine electronics solutions with worldwide sourcing, repair, and technical support.
