Master Board PCB Radar Processor Board
Japan Radio Co., Ltd. (JRC)
New product
JRC Marine Radar 9122 / 9132 Master Board PCB | Radar Processor Board | Radar Main CPU Board, Spare Parts, Repair & Worldwide Supply | SM MARINE SERVICE™
The JRC Marine Radar 9122 / 9132 Master Board PCB is the primary electronic processing board used inside selected Japan Radio Co. (JRC) marine radar systems. Acting as the central processing unit of the radar, this board controls radar signal processing, display generation, system communication, interface management, diagnostics, and overall radar operation.
Modern marine radar systems rely on powerful embedded processor boards to handle large amounts of radar video data in real time. The Master Board receives information from the radar transceiver, performs digital signal processing, controls display functions, communicates with peripheral modules, and manages the radar operating software.

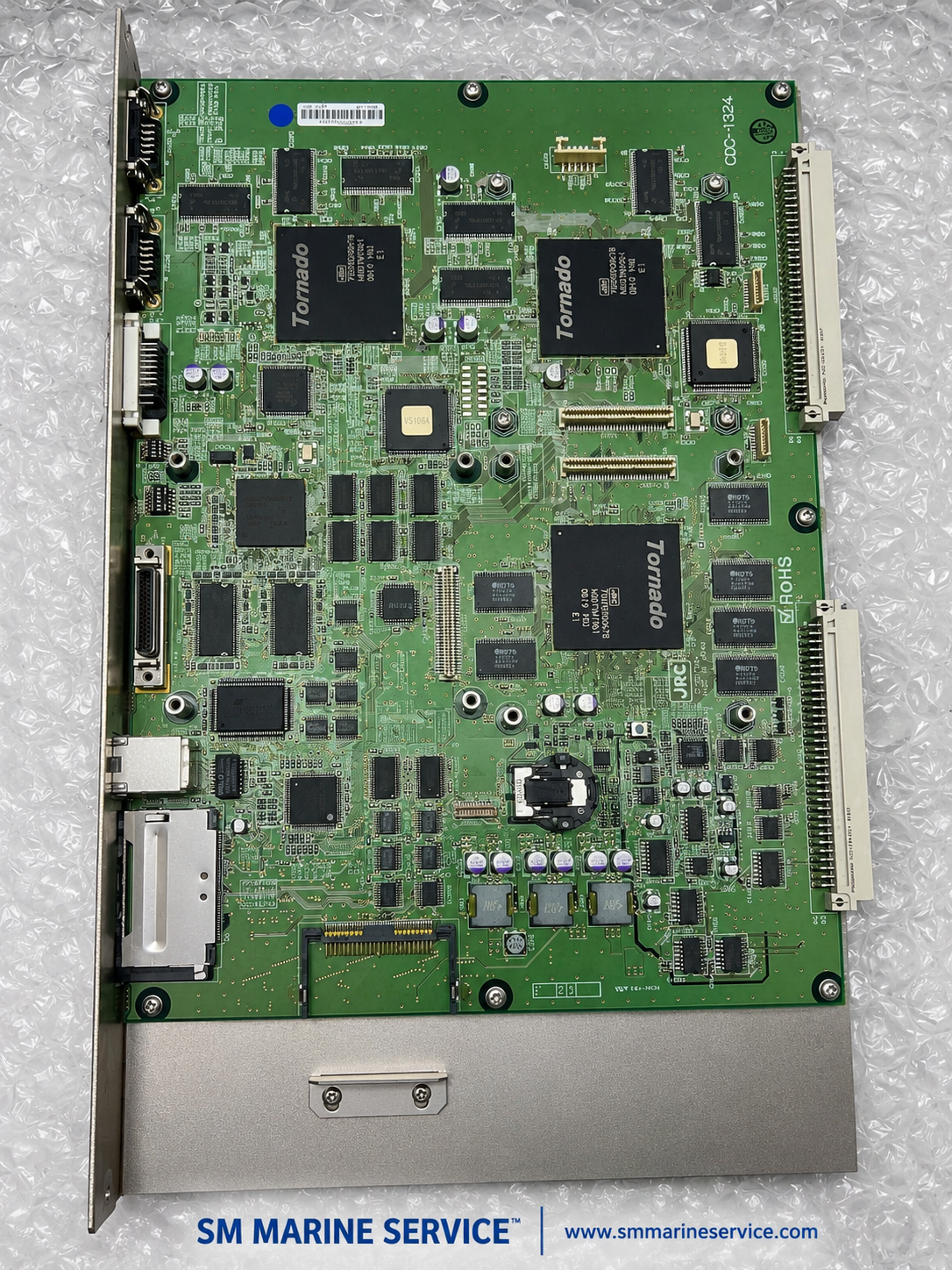

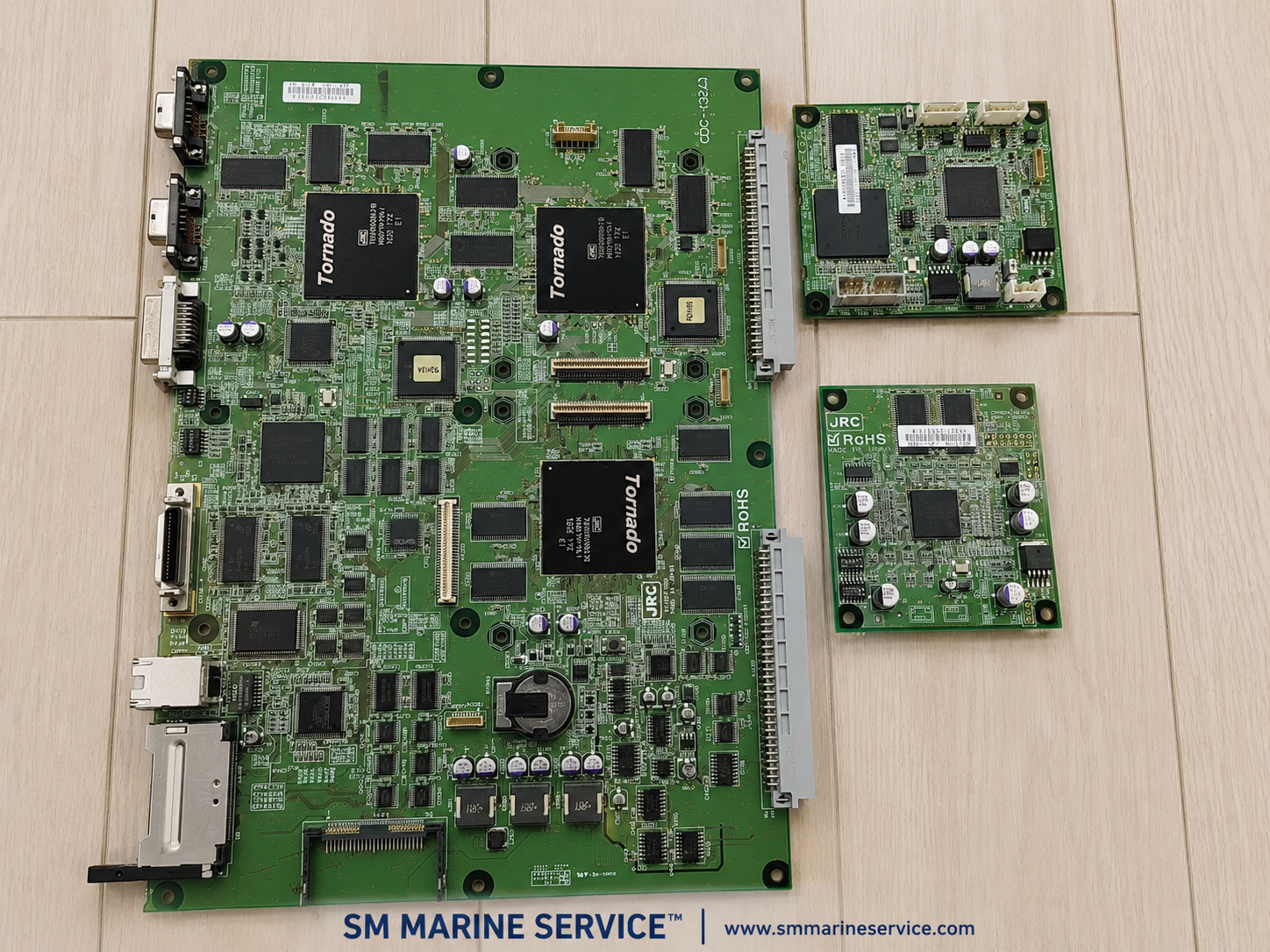

The board shown in your images contains multiple high-performance processors, memory devices, communication interfaces, and dedicated radar signal processing ICs, making it one of the most critical assemblies inside the radar display unit.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned JRC Marine Radar 9122 / 9132 Master Board PCBs, including processor boards, interface boards, CPU modules, memory boards, replacement electronic components, repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | Japan Radio Co., Ltd. (JRC) |
| Country of Origin | Japan |
| Product | Marine Radar Master Board PCB |
| Compatible Radar Models | JRC Marine Radar 9122 / 9132 (configuration dependent) |
| Product Type | Radar Processor / CPU Board |
| Primary Function | Radar Signal Processing & System Control |
| Installation | Radar Display Processor Unit |
The Master Board PCB is the central electronic controller of the radar display system. Every major radar function is coordinated through this board, including radar image generation, target processing, user interface management, communication with external navigation equipment, and system diagnostics.
Unlike smaller interface boards that perform dedicated functions, the Master Board integrates high-speed processors, memory, firmware, and communication controllers into a single platform.
The board manages communication with:
The JRC Radar Master Board PCB acts as the electronic "brain" of the radar system.
Its operating sequence is as follows:
This real-time processing allows navigators to detect surrounding vessels, coastlines, navigation marks, weather cells, and other targets with high accuracy.
The JRC Marine Radar 9122 / 9132 Master Board PCB is the central electronic controller inside the radar display processor. It integrates multiple high-performance processors, memory devices, communication interfaces, and dedicated radar control circuits to perform real-time radar signal processing and system management.
The Master CPU executes the radar operating software and controls every major function of the radar system.
Its responsibilities include:
The DSP circuitry performs high-speed processing of radar echo signals.
Functions include:
The Master Board contains multiple memory devices used for:
These memories ensure fast system performance and stable operation.
The video controller converts processed radar information into high-resolution radar images displayed on the radar monitor.
It supports:
The board communicates with various onboard navigation systems including:
Multiple communication ports provide connections for:
Dedicated voltage regulators provide clean, stable power for processors, memory devices, communication ICs, and high-speed digital circuits.
The onboard backup battery maintains:
during power interruptions.
Note: Specifications vary depending on radar software version and radar model.
| Specification | Details |
|---|---|
| Manufacturer | Japan Radio Co., Ltd. (JRC) |
| Compatible Models | JRC Marine Radar 9122 / 9132 |
| Product Type | Radar Master Board PCB |
| Function | Radar Processor / Main Control Board |
| Processor | High-Speed Embedded CPU |
| Memory | SDRAM & Flash Memory |
| Communication | Ethernet, Serial, Radar Interfaces |
| Navigation Inputs | GPS, AIS, Gyro, Speed Log |
| Installation | Radar Display Processor Unit |
| Marine Application | Navigation Radar |
The JRC Marine Radar 9122 / 9132 Master Board PCB is installed in radar systems operating aboard a wide variety of commercial and offshore vessels.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Radar does not boot | CPU or power circuit fault | Check input voltage and inspect power regulation circuit |
| Blank radar display | Video processing failure | Test display interface and video controller |
| No scanner communication | Interface controller fault | Inspect communication ports and scanner cable |
| System freezing | Corrupted firmware or memory error | Reload firmware and test Flash/SDRAM |
| Loss of navigation overlay | GPS or Gyro communication fault | Verify NMEA/Ethernet connections |
| Ethernet communication failure | Damaged LAN controller | Inspect Ethernet interface and connector |
| Intermittent operation | Loose connectors or cracked solder joints | Perform PCB inspection and rework if necessary |
| Backup settings lost | CMOS battery failure | Replace backup battery and restore configuration |
Professional PCB diagnostics using oscilloscopes, logic analyzers, and firmware verification tools are recommended for complex faults.
Proper maintenance significantly extends the service life of radar electronics.
The Master Board PCB is considered the "brain" of the radar system because it controls virtually every electronic function.
Its responsibilities include:
Without a healthy Master Board, the radar system cannot operate correctly.
It controls the complete radar system by processing radar signals, generating display images, communicating with navigation equipment, and executing the radar operating software.
This Master Board is commonly associated with JRC Marine Radar 9122 and 9132 series, depending on hardware revision and software configuration.
Frequently requested spare parts include:
Yes. Many faults involving processors, power circuits, memory devices, communication interfaces, damaged connectors, capacitor failures, and PCB-level electronic components can often be repaired by experienced marine electronics engineers.
Yes. We supply new, used, and professionally reconditioned JRC Marine Radar 9122 / 9132 Master Board PCBs, replacement electronic modules, repair services, and worldwide technical sourcing support.
The JRC Marine Radar 9122 / 9132 Master Board PCB is the primary processor board responsible for radar signal processing, navigation data integration, communication management, and display generation. Designed with advanced embedded processors and high-speed digital electronics, it ensures reliable operation of JRC marine radar systems installed on commercial and offshore vessels.
For installation, diagnostics, firmware updates, PCB replacement, troubleshooting, and maintenance, always refer to the official JRC Marine Radar 9122 / 9132 Service Manual, Installation Manual, Maintenance Manual, Circuit Diagram, and Parts Catalogue applicable to the specific radar model and board revision.
The JRC Marine Radar 9122 / 9132 Master Board PCB is one of the most important electronic assemblies within the radar system. Its advanced processing capability, robust architecture, and reliable communication interfaces ensure accurate radar target detection and dependable navigation in all marine environments.
Whether your vessel requires a complete Master Board PCB, CPU module, memory board, interface board, electronic repair, firmware support, or replacement spare parts, SM MARINE SERVICE™ provides professional marine electronics solutions with worldwide sourcing and technical assistance.
