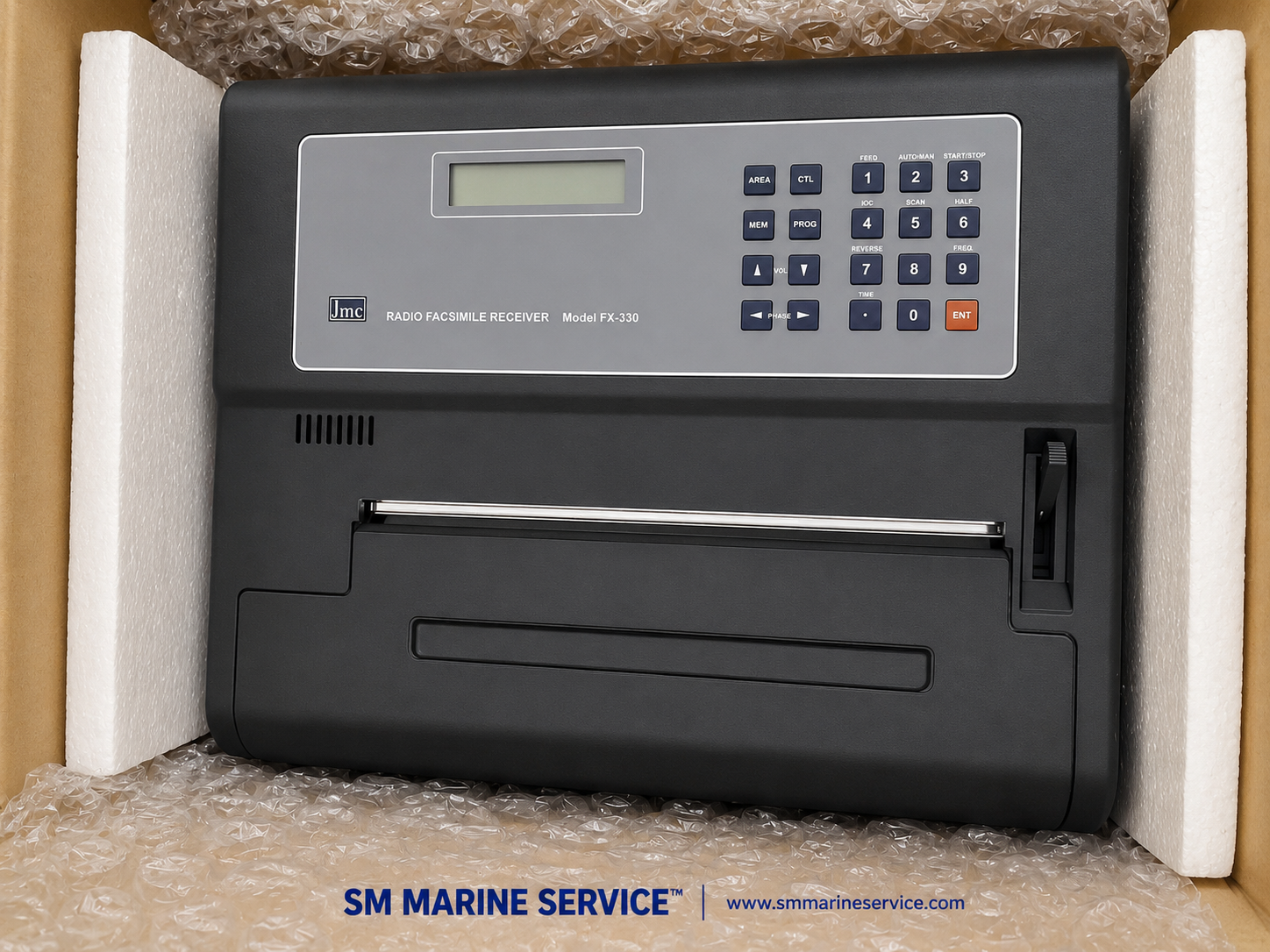

JMC FX-330 Radio Facsimile Receiver | Marine Weather Fax Receiver | Weather Chart Printing System, Spare Parts, Repair & Worldwide Supply | SM MARINE SERVICE™
The JMC FX-330 Radio Facsimile Receiver is a professional marine weather communication system manufactured by Japan Marina Co., Ltd. (JMC), Japan. It is specifically designed to receive, decode, and print HF Weather Facsimile (Weather Fax) broadcasts transmitted by meteorological organizations around the world.
The FX-330 enables ships at sea to receive high-quality graphical weather information without requiring satellite communication. Using HF radio frequencies, it automatically receives weather charts containing atmospheric pressure systems, wind forecasts, wave forecasts, tropical cyclone warnings, and ocean weather analysis.
Its compact design, built-in thermal printer, programmable automatic reception, and dependable Japanese engineering have made the FX-330 a trusted Weather Fax receiver on merchant ships, fishing vessels, offshore support vessels, research ships, and government fleets.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned JMC FX-330 Radio Facsimile Receivers, including thermal printer assemblies, print heads, LCD displays, power supply modules, processor PCBs, spare parts, repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | Japan Marina Co., Ltd. (JMC) |
| Country of Origin | Japan |
| Product Model | FX-330 |
| Product Type | Radio Facsimile (Weather Fax) Receiver |
| Reception Method | HF Weather Facsimile |
| Primary Function | Automatic Weather Chart Reception & Printing |
| Marine Application | Weather Forecast & Voyage Planning |
| Installation | Bridge / Radio Room |
The JMC FX-330 is a dedicated marine Weather Fax receiver designed to provide ships with reliable meteorological information while operating anywhere in the world. By receiving HF radio weather fax transmissions, it allows bridge officers to obtain detailed weather charts even when satellite services are unavailable or being used as a backup system.
Unlike NAVTEX, which mainly provides text-based safety messages, the FX-330 delivers complete graphical weather charts that help navigators understand:
These charts are automatically printed using the built-in thermal printer, providing a permanent onboard reference for voyage planning.
The JMC FX-330 receives analog Weather Facsimile broadcasts transmitted by international meteorological stations over HF radio frequencies.
The operating sequence is as follows:
The FX-330 supports automatic scheduled reception, enabling ships to receive weather charts without constant operator supervision.
The JMC FX-330 Radio Facsimile Receiver is built with high-quality marine electronic components designed for continuous operation in harsh shipboard environments. Each module works together to receive, decode, process, and print weather facsimile charts with excellent reliability.
The receiver continuously monitors selected HF weather fax frequencies transmitted by international meteorological stations.
Its functions include:
The front LCD screen provides important operating information, including:
The display enables operators to configure and monitor the receiver quickly and efficiently.
The integrated thermal printer automatically prints received weather charts with high resolution.
Typical printed information includes:
The thermal print head converts digital image data into printed weather charts on special thermal recording paper.
A clean and properly maintained print head ensures sharp, high-quality chart reproduction.
The processor PCB performs all major system functions, including:
The marine-grade power supply provides stable operating voltages for all electronic circuits while protecting the receiver against voltage fluctuations commonly experienced onboard ships.
The interface circuitry enables communication with:
Note: Specifications may vary depending on software version and installed options.
| Specification | Details |
|---|---|
| Manufacturer | Japan Marina Co., Ltd. (JMC) |
| Model | FX-330 |
| Country of Origin | Japan |
| Product Type | Radio Facsimile Receiver |
| Reception Method | HF Weather Fax |
| Display | LCD Display |
| Printing Method | Thermal Printing |
| Recording Media | Thermal Paper |
| Reception Mode | Automatic & Manual |
| Marine Application | Weather Forecast Reception |
| Installation | Bridge / Radio Room |
The JMC FX-330 is widely installed aboard commercial and government vessels requiring dependable weather forecasting information.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| No weather charts received | Incorrect frequency or weak HF signal | Verify frequency settings and inspect antenna system |
| Blank printing | Faulty thermal paper or worn print head | Replace thermal paper and inspect print head |
| Poor print quality | Dirty print head | Clean the print head using approved cleaning materials |
| LCD not operating | Power supply failure | Check fuse, input voltage, and PSU |
| Communication error | Loose interface connectors | Inspect all cables and connectors |
| Paper feeding problem | Feed roller contamination | Clean or replace feed rollers |
| Distorted weather chart | Weak reception or radio interference | Improve antenna installation and reception quality |
| Keypad malfunction | Front panel PCB fault | Inspect keypad assembly and control board |
Routine servicing helps maintain reliable reception and extends equipment life.
Regular preventive maintenance is essential for reliable operation.
Although satellite communications have become common, many commercial vessels continue using Weather Fax systems because they offer:
For many ship operators, Weather Fax remains an important backup source of meteorological information.
The FX-330 receives and prints weather facsimile charts transmitted over HF radio frequencies, providing ships with graphical weather forecasts for safe navigation.
No. It operates entirely through HF radio transmissions and does not depend on satellite communication services.
Frequently requested spare parts include:
Yes. Many faults involving the processor board, thermal printer, display module, power supply, keypad, and communication circuits can be repaired depending on equipment condition.
Yes. We supply complete JMC FX-330 Radio Facsimile Receivers, professionally reconditioned units, genuine and replacement spare parts, repair services, and worldwide technical sourcing support.
The JMC FX-330 Radio Facsimile Receiver is a professional marine Weather Fax receiver designed to receive and print high-quality meteorological charts transmitted via HF radio. Combining reliable Japanese engineering with automatic reception, thermal printing, and easy operation, the FX-330 remains a dependable weather forecasting solution for merchant and offshore vessels worldwide.

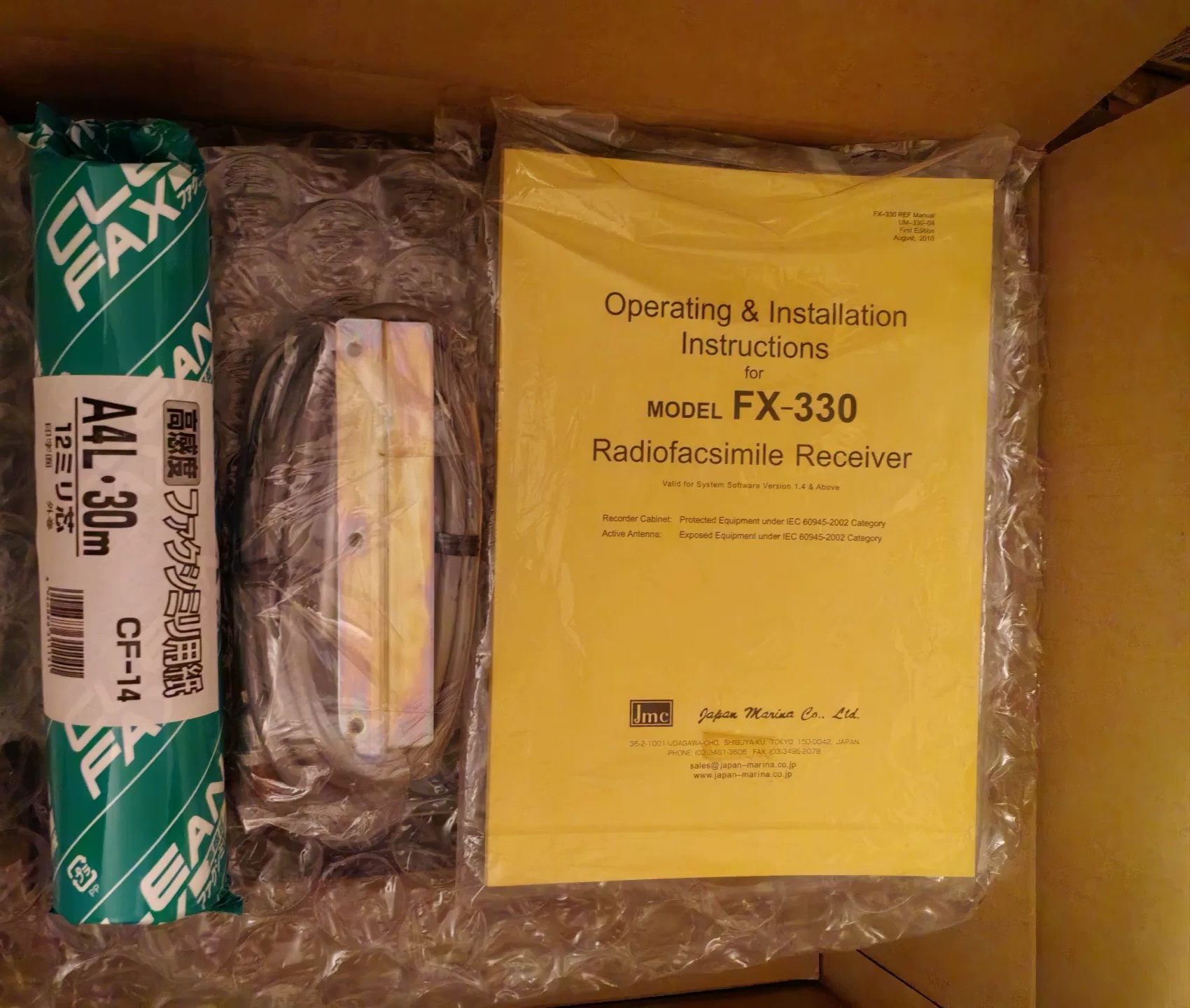

For installation, operation, troubleshooting, preventive maintenance, and spare parts identification, always consult the official JMC FX-330 Operating Manual, Installation Manual, Service Manual, and Parts Catalogue. Following the manufacturer's documentation ensures optimum system performance, accurate maintenance, and long-term reliability.
The JMC FX-330 Radio Facsimile Receiver continues to be a trusted marine communication system for receiving critical weather forecasts and oceanographic information. Its dependable HF reception, integrated thermal printer, automatic scheduling functions, and rugged Japanese construction make it an excellent backup weather information system for vessels operating worldwide.
Whether your vessel requires a complete JMC FX-330 system, thermal printer assembly, print head, LCD display, processor PCB, power supply module, replacement spare parts, or professional repair services, SM MARINE SERVICE™ provides reliable marine solutions with worldwide sourcing and technical support.
