Voyage Data Recorder (SVDR)
Netwave
Refurbished
Netwave NW-4000 Voyage Data Recorder (VDR / S-VDR) | Marine Black Box System | Fixed Hardened Storage Capsule NW-4800 | Spare Parts, Repair & Worldwide Supply | SM MARINE SERVICE™
The Netwave NW-4000 Voyage Data Recorder (VDR / S-VDR) is a professional IMO-compliant marine Black Box system developed by Netwave Systems B.V., Netherlands. It continuously records vital navigation and operational data from onboard equipment, allowing investigators and ship operators to reconstruct events before, during, and after an incident.
Similar to an aircraft flight recorder, the NW-4000 automatically stores information from multiple bridge systems, including GPS, AIS, Radar, ECDIS, Gyro Compass, Echo Sounder, Speed Log, Bridge Audio, VHF communications, engine commands, alarms, and other navigational signals.
The system is designed to withstand harsh marine environments while ensuring reliable data preservation through its NW-4800 Fixed Hardened Storage Capsule, which protects recorded information against fire, impact, vibration, and prolonged immersion after an accident.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned Netwave NW-4000 VDR/S-VDR systems, including Data Acquisition Units (DAU), Fixed Hardened Storage Capsules (NW-4800), Remote Control Panels, Interface Modules, Power Supply Units, spare parts, repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | Netwave Systems B.V. |
| Country of Origin | Netherlands |
| Product Model | NW-4000 |
| Storage Capsule | NW-4800 Fixed Hardened Storage Capsule |
| Product Type | Voyage Data Recorder (VDR / S-VDR) |
| Primary Function | Continuous Recording of Navigation & Bridge Data |
| Marine Application | Ship Safety & Accident Investigation |
| Compliance | IMO Performance Standards & SOLAS |
The Netwave NW-4000 is one of the most important safety systems installed on modern commercial vessels. It continuously gathers operational data from navigation and communication equipment and securely stores this information inside a crash-protected recording capsule.
The system records critical information such as:
In the event of a marine accident, this information enables investigators to accurately reconstruct the vessel's operations and determine the sequence of events.
The Netwave NW-4000 continuously receives information from multiple onboard systems through dedicated interface modules.
Its operating sequence is as follows:
The Netwave NW-4000 Voyage Data Recorder (VDR / S-VDR) is a sophisticated marine safety system composed of several intelligent modules that continuously collect, synchronize, monitor, and securely store critical voyage information. Every component is designed for continuous operation under harsh marine conditions while complying with IMO and SOLAS performance requirements.

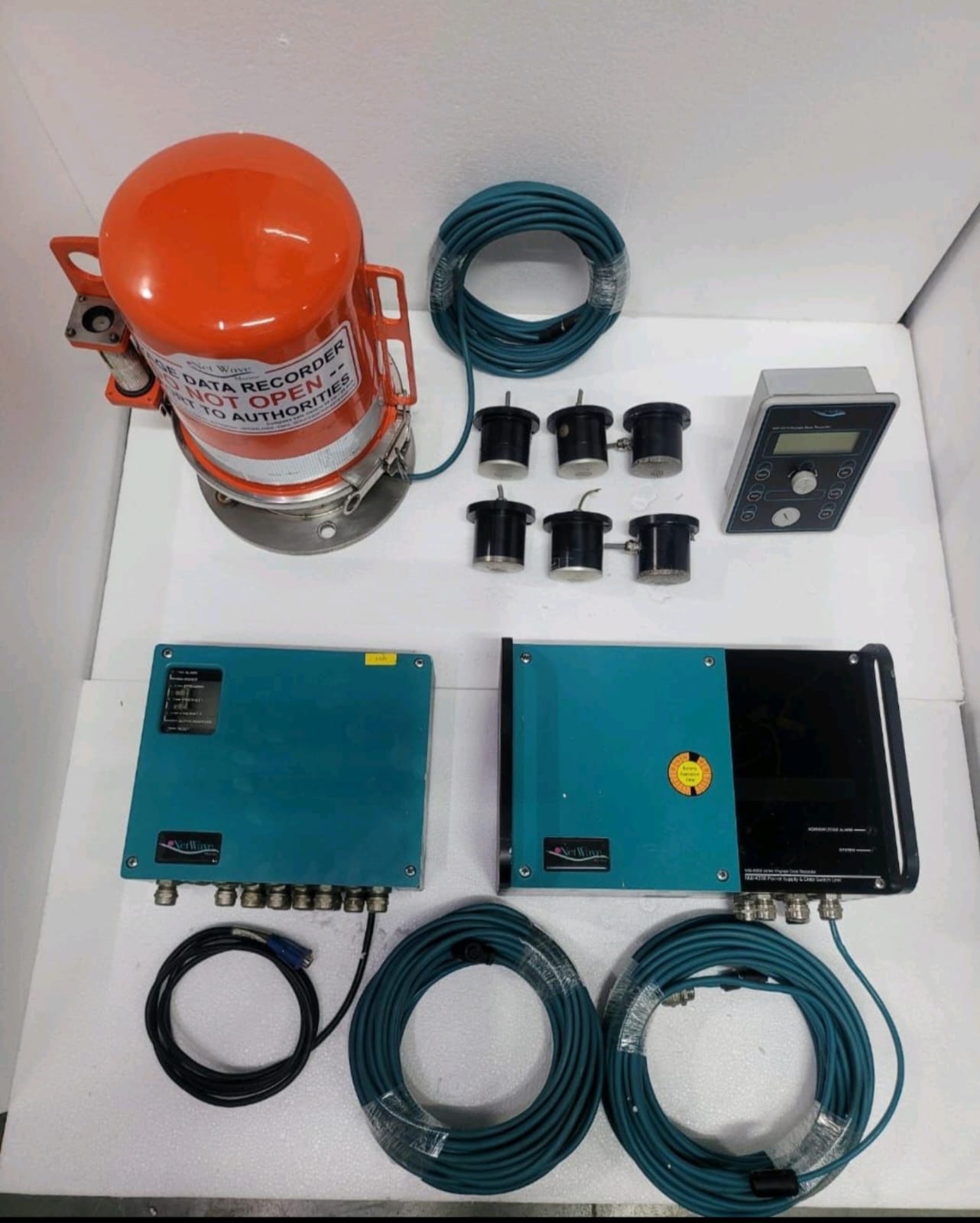

The NW-4800 Fixed Hardened Storage Capsule is the heart of the VDR system and is clearly visible in your product image as the large orange capsule.
This capsule is specially engineered to survive:
It securely stores all recorded voyage data, allowing investigators to recover vital information after an accident.
The Data Acquisition Unit collects information from various navigation and communication systems installed onboard.
Typical connected equipment includes:
The DAU synchronizes and forwards all incoming data to the recording system.
The processor manages the entire recording operation by:
The bridge-mounted Remote Control Panel enables officers to:
Its simple interface ensures quick operation during normal navigation and inspections.
Dedicated bridge microphones continuously record:
These recordings become essential evidence during accident investigations.
The NW-4000 automatically records:
Multiple interface modules allow communication with modern bridge equipment using standard marine communication protocols.
Supported equipment typically includes:
A dedicated marine-grade power supply provides stable operating voltage during normal ship operation and emergency conditions, ensuring uninterrupted recording.
Note: Specifications may vary depending on software version and vessel configuration.
| Specification | Details |
|---|---|
| Manufacturer | Netwave Systems B.V. |
| Model | NW-4000 |
| Country of Origin | Netherlands |
| Product Type | Voyage Data Recorder (VDR / S-VDR) |
| Storage Capsule | NW-4800 Fixed Hardened Storage Capsule |
| Compliance | IMO Performance Standards & SOLAS |
| Recording | Continuous Automatic Recording |
| Audio Recording | Bridge Audio & VHF |
| Navigation Inputs | GPS, Radar, ECDIS, AIS, Gyro, Echo Sounder, Speed Log |
| Installation | Bridge, Mast & Equipment Room |
| Operation | Continuous 24/7 Recording |
The Netwave NW-4000 is installed aboard numerous commercial and offshore vessels worldwide.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| System alarm | Interface communication failure | Inspect DAU connections and communication cables |
| GPS data missing | GPS interface fault | Verify GPS receiver and interface wiring |
| No audio recording | Faulty microphone or audio module | Test microphones and audio interface |
| Radar image missing | Video interface problem | Inspect radar interface board |
| Capsule communication error | Storage capsule cable fault | Inspect NW-4800 connection |
| Power supply alarm | PSU or backup battery problem | Check power module and emergency supply |
| Data synchronization error | Processor software issue | Perform diagnostics and software verification |
| Equipment offline | Loose connectors or damaged interface board | Inspect connectors and replace faulty PCB if necessary |
Routine inspections and annual testing significantly improve long-term system reliability.
Routine preventive maintenance helps ensure compliance with IMO regulations and uninterrupted operation.
The Netwave NW-4000 Voyage Data Recorder remains a trusted marine safety system because it provides:
Its ability to preserve vital voyage information makes it one of the most important safety systems installed aboard modern vessels.
The NW-4000 continuously records navigation data, bridge audio, radar, ECDIS, GPS, AIS, alarms, engine commands, and communication data to support safety management and accident investigations.
The NW-4800 is the Fixed Hardened Storage Capsule, designed to protect recorded voyage data against fire, impact, vibration, and underwater immersion.
Common spare parts include:
Yes. Many faults involving the processor, DAU, interface boards, power supply, remote control panel, and communication modules can often be repaired depending on equipment condition.
Yes. We supply complete Netwave NW-4000 VDR/S-VDR systems, professionally reconditioned units, NW-4800 storage capsules, replacement spare parts, repair services, and worldwide technical sourcing support.
The Netwave NW-4000 Voyage Data Recorder (VDR/S-VDR) is a professional IMO-compliant marine Black Box system designed to continuously record navigation data, bridge communications, radar images, ECDIS information, AIS targets, GPS position, alarms, and operational events. Combined with the NW-4800 Fixed Hardened Storage Capsule, it provides secure long-term data preservation for accident investigation, safety management, and regulatory compliance.
For installation, commissioning, troubleshooting, software configuration, Annual Performance Testing (APT), and preventive maintenance, always consult the official Netwave NW-4000 Operator's Manual, Installation Manual, Service Manual, APT Manual, and Spare Parts Catalogue corresponding to your installed system version.
The Netwave NW-4000 Voyage Data Recorder is a proven marine safety solution trusted by ship owners and operators worldwide. Its intelligent data acquisition, secure recording architecture, and robust NW-4800 Fixed Hardened Storage Capsule provide reliable protection of critical voyage information, helping improve navigational safety and supporting accident investigations.
Whether your vessel requires a complete Netwave NW-4000 VDR, NW-4800 Storage Capsule, Data Acquisition Unit, Remote Control Panel, Interface Module, PCB repair, spare parts, or technical assistance, SM MARINE SERVICE™ offers professional support with worldwide sourcing and delivery.
