MAN Diesel & Turbo Local Control Panel (LCP)

The MAN Diesel & Turbo Local Control Panel (LCP) is a critical marine automation device designed to provide local engine operation, monitoring, and protection for MAN two-stroke and four-stroke marine diesel engines. Installed near the main engine, this panel enables engineers to safely start, stop, monitor RPM, switch between local and remote control, and manage engine protection functions during maintenance, commissioning, or emergency operation.

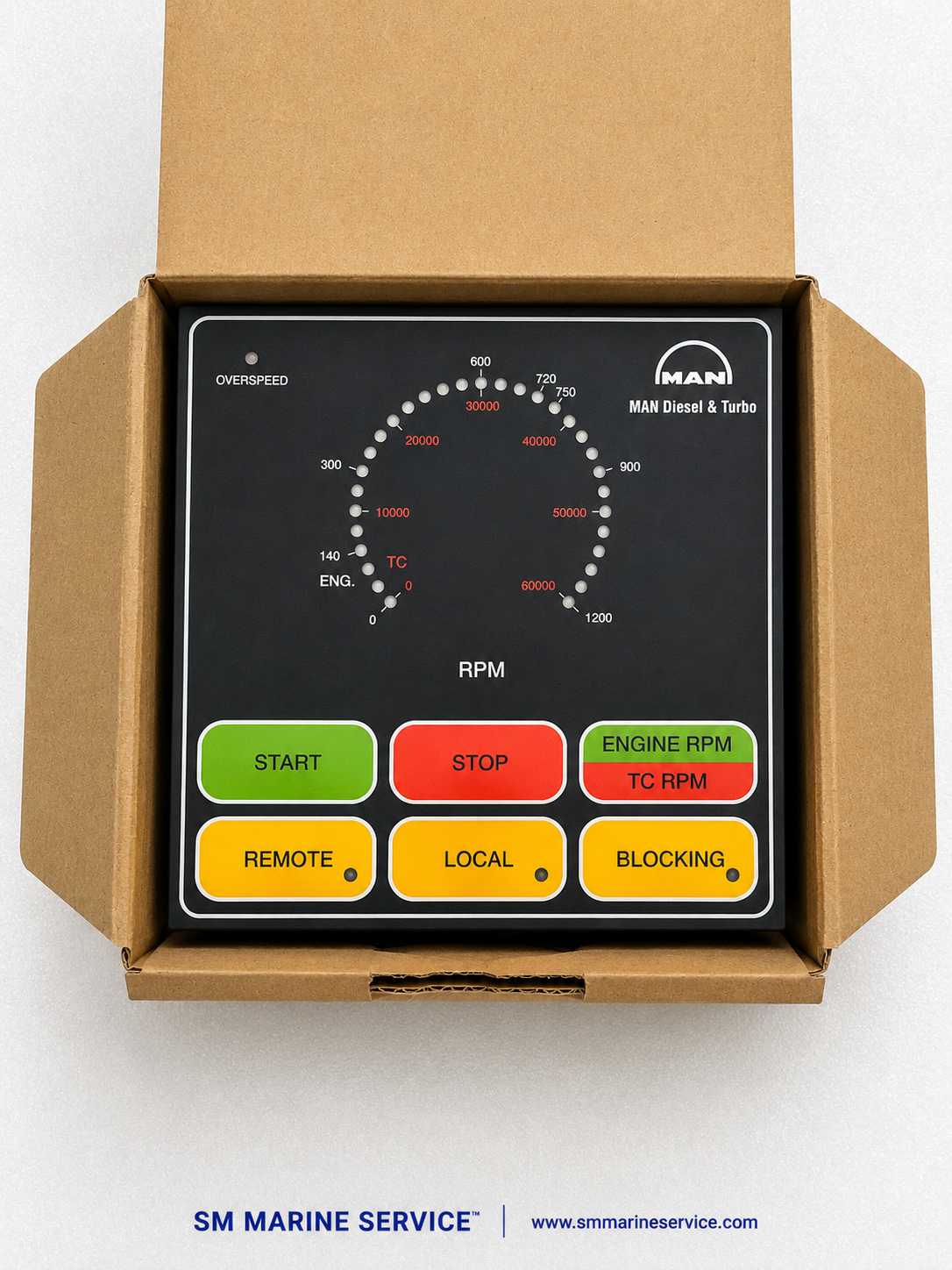

Based on the uploaded photos, the unit includes:

• Local Start/Stop Controls
• Remote/Local Selection
• Blocking Function
• Engine RPM Display
• Turbocharger (TC) RPM Monitoring
• Overspeed Indication

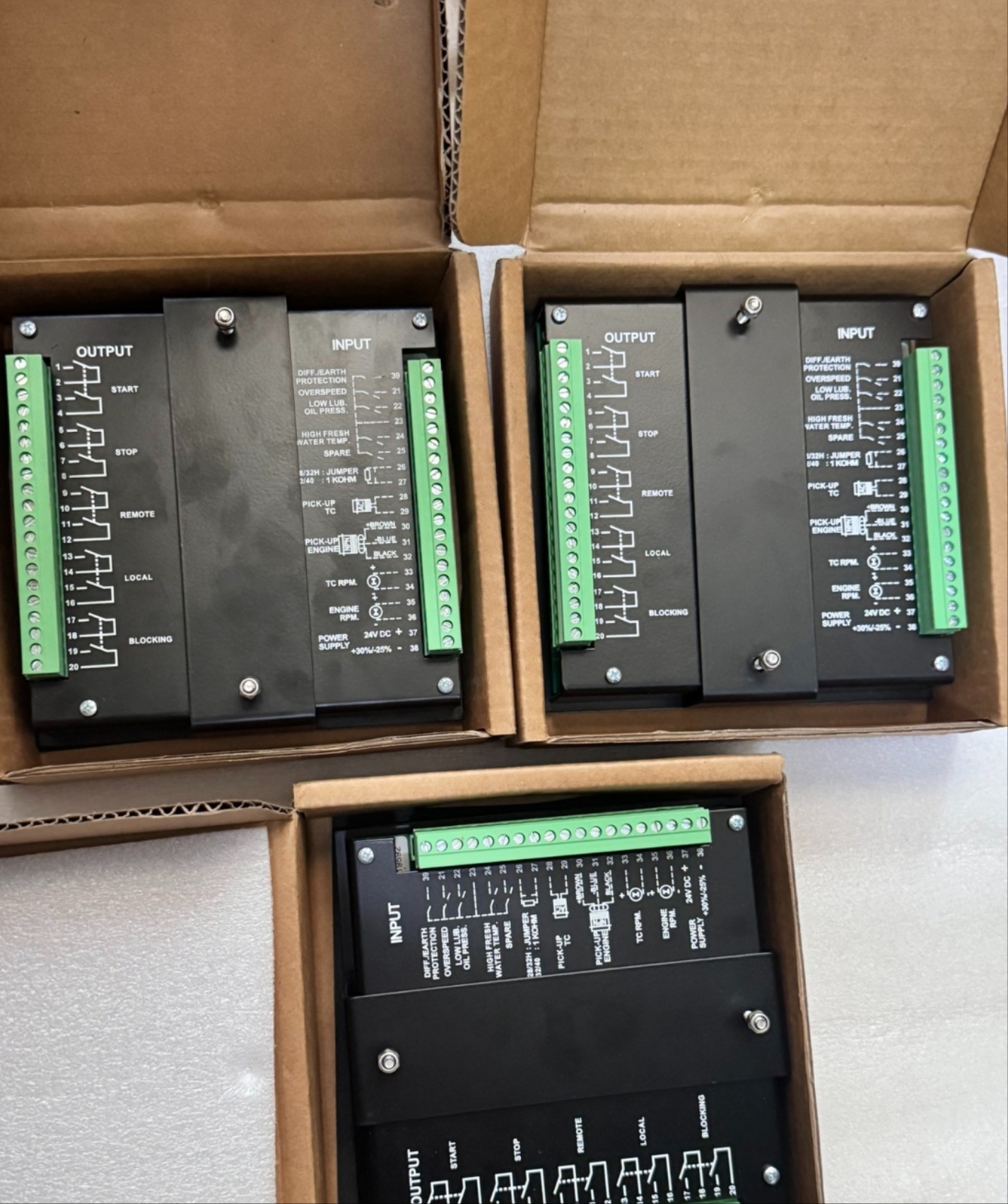

• Input/Output Terminal Modules
• Engine Protection Inputs

This type of Local Control Panel is widely used on MAN-powered merchant vessels, offshore ships, and marine power plants where reliable engine control is essential.

SM MARINE SERVICE™ supplies new, reconditioned, and fully tested MAN Diesel & Turbo Local Control Panels, along with compatible electronic modules, spare parts, and technical support for vessels worldwide.

---

Manufacturer

MAN Diesel & Turbo (MAN Energy Solutions)

Country of Origin

Germany

Product Type

Marine Main Engine Local Control Panel (LCP)

Marine Application

• Main Engine Automation
• Engine Local Operation
• Engine Start/Stop Control
• Engine Protection System
• Marine Propulsion Automation

What Is the MAN Diesel & Turbo Local Control Panel?

The MAN Diesel & Turbo Local Control Panel (LCP) is an intelligent engine-side control station that allows engineers to safely operate the main propulsion engine directly from the engine room. While the engine is normally controlled from the bridge or Engine Control Room (ECR), the LCP provides complete local operation during maintenance, sea trials, troubleshooting, commissioning, and emergency situations.

The panel communicates with the engine automation system and continuously monitors engine status, safety interlocks, overspeed protection, RPM signals, and operating modes. It ensures that the engine can only be started when all protection conditions are satisfied.

The Local Control Panel is an essential component of modern MAN marine propulsion systems and is widely installed on commercial vessels around the world.

SM MARINE SERVICE™ supplies complete Local Control Panels, Input/Output Modules, Display Units, PCB Assemblies, RPM Indicators, Terminal Boards, and related marine automation spare parts.

---

Main Features

The MAN Local Control Panel provides reliable engine control and protection through a range of advanced functions, including:

• Local Engine Start
• Local Engine Stop
• Local/Remote Control Selection
• Engine Blocking Function
• Engine RPM Monitoring
• Turbocharger (TC) RPM Monitoring
• Overspeed Protection Indication
• LED Status Indicators
• High-Speed Digital Inputs
• Relay Output Control
• Engine Safety Interlock Monitoring
• Alarm Monitoring
• Engine Protection Interface
• PLC Communication
• Rugged Marine Construction
• Low Maintenance Design
• High Reliability in Engine Room Environments

---

Main Components

The system generally consists of the following major components:

• Local Operator Panel
• Engine RPM Indicator
• Turbocharger RPM Indicator
• Input Module
• Output Relay Module
• Engine Protection Circuit
• Overspeed Detection Circuit
• Digital Input Terminal Board
• Relay Output Terminal Board
• Microprocessor Control Board
• Communication Interface
• Power Supply Module
• Terminal Connectors
• Industrial Enclosure
• Status LEDs
• Wiring Harnesses

---

Input Signals

Typical input signals include:

• Differential Pressure Protection
• Earth Fault Protection
• Overspeed Signal
• Low Lubricating Oil Pressure
• High Fresh Water Temperature
• Emergency Stop
• Engine Speed Pickup
• Turbocharger Speed Pickup
• Remote Start Command
• Local Start Command
• Blocking Signal
• Engine Running Feedback
• Safety Interlock Status
• PLC Communication Signals

---

Output Signals

Typical output functions include:

• Engine Start Command
• Engine Stop Command
• Remote Mode Output
• Local Mode Output
• Blocking Output
• Running Status Output
• Alarm Output
• Overspeed Trip Output
• Relay Status
• PLC Feedback Signals

---

Marine Applications

The MAN Diesel & Turbo Local Control Panel is commonly installed on:

• MAN Two-Stroke Main Engines
• MAN Four-Stroke Marine Engines
• Propulsion Control Systems
• Engine Room Automation Systems
• Offshore Power Plants
• Marine Diesel Power Stations

Typical vessel applications include:

• Container Ships
• Bulk Carriers
• Crude Oil Tankers
• Chemical Tankers
• Product Tankers
• LNG Carriers
• LPG Carriers
• Offshore Support Vessels
• Platform Supply Vessels
• Drill Ships
• Ro-Ro Vessels
• Passenger Ships
• Naval Ships

---

Common Problems & Troubleshooting

Engine Will Not Start

Possible Causes

• Low lubricating oil pressure
• Active engine protection
• Emergency stop activated
• Blocking mode enabled
• Faulty RPM pickup
• Loose wiring connection
• PLC communication fault

Recommended Solution

• Verify all engine permissive conditions.
• Check safety inputs and reset alarms.
• Inspect RPM sensors and terminal wiring.

---

Local Mode Cannot Be Selected

Possible causes include:

• Remote control lock active
• PLC communication error
• Faulty selector switch
• Internal relay malfunction

---

Engine RPM Not Displayed

Possible causes:

• Failed magnetic pickup
• Broken signal cable
• Faulty RPM processing board
• Incorrect sensor gap

---

Turbocharger RPM Failure

Possible causes:

• Damaged TC pickup sensor
• Loose cable
• Sensor contamination
• Signal processing board fault

---

Overspeed Alarm

Possible causes:

• Actual engine overspeed
• Incorrect pickup calibration
• Noise in sensor wiring
• Faulty overspeed circuit

Never bypass an overspeed protection alarm without first identifying and correcting the root cause.

---

Local Panel Completely Dead

Possible causes:

• Power supply failure
• Blown fuse
• Loose terminal connection
• Internal power board failure

---

Preventive Maintenance

To maximize service life and ensure dependable operation:

• Inspect all terminal connections regularly.
• Clean dust and oil from the front panel.
• Test Start/Stop functions during scheduled maintenance.
• Verify RPM readings against engine instruments.
• Check LED indicators for proper operation.
• Inspect all relay outputs.
• Tighten terminal screws periodically.
• Check communication cables for damage.
• Test engine protection circuits.
• Replace damaged membrane switches or indicator lamps promptly.

---

Why Ships Still Use This Local Control Panel

Many vessels continue to operate this MAN Local Control Panel because it offers:

• Extremely reliable operation
• Simple and intuitive controls
• Proven marine performance
• Long operational life
• Easy maintenance
• Robust industrial construction
• High spare-parts availability
• Compatibility with existing MAN engine automation systems
• Reliable emergency local operation

---

Frequently Asked Questions (FAQ)

What is the purpose of the MAN Local Control Panel?

It allows engineers to start, stop, monitor, and protect the main engine directly from the engine room during maintenance, testing, or emergency operation.

Can this panel operate independently of the bridge?

Yes. When Local Mode is selected and operating conditions permit, the panel can control the engine locally according to the engine automation logic.

What does the Blocking function do?

The Blocking function prevents unwanted engine commands during maintenance or specific operational procedures, helping improve safety.

What RPM values are displayed?

The panel typically displays both Engine RPM and Turbocharger (TC) RPM, allowing engineers to monitor propulsion and turbocharger performance simultaneously.

Does SM MARINE SERVICE™ provide repair services?

Yes. We offer diagnostics, repair support, replacement units, and spare parts for MAN Diesel & Turbo Local Control Panels and related engine automation equipment.

---

Short Product Description

The MAN Diesel & Turbo Local Control Panel (LCP) is a marine engine control interface designed for local engine operation, RPM monitoring, safety interlocks, and engine protection. It supports start/stop control, local/remote mode selection, blocking functions, overspeed indication, and communication with the engine automation system. Built for demanding marine environments, it delivers dependable performance and long-term reliability.

---

User Manual & Technical Resources

Recommended references include:

• MAN B&W ME Engine Local Control Panel Manual
• MAN Diesel & Turbo Engine Automation Manual
• MAN Local Control System Operating Manual
• MAN Engine Safety System Manual
• MAN Engine Commissioning Guide
• MAN Main Engine Electrical Drawings
• MAN Spare Parts Catalogue
• MAN Engine Maintenance Manual
• MAN Engine Alarm & Protection Manual

Always ensure that manuals correspond to the exact engine type, control system version, and Local Control Panel model installed on your vessel.

---
