GEA Westfalia Separator Operator Panel (HMI)

The GEA Westfalia Separator Operator Panel (HMI) is the primary human-machine interface used to operate, monitor, and configure GEA Westfalia marine centrifugal separators installed on vessels worldwide. It enables engineers to control separator operation, monitor alarms, adjust process parameters, and perform diagnostics directly from the purifier control system.

The operator panel is widely installed on fuel oil purifiers, lube oil purifiers, sludge separators, and various centrifugal separation systems used in merchant ships, offshore vessels, power plants, and industrial processing facilities.

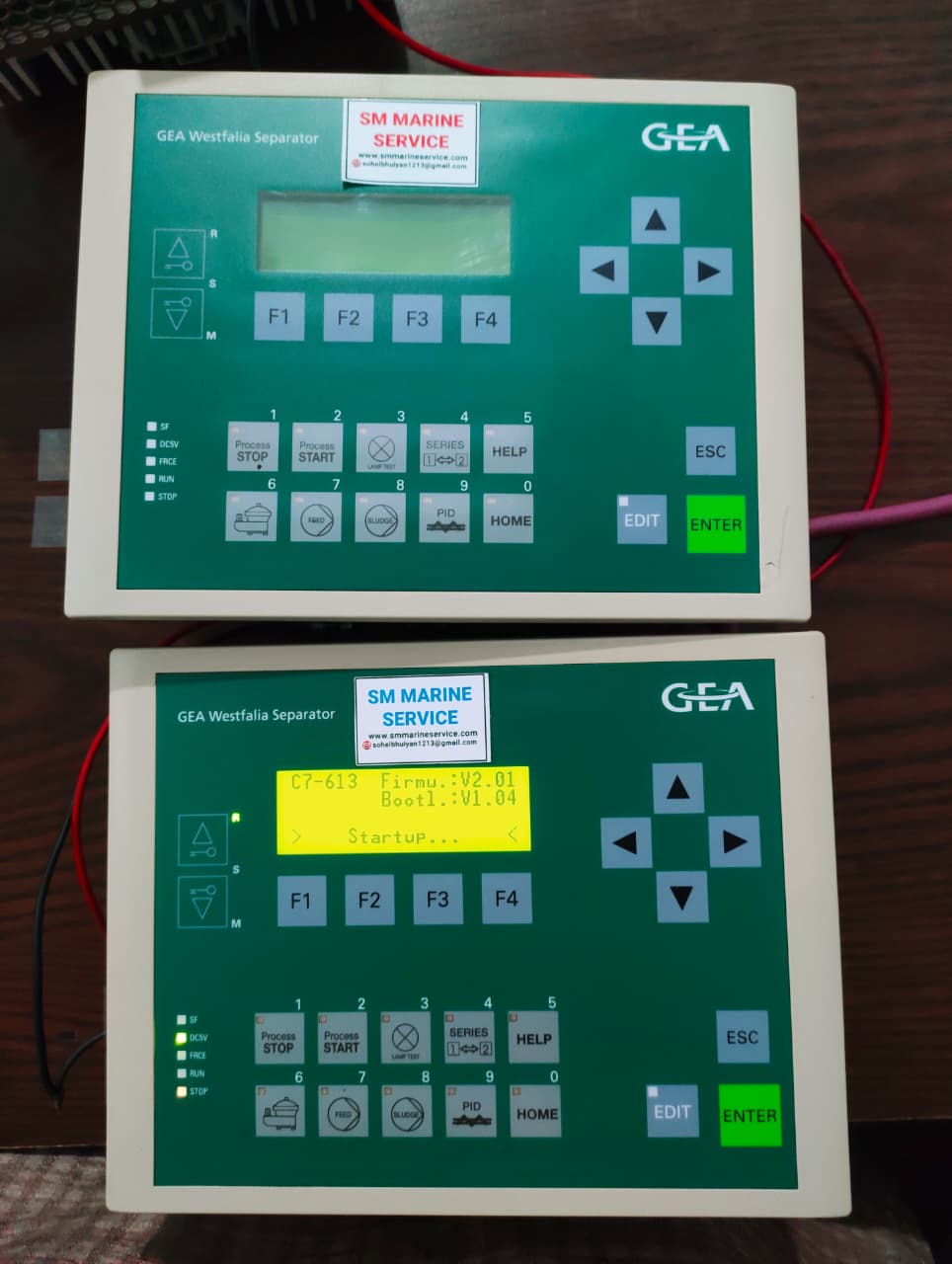

Your uploaded unit appears to be a GEA Westfalia Separator C7-613 Operator Panel, showing Firmware V2.01 and Bootloader V1.04, which is commonly found on modern GEA separator automation systems.

SM MARINE SERVICE™ supplies new, reconditioned, tested, and fully functional GEA Westfalia Operator Panels, complete with worldwide technical support and international shipping.

---

Manufacturer

GEA Westfalia Separator

Country of Origin

Germany

Product Type

Marine Operator Panel (HMI)

Marine Application

• Fuel Oil Purifier
• Lube Oil Purifier
• Centrifugal Separator
• Marine Automation System
• Engine Room Control System

---

What Is the GEA Westfalia Operator Panel?

The operator panel serves as the communication interface between the marine engineer and the separator control unit. It displays operating status, process values, alarms, maintenance reminders, and allows complete control of separator operation.

Unlike conventional push-button panels, this intelligent HMI stores operating parameters, supports diagnostics, and significantly simplifies maintenance procedures.

The panel communicates with the separator PLC through an industrial communication network, ensuring stable and reliable automation even in harsh marine environments.

SM MARINE SERVICE™ supports a wide range of GEA Westfalia automation equipment, including HMIs, PLC modules, power supplies, display boards, membrane keypads, CPUs, communication cards, and complete separator control systems.

Main Features

The GEA Westfalia Separator Operator Panel is engineered to deliver reliable and intuitive control of marine centrifugal separators operating under demanding engine room conditions.

Its key features include:

• High-contrast LCD display for operational status and alarms
• User-friendly membrane keypad with dedicated function keys
• Process Start and Process Stop controls
• Alarm acknowledgement and reset functions
• Real-time separator monitoring
• Automatic operating sequence control
• Parameter configuration and adjustment
• Service and maintenance menus
• Password-protected engineering settings
• PID control parameter adjustment
• Sludge discharge monitoring
• Feed control interface
• Communication with separator PLC
• Multi-language software support (depending on firmware)
• Self-diagnostic capability
• Long service life designed for marine environments

SM MARINE SERVICE™ provides tested replacement operator panels, LCD modules, membrane keyboards, communication boards, and related spare parts.

---

Main Components

The GEA Operator Panel consists of several integrated electronic modules:

• LCD Display Module
• Membrane Keypad
• Function Keys (F1–F4)
• Navigation Keypad
• CPU Control Board
• Power Supply Circuit
• Communication Interface
• Alarm LED Indicators
• Firmware Memory
• Bootloader
• Serial Communication Port
• Internal Connectors
• Industrial Housing
• Protective Front Panel
• Mounting Frame

---

Marine Applications

The GEA Westfalia Operator Panel is widely installed on:

• Fuel Oil Purifiers
• Lube Oil Purifiers
• Heavy Fuel Oil Treatment Systems
• Diesel Oil Purifiers
• Marine Centrifugal Separators
• Sludge Separators
• Waste Oil Treatment Systems
• Engine Room Automation Systems
• Offshore Platforms
• FPSO Facilities
• Power Generation Plants
• Industrial Separation Systems

It is commonly found on:

• Container Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG Carriers
• LPG Carriers
• Offshore Support Vessels
• Drill Ships
• Passenger Ships
• Naval Vessels

---

Common Problems & Troubleshooting

Blank LCD Display

Possible Causes

• No power supply
• Internal fuse failure
• LCD module failure
• Power PCB fault

Recommended Solution

• Verify supply voltage.
• Inspect internal power circuitry.
• Replace faulty LCD or power module if required.

---

Membrane Keys Not Responding

Possible Causes

• Damaged membrane keypad
• Ribbon cable loose
• Internal PCB failure

Solution

• Check keypad connector.
• Replace membrane keypad.
• Test control PCB.

---

Communication Error

Possible causes include:

• PLC communication failure
• Broken communication cable
• Interface board malfunction
• Incorrect communication settings

---

Startup Freeze

If the panel remains at the startup screen (similar to the image you uploaded):

• Check PLC communication.
• Verify firmware integrity.
• Inspect the power supply.
• Restart the separator controller.
• Confirm all communication cables are properly connected.

---

Frequent Alarm Messages

Possible causes include:

• Dirty separator bowl
• Solenoid valve malfunction
• Water pressure issues
• Speed sensor fault
• Temperature sensor fault
• Pressure switch failure
• PLC input/output error

---

Preventive Maintenance

For maximum service life:

• Keep the operator panel clean and dry.
• Protect the display from oil contamination.
• Avoid pressing keys with sharp objects.
• Inspect communication connectors regularly.
• Check panel mounting screws for vibration loosening.
• Update firmware only using approved GEA procedures.
• Verify LCD readability during routine maintenance.
• Test all function keys during scheduled inspections.
• Perform periodic backup of operating parameters when applicable.

---

Why Ships Still Use the GEA Westfalia Operator Panel

Despite newer HMI technologies, many vessels continue to operate these panels because they offer:

• Exceptional long-term reliability
• Proven marine performance
• Easy operation for engineers
• Stable PLC communication
• High spare-part availability
• Low maintenance requirements
• Excellent diagnostic capability
• Long operational lifespan
• Compatibility with existing separator systems

For these reasons, the GEA Westfalia Operator Panel remains a trusted solution on thousands of commercial vessels worldwide.

---

Frequently Asked Questions (FAQ)

What does the GEA Westfalia Operator Panel control?

It controls the complete operation of marine centrifugal separators, including start/stop, sludge discharge, alarm monitoring, and process parameter adjustments.

Can the LCD display be replaced?

Yes. The LCD module can generally be replaced if it becomes damaged or unreadable.

Does the panel require calibration?

The HMI itself typically does not require calibration, but connected sensors and separator control components should be checked during scheduled maintenance.

Can SM MARINE SERVICE™ repair this operator panel?

Yes. We provide inspection, diagnostics, repair support, replacement units, and worldwide sourcing for many GEA Westfalia operator panels and automation spare parts.

Is this panel available as reconditioned equipment?

Yes. Depending on stock availability, both new and professionally reconditioned units are available.

---

Short Product Description

The GEA Westfalia Separator Operator Panel (HMI) is an intelligent marine control interface designed for fuel oil, lube oil, and sludge separators. It provides reliable process monitoring, alarm handling, parameter configuration, and system diagnostics. Built for harsh engine-room environments, it delivers dependable long-term performance and easy operation for marine engineers.

---
