KAWASAKI / NABCO Bow Thruster Control Panel – Marine Bow Thruster Remote Control System



---

Title

KAWASAKI / NABCO Bow Thruster Control Panel | Marine Bow Thruster Remote Control System | Repair, Spare Parts, Manual & Worldwide Supplier | SM MARINE SERVICE™

---

Description

Manufacturer

Kawasaki Heavy Industries, Ltd. / NABCO (Nabtesco Corporation)

Country of Origin

Japan

Product Type

Marine Bow Thruster Control Panel

Marine Application

Bow Thruster Remote Control & Monitoring System

---

Product Introduction

The KAWASAKI / NABCO Bow Thruster Control Panel is an essential bridge maneuvering device used to control a vessel's bow thruster during docking, undocking, harbor operations, and low-speed maneuvering. It allows the operator to safely control thrust direction, monitor equipment status, acknowledge alarms, and supervise system readiness from the bridge.

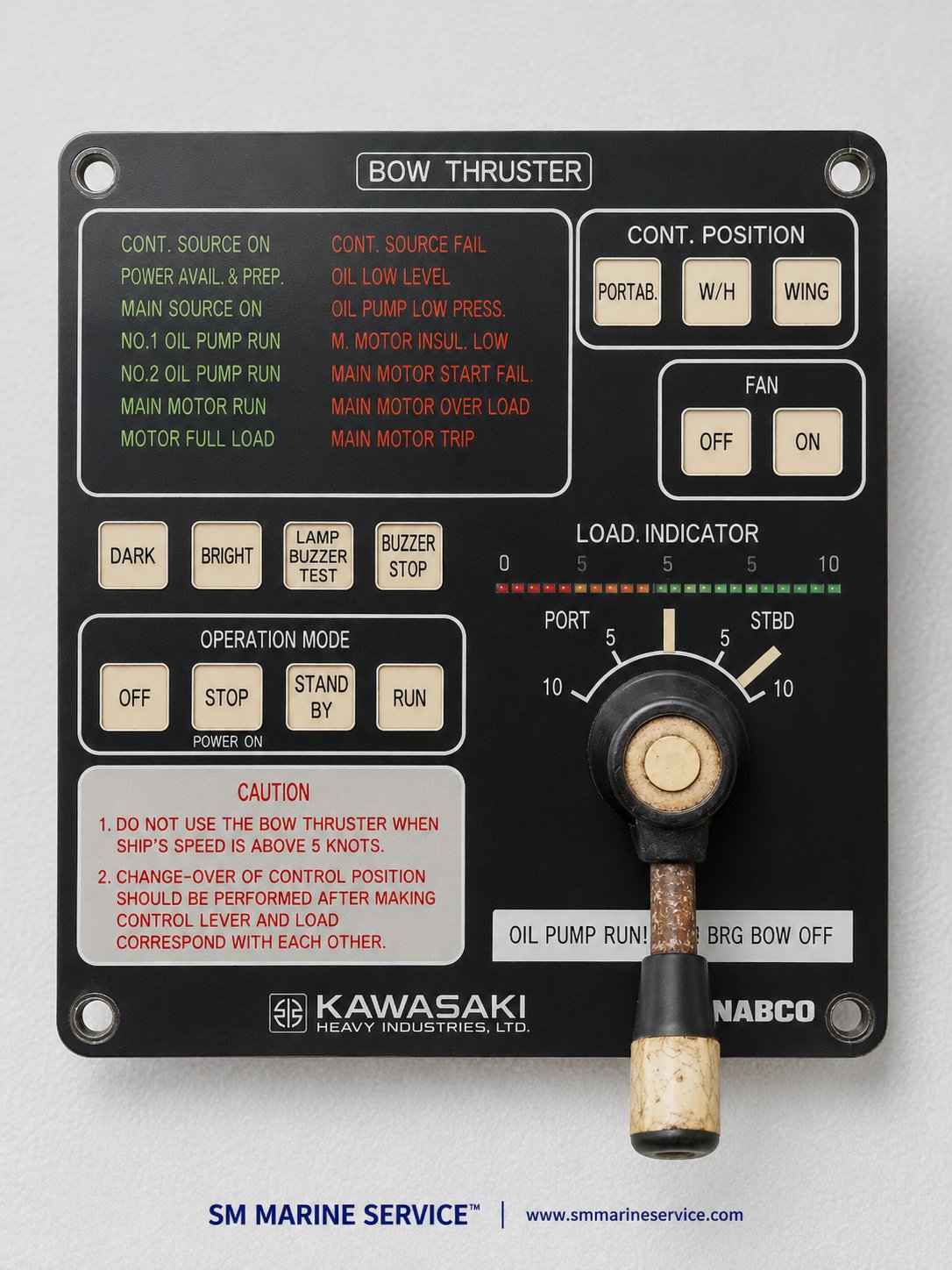

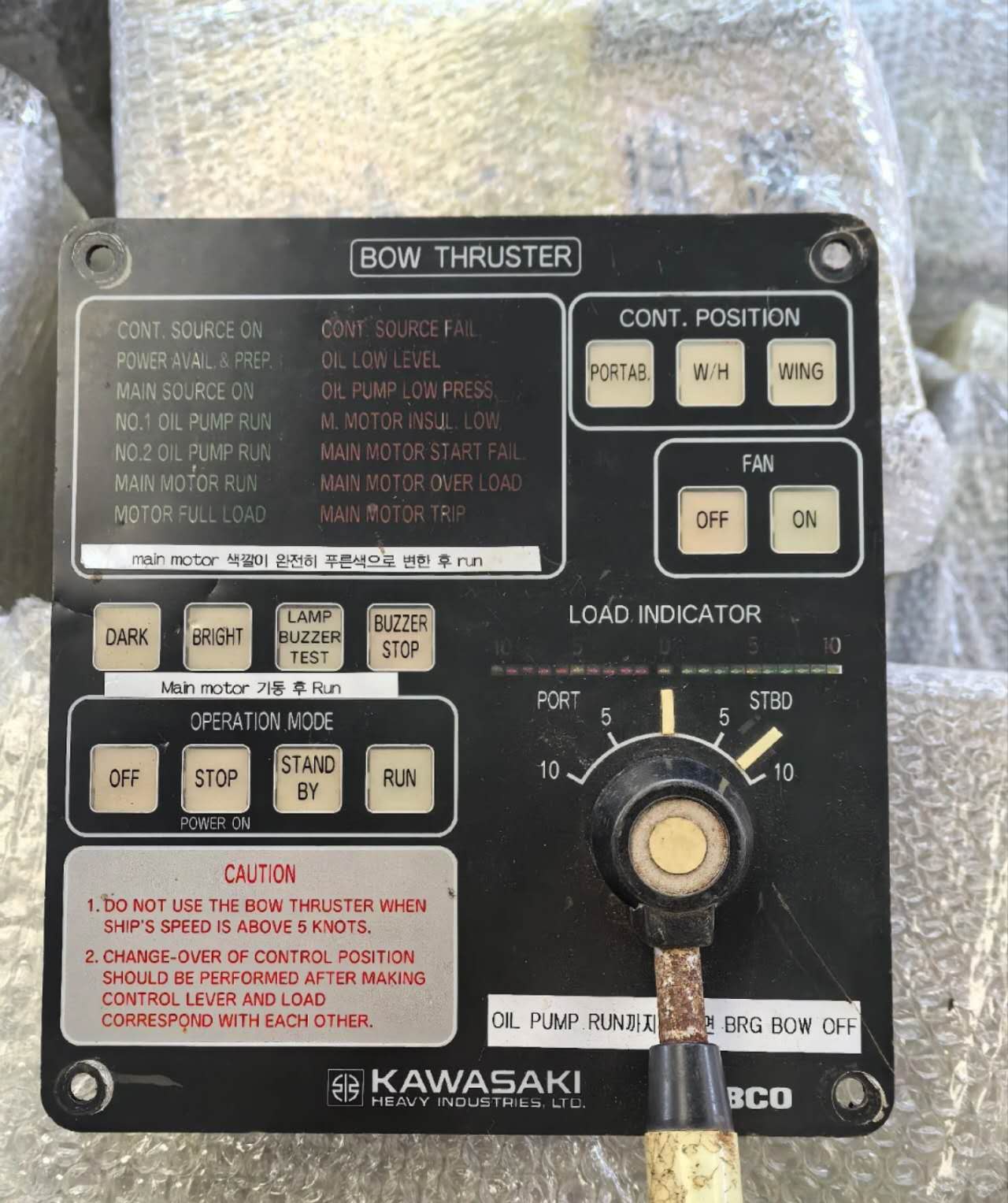

The panel shown includes operation mode selection, port/starboard thrust control, load indication, alarm monitoring, oil pump status, motor status, control position selection, and audible/visual alarm functions. These features help ensure safe and accurate maneuvering in confined waterways.

SM MARINE SERVICE™ supplies complete bow thruster control panels, bridge control systems, spare parts, repairs, calibration, and worldwide technical support.

---

What Is a Bow Thruster Control Panel?

A Bow Thruster Control Panel is the operator interface between the ship's bridge and the bow thruster propulsion system. It sends commands to the hydraulic or electric thruster system while monitoring operating conditions and safety interlocks.

Its primary functions include:

• Bow thruster start/stop control
• Port and starboard thrust command
• Load indication
• Alarm indication
• Oil pump monitoring
• Motor protection
• Control station selection
• Fan control
• Lamp test and buzzer functions
• System status monitoring

---

Main Features

• Reliable bridge maneuvering control
• Port and starboard thrust selection
• LED load indicator
• Oil pump monitoring
• Motor overload protection
• Audible and visual alarms
• Multiple control station selection
• Lamp and buzzer test functions
• Standby and run modes
• Durable marine-grade construction
• Long operational service life
• Suitable for harsh marine environments

---

Main Components

A complete Kawasaki/NABCO Bow Thruster Control System generally consists of:

• Bow Thruster Control Panel
• Bridge Joystick Controller
• Thruster Control Unit
• Hydraulic Power Unit
• Electric Motor Starter
• Oil Pump Control Module
• Indicator LEDs
• Alarm Circuit Board
• Power Supply Module
• Relay Board
• Terminal Board
• Communication Interface
• Wiring Harness
• Position Feedback Sensor
• Protection Relays

---

Marine Applications

Widely installed on:

• Container Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG & LPG Carriers
• Passenger Ships
• Cruise Ships
• Offshore Supply Vessels
• Research Vessels
• Naval Ships
• Ro-Ro Ships

---

Common Problems & Troubleshooting

Main Motor Start Failure

Possible causes:

• Starter failure
• Low control voltage
• Faulty relay
• Contactor damage

Oil Pump Low Pressure

Possible causes:

• Hydraulic oil shortage
• Pump wear
• Blocked filter
• Pressure switch failure

Main Motor Overload

Possible causes:

• Excessive mechanical load
• Bearing damage
• High current draw
• Cooling failure

Main Motor Trip

Possible causes:

• Protection relay activation
• Short circuit
• Motor insulation deterioration

Control Source Failure

Possible causes:

• Communication fault
• Bridge selector switch fault
• Wiring failure

Indicator Failure

Possible causes:

• LED damage
• PCB fault
• Loose wiring

---

Preventive Maintenance

Recommended maintenance includes:

• Inspect electrical terminals monthly.
• Check hydraulic oil level.
• Test alarm and buzzer operation.
• Verify load indicator accuracy.
• Inspect joystick operation.
• Clean panel regularly.
• Check motor insulation resistance.
• Test emergency stop function.
• Inspect communication wiring.
• Perform annual functional testing.

---

Available Spare Parts

SM MARINE SERVICE™ supplies:

• Bow Thruster Control Panel
• Joystick Controller
• Control PCB
• Alarm Board
• LED Display Module
• Relay Board
• Power Supply Board
• Selector Switches
• Push Buttons
• Indicator Lamps
• Hydraulic Pressure Switch
• Oil Pump Components
• Wiring Harness
• Communication Modules
• Complete Bow Thruster Control System

Available as:

• Brand New
• Reconditioned
• Used (Power Tested)

---

Why Ships Continue Using Kawasaki / NABCO Bow Thruster Systems

These systems remain widely used because they provide:

• Accurate maneuvering control
• Proven Japanese reliability
• Excellent durability
• Easy maintenance
• Stable operation
• Long equipment life
• High safety standards
• Worldwide spare parts availability
• Trusted performance in commercial shipping

---

Frequently Asked Questions (FAQ)

Can this control panel be repaired?

Yes. Most control panels can be repaired, tested, and recalibrated.

Can spare parts still be supplied?

Yes. SM MARINE SERVICE™ supplies complete panels, PCBs, relays, switches, indicators, and associated spare parts.

Is calibration required?

Yes. Calibration and functional testing are recommended after repairs or component replacement.

Do you supply complete systems?

Yes. We supply complete Kawasaki/NABCO Bow Thruster Control Systems together with spare parts and technical support.

---

Short Product Description

The KAWASAKI / NABCO Bow Thruster Control Panel is a dependable bridge control interface designed for safe and precise vessel maneuvering. It manages thrust direction, operating modes, load indication, alarms, and hydraulic system monitoring, making it an essential part of modern marine maneuvering systems.

---

User Manuals & Technical Resources

Recommended references:

• Kawasaki Bow Thruster Operation Manual
• Bow Thruster Service Manual
• Bow Thruster Wiring Diagram
• Bow Thruster Spare Parts Catalogue
• Bridge Control System Manual
• Thruster Maintenance Guide
• Hydraulic Thruster Troubleshooting Manual
• Marine Maneuvering System Documentation

Why Choose SM MARINE SERVICE™

SM MARINE SERVICE™ provides:

• New Equipment
• Reconditioned Equipment
• Used Equipment (Power Tested)
• Genuine Marine Spare Parts
• Worldwide Shipping
• Marine Automation Repair
• Calibration Services
• Technical Support
• Emergency Spare Part Sourcing
• Complete Bow Thruster Control Solutions

---

Contact SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse & Support Center
Shanghai, China

Services

• Marine Automation Equipment
• Bow Thruster Control Systems
• Engine Control Systems
• Navigation Equipment
• Repair & Calibration
• Worldwide Spare Parts Supply
• Technical Support

Website: www.smmarineservice.com

Email: info@smmarineservice.com

WhatsApp: +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

---

Conclusion

The KAWASAKI / NABCO Bow Thruster Control Panel is a robust and field-proven bridge maneuvering controller that delivers reliable thrust control, alarm supervision, and operational safety for commercial and offshore vessels. Its dependable Japanese engineering and long service life make it a preferred solution for precise ship handling in ports and restricted waterways.

If you are searching for KAWASAKI / NABCO Bow Thruster Control Panels, joystick controllers, control PCBs, relay boards, repair services, calibration, manuals, or genuine spare parts, SM MARINE SERVICE™ is ready to support your fleet with worldwide supply, technical expertise, and fast global delivery.

-

+
