Nabtesco Governor Control Unit – Marine Main Engine Governor System



Title

Nabtesco Governor Control Unit | Marine Main Engine Governor System | Governor Controller Repair, Spare Parts, Calibration & Worldwide Supplier | SM MARINE SERVICE™

---

Description

Manufacturer

Nabtesco Corporation (Former NABCO)

Country of Origin

Japan

Product Type

Marine Electronic Governor Control Unit

Marine Application

Main Engine Electronic Speed Governing & Fuel Control System

---

Product Introduction

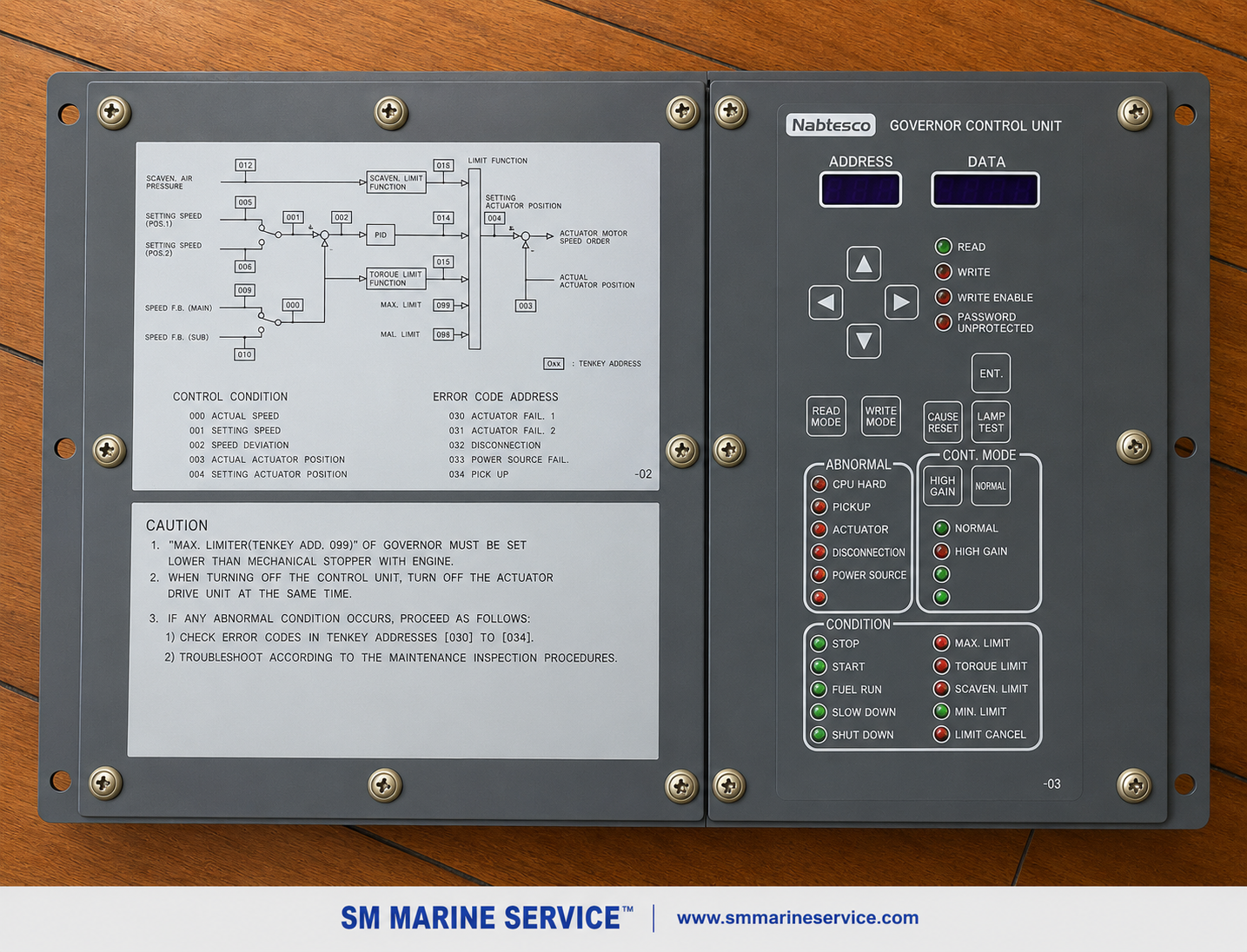

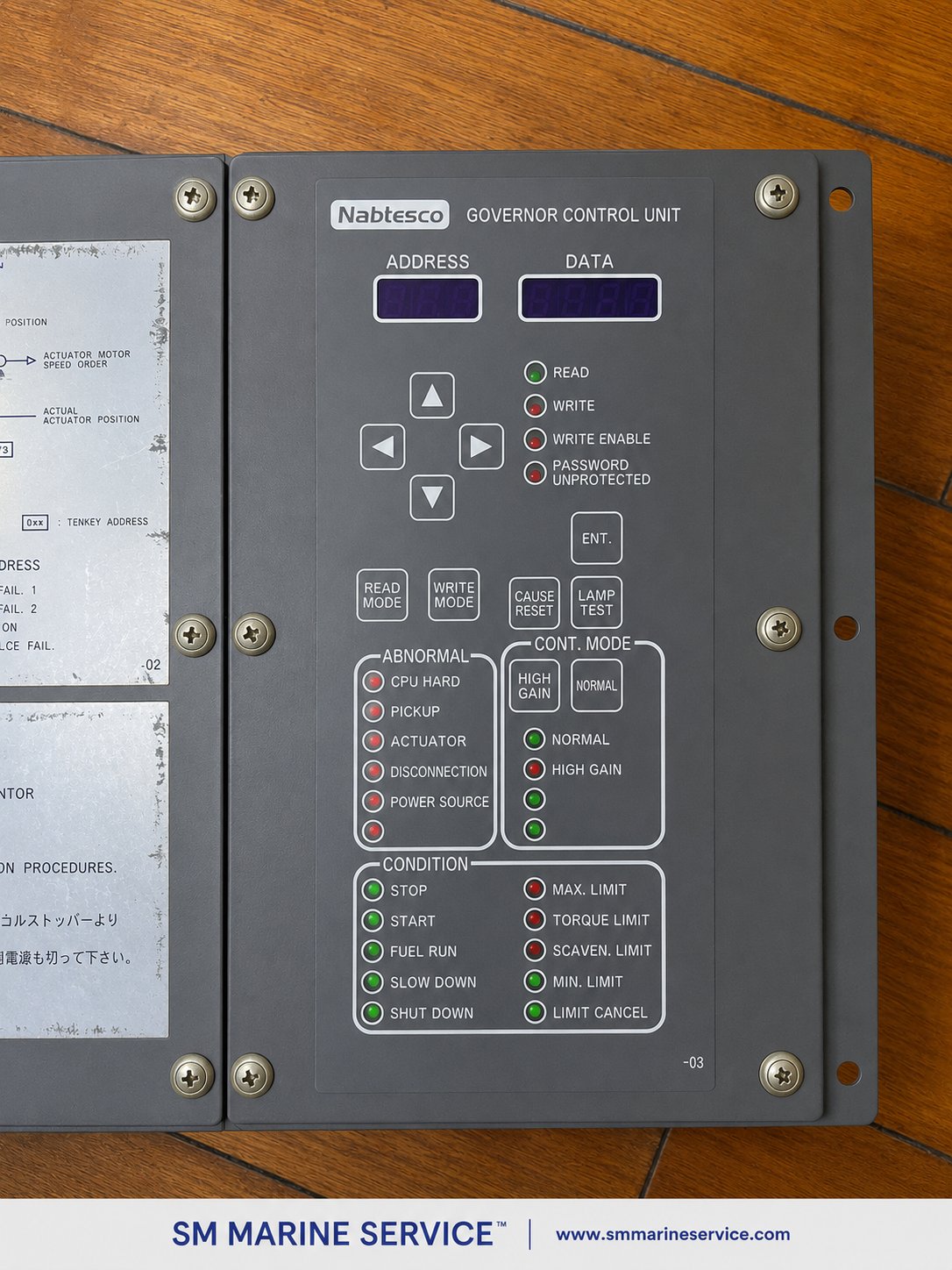

The Nabtesco Governor Control Unit is the central electronic controller used in marine main engine governor systems. It continuously processes engine speed feedback, fuel demand, actuator position, torque limitation, scavenging air pressure, and safety interlocks to maintain precise RPM control under all operating conditions.

Installed on thousands of commercial vessels, this controller provides stable engine performance during maneuvering, sea passage, load changes, and emergency operating conditions. Its advanced diagnostics, parameter programming, and actuator management make it one of the most trusted governor controllers in Japanese-built marine propulsion systems.

SM MARINE SERVICE™ supplies complete Nabtesco Governor Control Units, spare parts, repair services, calibration, and worldwide technical support for ship owners, ship managers, and marine engineers.

---

What Is the Nabtesco Governor Control Unit?

The Governor Control Unit is the electronic "brain" of the governor system. It receives inputs from engine sensors, compares the measured engine speed with the commanded speed, and sends control signals to the governor actuator.

Major functions include:

• Main engine RPM regulation
• Fuel rack position control
• Governor actuator management
• Torque limitation
• Speed limitation
• Load sharing
• Start/Stop sequencing
• Alarm monitoring
• Diagnostic fault detection
• Parameter programming
• Safety shutdown support

---

Main Features

The Nabtesco Governor Control Unit offers:

• High-accuracy electronic speed control
• PID-based governor algorithm
• Digital parameter programming
• Built-in diagnostic LEDs
• Fault code monitoring
• Fuel limitation control
• Torque limitation
• Scavenge pressure compensation
• Governor actuator control
• Manual and automatic operating modes
• High reliability for continuous marine service
• Long operational lifespan
• Easy maintenance and calibration

---

Main Components

A complete governor system generally includes:

• Governor Control Unit
• Governor CPU Board
• Governor Actuator
• Magnetic Pickup Sensor
• Speed Feedback Circuit
• Fuel Index Interface
• Power Supply Module
• Terminal Board
• Diagnostic LEDs
• Programming Interface
• Communication Module
• Wiring Harness
• Protection Relays
• Alarm Interface Board

---

Marine Applications

This governor controller is commonly installed on:

• Bulk Carriers
• Container Ships
• Oil Tankers
• Chemical Tankers
• LNG/LPG Carriers
• Offshore Supply Vessels
• Ro-Ro Ships
• Passenger Ships
• Naval Vessels
• Research Ships
• Tug Boats

It is widely used with Japanese-built marine diesel engines requiring reliable electronic speed and fuel control.

Technical Specifications

---

Additional Reference Images

---

Common Problems & Troubleshooting

1. CPU HARD Alarm

Possible Causes

• CPU board failure
• Internal electronic fault
• Memory corruption

Solution

• Restart controller
• Check power supply
• Repair or replace CPU board

---

2. PICK UP Alarm

Possible Causes

• Magnetic pickup damaged
• Incorrect sensor gap
• Broken pickup cable

Solution

• Measure pickup resistance
• Adjust sensor gap
• Replace pickup sensor

---

3. ACTUATOR Alarm

Possible Causes

• Actuator motor failure
• Driver PCB fault
• Mechanical sticking

Solution

• Test actuator movement
• Check actuator voltage
• Repair actuator

---

4. POWER SOURCE Alarm

Possible causes

• Low supply voltage
• Fuse failure
• Loose terminal
• Internal power module damage

---

5. DISCONNECTION Alarm

Possible causes

• Broken communication wiring
• Loose connector
• Damaged interface board

---

6. Governor Hunting

Possible causes

• Wrong PID settings
• Pickup instability
• Mechanical backlash
• Fuel rack sticking

---

7. Engine Overspeed

Possible causes

• Governor malfunction
• Actuator failure
• Incorrect governor parameter

Immediate inspection is required.

---

Preventive Maintenance

To maximize reliability:

• Inspect controller wiring every month.
• Tighten all terminal connections.
• Clean cabinet dust and moisture.
• Verify pickup sensor gap.
• Test governor actuator movement.
• Check all LED indicators.
• Backup governor parameters.
• Perform yearly governor calibration.
• Replace damaged connectors immediately.
• Test emergency shutdown functions.

---

Available Spare Parts

SM MARINE SERVICE™ supplies:

• Governor Control Unit
• Governor CPU Board
• Governor Power Supply Board
• Governor Interface Board
• Governor Driver Board
• Governor Display Board
• Governor Keyboard Panel
• Governor Actuator
• Magnetic Pickup Sensor
• Terminal Board
• Communication Module
• Relay Board
• Governor Harness
• Governor Connectors
• Governor Fuse Module
• Governor Programming Accessories
• Complete Governor Control System

Available condition:

• Brand New
• Reconditioned
• Used (Power Tested)

---

Repair & Calibration Services

SM MARINE SERVICE™ provides:

• Governor PCB Repair
• CPU Board Repair
• Governor Calibration
• Governor Parameter Backup
• Functional Testing
• Burn-in Testing
• Power Testing
• Spare Parts Replacement
• Complete Governor Overhaul
• Worldwide Technical Support

---

Why Ships Continue Using Nabtesco Governor Systems

Marine engineers continue using Nabtesco Governor Controllers because they provide:

• Extremely reliable speed regulation
• Long service life
• Stable fuel control
• Excellent engine response
• Easy diagnostics
• Proven Japanese engineering
• Availability of spare parts
• Low maintenance requirements
• Worldwide acceptance
• High operational safety

---

Frequently Asked Questions (FAQ)

Can this controller be repaired?

Yes. Most Governor Control Units can be repaired and recalibrated by experienced marine automation engineers.

Is calibration necessary?

Yes. Calibration is recommended after actuator replacement, PCB repair, or governor overhaul.

Which engines use Nabtesco governor systems?

Many Japanese marine diesel engines installed on cargo ships, tankers, offshore vessels, Ro-Ro ships, and passenger vessels use Nabtesco electronic governor systems.

Can spare parts still be supplied?

Yes. SM MARINE SERVICE™ supplies both new and reconditioned spare parts with worldwide delivery.

Do you provide technical support?

Yes. We provide troubleshooting assistance, repair guidance, calibration support, and spare parts sourcing worldwide.

---

Short Product Description

The Nabtesco Governor Control Unit is an advanced electronic governor controller designed for marine diesel engines. It accurately regulates engine speed, fuel index, actuator position, and engine response while providing built-in diagnostics and alarm monitoring. Its robust construction and dependable performance make it one of the most trusted governor controllers used on commercial ships around the world.

---

User Manuals & Technical Resources

Recommended documentation includes:

• Nabtesco Governor Operation Manual
• Nabtesco Governor Service Manual
• Governor Calibration Manual
• Governor Wiring Diagram
• Governor Spare Parts Catalogue
• Governor Commissioning Guide
• Marine Engine Automation Manual
• Governor Troubleshooting Guide

Why Choose SM MARINE SERVICE™

SM MARINE SERVICE™ offers:

• New Equipment
• Reconditioned Equipment
• Used Equipment (Power Tested)
• Genuine Marine Spare Parts
• Worldwide Supply
• Fast Global Shipping
• Marine Automation Repair
• Calibration Services
• Technical Consultation
• Emergency Spare Parts Support

---

Contact SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse & Support Center
Shanghai, China

Services

• Marine Automation Equipment Supply
• Governor Systems
• Navigation Equipment
• Engine Control Systems
• Repair & Calibration
• Spare Parts Supply
• Worldwide Technical Support

Website: www.smmarineservice.com

Email: info@smmarineservice.com

WhatsApp: +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

---

Conclusion

The Nabtesco Governor Control Unit is a proven and highly reliable electronic governor controller that plays a critical role in maintaining safe, efficient, and stable operation of marine diesel engines. Its advanced diagnostics, accurate speed regulation, and dependable actuator control have made it a preferred solution aboard commercial vessels worldwide.

Whether you require a complete Governor Control Unit, CPU board, actuator, pickup sensor, repair service, calibration, or genuine spare parts, SM MARINE SERVICE™ is your trusted global partner. With stock support from Bangladesh and Shanghai, China, combined with worldwide shipping and experienced technical assistance, we are committed to helping ship owners, managers, and marine engineers keep their vessels operating safely and efficiently.



-

+
