Marine Applications

The Consilium NS-DUV UV Flame Detector is widely installed throughout commercial vessels, offshore platforms, and industrial marine facilities where rapid flame detection is essential. Because UV flame detectors respond directly to ultraviolet radiation from flames rather than waiting for smoke accumulation, they are particularly suitable for high-risk fire zones.

Typical marine applications include:

• Main Engine Room
• Auxiliary Engine Room
• Diesel Generator Rooms
• Boiler Rooms
• Incinerator Rooms
• Fuel Oil Purifier Rooms
• Lube Oil Purifier Rooms
• Pump Rooms
• Cargo Pump Rooms
• Paint Lockers
• Compressor Rooms
• Gas Turbine Compartments
• Offshore Production Modules
• Chemical Tankers
• LNG & LPG Carriers
• Offshore Supply Vessels
• FPSO Facilities
• Passenger Ships
• Naval Vessels

SM MARINE SERVICE™ supplies replacement detectors, spare parts, technical support, repair services, and worldwide delivery for marine fire detection systems.

Common Problems & Troubleshooting

Although the NS-DUV detector is highly reliable, regular inspection is essential to ensure dependable operation.

1. False Alarm

Possible Causes

• Direct exposure to welding arcs
• UV radiation from maintenance equipment
• Damaged optical filter
• Incorrect installation angle
• Internal electronic fault

Recommended Solution

• Inspect installation location.
• Check for nearby UV sources.
• Clean the optical window.
• Verify detector configuration.
• Replace defective components if necessary.

2. Detector Does Not Respond

Possible Causes

• Power supply failure
• Wiring problems
• Faulty detector electronics
• UV sensor degradation
• Fire panel communication issue

Recommended Solution

• Measure supply voltage.
• Check terminal wiring.
• Inspect communication loop.
• Perform functional testing.
• Replace defective sensor module if required.

3. LED Indicates Fault

Possible Causes

• Internal hardware error
• Memory fault
• Optical sensor malfunction
• Moisture ingress
• PCB failure

Recommended Solution

• Perform diagnostic testing.
• Verify detector health using the fire alarm panel.
• Replace damaged electronic modules.
• Send the detector for professional repair if necessary.

4. Frequent Fault Indications

Possible Causes

• Loose terminal connections
• Electrical interference
• Aging electronics
• Water ingress
• Damaged cable insulation

Recommended Solution

• Tighten all electrical terminals.
• Inspect marine cables.
• Verify enclosure sealing.
• Check grounding.
• Replace damaged wiring.

5. Optical Window Contamination

Possible Causes

• Oil mist accumulation
• Dust
• Engine room soot
• Salt deposits
• Moisture

Recommended Solution

• Clean the optical window using approved non-abrasive materials.
• Avoid using aggressive solvents.
• Inspect regularly during planned maintenance.

5

Maintenance Tips

Proper preventive maintenance significantly improves the reliability and service life of the Consilium NS-DUV UV Flame Detector.

Recommended maintenance practices include:

• Inspect the detector during every planned maintenance schedule.
• Keep the optical window clean and free from oil, dust, and salt deposits.
• Verify LED status indicators regularly.
• Perform functional flame testing according to manufacturer procedures.
• Check all electrical terminals for corrosion or loose connections.
• Inspect cable glands and enclosure seals for water ingress.
• Confirm correct communication with the fire alarm control panel.
• Replace damaged mounting hardware immediately.
• Record all inspections and tests in the vessel's maintenance log.
• Use only genuine or approved replacement parts.

SM MARINE SERVICE™ offers professional repair, calibration support, functional testing, spare parts supply, and replacement units for a wide range of marine fire detection equipment, helping ship operators maintain reliable fire protection systems worldwide.

Why Ships Still Use the Consilium NS-DUV UV Flame Detector

Modern vessels continue to rely on the Consilium NS-DUV UV Flame Detector because it provides extremely fast flame detection in high-risk engine room environments where conventional smoke detectors may react too slowly. Marine engine rooms contain fuel oil, lubricating oil, hydraulic oil, and high-temperature machinery, making rapid flame detection essential for protecting personnel, machinery, and the vessel.

Key reasons why ships continue using the NS-DUV include:

• Fast ultraviolet flame detection
• High reliability in marine environments
• IMO and SOLAS compliant fire protection
• Suitable for unmanned machinery spaces (UMS)
• Compact and rugged industrial construction
• Excellent resistance to vibration and harsh conditions
• Compatible with Consilium marine fire alarm systems
• Long operational service life
• Low maintenance requirements
• Proven performance on thousands of commercial vessels worldwide

SM MARINE SERVICE™ supplies new, reconditioned, and tested Consilium marine fire detection equipment along with technical support and worldwide delivery.

Frequently Asked Questions (FAQ)

What is the Consilium NS-DUV?

The Consilium NS-DUV is a marine ultraviolet (UV) flame detector designed to detect open flames quickly by sensing ultraviolet radiation emitted during combustion.

Where is it installed?

It is commonly installed in:

• Engine Rooms
• Boiler Rooms
• Incinerator Rooms
• Purifier Rooms
• Pump Rooms
• Offshore Modules
• Cargo Pump Rooms
• Generator Rooms

Does it detect smoke?

No.

The NS-DUV is specifically designed to detect ultraviolet radiation from flames, not smoke particles.

Can the optical window be cleaned?

Yes.

The optical window should be inspected and cleaned periodically using approved cleaning materials to maintain proper sensitivity.

Can it generate false alarms?

False alarms are uncommon but may occur if the detector is exposed to strong ultraviolet sources such as welding arcs. Proper installation minimizes this risk.

Is calibration required?

Routine functional testing is recommended according to the vessel's maintenance schedule and manufacturer guidelines. Calibration or servicing should be performed whenever required after repairs or if performance is in question.

Can SM MARINE SERVICE™ supply this detector?

Yes.

SM MARINE SERVICE™ supplies:

• New Units
• Reconditioned Units
• Tested Units
• Spare Parts
• Repair Service
• Technical Support
• Worldwide Shipping

Short Product Description

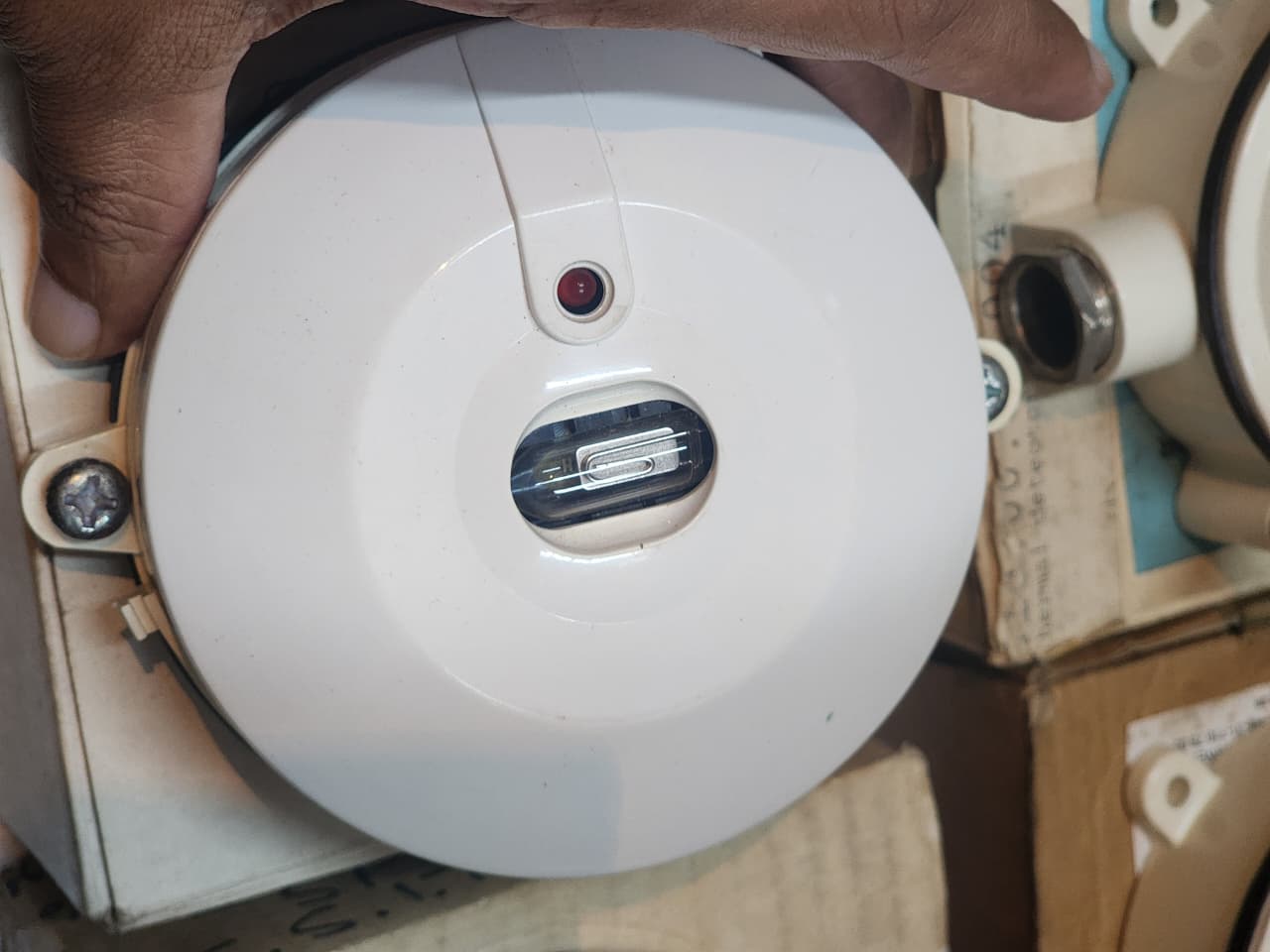

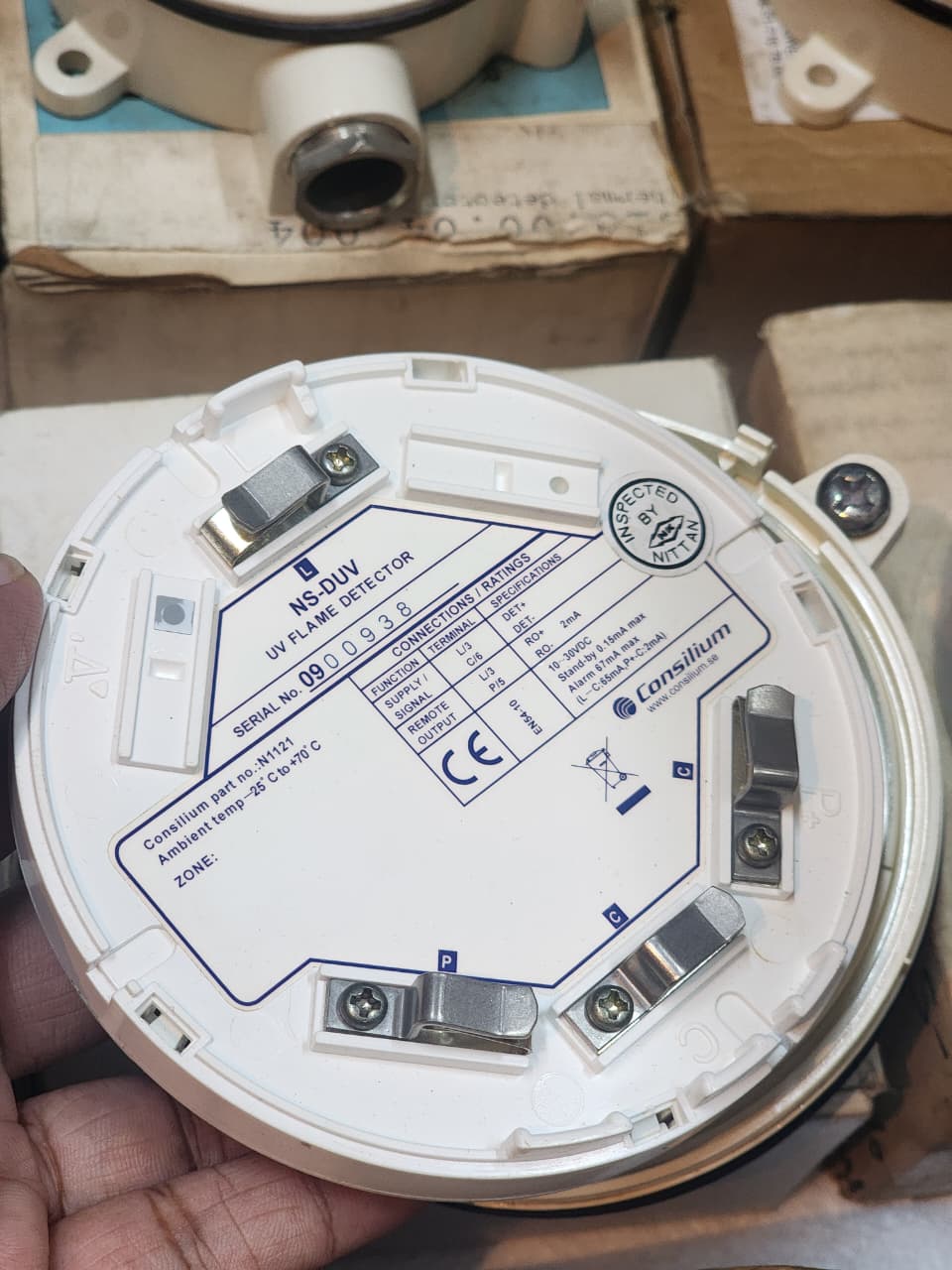

The Consilium NS-DUV UV Flame Detector is a high-performance marine fire detection device engineered for rapid flame detection in engine rooms, boiler rooms, purifier spaces, offshore installations, and other hazardous marine environments. Utilizing ultraviolet sensing technology, it detects flames within milliseconds, helping prevent catastrophic fire damage and improving vessel safety. Its rugged marine-grade construction ensures dependable operation under vibration, humidity, and harsh operating conditions, making it a trusted solution for commercial ships and offshore facilities worldwide.

User Manual & Technical Resources

For installation, commissioning, operation, maintenance, and troubleshooting, refer to the following resources:

• Consilium NS-DUV Installation Manual
• Consilium NS-DUV User Manual
• Consilium NS-DUV Service Manual
• Consilium NS-DUV Maintenance Guide
• Consilium Fire Alarm System Technical Documentation
• IMO SOLAS Fire Detection Requirements
• Marine Fire Detection Maintenance Procedures

If you require the original manufacturer documentation or assistance identifying the correct revision for your detector, SM MARINE SERVICE™ can help provide the appropriate technical information.

Why Choose SM MARINE SERVICE™

SM MARINE SERVICE™ is a trusted supplier of marine automation, navigation, fire detection, engine control, and industrial automation equipment for customers worldwide.

We provide:

• New Equipment
• Reconditioned Equipment
• Genuine Spare Parts
• Worldwide Supply
• Marine Equipment Sourcing
• Repair & Troubleshooting
• Calibration Support
• Technical Consultation
• Fast International Shipping
• After-Sales Technical Assistance

Whether you need a replacement Consilium NS-DUV UV Flame Detector, spare parts, repair support, or complete marine fire detection solutions, our experienced team is ready to assist.
