Alfa Laval LPS M 3-6 Lamp Power Supply (Ballast for Discharge Lamps) – Marine UV Sterilizer Power Supply | Repair, Spare Parts & Supplier

Title

Alfa Laval LPS M 3-6 Lamp Power Supply | Ballast for Discharge Lamps | Repair, Spare Parts, Supplier | SM MARINE SERVICE™

Description

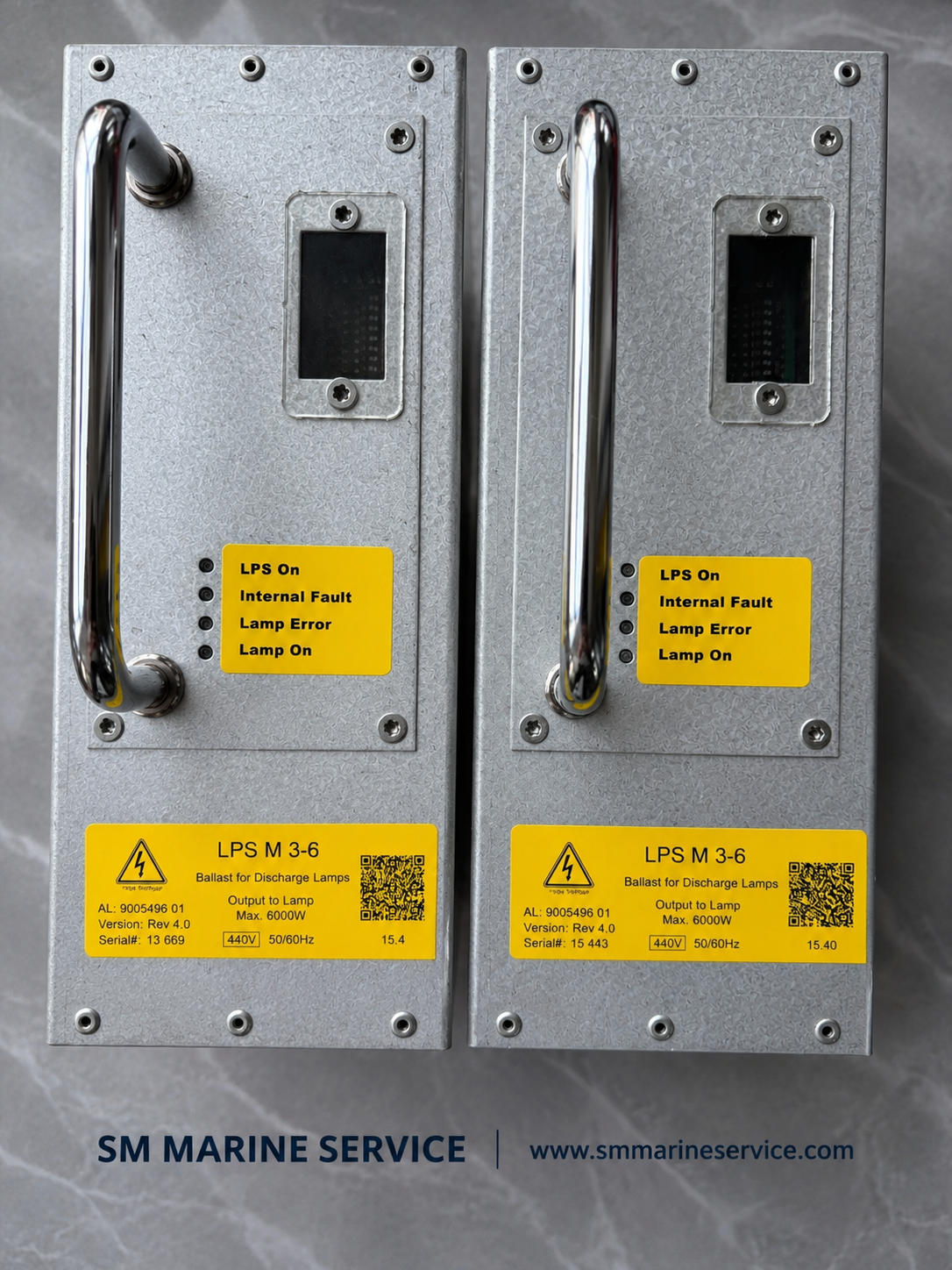

Alfa Laval LPS M 3-6 Lamp Power Supply

Manufacturer: Alfa Laval

Country of Origin: Sweden

Product Type: High-Power Electronic Lamp Power Supply / Ballast Module

Marine Application: UV lamp power supply for Alfa Laval PureBallast Ballast Water Treatment Systems (BWTS).

---

Product Introduction

The Alfa Laval LPS M 3-6 Lamp Power Supply is a high-performance electronic ballast designed to operate high-power UV discharge lamps used in Alfa Laval PureBallast systems. It provides the controlled ignition voltage, operating current, and continuous power required for UV lamps that disinfect ballast water before discharge.

Unlike a conventional transformer, the LPS M 3-6 continuously regulates lamp performance, monitors operating conditions, and communicates with the control system to ensure reliable UV output under varying load conditions.

Marine operators depend on this module because the UV reactor cannot function correctly without a stable lamp power supply.

---

What Is the Alfa Laval LPS M 3-6?

The LPS M 3-6 is an electronic power conversion module that converts the vessel's AC supply into a controlled high-frequency output for UV discharge lamps.

Its responsibilities include:

• High-voltage lamp ignition
• Lamp current regulation
• Output power stabilization
• Lamp monitoring
• Internal fault detection
• Lamp error diagnostics
• Communication with the PureBallast control system
• Protection against overloads and abnormal operating conditions

Without this module, the UV lamps cannot generate the ultraviolet energy required for ballast water disinfection.

---

Main Features

• High-frequency electronic ballast technology
• Stable UV lamp operation
• Intelligent lamp ignition sequence
• Continuous output regulation
• Internal diagnostics
• Fault indication LEDs
• Industrial marine-grade construction
• Reliable long-term operation
• Fast response to lamp load variations
• High electrical efficiency
• Reduced lamp stress
• Easy replacement during maintenance
• Designed for continuous marine operation
• Compatible with Alfa Laval PureBallast systems

SM MARINE SERVICE™ supplies genuine, reconditioned, and tested marine automation modules for vessels worldwide.

Website: https://www.smmarineservice.com

---

Main Components

The Alfa Laval LPS M 3-6 typically consists of:

• High-frequency inverter
• Power switching circuit
• IGBT/MOSFET power stage
• Input protection circuitry
• Output filtering section
• High-voltage ignition circuit
• Current sensing module
• Voltage monitoring circuit
• Cooling assembly
• Internal processor
• Protection relays
• Diagnostic LEDs
• Communication interface
• Industrial connectors
• Marine-grade enclosure


Applications of Alfa Laval LPS M 3-6 Lamp Power Supply

The Alfa Laval LPS M 3-6 Lamp Power Supply is specifically designed for marine ultraviolet ballast water treatment installations where reliable UV lamp operation is essential for compliance with international environmental regulations.

Typical applications include:

• Ballast Water Treatment Systems (BWTS)
• Alfa Laval PureBallast UV sterilization units
• Cargo vessels
• Oil tankers
• Chemical tankers
• LNG/LPG carriers
• Bulk carriers
• Container ships
• Passenger vessels
• Offshore support vessels
• FPSO installations
• Naval vessels
• Marine water sterilization systems
• Industrial UV disinfection systems

Whenever ballast water is treated using ultraviolet technology, the Lamp Power Supply is one of the most critical electronic modules inside the system.

SM MARINE SERVICE™ maintains stock and technical support for a wide range of Alfa Laval automation modules.

Website: https://www.smmarineservice.com

---

Common Problems & Troubleshooting

Like any high-power electronic ballast, the LPS M 3-6 may experience faults after years of continuous marine operation. Most issues originate from power fluctuations, component aging, excessive heat, or UV lamp degradation.

Common Problems

• Lamp fails to ignite
• UV lamp turns off after startup
• Internal ballast fault alarm
• Lamp error indication
• High temperature shutdown
• Fuse failure
• Burned power semiconductors
• Capacitor aging
• Output voltage instability
• Communication failure with controller
• Water ingress damage
• Connector corrosion
• PCB component failure
• Cooling ventilation blockage
• Intermittent operation

Basic Troubleshooting

Before replacing the module, marine engineers should verify:

• Incoming AC power supply
• Input fuse condition
• UV lamp condition
• Lamp cable continuity
• Connector tightness
• Cooling airflow
• Moisture inside enclosure
• Output voltage
• Internal alarm LEDs
• Communication wiring
• Grounding integrity

Many ballast failures are actually caused by defective UV lamps or damaged wiring rather than the power supply itself.

---

Preventive Maintenance Tips

Routine preventive maintenance greatly extends the operating life of the Alfa Laval LPS M 3-6.

Recommended maintenance includes:

• Clean cooling passages regularly.
• Keep ventilation openings free from dust.
• Inspect electrical terminals for corrosion.
• Replace damaged connectors.
• Verify output voltage during service.
• Inspect internal PCB for overheating.
• Replace aging electrolytic capacitors when necessary.
• Check lamp operating hours.
• Replace UV lamps according to manufacturer recommendations.
• Keep the enclosure dry and free from salt contamination.
• Perform insulation testing during scheduled maintenance.

SM MARINE SERVICE™ also provides inspection, testing, repair, and replacement support for Alfa Laval PureBallast electronic modules.

Website: https://www.smmarineservice.com

---

Why Ships Still Use Alfa Laval LPS M 3-6

Although ballast water treatment technology continues to evolve, thousands of vessels worldwide still operate Alfa Laval PureBallast systems equipped with the LPS M 3-6 Lamp Power Supply.

Ship owners continue using these systems because they offer:

• Proven operational reliability
• Stable UV lamp performance
• IMO-compliant ballast water treatment
• Long service life
• Global service availability
• Easy maintenance
• Modular replacement
• Excellent compatibility with existing PureBallast installations
• Reduced operating costs through repairable electronic modules

Many operators choose professional repair or reconditioned replacement units rather than purchasing entirely new control systems, making the LPS M 3-6 an important spare part for fleet maintenance.

Frequently Asked Questions (FAQ)

1. What is the Alfa Laval LPS M 3-6 Lamp Power Supply?

The Alfa Laval LPS M 3-6 is a high-power electronic ballast module designed to provide controlled ignition and operating power for UV discharge lamps used in Alfa Laval PureBallast Ballast Water Treatment Systems (BWTS).

---

2. What does the LPS M 3-6 do?

It converts the vessel's AC power into the high-frequency, high-voltage output required to ignite and operate UV lamps while continuously regulating lamp current for stable disinfection performance.

---

3. Which systems use this module?

It is primarily used in Alfa Laval PureBallast UV Ballast Water Treatment Systems installed on:

• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG/LPG Carriers
• Container Ships
• Passenger Ships
• Offshore Support Vessels
• Naval Ships

---

4. What are the common failure symptoms?

Typical symptoms include:

• Lamp ignition failure
• Lamp error alarm
• Internal ballast fault
• UV lamp switching off
• Fuse failure
• Output voltage instability
• Communication fault
• Overheating alarm

---

5. Can the LPS M 3-6 be repaired?

Yes. In many cases, defective power semiconductors, capacitors, relays, protection circuits, connectors, or other PCB components can be professionally repaired and tested.

SM MARINE SERVICE™ offers repair support for many marine automation modules.

Website:
https://www.smmarineservice.com

---

6. Do you supply reconditioned units?

Yes.

SM MARINE SERVICE™ supplies:

• New Units
• Reconditioned Units
• Fully Tested Units
• Exchange Units
• Spare Parts

depending on customer requirements and budget.

---

7. Can you ship worldwide?

Yes.

We supply marine automation equipment worldwide from our Bangladesh office and China warehouse.

---

Short Product Description

The Alfa Laval LPS M 3-6 Lamp Power Supply is a marine-grade electronic ballast module developed for Alfa Laval PureBallast UV Ballast Water Treatment Systems. It provides stable ignition, controlled operating current, and continuous power regulation for UV discharge lamps used in ballast water sterilization. Designed for reliable operation in demanding marine environments, the LPS M 3-6 plays a critical role in ensuring consistent UV performance and regulatory compliance. It is widely used on commercial vessels and remains a trusted solution for long-term ballast water treatment system operation.
