Manufacturer

Nor Control AS (now part of Kongsberg Maritime)

Country of Origin

Norway

Product Type

Marine Main Engine Remote Control & Automation System

Marine Application

Main Engine Remote Control, Bridge Control, Engine Room Control, CPP Control, Propulsion Automation, Marine Alarm & Monitoring

Product Introduction

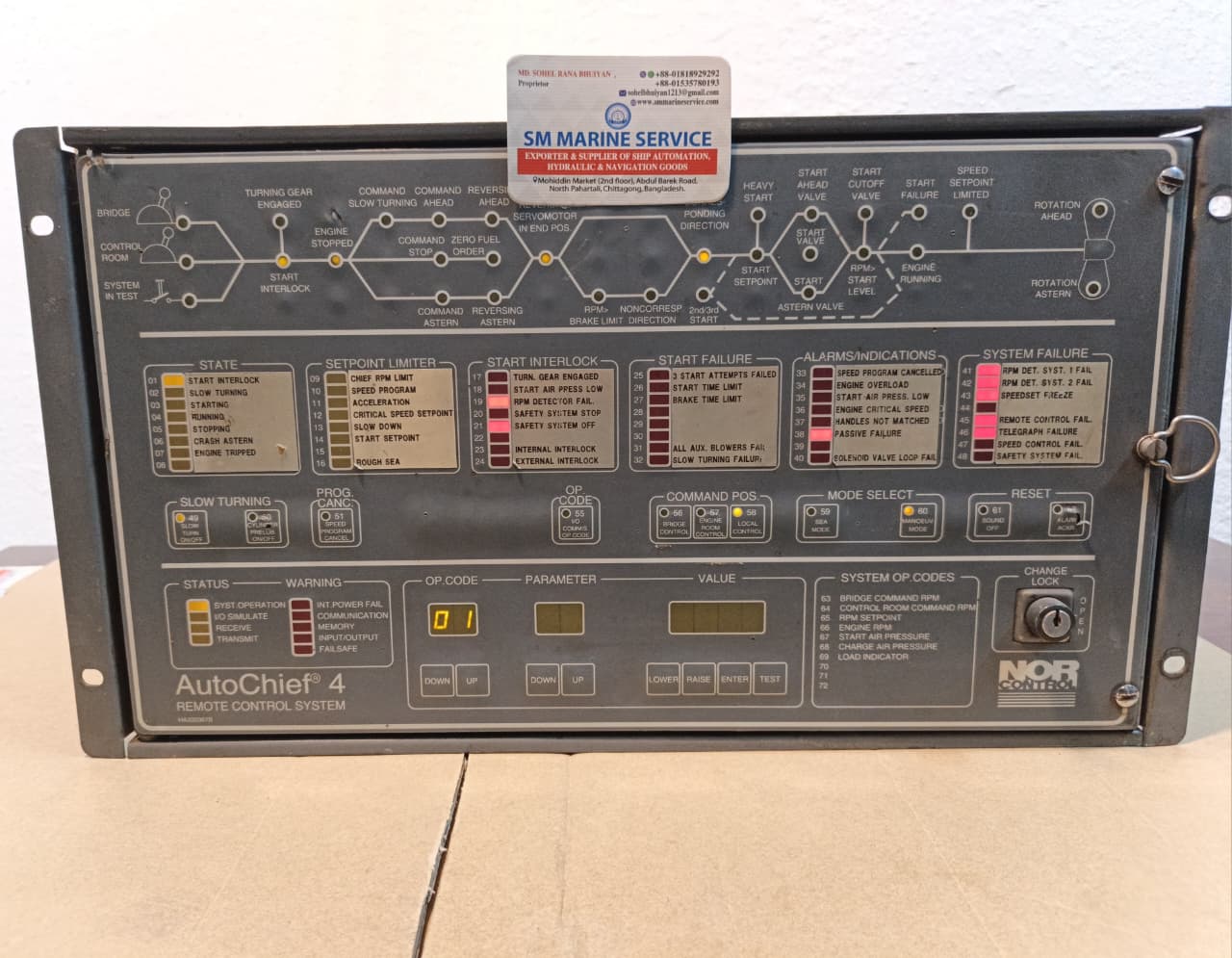

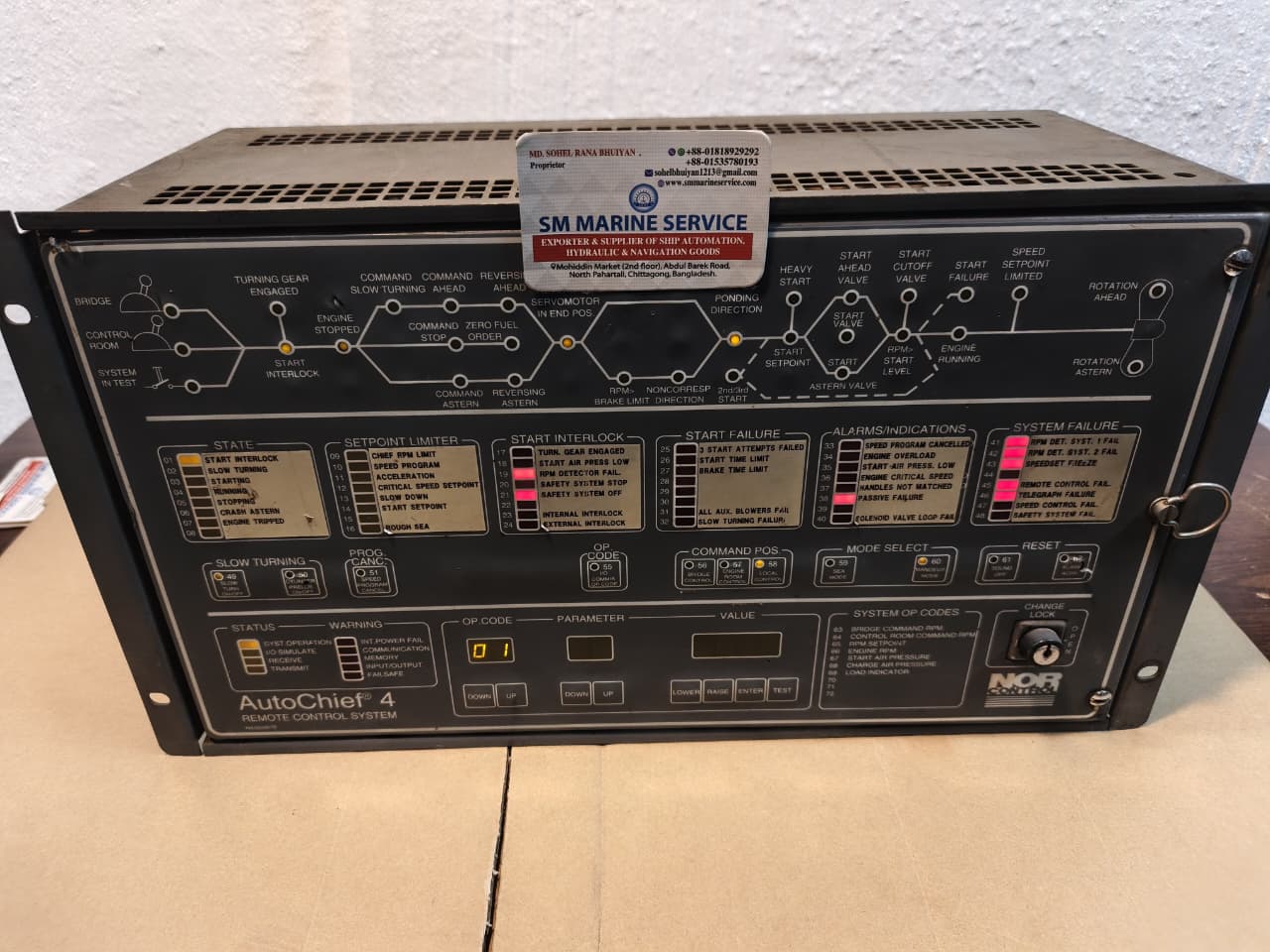

The Nor Control AutoChief 4 (AC4) is one of the most reliable marine main engine remote control systems ever installed on commercial vessels. Designed to provide safe and precise propulsion control, the system enables operators to start, stop, accelerate, decelerate, and monitor the main engine directly from the bridge while maintaining full communication with the engine room.

AutoChief 4 combines electronic control, alarm monitoring, engine protection, and propulsion management into a single integrated platform. It has been widely installed on cargo vessels, tankers, offshore support vessels, container ships, fishing vessels, and specialized marine applications.

Although newer control platforms are available today, thousands of ships continue operating with AutoChief 4 because of its proven reliability, long service life, and excellent spare parts availability.

SM MARINE SERVICE™ supplies New, Used, and Professionally Reconditioned AutoChief 4 Systems, including complete repair, calibration, testing, spare parts, and worldwide shipping.





4

What Is the Nor Control AutoChief 4?

The AutoChief 4 is an integrated electronic remote control system that controls the propulsion engine from various operating stations on board.

It performs functions such as:

• Bridge engine control
• Engine room control
• Engine start and stop
• Ahead/Astern command
• Engine RPM control
• Safety interlocks
• Alarm handling
• Automatic engine protection
• Command transfer between stations
• Continuous monitoring of propulsion status

The system communicates with sensors, actuators, governor systems, and pneumatic or hydraulic control devices to ensure safe engine operation under all conditions.

Main Features

• Fully electronic engine remote control
• Bridge and Engine Control Room operation
• Dual operating station transfer
• Digital RPM indication
• Start air pressure monitoring
• Ahead/Astern command indication
• Engine protection logic
• Safety shutdown functions
• Alarm acknowledgement and reset
• Self-diagnostic capability
• Modular hardware design
• Easy maintenance and troubleshooting
• Reliable marine-grade construction

Main Components

A typical AutoChief 4 installation includes:

• Bridge Operator Panel
• Engine Control Room Panel
• Central Processing Unit (CPU)
• Remote I/O Modules
• Digital Display Units
• Alarm Modules
• Communication Interface
• Engine RPM Interface
• Governor Interface
• Start Air Control Module
• Solenoid Output Modules
• Safety Shutdown Circuits
• Power Supply Unit
• Terminal Boards
• Sensor Interface Modules

Working Principle

The AutoChief 4 continuously receives information from engine sensors, governor systems, telegraph commands, and safety devices.

When the operator selects an RPM or direction from the bridge, the system verifies all safety conditions before transmitting commands to the governor and associated actuators. It supervises engine speed, command position, start air pressure, and other critical parameters in real time.

If an abnormal condition occurs, AutoChief 4 generates alarms and, where necessary, limits or shuts down engine operation to protect machinery and ensure safe vessel operation.

Marine Applications

The AutoChief 4 is widely used on:

• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• Container Ships
• General Cargo Vessels
• Offshore Support Vessels
• Anchor Handling Tug Supply (AHTS) Vessels
• Fishing Vessels
• Ro-Ro Ships
• Passenger Vessels
• Naval Auxiliary Ships

Common Problems & Troubleshooting

Engine Does Not Respond to Bridge Command

Possible causes:

• Communication failure
• Governor interface fault
• Command transfer not completed
• Power supply issue

RPM Display Incorrect

Possible causes:

• Faulty speed sensor
• Wiring problems
• Input module failure

Alarm Panel Continuously Active

Possible causes:

• Active engine fault
• Sensor malfunction
• Faulty alarm module

Start Failure

Possible causes:

• Low start air pressure
• Safety interlock activated
• Solenoid valve failure
• Control output fault

Command Transfer Failure

Possible causes:

• Switch malfunction
• Communication interruption
• CPU or I/O module fault

Maintenance Recommendations

For reliable long-term operation:

• Inspect terminal connections regularly.
• Clean operator panels and displays.
• Test alarm functions periodically.
• Verify RPM indication accuracy.
• Check communication between bridge and engine room.
• Inspect I/O modules for loose wiring.
• Test emergency stop circuits.
• Back up configuration settings before major maintenance.
• Replace defective push buttons, lamps, or display modules when required.

Why Ships Still Use AutoChief 4

Many commercial vessels continue operating with AutoChief 4 because it offers:

• Proven long-term reliability
• Stable propulsion control
• Simple modular architecture
• Easy fault diagnosis
• Worldwide availability of spare parts
• Excellent compatibility with mechanical and electronic governors
• Cost-effective maintenance compared with complete system replacement

Frequently Asked Questions (FAQ)

Can AutoChief 4 still be repaired?

Yes. Most AutoChief 4 systems can be repaired, refurbished, tested, and returned to service by experienced marine automation engineers.

Do you supply spare parts?

Yes. SM MARINE SERVICE™ supplies AutoChief 4 operator panels, CPU modules, I/O cards, display units, alarm modules, power supplies, communication boards, push buttons, and other spare parts.

Is calibration required after repair?

Yes. Functional testing and calibration are recommended after repairs to ensure safe and accurate propulsion control.

Do you supply complete systems?

Yes. We supply complete AutoChief 4 systems as well as individual modules, depending on customer requirements.

Short Product Description

The Nor Control AutoChief 4 (AC4) is a highly reliable marine engine remote control and propulsion automation system that provides accurate bridge control, engine monitoring, safety protection, and alarm management. It remains one of the most trusted remote control platforms installed on commercial ships worldwide.

User Manual & Technical Resources

Available documentation includes:

• Operation Manual
• User Manual
• Service Manual
• Installation Manual
• Commissioning Manual
• Maintenance Manual
• Spare Parts Catalogue
• Electrical Drawings
• Troubleshooting Guide
• Calibration Procedures

SM MARINE SERVICE™

SM MARINE SERVICE™ supplies New, Used, Exchange, and Professionally Reconditioned Nor Control AutoChief 4 systems and marine automation equipment.

Our services include:

• Worldwide Supply
• Repair & Overhaul
• Calibration & Functional Testing
• Genuine & OEM Spare Parts
• Technical Support
• Equipment Sourcing
• Exchange Units
• Fast Worldwide Shipping
