Product Introduction

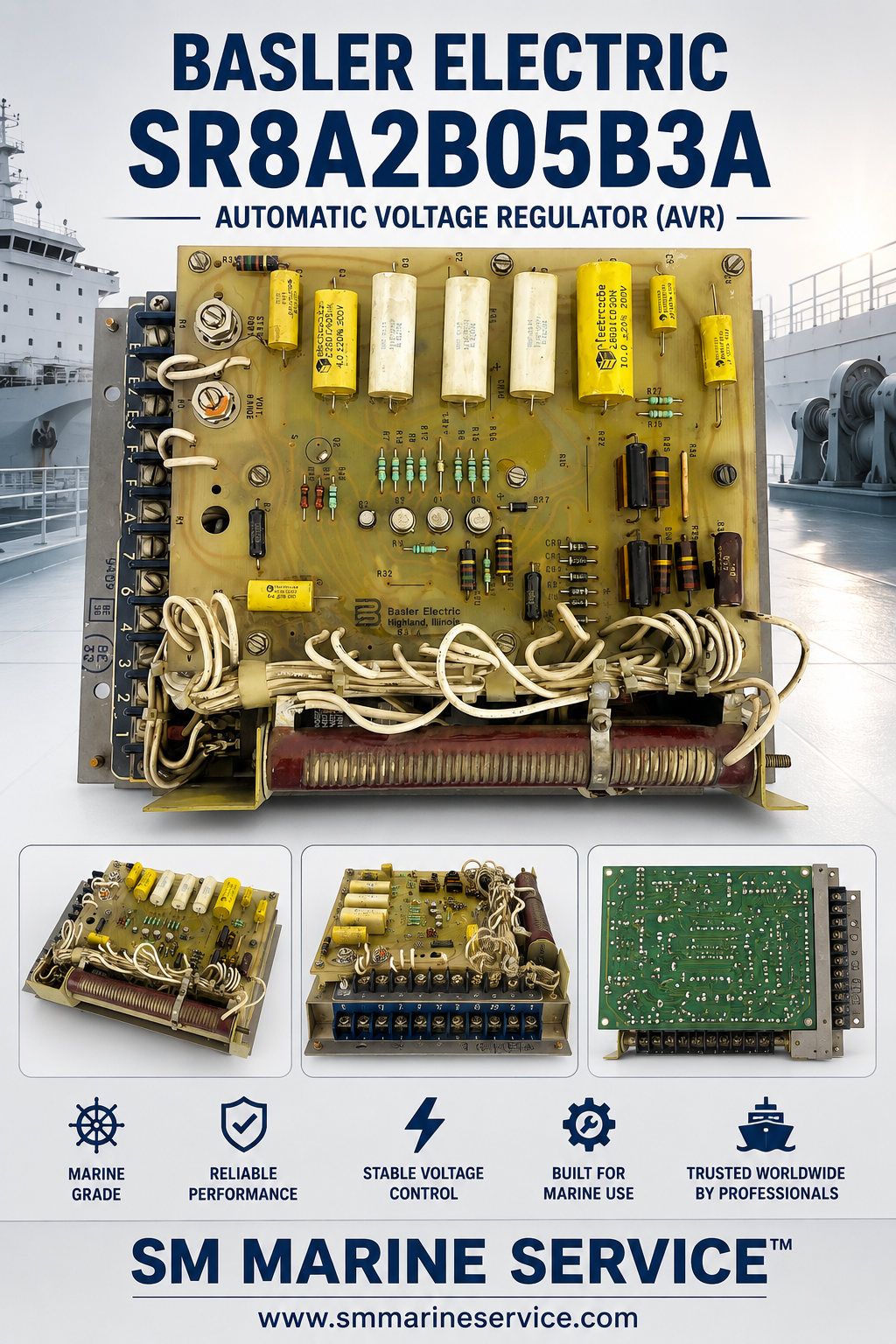

The Basler Electric SR8A2B05B3A Automatic Voltage Regulator (AVR) is a reliable excitation control module designed to maintain stable generator output voltage under varying electrical loads. Basler Electric AVRs have been widely used in marine generators, offshore power systems, emergency generators, industrial alternators, and shipboard electrical distribution systems for decades.

The SR8 series provides precise voltage regulation by automatically controlling the alternator excitation current. This ensures stable voltage output, improves generator performance, and protects sensitive electrical equipment installed on board.

SM MARINE SERVICE™ supplies new, used, and professionally reconditioned Basler Electric SR8 AVR modules, including testing, repair support, and worldwide spare parts supply.

---

What Is the Basler Electric SR8A2B05B3A?

The SR8A2B05B3A is an analog Automatic Voltage Regulator that senses generator terminal voltage and adjusts the field excitation current to keep the output voltage constant.

It continuously monitors generator voltage and compensates for:

• Load changes
• Engine speed fluctuations
• Reactive power variations
• Generator excitation requirements
• Voltage drops during heavy motor starting

Without a properly functioning AVR, a marine generator may produce unstable voltage, causing alarms, equipment damage, or generator trips.

---

Main Features

• High-accuracy voltage regulation
• Stable generator excitation control
• Fast response to load changes
• Rugged industrial construction
• Reliable analog control circuitry
• Suitable for continuous marine operation
• Adjustable output voltage
• Adjustable voltage stability
• Long service life
• Easy maintenance and repair

---

Main Components

The SR8A2B05B3A typically includes:

• Voltage sensing circuit
• Excitation control circuit
• Power resistors
• Precision resistors
• Electrolytic capacitors
• Film capacitors
• Rectifier diodes
• Power transistors
• Voltage adjustment potentiometers
• Terminal block connections
• Field output terminals
• Generator sensing terminals

---

Marine Applications

The Basler SR8 AVR is commonly installed in:

• Main Diesel Generators
• Auxiliary Diesel Generators
• Emergency Generators
• Marine Alternators
• Offshore Power Systems
• Ship Main Switchboards
• Emergency Switchboards
• Cargo Vessel Generator Systems
• Tanker Electrical Systems
• Offshore Platform Power Plants
• Harbor Generator Systems

---

Common Problems & Troubleshooting

Generator Voltage Too High

Possible causes:

• Incorrect AVR adjustment
• Faulty sensing circuit
• Open sensing wire
• Defective potentiometer

Generator Voltage Too Low

Possible causes:

• Weak excitation current
• Damaged AVR components
• Field winding fault
• Low engine RPM

Voltage Fluctuation

Possible causes:

• Aging capacitors
• Loose terminal connections
• Faulty sensing input
• Unstable excitation circuit

No Generator Output

Possible causes:

• Failed AVR
• Open field circuit
• Exciter winding fault
• Loss of residual magnetism

AVR Overheating

Possible causes:

• Overloaded generator
• Poor ventilation
• Shorted excitation circuit
• Internal component failure

---

Maintenance Tips

To maximize AVR life:

• Keep the module dry and clean.
• Inspect terminals regularly.
• Check sensing voltage accuracy.
• Tighten all electrical connections.
• Replace aging capacitors when required.
• Test field resistance periodically.
• Protect the AVR from excessive vibration.
• Verify generator insulation resistance.
• Perform annual calibration.
• Replace damaged electronic components immediately.

---

Why Ships Still Use Basler Electric SR8 AVRs

Many vessels continue operating Basler Electric analog AVRs because they are:

• Extremely reliable
• Easy to repair
• Compatible with older generators
• Simple to calibrate
• Cost-effective compared with full generator upgrades
• Supported by widely available spare parts

For older commercial ships, replacing only the AVR is often much more economical than replacing the entire alternator control system.

---

Frequently Asked Questions (FAQ)

What does the SR8A2B05B3A do?
It regulates generator output voltage by controlling excitation current.

Can this AVR be repaired?
Yes. Many failures involving capacitors, resistors, diodes, and transistors can often be repaired after proper testing.

Is it suitable for marine generators?
Yes. It has been widely used on marine diesel generator systems.

Do you supply used and reconditioned units?
Yes. SM MARINE SERVICE™ supplies new, used, and professionally reconditioned units depending on stock availability.

Can you help identify a replacement?
Yes. If you provide the generator model, AVR model, and nameplate details, we can help identify a compatible replacement.

---

Short Product Description

The Basler Electric SR8A2B05B3A Automatic Voltage Regulator is a dependable analog AVR used for marine and industrial generator voltage regulation. It provides accurate excitation control, stable generator output, and reliable long-term operation. SM MARINE SERVICE™ offers worldwide supply, repair support, testing, and spare parts for Basler Electric AVR modules.

---

User Manual & Technical Resources

Recommended technical documents include:

• Basler Electric SR8 Series Installation Manual
• Basler Electric AVR Wiring Diagram
• Basler Electric Generator Excitation Guide
• Basler Electric AVR Adjustment & Calibration Manual
• Basler Electric Troubleshooting Guide

---
