FOXBORO FBM237 RH914XS Channel Isolated Redundant Ready 8 Output 0-20mA Module

INTRODUCTION

The FOXBORO FBM237 RH914XS is a Channel Isolated, Redundant Ready Analog Output Fieldbus Module designed for the FOXBORO I/A Series Distributed Control System (DCS). This advanced module provides eight independently isolated analog output channels capable of transmitting 0-20mA signals to control valves, actuators, drives, dampers, process controllers, and various field instruments.

The FBM237 plays a critical role in industrial process automation where accurate analog output signals are required to control physical equipment based on commands generated by the control system. In marine applications, these modules are widely used within engine monitoring systems, power management systems, cargo control systems, ballast control systems, boiler automation systems, fuel management systems, and integrated ship automation systems.

For vessel operators, offshore operators, and industrial facilities, the reliability of analog output modules directly affects process stability, safety, and operational efficiency. The FBM237 is specifically designed to provide high availability through redundant-ready architecture and channel isolation, making it suitable for critical control applications.

SM MARINE SERVICE™ supplies New, Used, and Reconditioned FOXBORO FBM237 modules with worldwide shipping and technical support.

---

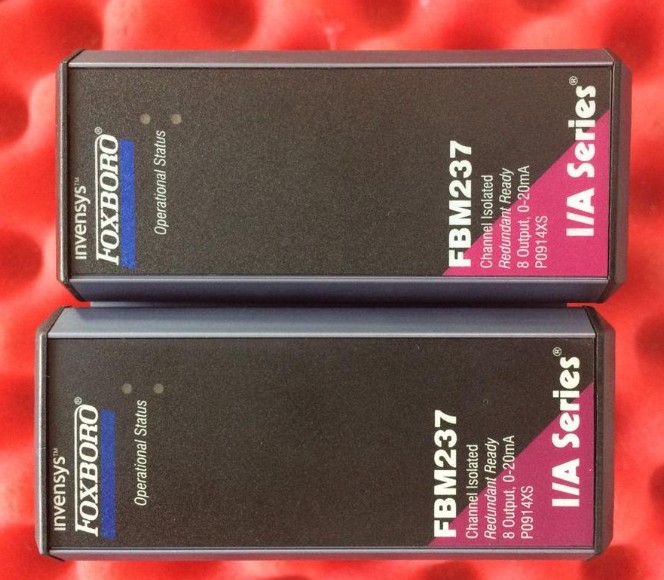

FOXBORO FBM237 RH914XS Module

PRODUCT OVERVIEW

Manufacturer: Foxboro

Current Brand Owner: Schneider Electric

Series: I/A Series

Model: FBM237

Part Number: RH914XS

Product Type: Channel Isolated Analog Output Module

Output Channels: 8 Channels

Output Signal: 0-20mA

Redundancy Support: Redundant Ready

Application: Distributed Control System (DCS)

Industry: Marine, Offshore, Oil & Gas, Power Plants, Process Industries

The FBM237 functions as an interface between the DCS controller and field devices. It converts digital control commands into analog current outputs that can be used to regulate process equipment.

Each output channel is electrically isolated, improving system reliability and protecting the control system from electrical disturbances occurring in field wiring.

The module is designed for installation within the FOXBORO I/A Series automation platform and supports high-performance process control applications requiring dependable analog output functionality.

SM MARINE SERVICE™ regularly supports marine customers requiring replacement FOXBORO I/A Series modules and automation spare parts.

KEY FEATURES

Eight Independent Analog Outputs

The FBM237 provides eight isolated analog output channels. Each channel can independently generate process control signals for connected devices.

Channel Isolation Technology

Electrical isolation between channels minimizes the risk of signal interference and prevents fault propagation throughout the system.

Redundant Ready Architecture

The module supports redundant control configurations, helping ensure continuous operation during maintenance activities or component failures.

High Reliability Design

FOXBORO designed the FBM237 for critical process control applications where operational continuity is essential.

Seamless DCS Integration

The module integrates directly into the FOXBORO I/A Series platform, enabling centralized process monitoring and control.

Industrial Grade Construction

Built for demanding environments, the FBM237 is commonly used in marine engine rooms, offshore facilities, power plants, and industrial automation installations.

---

FOXBORO I/A Series Automation System

TECHNICAL SPECIFICATIONS

Specifications may vary depending on system revision and configuration.

APPLICATIONS

The FOXBORO FBM237 is widely used in marine and industrial control systems.

Container Ships

Used within integrated ship automation systems for machinery control and monitoring.

Bulk Carriers

Supports engine room automation and auxiliary equipment control.

Oil Tankers

Integrated into cargo control systems, tank automation systems, and process monitoring systems.

Chemical Tankers

Provides analog output signals for pumps, valves, and cargo handling systems.

LNG Carriers

Used in gas handling automation and safety-critical process control applications.

LPG Carriers

Supports pressure control systems, valve automation, and cargo management systems.

Offshore Vessels

Applied in power management systems, machinery automation systems, and utility process control systems.

Passenger Ships

Used within HVAC systems, power generation systems, and integrated automation platforms.

Research Vessels

Supports specialized laboratory and process control systems.

Fishing Vessels

Used in machinery automation and auxiliary system monitoring.

The FBM237 can also interface with:

• Power Management Systems (PMS)
• Engine Monitoring Systems
• Boiler Control Systems
• Cargo Monitoring Systems
• Tank Gauging Systems
• Fuel Management Systems
• Ballast Water Systems
• Marine Alarm Monitoring Systems

---

Marine Automation Applications

SPARE PARTS SUPPORT

SM MARINE SERVICE™ provides supply and sourcing support for:

• FOXBORO FBM237 Modules
• FOXBORO I/A Series Modules
• Processor Modules
• Communication Modules
• Analog Input Modules
• Analog Output Modules
• Digital Input Modules
• Digital Output Modules
• Termination Assemblies
• Power Supply Modules
• Control Processors
• Communication Interfaces
• DCS Racks and Accessories

Both New and Reconditioned units are available depending on customer requirements and budget.

REPAIR AND TECHNICAL SERVICES

SM MARINE SERVICE™ offers comprehensive support services for FOXBORO automation systems including:

• FBM237 Repair
• DCS Module Troubleshooting
• Analog Output Calibration
• Functional Testing
• Communication Testing
• Bench Testing
• Electronic Board Repair
• Component Level Repair
• Fault Diagnosis
• Preventive Maintenance
• System Upgrade Support
• Technical Consultation

Common FBM237 issues include:

• Output Signal Failure
• Communication Errors
• Channel Fault Alarms
• Isolation Faults
• Power Supply Issues
• DCS Communication Problems
• Intermittent Output Signals

Our technical team can evaluate, repair, test, and verify module performance before delivery.

WHY CHOOSE SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office

Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse and Support Center

Shanghai, China

SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.

We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.

Website : https://www.smmarineservice.com

Email : info@smmarineservice.com

WhatsApp and Viber : +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

Mobile WhatsApp and Viber : +8801730296909

CONCLUSION

The FOXBORO FBM237 RH914XS Channel Isolated Redundant Ready 8 Output 0-20mA Module is a highly reliable and proven component of the FOXBORO I/A Series Distributed Control System platform. Its channel isolation, redundancy capability, and robust industrial design make it suitable for critical marine, offshore, and industrial automation applications.

For customers seeking FOXBORO FBM237 supply, repair, troubleshooting, calibration, testing, spare parts, or technical support, SM MARINE SERVICE™ provides complete worldwide solutions. Whether you require New, Used, or Reconditioned FOXBORO modules, our engineering and supply team is ready to support your operational requirements with fast response and professional service.

-

+
