INTRODUCTION

The ABB REM615E_1G HBMBCAAJABC1BNN11G is a member of the ABB Relion® 615 protection relay family designed for motor protection, motor control, supervision, and feeder management applications. This intelligent electronic device provides advanced protection functions for medium and low-voltage motors operating in industrial plants, offshore platforms, power stations, and marine vessels.

Modern vessels depend heavily on electric motors for critical operations including seawater cooling pumps, ballast pumps, fuel transfer pumps, hydraulic power units, cargo pumps, compressors, ventilation systems, steering gear auxiliaries, and engine room machinery. A failure in any of these motors can result in operational disruption, increased maintenance costs, and potential safety risks.

The ABB REM615 relay continuously monitors motor operating conditions and provides comprehensive protection against overload, short circuit, earth fault, phase imbalance, stalled rotor conditions, thermal damage, and abnormal operating situations. By detecting faults at an early stage, the relay helps ship operators avoid expensive motor failures and unplanned downtime.

SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment for ABB Relion protection systems including REM615 relays, spare parts, repair services, calibration, testing, and technical support.

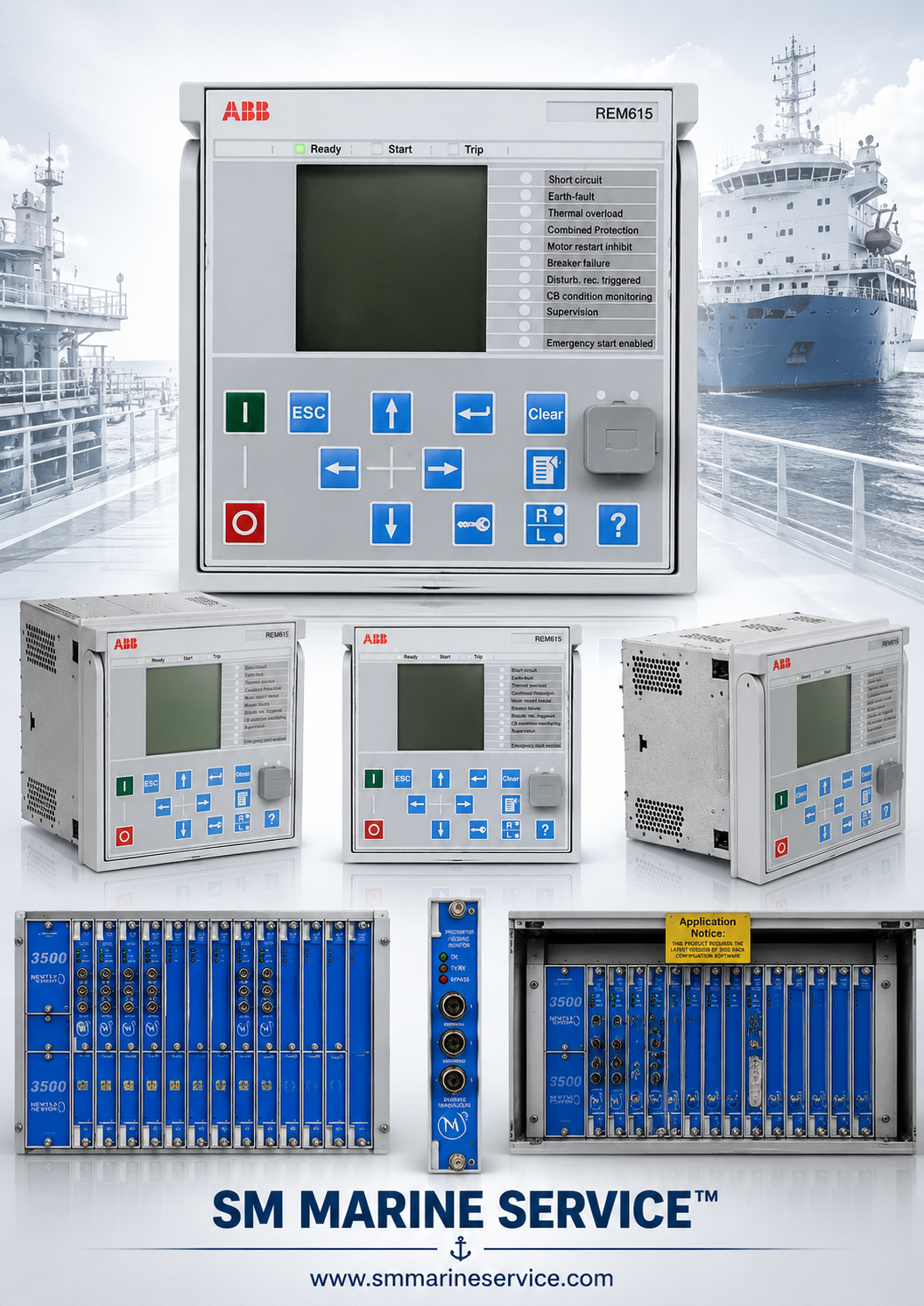

PRODUCT IMAGES

4

PRODUCT OVERVIEW

The ABB REM615 is a dedicated motor protection and control relay engineered to protect and manage asynchronous motors and associated equipment. It combines protection, measurement, monitoring, diagnostics, and control functions into a single compact unit.

The relay is built on ABB's Relion 615 platform, which is widely used in utility, industrial, offshore, and marine power systems. The REM615 supports IEC 61850 communication and can be integrated into modern automation systems, power management systems, and SCADA networks.

Key functions include:

• Motor thermal overload protection
• Short-circuit protection
• Earth fault protection
• Stall protection
• Underload protection
• Phase imbalance protection
• Motor starting supervision
• Circuit breaker monitoring
• Event recording
• Fault diagnostics
• Communication and remote monitoring

The relay helps ensure reliable motor operation while reducing maintenance costs and improving equipment availability.

SM MARINE SERVICE™ supports sourcing, replacement, repair, calibration, testing, and troubleshooting of ABB REM615 relays worldwide.

PRODUCT IMAGES

4

KEY FEATURES

Advanced Motor Protection

The REM615 continuously monitors motor operating conditions and protects against overload, overheating, phase failure, phase imbalance, locked rotor conditions, and other damaging situations. This protection significantly extends motor service life and improves operational reliability.

Intelligent Fault Detection

The relay detects electrical faults quickly and accurately. Rapid fault detection minimizes equipment damage and allows corrective action before major failures occur.

Integrated Motor Control

In addition to protection functions, the relay supports motor control operations, enabling start, stop, supervision, and remote control functionality through automation systems.

User-Friendly Human Machine Interface

The front-panel display provides clear status information, fault records, measurements, alarm indications, and configuration access. Engineers can easily diagnose and monitor motor performance directly from the relay.

Communication Capabilities

The relay supports modern communication protocols allowing integration with:

• Power Management Systems (PMS)
• SCADA Systems
• Distributed Control Systems (DCS)
• Marine Automation Systems
• Ship Energy Management Systems

Event Recording and Diagnostics

The relay records fault events, disturbances, alarms, and operational data, providing valuable information for maintenance planning and troubleshooting.

PRODUCT IMAGES

4

TECHNICAL SPECIFICATIONS

Actual specifications may vary depending on hardware configuration and firmware version.

APPLICATIONS

Container Ships

Protects cargo handling motors, cooling pumps, ventilation fans, and auxiliary machinery.

Bulk Carriers

Used in ballast systems, cargo handling equipment, and engine room motor control applications.

Oil Tankers

Provides protection for cargo pumps, transfer pumps, ventilation systems, and auxiliary equipment.

Chemical Tankers

Supports critical pumping systems and hazardous-area electrical installations.

LNG Carriers

Protects compressors, cargo handling systems, and cryogenic support equipment.

LPG Carriers

Used for motor protection in cargo processing and pumping systems.

Offshore Vessels

Monitors motors associated with drilling, pumping, hydraulic, and power generation systems.

Passenger Ships

Protects hotel load equipment, HVAC systems, water pumps, and emergency support systems.

Research Vessels

Provides reliable protection for scientific and operational electrical equipment.

Fishing Vessels

Used for refrigeration compressors, winches, pumps, and processing equipment.

The REM615 can also interface with ship automation systems, engine monitoring systems, power management systems, switchboards, and vessel-wide electrical control networks.

PRODUCT IMAGES

4

SPARE PARTS SUPPORT

SM MARINE SERVICE™ provides comprehensive spare parts support for ABB Relion protection systems including:

• REM615 Relays
• Display Modules
• Communication Modules
• Power Supply Components
• Input and Output Modules
• Front Panel Assemblies
• Terminal Blocks
• Firmware Support
• Relay Accessories
• Replacement Units

Both New Equipment and Reconditioned Equipment are available according to customer requirements and budget.

REPAIR AND TECHNICAL SERVICES

SM MARINE SERVICE™ offers:

• ABB REM615 Repair
• Protection Relay Troubleshooting
• Relay Calibration
• Functional Testing
• Communication Diagnostics
• Firmware Support
• Relay Configuration Assistance
• Electrical Protection System Inspection
• Workshop Testing
• Emergency Spare Supply
• Technical Consultation
• Worldwide Marine Support

Our engineering team supports marine, offshore, industrial, and power generation customers worldwide.

WHY CHOOSE SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office

Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse and Support Center

Shanghai, China

SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.

We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.

Website : https://www.smmarineservice.com

Email : info@smmarineservice.com

WhatsApp and Viber : +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

Mobile WhatsApp and Viber : +8801730296909

USER MANUAL AND TECHNICAL DOCUMENTATION

Official ABB REM615 documentation, user manuals, engineering guides, installation manuals, and technical references are available from:

ABB Relion Protection and Control Relays Documentation

CONCLUSION

The ABB REM615E_1G HBMBCAAJABC1BNN11G Motor Protection and Control Relay is a highly reliable and intelligent protection solution designed to safeguard critical motors in marine, offshore, industrial, and power generation environments. Its advanced protection functions, communication capabilities, fault diagnostics, and motor management features make it an essential component of modern electrical systems.

For ABB REM615 supply, spare parts, repair, calibration, troubleshooting, replacement units, and technical support, contact SM MARINE SERVICE™. We provide worldwide delivery of New Equipment and Reconditioned Equipment, ensuring reliable and cost-effective solutions for ship owners, operators, shipyards, and marine engineering companies.
