Oil Mist Detector
Schaller Automation GmbH & Co. KG
Refurbished

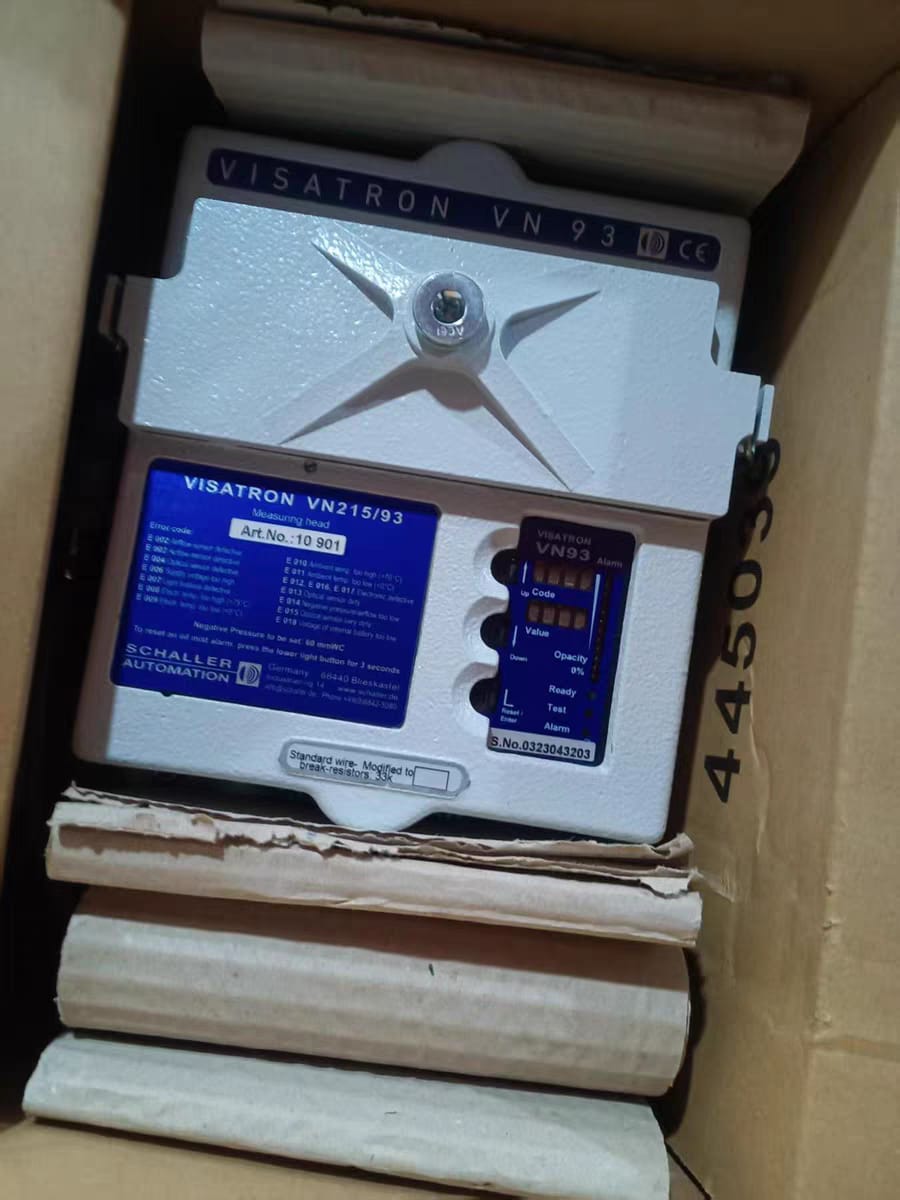

The VISATRON VN215/93 Oil Mist Detector (OMD) is one of the most widely recognized marine engine safety systems used onboard commercial vessels and power generation installations. Manufactured by Schaller Automation, the VN215/93 is specifically designed to monitor crankcase oil mist concentrations and provide early warning of dangerous conditions that could lead to crankcase explosions and severe engine damage.
The primary purpose of the VISATRON VN215/93 is to continuously sample air from individual crankcase compartments and detect abnormal oil mist generation caused by overheating bearings, piston failures, lubrication issues, mechanical friction, or other developing engine faults. When excessive oil mist is detected, the system activates alarms and protective actions, allowing engineers to investigate the problem before catastrophic damage occurs.
For ship operators, this equipment plays a critical role in engine room safety, crew protection, machinery reliability, and regulatory compliance. The VN215/93 is widely installed on slow-speed and medium-speed marine diesel engines operating on container ships, bulk carriers, tankers, LNG carriers, LPG carriers, offshore vessels, and other commercial vessels worldwide.
SM MARINE SERVICE™ supplies New, Used, and Reconditioned VISATRON VN215/93 units along with spare parts, repair services, troubleshooting support, calibration, and worldwide delivery solutions.
The VISATRON VN215/93 belongs to the VISATRON VN93 series of Oil Mist Detectors developed by Schaller Automation. Unlike simpler oil mist monitoring systems, the VN215/93 uses an individual compartment suction pipe arrangement that enables identification of the specific crankcase compartment with the highest oil mist concentration. This significantly reduces troubleshooting time during alarm conditions.
The system continuously extracts crankcase atmosphere through a wear-free suction system and analyzes the opacity of the sampled air using an optical measuring track. By monitoring oil mist concentration in real time, the detector can identify abnormal conditions long before an explosion hazard develops.
The VISATRON VN215/93 is particularly suitable for large crosshead marine diesel engines where oil mist may spread slowly from the damaged compartment. The detector's high sensitivity allows accurate localization of potential failures, helping engineers take corrective action before major machinery damage occurs.
The complete system generally consists of:
One of the most important features of the VN215/93 is its ability to identify the specific compartment with the highest oil mist concentration. This enables rapid fault localization and significantly reduces engine troubleshooting time.
The VN215/93 offers the highest sensitivity within the VN93 product family. It is specifically engineered for medium-speed and slow-speed crosshead engines where early detection of oil mist is critical.
Unlike passive monitoring systems, the VISATRON VN215/93 continuously extracts crankcase atmosphere using a suction system. This active monitoring method improves response times and enhances safety performance.
The system measures oil mist concentration using an optical opacity measurement principle. This proven technology provides reliable detection of dangerous oil mist accumulation inside engine crankcases.
The detector provides Oil Mist Alarm outputs, Pre-Alarm outputs, and Ready signals, allowing direct integration with engine safety systems and ship automation platforms.
Special suction funnels, drainage arrangements, and integrated heating elements help prevent false alarms caused by splash oil, water condensation, and vessel motion.
| Parameter | Specification |
|---|---|
| Manufacturer | Schaller Automation |
| Model | VISATRON VN215/93 |
| Product Type | Oil Mist Detector (OMD) |
| Application | Marine Diesel Engine Protection |
| Monitoring Method | Individual Compartment Sampling |
| Detection Principle | Optical Opacity Measurement |
| Engine Type | Medium-Speed and Slow-Speed Engines |
| Power Supply | 24V DC |
| Alarm Outputs | Main Alarm, Pre-Alarm, Ready Signal |
| Communication Option | RS485 Interface Available |
| Installation Area | Engine Crankcase Monitoring |
| Industry Standard | IACS UR M10 Compliance |
Technical specifications may vary depending on configuration and vessel installation requirements.
The VISATRON VN215/93 Oil Mist Detector is used across a wide range of commercial and industrial marine applications.
Provides continuous crankcase monitoring for large low-speed propulsion engines operating on international container routes.
Protects main engines during long-distance bulk cargo transportation and heavy operational cycles.
Ensures safe engine operation where machinery reliability and safety compliance are essential.
Supports high safety standards by monitoring engine conditions and reducing the risk of machinery incidents.
Used on offshore support vessels, drilling units, and specialized marine platforms requiring continuous engine protection.
Enhances machinery safety and operational reliability for passenger transportation services.
Protects critical propulsion systems used in scientific and oceanographic operations.
Provides early warning of developing engine problems and helps reduce unplanned downtime.
In modern engine rooms, the VN215/93 often operates alongside Engine Monitoring Systems, Radar, ECDIS, AIS, Gyro Compass, Autopilot, VDR, BNWAS, GPS, Satellite Compass, Navtex, Inmarsat, GMDSS equipment, Boiler Control Systems, and Fire Alarm Systems as part of an integrated marine automation environment.
SM MARINE SERVICE™ supplies a complete range of VISATRON VN215/93 spare parts including:
Original, OEM-equivalent, refurbished, and exchange units are available depending on customer requirements and budget.
SM MARINE SERVICE™ provides professional support for:
Our technical team supports both routine maintenance and emergency troubleshooting for marine automation and engine monitoring equipment.
Official VISATRON VN93 Series Operation Manual:
VISATRON VN93 Operation Manual PDF
Additional Spare Parts Information:
VISATRON Spare Parts Catalogue
SM MARINE SERVICE™
Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
China Warehouse and Support Center
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : www.smmarineservice.com
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
The VISATRON VN215/93 Oil Mist Detector remains one of the most trusted crankcase monitoring and engine protection systems used on marine diesel engines worldwide. Its high sensitivity, compartment identification capability, continuous sampling technology, and proven reliability make it an essential safety device for modern vessels. Whether you require a new unit, reconditioned equipment, spare parts, repair services, calibration support, troubleshooting assistance, or technical consultation, SM MARINE SERVICE™ is ready to provide complete worldwide support for the VISATRON VN215/93 and other marine automation, engine monitoring, navigation, and safety systems. Contact SM MARINE SERVICE™ today for stock availability, quotations, technical support, and global delivery solutions.
