Introduction

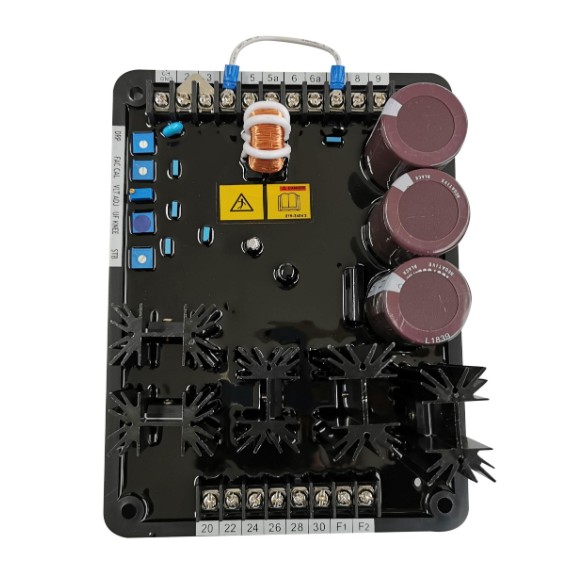

The Caterpillar VR6 Automatic Voltage Regulator is a highly reliable generator excitation and voltage control device used in Caterpillar power generation systems. The VR6 AVR continuously monitors generator output voltage and automatically adjusts excitation current to maintain a stable and accurate output voltage under varying electrical loads.

Marine vessels, offshore platforms, industrial power plants, emergency generators, and auxiliary diesel generator sets frequently utilize the Caterpillar VR6 AVR due to its robust performance, excellent voltage regulation characteristics, and compatibility with Caterpillar generator systems.

SM MARINE SERVICE™ supplies new, used, and reconditioned Caterpillar VR6 Automatic Voltage Regulators for marine and industrial applications worldwide.

---

What is the Caterpillar VR6 Automatic Voltage Regulator?

The VR6 AVR is an electronic control unit responsible for maintaining generator terminal voltage at a predetermined level. It continuously compares actual generator voltage with the reference setting and adjusts field excitation accordingly.

When electrical loads increase or decrease, the VR6 responds immediately by controlling excitation current supplied to the generator rotor field winding. This action maintains stable voltage output and ensures safe operation of connected equipment.

The regulator is commonly installed in Caterpillar diesel generator systems operating in:

Marine vessels

Offshore support vessels

Cargo ships

Tankers

Passenger vessels

Power stations

Industrial facilities

Emergency power systems

---

Key Features of Caterpillar VR6 AVR

The Caterpillar VR6 Automatic Voltage Regulator offers several advanced operational benefits:

High-precision voltage regulation

Fast response to load variations

Stable generator performance

Built-in excitation control

Over-excitation protection

Reliable operation under harsh environments

Suitable for PMG excited generator systems

Easy adjustment and calibration

Long service life

Compact installation design

Compatibility with Caterpillar generator sets

Excellent transient load handling capability

SM MARINE SERVICE™ provides technical support and troubleshooting assistance for Caterpillar generator AVR systems.

---

Main Components of VR6 AVR

The regulator contains several critical electronic sections that work together to control generator voltage:

Voltage sensing circuit

Reference voltage adjustment circuit

Excitation control module

Power semiconductor section

Current limiting circuit

Protection circuitry

Frequency compensation section

Terminal connection block

Heat sink assembly

Adjustment potentiometers

These components ensure accurate voltage regulation and long-term operational stability.

---

Working Principle

The VR6 AVR operates through a closed-loop control system.

Generator output voltage is continuously monitored through sensing inputs connected to the generator terminals.

The AVR compares the measured voltage against a preset reference value.

If generator voltage falls below the desired level:

The AVR increases excitation current.

Generator magnetic field strength increases.

Generator output voltage rises.

If generator voltage exceeds the desired level:

The AVR reduces excitation current.

Generator field strength decreases.

Generator voltage returns to the set value.

This continuous correction process allows stable generator operation under changing load conditions.

---

Technical Characteristics

Typical VR6 AVR functions include:

Voltage sensing input

PMG excitation compatibility

Single-phase sensing capability

Three-phase generator support

Current transformer input

Voltage adjustment function

Droop compensation

Over-excitation limitation

Frequency roll-off protection

Transient response optimization

Field flashing capability

Actual specifications may vary depending on generator configuration and serial version.

---

Marine Applications

The Caterpillar VR6 AVR is widely used in:

Main ship generators

Auxiliary diesel generators

Emergency generators

Offshore platform generators

Harbor power systems

Shipboard power management systems

Marine electrical distribution systems

Industrial standby power generators

Power plant generator sets

The unit plays a vital role in maintaining stable power quality for sensitive marine equipment and automation systems.

---

Common Faults and Troubleshooting

No Generator Voltage Output

Possible Causes:

Loss of residual magnetism

AVR failure

Broken excitation circuit

Incorrect wiring

Loose terminals

Generator Voltage Too High

Possible Causes:

Incorrect AVR adjustment

Faulty sensing circuit

Reference voltage error

Defective AVR components

Generator Voltage Too Low

Possible Causes:

Insufficient excitation current

Field winding problem

Voltage sensing fault

Generator rotor issue

Unstable Voltage

Possible Causes:

Loose wiring

Faulty potentiometer

Damaged sensing circuit

Generator speed fluctuation

SM MARINE SERVICE™ provides testing, repair, calibration, and replacement services for faulty AVR units.

---

Maintenance Recommendations

Proper maintenance improves AVR reliability and generator performance.

Recommended maintenance procedures include:

Inspect terminal connections regularly

Clean dust and contamination

Check sensing voltage wiring

Verify excitation circuit integrity

Perform voltage calibration checks

Inspect heat sink condition

Check generator grounding system

Conduct insulation resistance testing

Verify generator frequency stability

Replace damaged components immediately

Periodic inspection reduces unexpected generator failures and operational downtime.

---

Advantages of Using Caterpillar VR6 AVR

Stable generator voltage

Improved electrical equipment protection

Enhanced generator reliability

Reduced voltage fluctuations

Quick response to load changes

Lower maintenance requirements

Extended generator service life

Reliable marine operation

Better power quality

Improved system efficiency

---

Why the VR6 AVR Remains Popular

Despite the availability of newer digital regulators, many marine operators continue using the Caterpillar VR6 because of its proven reliability, robust construction, ease of maintenance, and long service record aboard vessels worldwide.

Its compatibility with Caterpillar generator systems and dependable voltage control performance make it a preferred choice for many ship owners and marine engineers.

SM MARINE SERVICE™ continues to support customers requiring replacement units, spare parts, repair services, and technical assistance for Caterpillar VR6 AVR systems.

---

Frequently Asked Questions (FAQ)

What is the function of the Caterpillar VR6 AVR?

The VR6 AVR automatically controls generator excitation to maintain stable output voltage.

Is the VR6 suitable for marine generators?

Yes. The VR6 is widely used in marine diesel generator applications.

Can the VR6 AVR be repaired?

Yes. Many common failures can be repaired through component-level diagnostics and testing.

Does SM MARINE SERVICE™ supply replacement VR6 units?

Yes. New, used, and reconditioned units may be available depending on stock status.

Can the AVR be calibrated after repair?

Yes. Calibration and testing are recommended after any repair or replacement work.

---

User Manual and Technical Resources

Available upon request:

Caterpillar VR6 User Manual

Caterpillar VR6 Service Manual

Caterpillar VR6 Installation Guide

Caterpillar VR6 Wiring Diagram

Caterpillar VR6 Calibration Procedure

Caterpillar Generator AVR Troubleshooting Guide

Technical support and document sourcing assistance are available through SM MARINE SERVICE™.

---

Short Product Description

The Caterpillar VR6 Automatic Voltage Regulator is a dependable generator excitation and voltage control module designed for Caterpillar power generation systems. It provides accurate voltage regulation, rapid load response, and stable generator operation in demanding marine and industrial environments. The VR6 remains a trusted solution for maintaining power quality and generator reliability worldwide.

---
