Echo Sounder
Japan Radio Co., Ltd. (JRC)
Refurbished

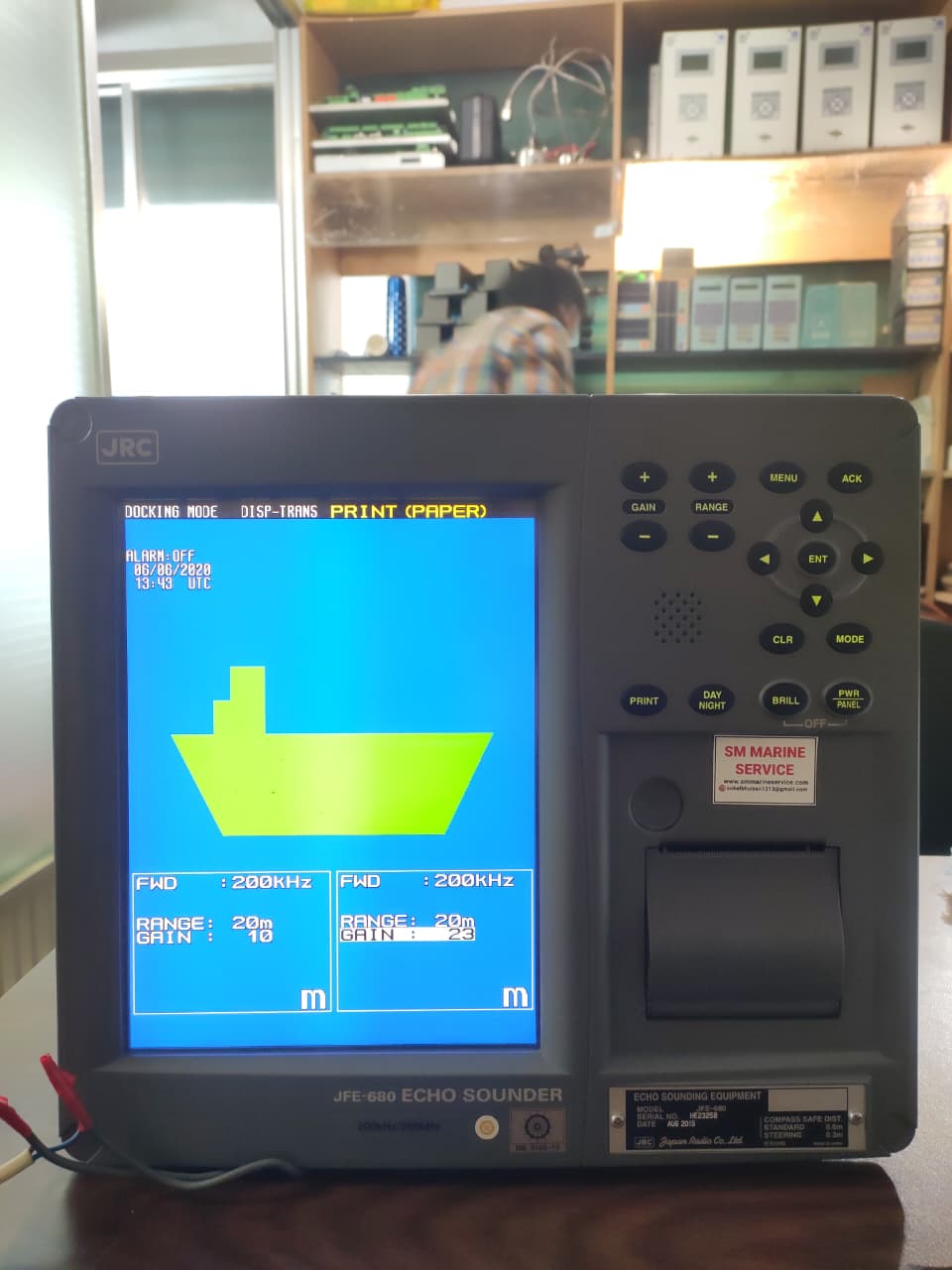

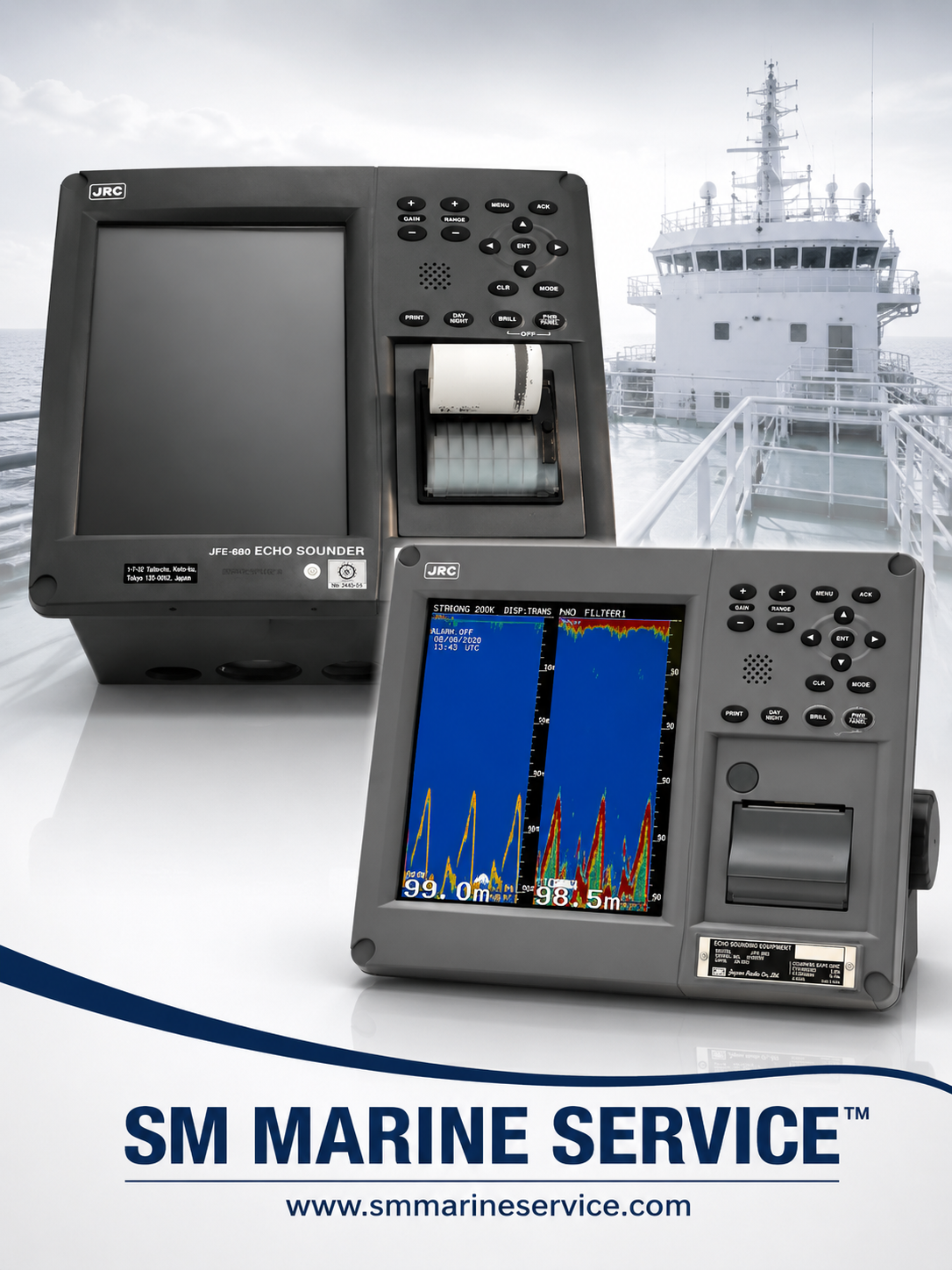

The JRC JFE-680 Navigational Echo Sounder is a professional marine depth measurement system designed to provide continuous and accurate under-keel clearance information for safe vessel navigation. Manufactured by Japan Radio Co. (JRC), the JFE-680 is widely recognized throughout the maritime industry for its reliability, accuracy, and long service life.
An echo sounder is one of the most critical navigational instruments onboard a vessel. It continuously measures the depth of water beneath the ship by transmitting acoustic signals and analyzing the returning echoes from the seabed. This information helps bridge officers navigate safely in coastal waters, harbors, rivers, channels, and shallow operating areas.
The JRC JFE-680 plays an important role in preventing groundings, improving navigational safety, supporting pilotage operations, and ensuring compliance with international maritime navigation requirements. When integrated with Radar, ECDIS, AIS, GPS, Gyro Compass, Autopilot, VDR, BNWAS, and Integrated Bridge Systems, the echo sounder becomes an essential part of a vessel's overall navigation infrastructure.
For shipowners and fleet managers, the JRC JFE-680 provides dependable depth information that improves operational safety and minimizes navigation risks.
The JRC JFE-680 is a navigational echo sounding system developed specifically for commercial marine applications. The unit continuously monitors water depth beneath the vessel and displays real-time sounding information on its integrated display panel.
The system generally consists of:
The JFE-680 uses advanced ultrasonic technology to transmit acoustic pulses toward the seabed. The system calculates water depth based on the time required for the sound signal to return from the bottom surface.
The measured depth data can be displayed numerically, graphically, and recorded for navigational reference. Many installations are also connected to Voyage Data Recorders (VDR), ECDIS systems, and Integrated Bridge Systems for comprehensive navigation data management.
The JRC JFE-680 has been installed on thousands of vessels worldwide and continues to be a preferred solution for shipowners seeking dependable depth monitoring equipment.
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on vessel requirements and budget.
The JRC JFE-680 provides precise depth readings that assist bridge officers in maintaining safe under-keel clearance during navigation in shallow waters, ports, rivers, and restricted channels.
Continuous depth monitoring allows officers to react immediately to changing seabed conditions and navigation hazards.
Many JRC echo sounding systems support different operating frequencies, allowing enhanced seabed detection performance under varying environmental conditions.
The system includes configurable shallow-water and deep-water alarms that alert operators when depth conditions exceed predefined limits.
The JFE-680 presents sounding information in both graphical and numerical formats, making interpretation quick and efficient during navigation.
The integrated recording system enables historical depth tracking and operational documentation for navigational review purposes.
Designed specifically for harsh maritime environments, the JFE-680 provides long-term operational reliability under demanding onboard conditions.
The system can interface with:
This integration improves navigation awareness and operational efficiency.
| Parameter | Specification |
|---|---|
| Model | JFE-680 |
| Manufacturer | Japan Radio Co. (JRC) |
| Product Type | Navigational Echo Sounder |
| Function | Water Depth Measurement |
| Display Type | Graphic LCD Display |
| Recording Function | Integrated Printer Recording |
| Alarm Function | Shallow and Deep Water Alarm |
| Transducer Type | Ultrasonic Marine Transducer |
| Installation Location | Navigation Bridge |
| Application | Commercial Marine Vessels |
| Interface Capability | Navigation System Integration |
| Compliance | IMO / SOLAS Navigation Standards |
Actual specifications may vary depending on software version, vessel configuration, and transducer arrangement.
The JRC JFE-680 Echo Sounder is widely installed onboard numerous vessel types.
Provides continuous depth monitoring during international cargo transportation and port approaches.
Supports safe navigation in rivers, terminals, and shallow loading areas.
Helps maintain safe under-keel clearance during tanker operations.
Provides accurate depth information during navigation in restricted waterways.
Supports safe vessel movement in LNG terminals and coastal waters.
Ensures reliable depth monitoring during cargo operations and navigation.
Widely used onboard offshore support vessels, anchor handlers, and construction vessels.
Supports passenger safety through accurate navigation information.
Provides seabed depth information during survey and scientific operations.
Assists fishing vessel operators in monitoring water depth and seabed conditions.
The JRC JFE-680 commonly operates alongside:
SM MARINE SERVICE™ provides comprehensive spare parts support for JRC JFE-680 systems including:
Both genuine and reconditioned spare parts are available according to customer requirements and budget considerations.
SM MARINE SERVICE™ offers complete support services for JRC JFE-680 Echo Sounder systems including:
Our marine electronics specialists support shipowners, ship managers, shipyards, offshore operators, and marine service companies worldwide.
SM MARINE SERVICE™
Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
China Warehouse and Support Center
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : https://www.smmarineservice.com
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
JRC JFE-680 operation manuals, installation guides, maintenance manuals, troubleshooting documentation, spare parts identification support, and technical references may be available depending on equipment version and configuration. Customers may contact SM MARINE SERVICE™ for documentation support, spare parts identification, and technical consultation.
The JRC JFE-680 Navigational Echo Sounder remains one of the most trusted depth measurement systems used throughout the global maritime industry. Its proven reliability, accurate depth monitoring, alarm functions, and seamless integration with Radar, ECDIS, AIS, GPS, Gyro Compass, VDR, and Integrated Bridge Systems make it an essential navigation instrument onboard commercial vessels.
Whether you require supply, repair, calibration, spare parts, troubleshooting support, reconditioned replacement units, or complete technical assistance for the JRC JFE-680 Echo Sounder, SM MARINE SERVICE™ is ready to provide professional worldwide marine service solutions tailored to your operational requirements.
